LP20 series there are many poles can choose. Widely used in power and signal.
Brand:
OLINKItem no.:
LP20Payment:
Wire transfer, PayPal, Western Union, AlipayProduct origin:
ChinaColor:
BlackGoods stock:
50000Shipping port:
Xiamen, NingboLead Time:
7

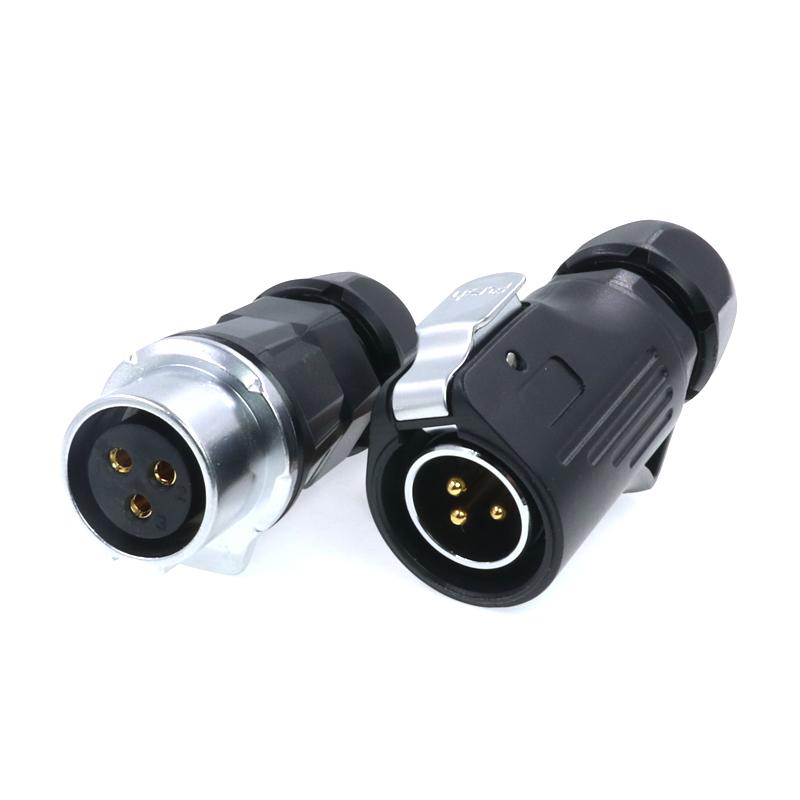

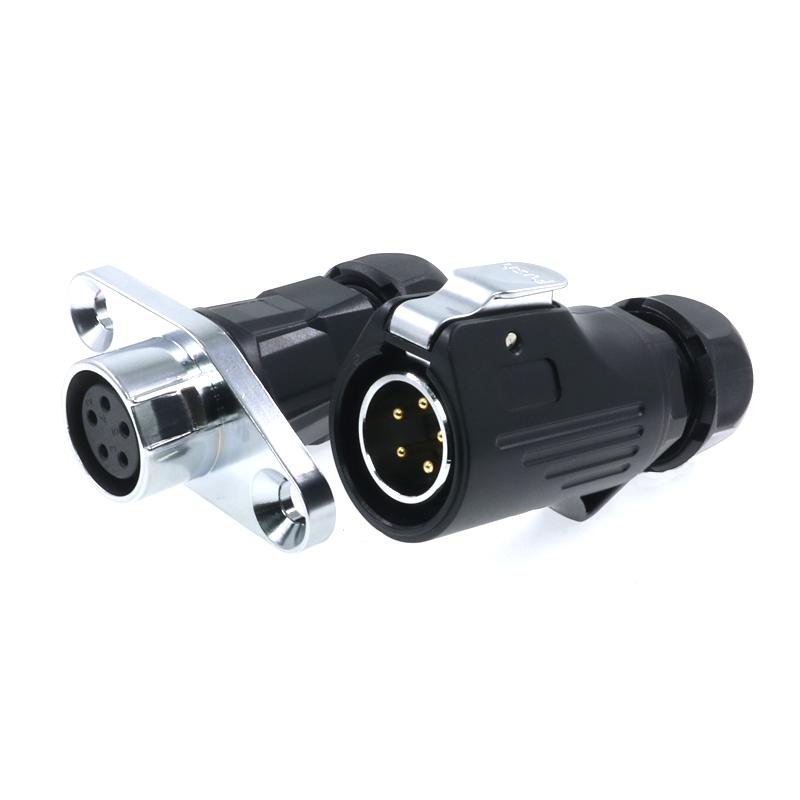

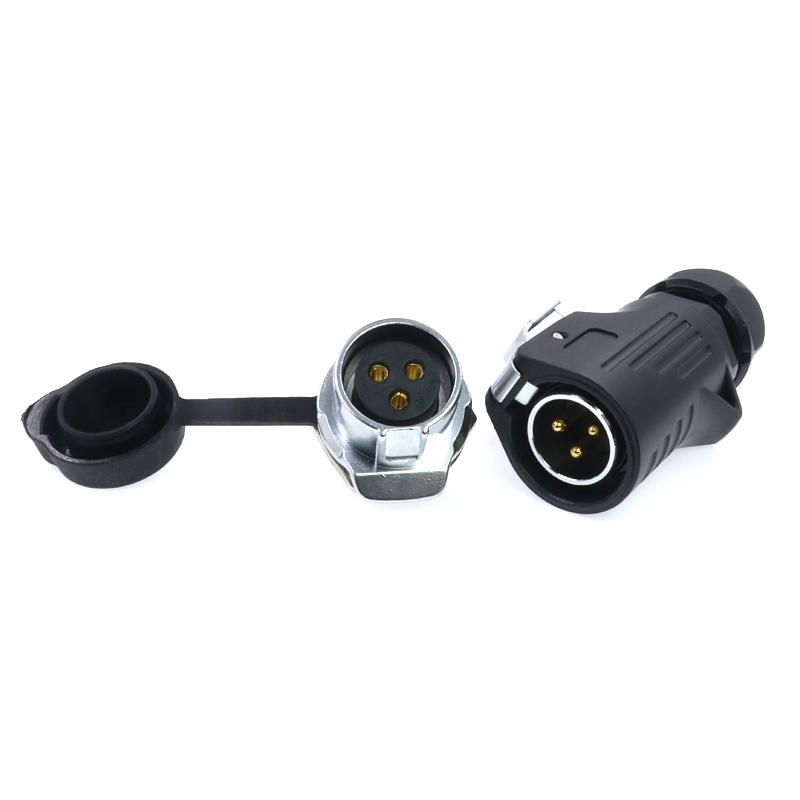

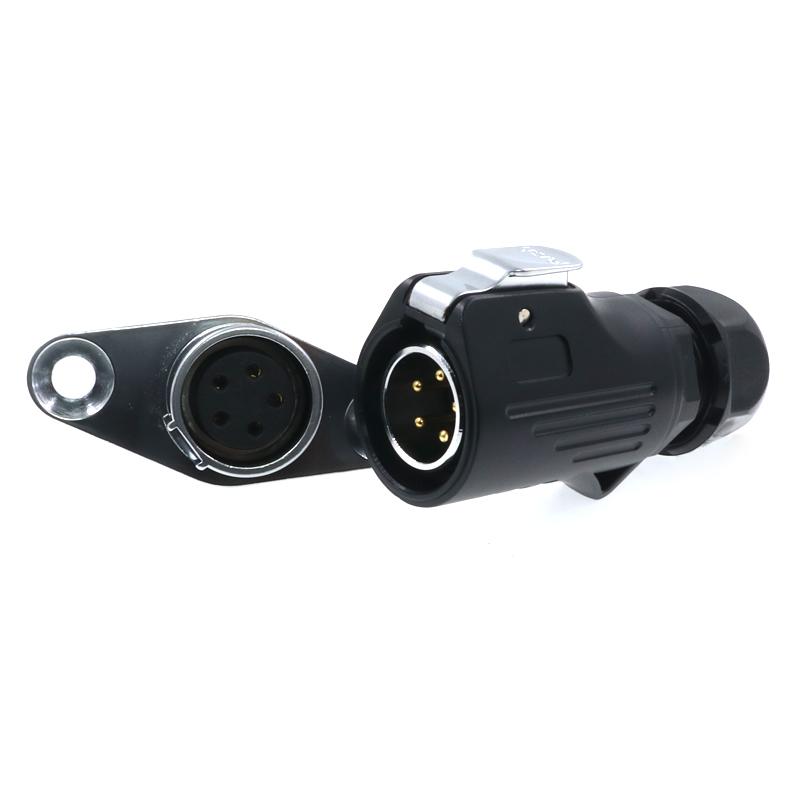

Waterproof Aviation Plug Connector Multi-poles Signal 2 Pin Plastic Connector LP20
Description of IP67 waterproof connector
| Model: | FP20 | Type: | waterproof connector |
| Cable OD: |
Φ8-Φ12mm/Φ5.5-Φ7mm |
Rated current/voltage: |
2-4P: 20A 500V 5P, 7P: 12A 500V 9P, 12P: 5A 400V |
| Wire range: |
2-4P: 14-12 AWG (2.5-4.0mm²) 5P, 7P: 18-16 awg (2.5-4.0mm²) 9P, 12P: 26-24 AWG (2.5-4.0mm²) |
Material: |
Housing: High-prefermance engineering plastic Hardware: Zinc Alloy(pearl hard chrome) Copper pin: Copper alloy(gold-plated) Waterproof circle: Silica gel |
| IP level: | IP65/IP68 | Connection: | Plug/unplug |
| Assembly wire: | Pressure & solder | Temperature: | -40℃~80℃ |
| Durability: | ≥500 times | Flammability: | UL94-V0 |
Drawings:
Sealing Rings For Two Cable Diameters:
I: 8-12mm II: 5-7mm
Product structure
Product feature
 |
 |
|
Customize cable
|
|
|
|
|
| Plug with cable | Socket with single electronic wire |
