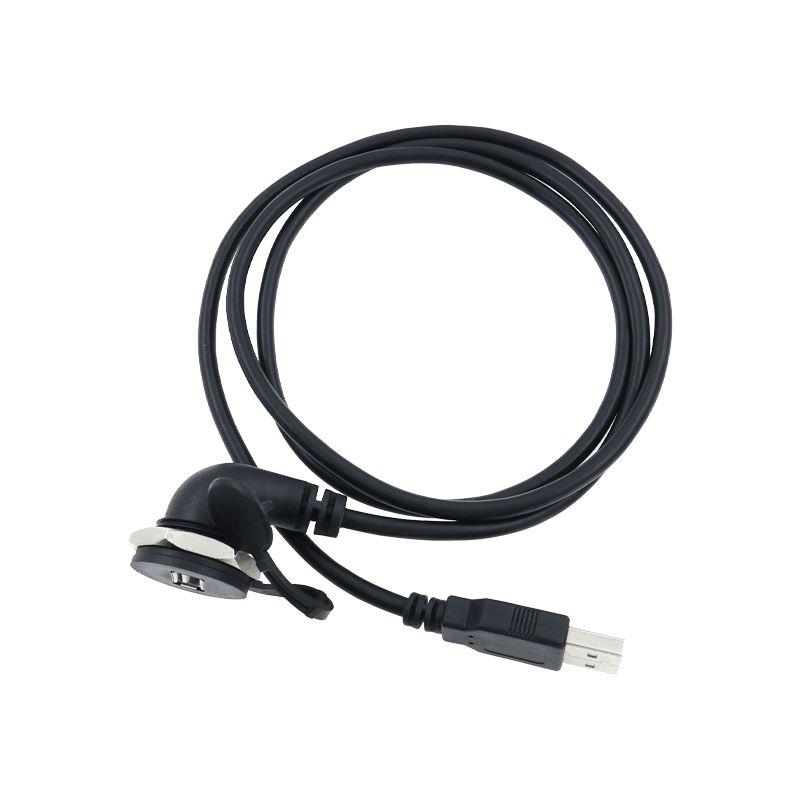

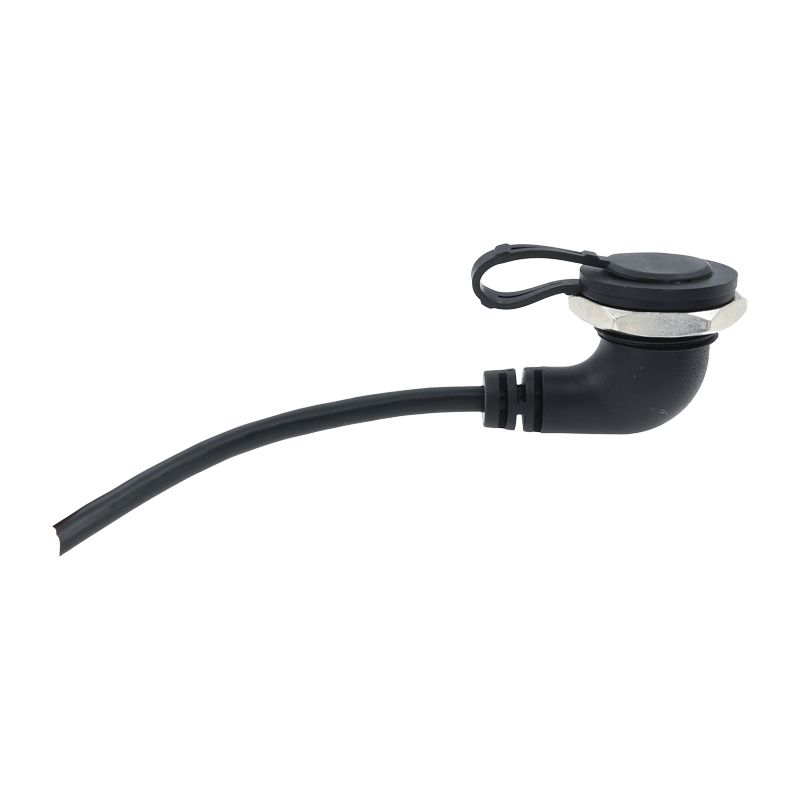

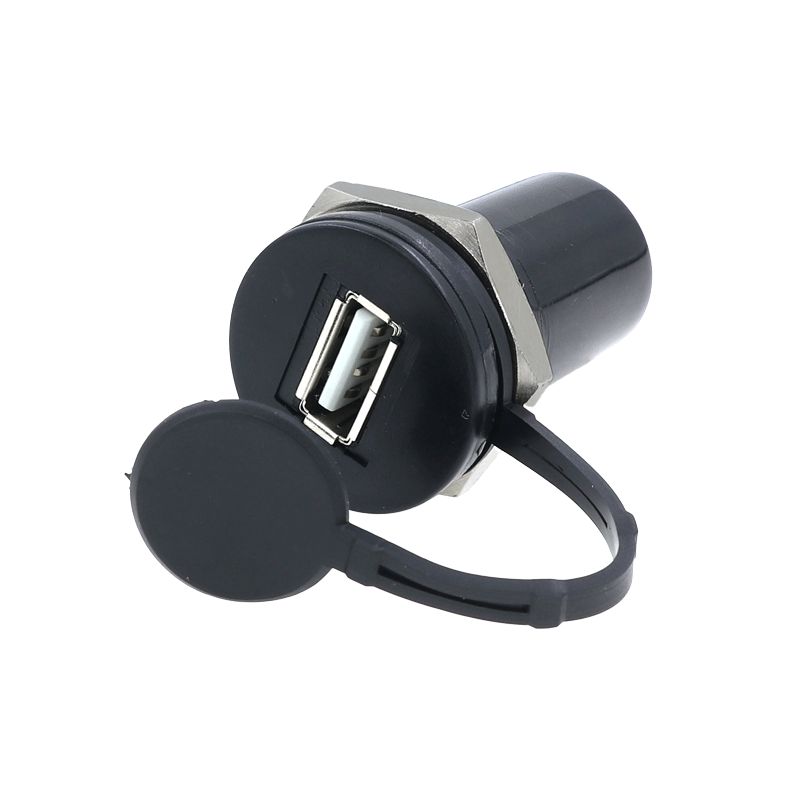

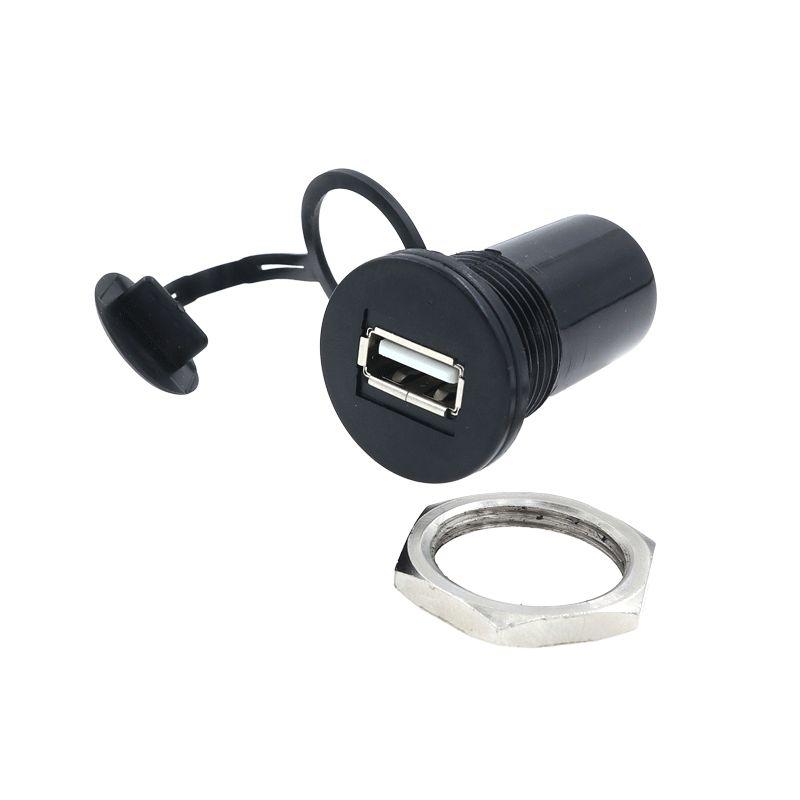

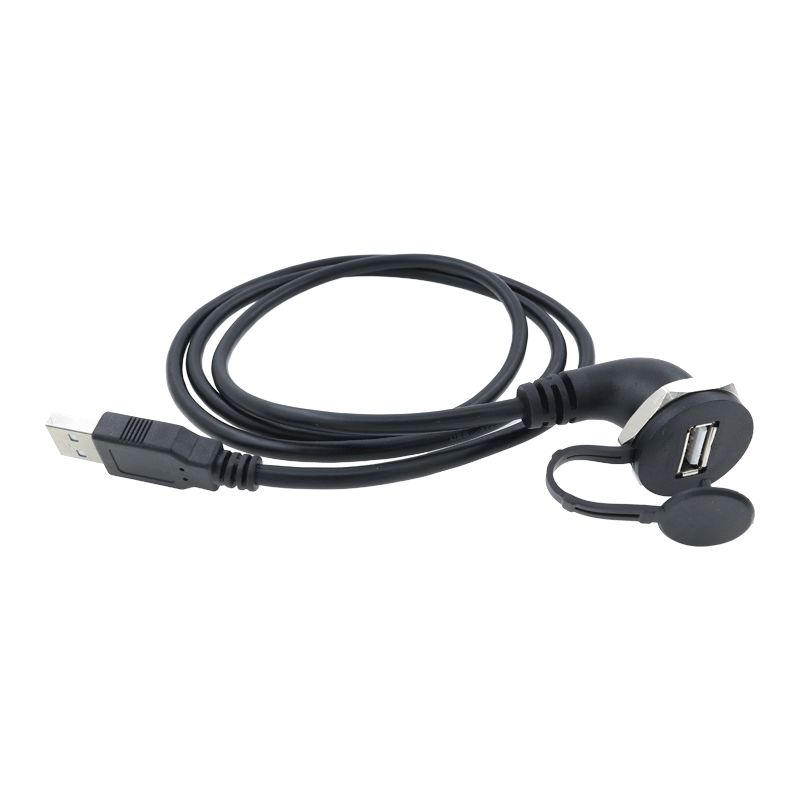

USB Port Panel Mount Female Cable Connector with Cover for Secure USB Connectivity

Fy22 USB connector is applicable to data-signal. There are many types, like usb 2.0, usb 3.0, usb with cable or with cable,etc.

Brand:
OLINK
Item no.:
FY22
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Color:
Black
Goods stock:
50000
Shipping port:
Xiamen, Ningbo
Lead Time:
7

Inquiry now

product introduction

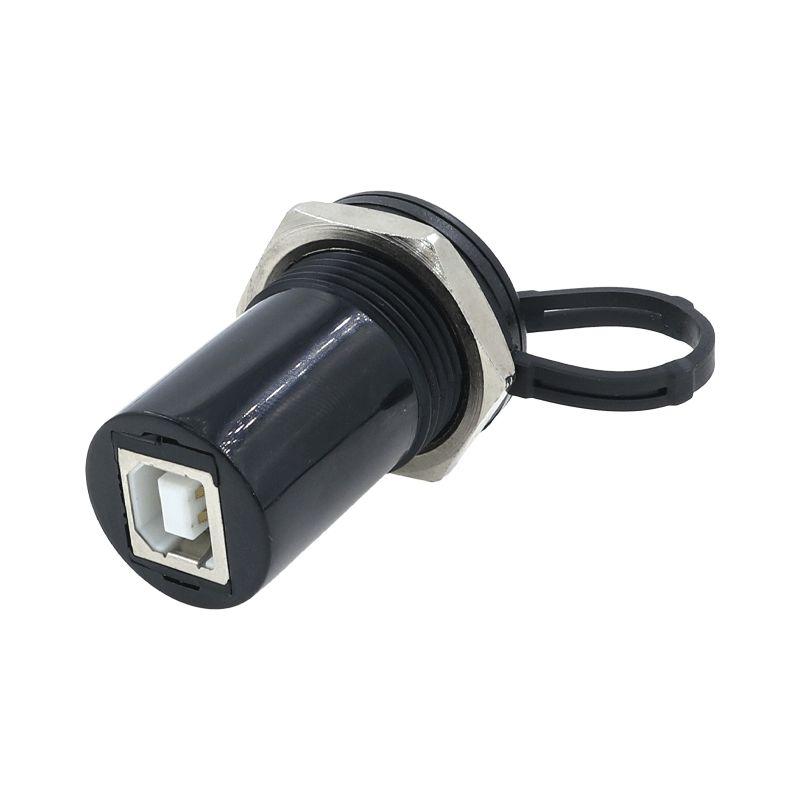

FY22 circular USB connector a type to Type-B

Feature of Circular usb connector

Rear nut installation method
USB A to Type-B
Bayonet connection design
There are pin interface and USB female interface to choose

Specification of Circular usb connector

Product name:	FY22 USB connector	Contact resistance:	30mΩ
Withstand voltage:	500V/AC	Insulation resistance:	500MΩ
Durability:	500 mating cycles	Cable OD.:	φ5.5mm~φ7mm
Rated current:	1.5A	Receptacle housing:	PBT, Black
Overmolding:	PVC, Black	Contact:	Copper Alloy
Coupling ring:	PA66, Black	Operating temperature:	-40℃ to 80℃
Performance:	USB 2.0；Type - B	Industrial seal rating:	IP44

USB waterproof connector can be customized accessories

USB waterproof connector can choose ordinary male or rubber-coated male, the length of the cable can be customized.

Application of FY22 waterproof connector

FY22 connector Because of its convenient connection and convenient use, it is widely used in data transmission of computers, external devices and other devices

*For more information, please contact us by email or through any contact information on the webpage.
