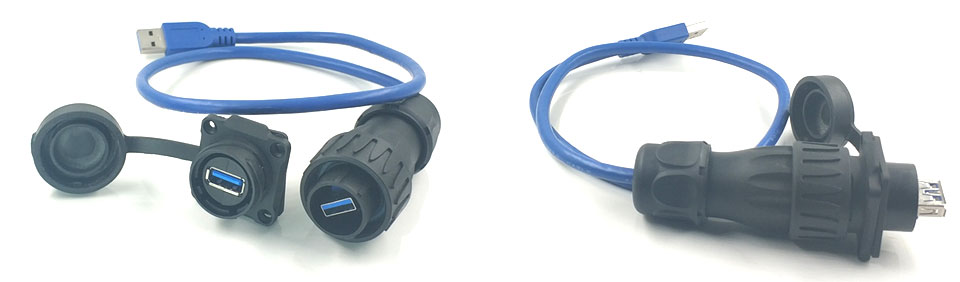

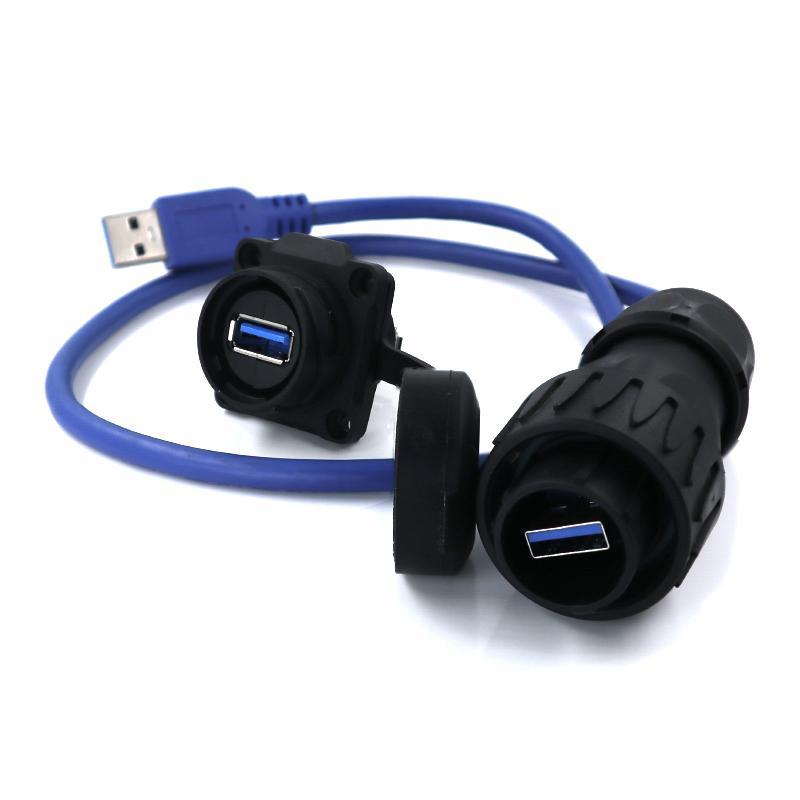

USB male and female panel mount connector

Usb male and female connector is a panel mount type connector, with exquisite and compact design, saving a lot of space.

  • Brand:

    OLINK
  • Item no.:

    JH24-USB3.0
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Black
  • Goods stock:

    50000
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    7

Usb male and female panel mount connector

Feature:


  • JH24 USB male and female connector has two applications, one is RJ45 interface, the other is USB3.0 interface, the appearance is the same, the interface is different

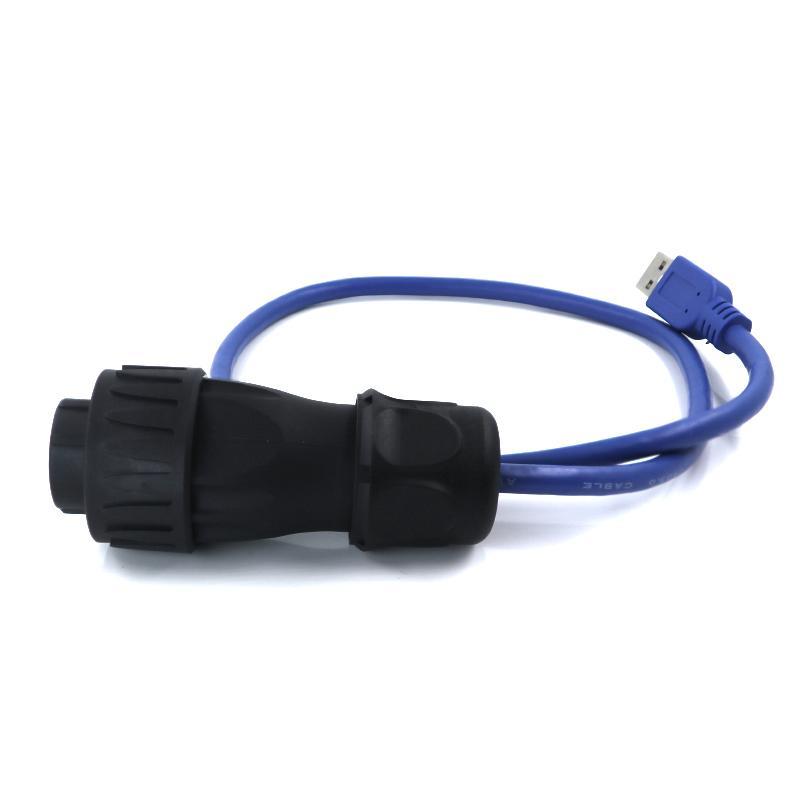

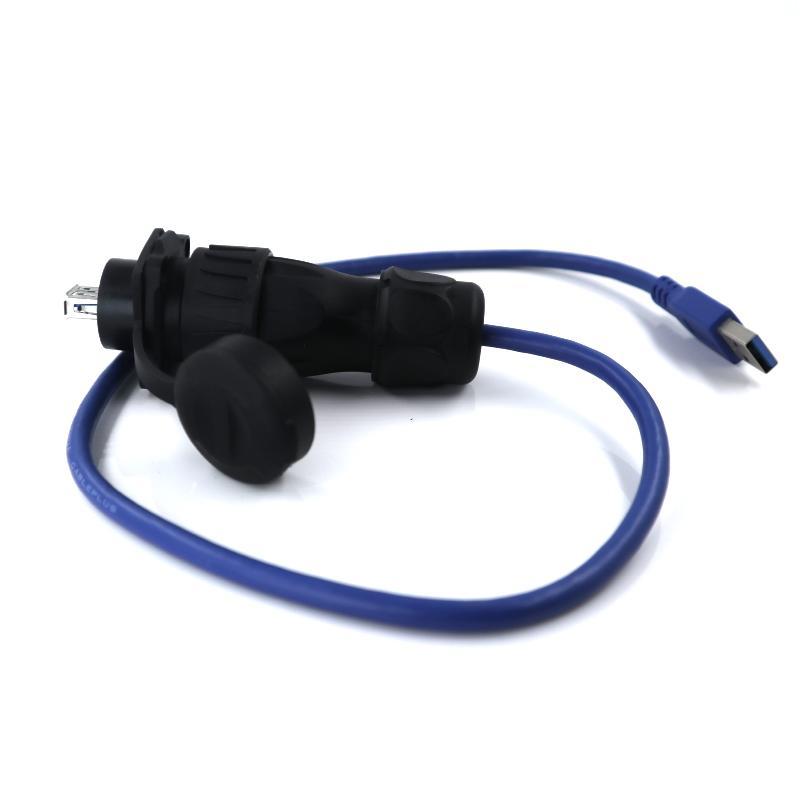

  • The plug is equipped with a male connector with a cable length of 0.3m and both ends of USB3.0 (or a RJ45 double crystal connector with a cable length of 0.3m)

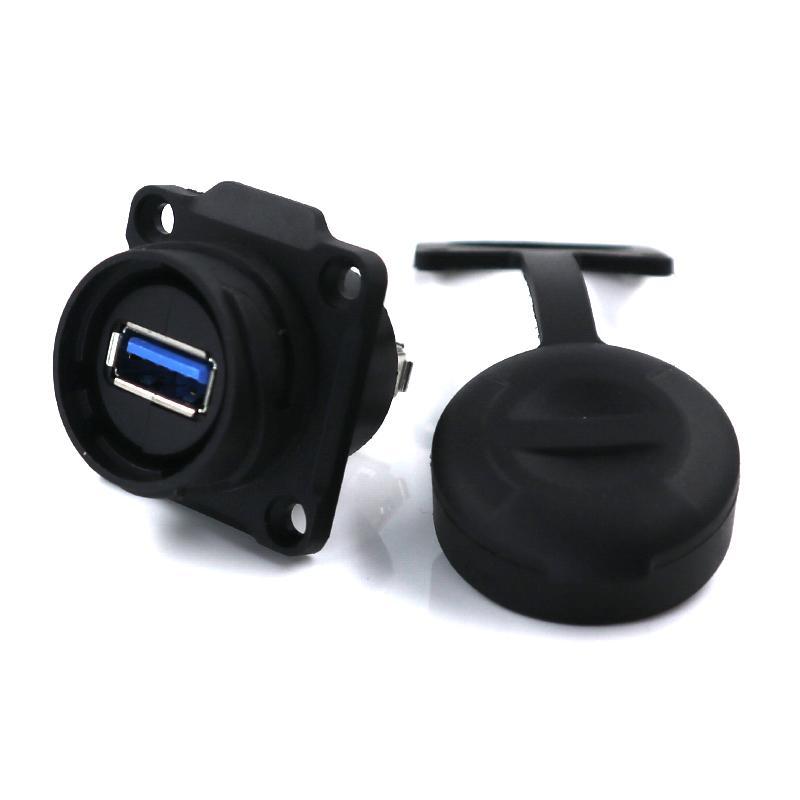

  • The socket is installed on the front panel and equipped with a dust cover as standard
  • Bayonet design, quick insertion and removal, easy to use


Specification:


Product name:

 3.0 usb connectors

Product model:
 JH24-USB3.0
Wire range:   0.15mm²~2mm²/26-24 AWG Cable OD.:   5.5-7 mm
Contact number:   9 pin(3.0) Rated current:   1.5A
Operating voltage:   30V Assembly wire:   Solder
Contact resistance:   <30mΩ Withstand voltage:   2500V
Waterproof O-ring:   Silica gel Protection level:   IP67
Shell material:   Nylon66 UL94-V0 Working temperature:   -40℃ to 80℃
Contact material:   Brass with gold plating Insulation resistance:
 >500mΩ
Connection method:   1/4 Bayonet connect Durability:   >500 times

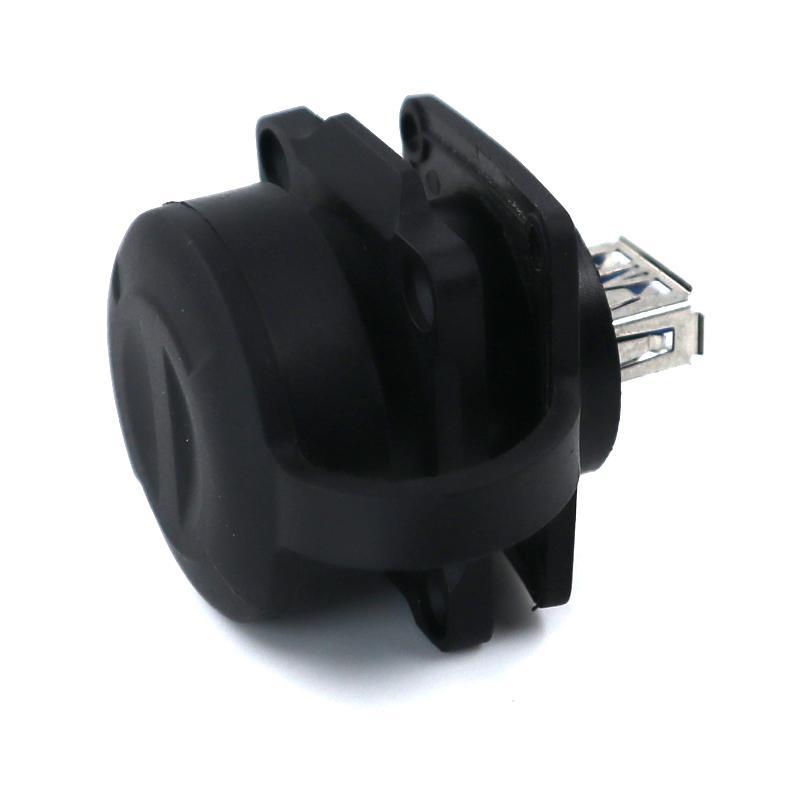

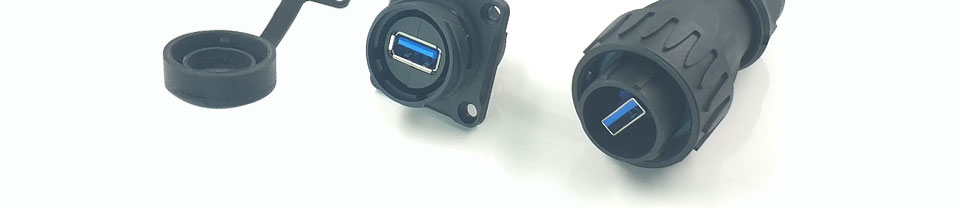

Products real shot of USB female panel connector



application:


JH24 USB male and female connector has stable electrical performance and strong connection. It is often used in medical equipment, robots, and other mechanical equipment to provide solutions for signal and data docking and transmission.


Why choose us?

  • Exquisite and compact design, saving a lot of space
  • Compatible with USB2.0/USB3.0 connector
  • With plug cable, the waterproof grade reaches IP67
  • Unique structure design, convenient and quick operation
  • Made of nylon PA66, flame retardant and high temperature resistant
  • Cable length can be customized
