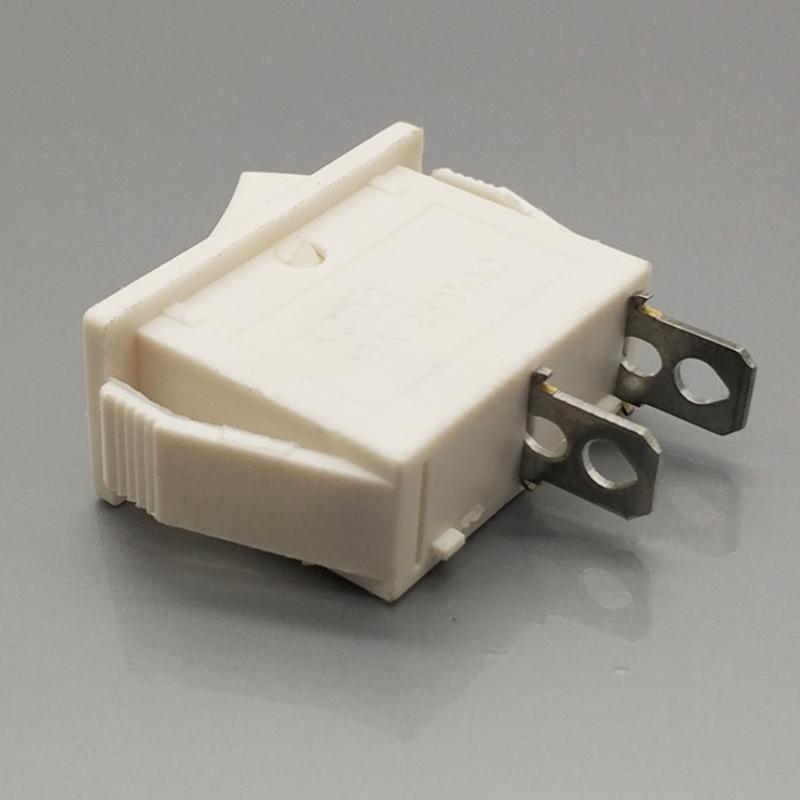

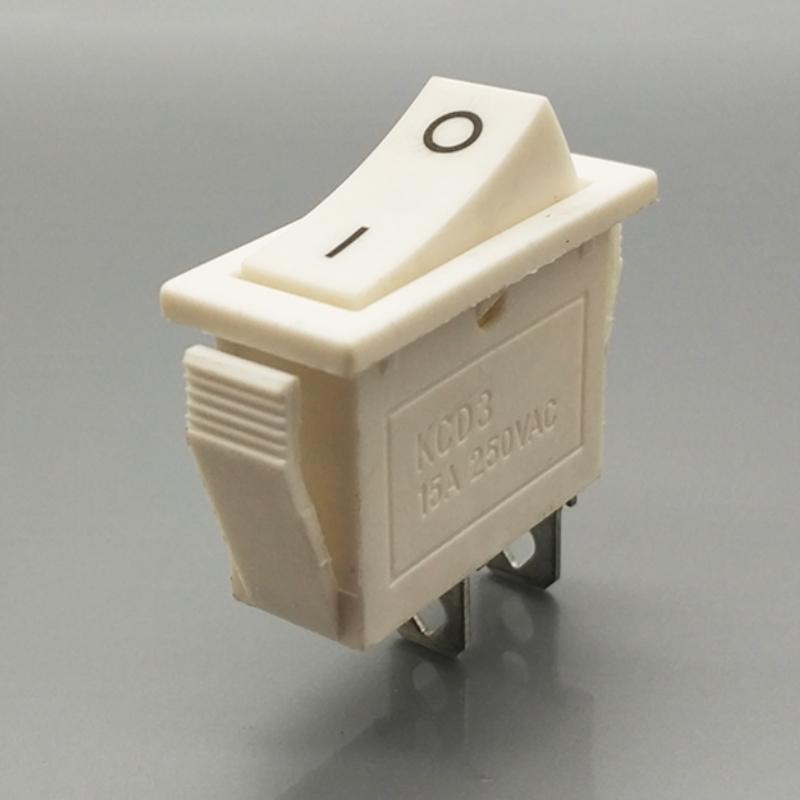

soken rk1-11 6a 250vac 10a 125vac rocker switch

Rocker switches are usually used to directly power devices. They are available in a variety of shapes, sizes and colors, both standard and custom symbols are provided on the actuator.

Brand:
OLINK
Item no.:
KCD3
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Color:
Black shell, button color can choose
Goods stock:
50000
Shipping port:
Xiamen, Ningbo
Lead Time:
7

Inquiry now

product introduction

16a 250vac rectangle rocker switch with orange illuminate

Description of 16a 250vac rocker switch

A rocker switch is an on/off switch that rocks when pressed, which means one side of the switch is raised while the other side is depressed much like a rocking horse rocks back and forth.
Rocker switches are widely used in surge protectors, display monitors, computer power supplies, and many other devices and applications.

Specification of 16a 250vac rocker switch

Product name:	Illuminated rocker switch	Model:	KCD3 series
Panel mount diameter:	28 x 10.7 mm	Function:	on-off, on-off-on, on-on
Rating:	16A 250V AC/20A 125V AC	Rated load:	2/8A 250V AC
Solder terminal:	PTI 175	Ambient temperature:	T85
Endurance:	10000 cycles	Contact resistance:	≤ 50mΩ
Dielectric intensity:	≥ 1500V AC/min	Withstand voltage:	1500V AC/min
Insulation resistance:	≥ 100MΩ	Frequency:	50HZ

Feature of Kcd3 rocker switch

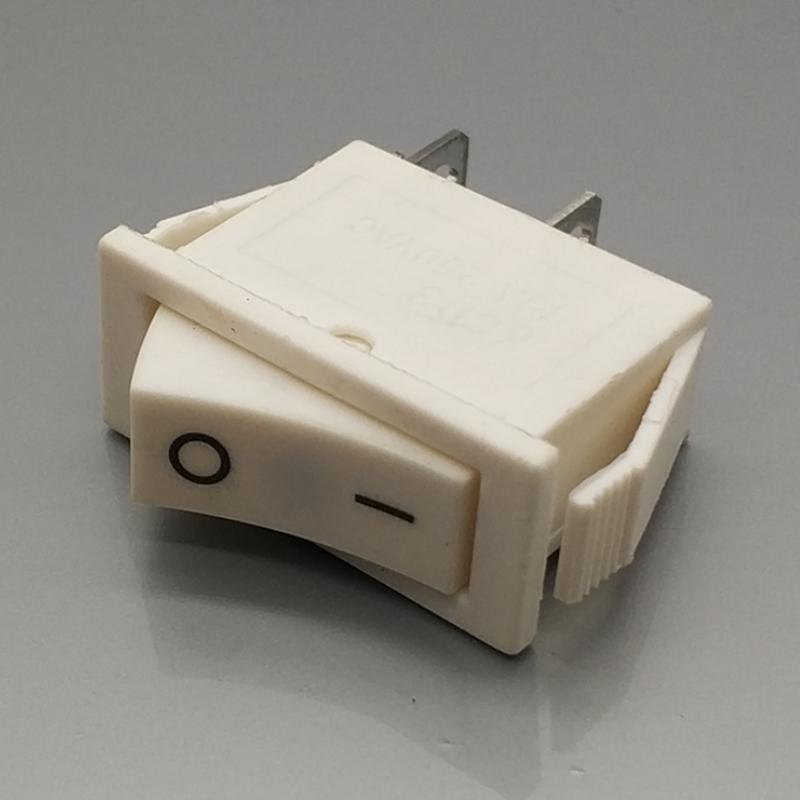

May print 'I' & 'O' on the surface (I for "on", O for "off"), so that the user can know if the device is on or off.

There are rocker switches to choose from
