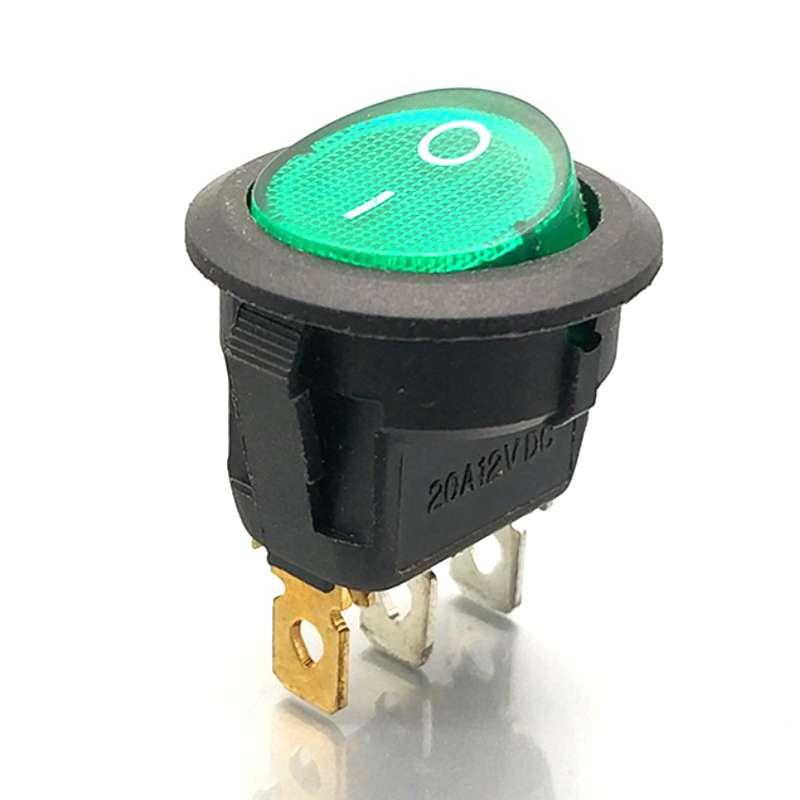

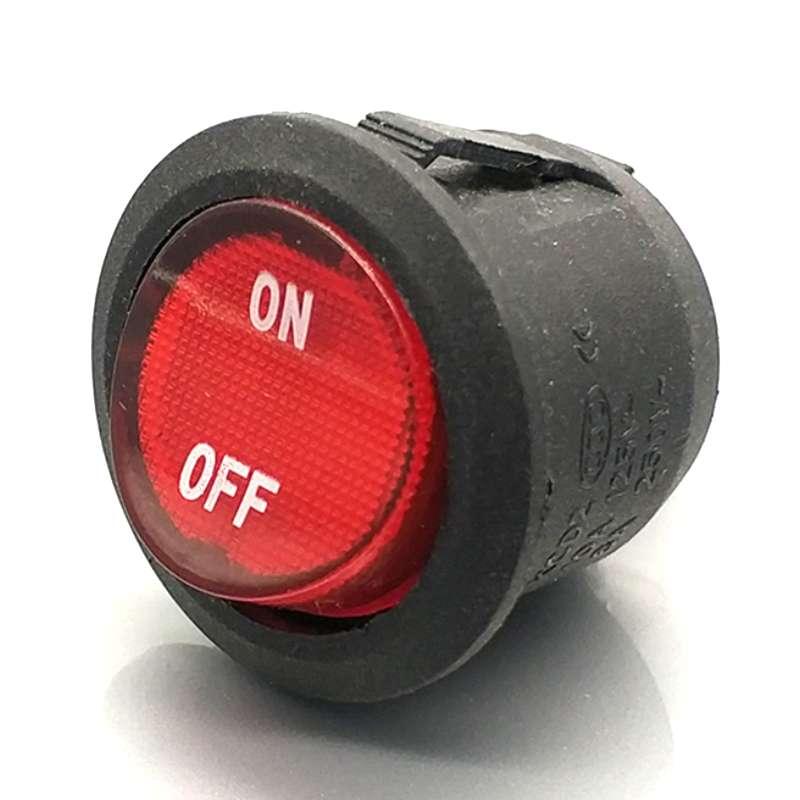

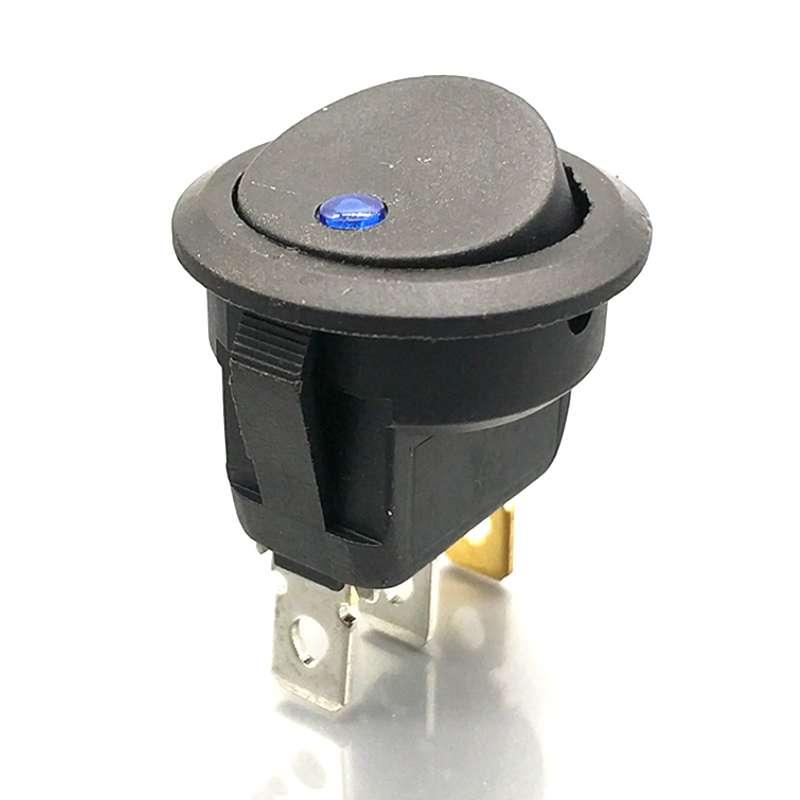

On off round rocker switch with 12v led

The rocker switch is an electrical on/off switch. The rocker swings from one side to the other when pressed, so that one side is raised and the other side is depressed. This rocking mechanism will connect or disconnect the circuit.

Brand:
OLINK
Item no.:
KCD2
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Color:
Black shell, button color can choose
Goods stock:
50000
Shipping port:
Xiamen, Ningbo
Lead Time:
7

Inquiry now

product introduction

On off on round rocker switch with 12v led

Description of Round rocker switch

A rocker switch is an on/off switch that rocks when pressed, which means one side of the switch is raised while the other side is depressed much like a rocking horse rocks back and forth.
Rocker switches are widely used in surge protectors, display monitors, computer power supplies, and many other devices and applications.

Specification of Round rocker switch

Product name:	on off rocker switch	Model:	KCD2 series
Panel mount diameter:	φ19, φ19.5, φ20	Function:	on-off, on-off-on, on-on
Rating:	6A 250V AC/10A 125V AC	Rated load:	2/8A 250V AC
Solder terminal:	PTI 175	Ambient temperature:	T85
Endurance:	10000 cycles	Contact resistance:	≤ 50mΩ
Dielectric intensity:	≥ 1500V AC/min	Withstand voltage:	1500V AC/min
Insulation resistance:	≥ 100MΩ	Frequency:	50HZ

Feature of 12v rocker switch

May print 'I' & 'O' on the surface (I for "on", O for "off"), so that the user can know if the device is on or off.

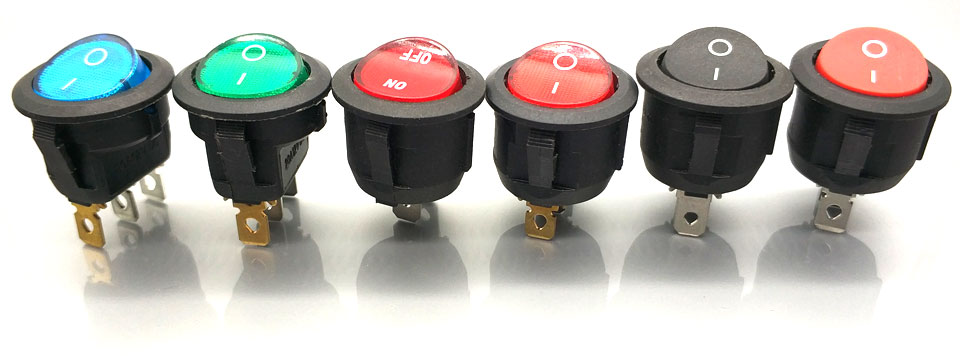

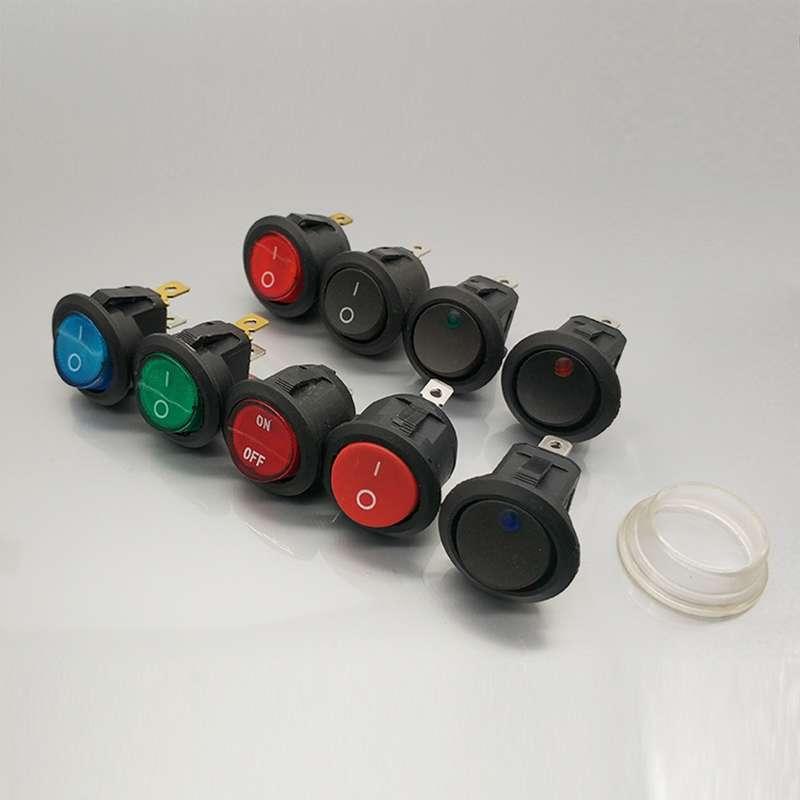

There are more rocker switches to choose from
