Single Core Waterproof Aviation Plug Socket 13mm 1Pin 2Pin Front Nut Waterproof IP67 Connector

Single Core Waterproof Aviation Plug Socket 13mm 1Pin 2Pin Front Nut Waterproof IP67 Connector

Description of IP67 waterproof connector

• Male female ip67 cable connector is widely used in outdoor wire connection.
• There are 1-9 Pins for your choice.
• Coupling: Thread
• Shell Material:  Nylon66, Fire Resistance:V-0
• Insert Material: PPS Max Temperature 260 degree
• Contact material: Brass Wigh Gold plating
• Cable OD: I:4-6.5mm (default)    II:5-8mm
• IP rating: IP67/68

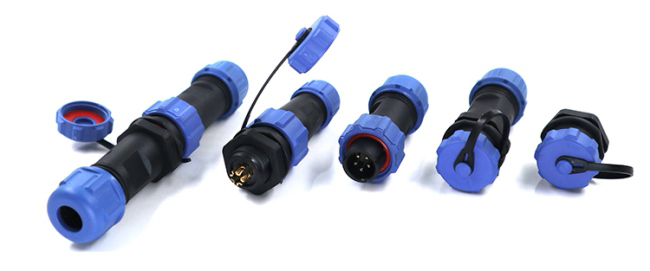

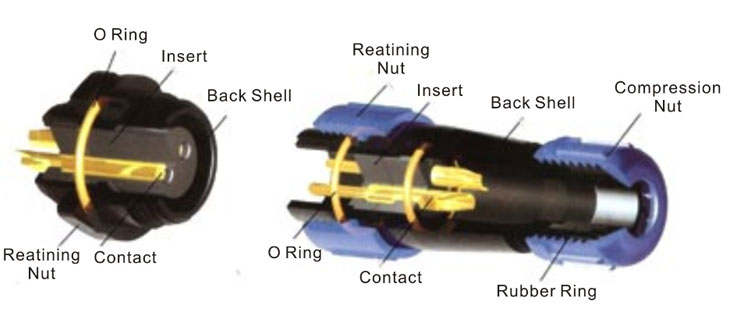

Details of Aviation plug socket connector

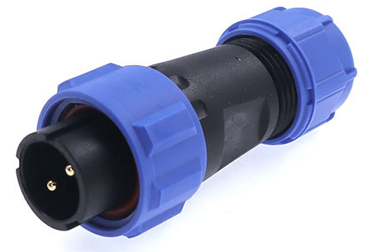

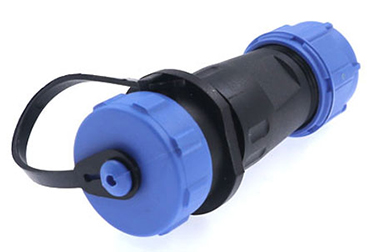

OL1310 (Cable plug)	OL1311 (In-line cable plug, mated with OL1310)

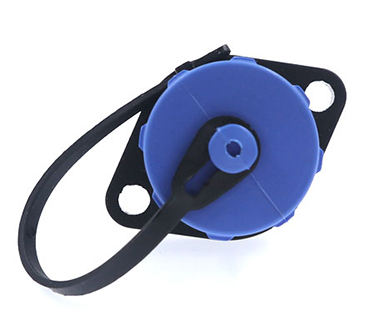

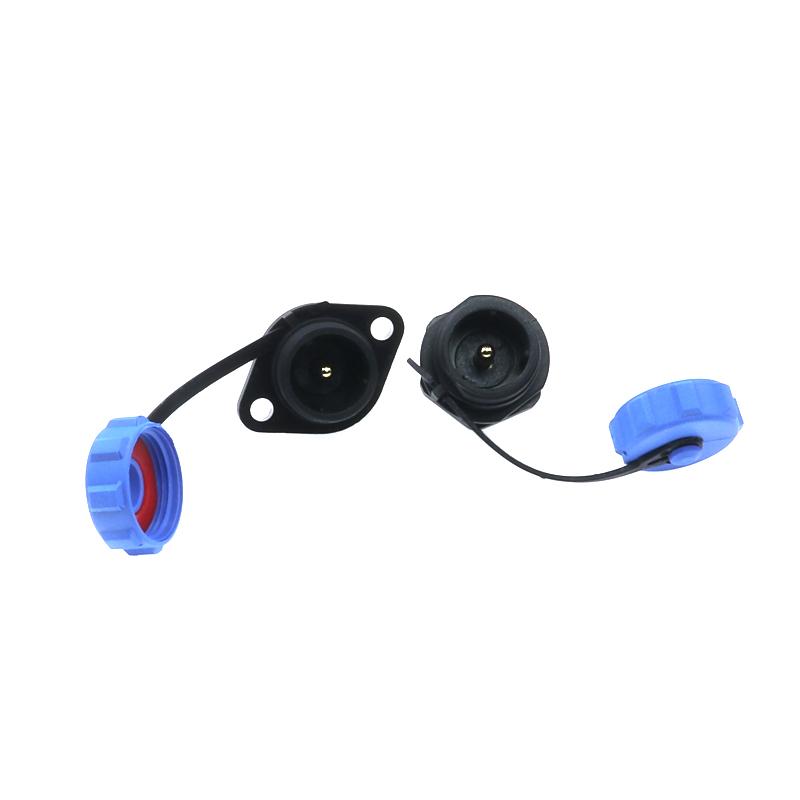

OL1312 (Rear nut socket, mated with OL1310)	OL1313 (Flange socket, mated with OL1310)
	* Each side can be male or female contact. (Plug or socket versions)

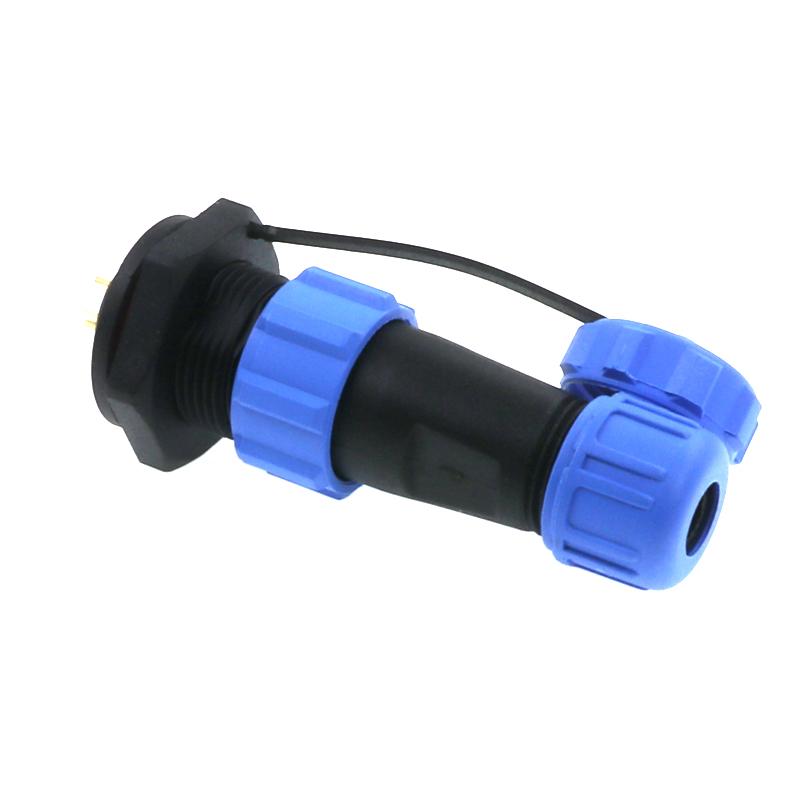

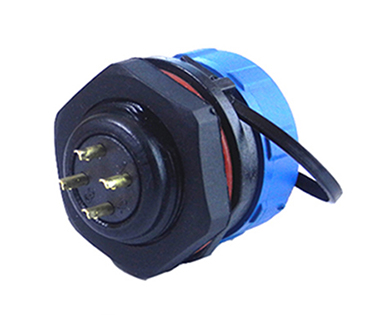

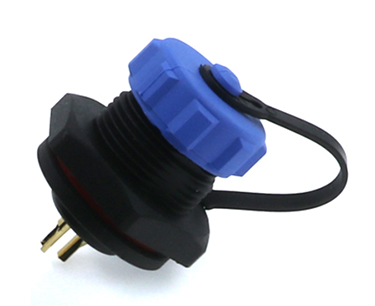

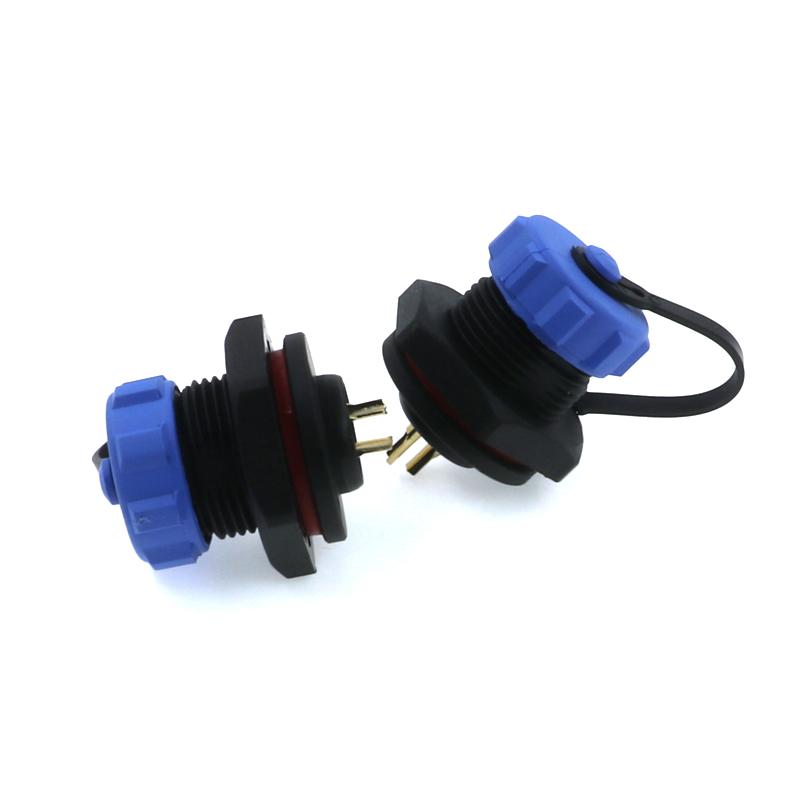

OL1315 (Front nut socket, mated with OL1310)

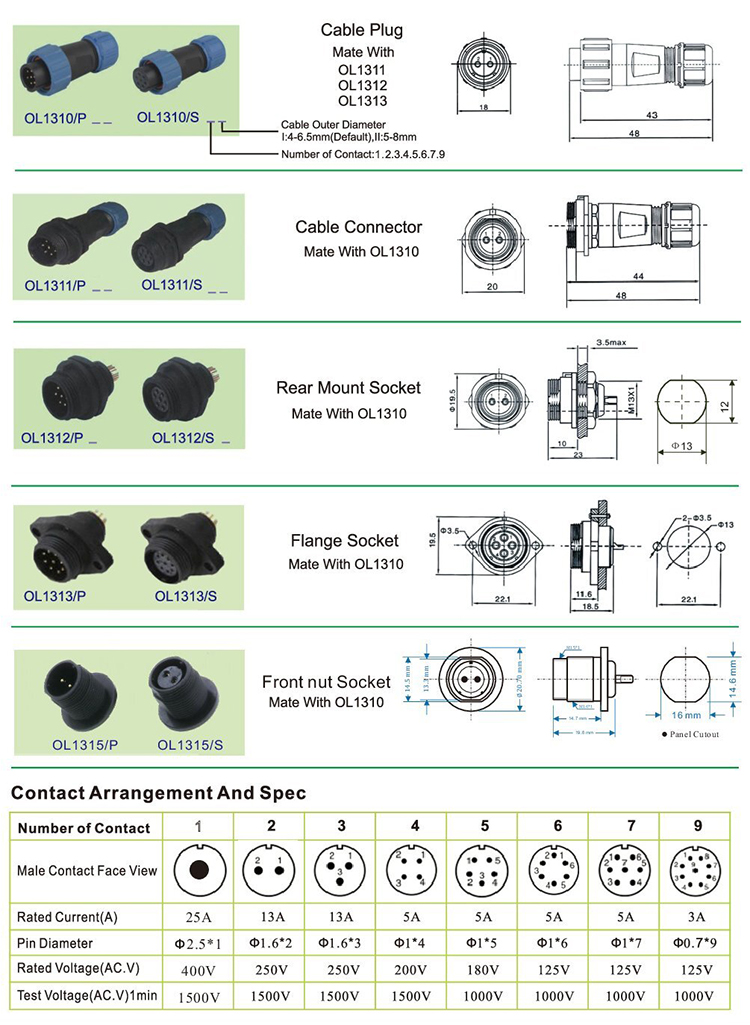

Drawings:

Customize

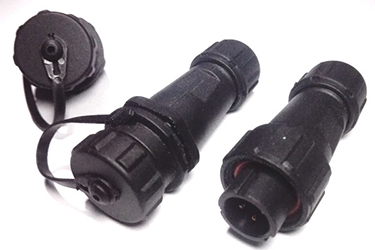

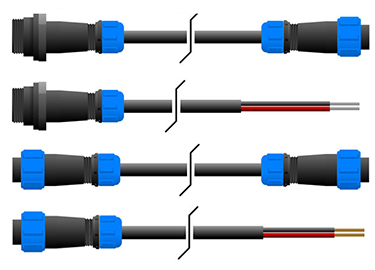

All-black SP13	OL1310/OL1311 with cable

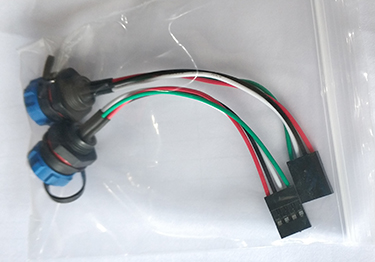

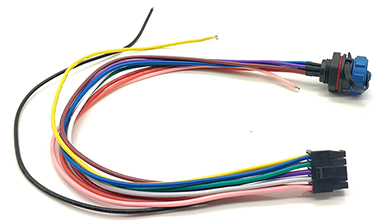

OL1312 with single electrinic wire, end with terminal
	Provide soldering service, need to know- 1. Plug or socket? 2. What is the wire gauge and length? 3. How to deal with the cable end?

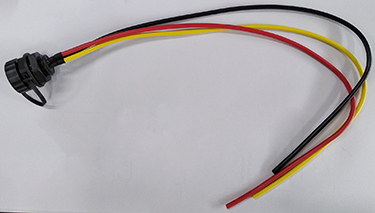

OL1312 with cable, free end
