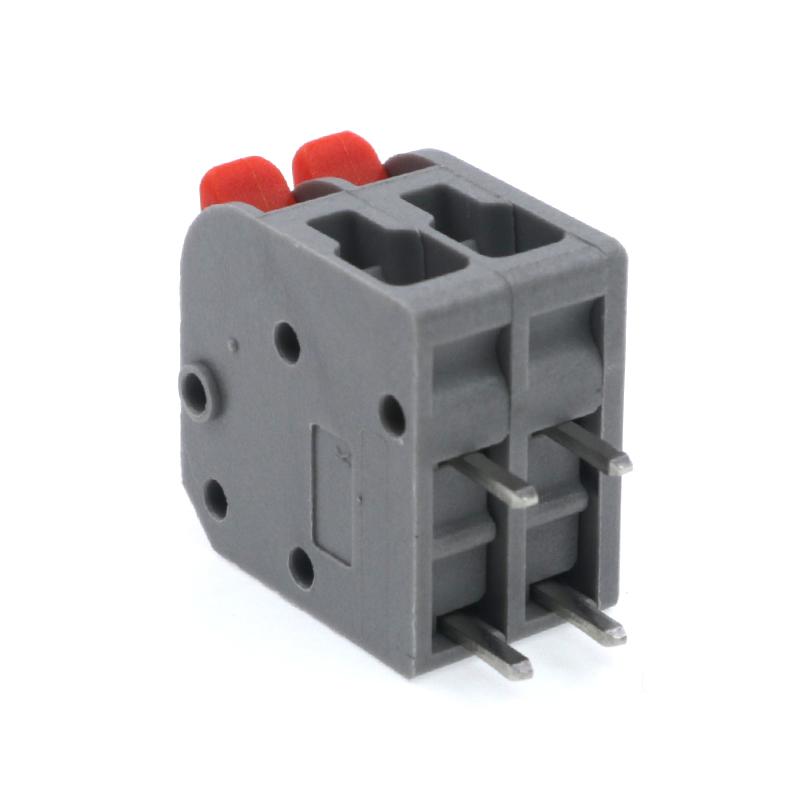

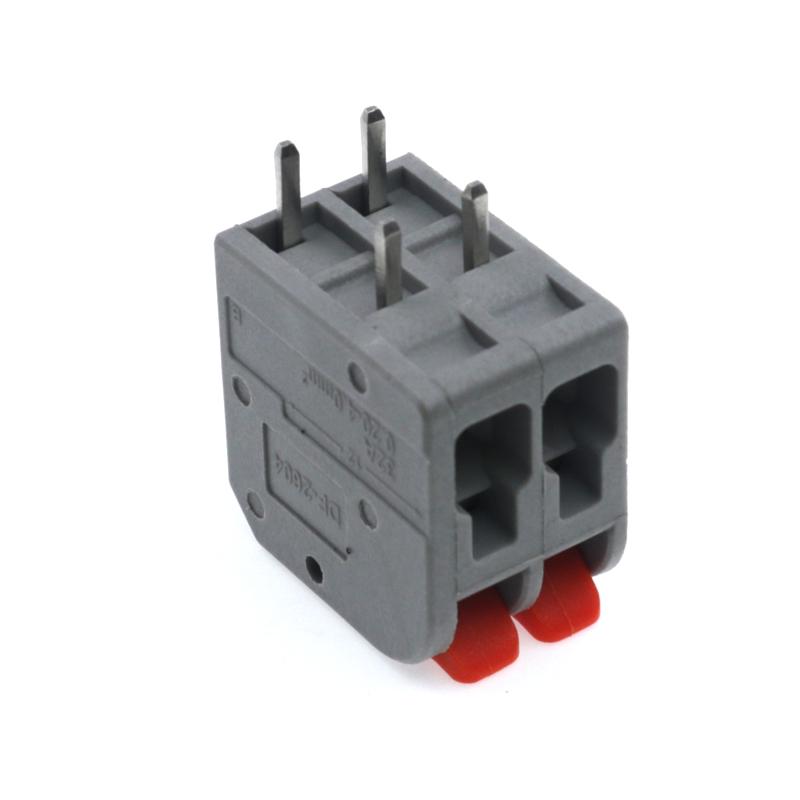

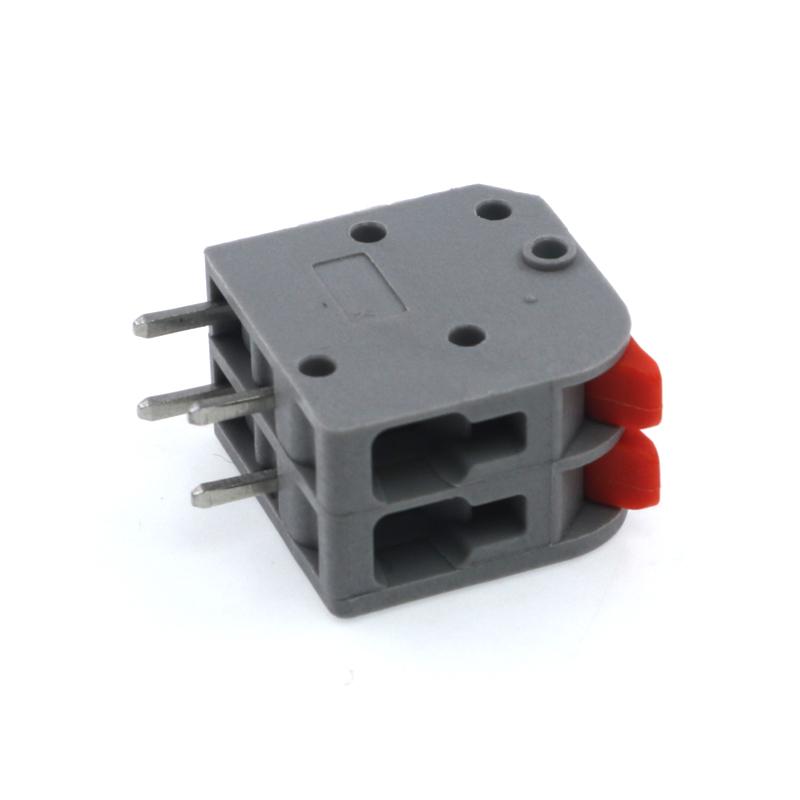

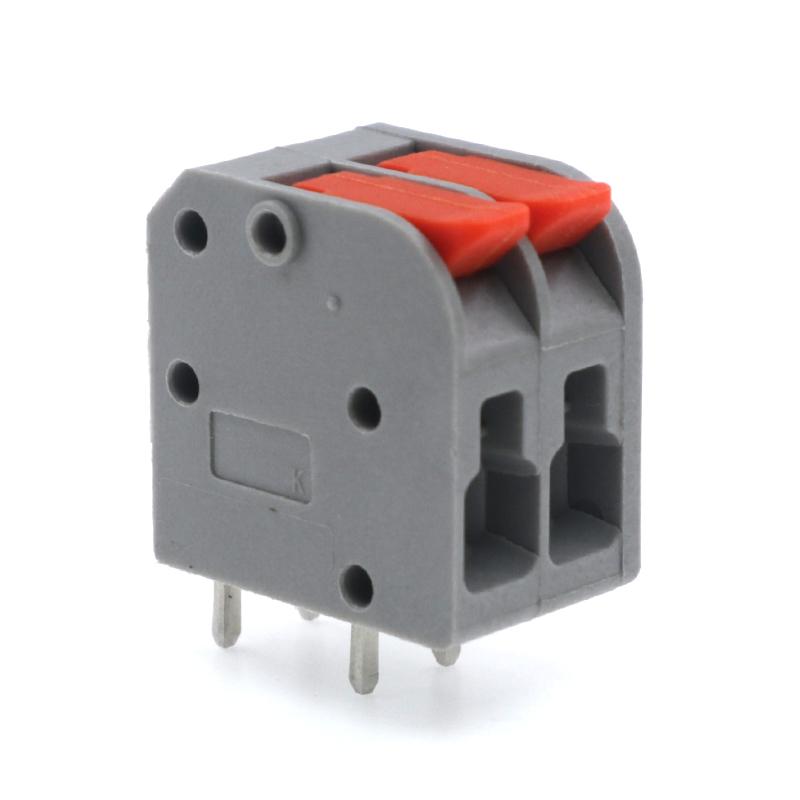

Screwless Terminal Blocks Chinese Factory 5mm Pitch PCB Spring Terminal Block

The Lever-Type Non-Screw Terminal Block Can Withstand 250V32A Power, The Spacing Is 5mm, And The DIP Type Is Welded On The PCB Board, Which Is Very Suitable For Use In Switching Power Supply And Other Wiring Devices That Require High Current And High Power Input And Output.
  • Brand:

    OLINK
  • Item no.:

    222-2604Z-2
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Gray/Orange (handle color can be customized)
  • Goods stock:

    500000
  • Min order:

    100
  • Product weight:

    3
  • Shipping port:

    Xiamen, Ningbo,shenzhen,shanghai
  • Lead Time:

    5

  • DIP Type PCB Terminal Block;
  • The Lever Is Designed Without Resistance, And The Wire Connection Is Firm;
  • The Pitch Is 5mm, Which Can Be Used On 250V32A Power Supply;
  • Lever Color Can Be Customized
  • Can Be Spliced With Unlimited Digits;



  Specifications

Roduct Name:   Painless Lever Wire Connectors
Application:   Junction box/electric power
Wiring method:   Insert Lever Crimp
Wire type:   Solid/Flexible wire
Pitch:
 5.0mm Number of holes:
 1~
Strip length:   10-12mm/0.47in
Cross section:   0.2 - 2.5(4.0) mm / 24-12AWG
Voltage:   250V
Rated Current:   32A
Shell material:   Nylon
Conductive material:   Tinned phosphor bronze


Structural Features Of Lever Type Plug-In Terminal

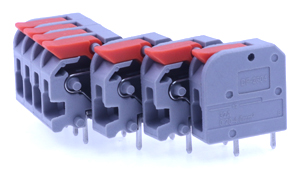

Splicing Structure

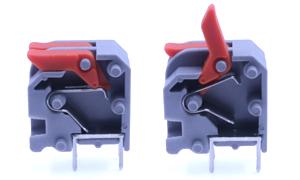

Open And Close Without Resistance

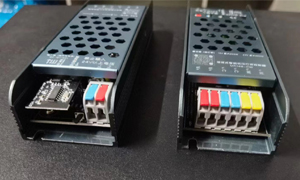

Switching Power Supply Application

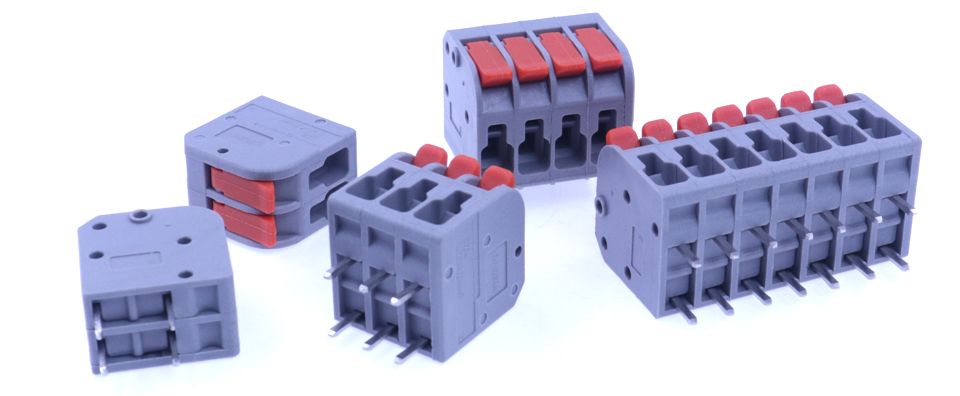

  More Lever Wire Connector

*For More Information, Please Contact Us By Email Or Through Any Contact Information On The Webpage.
