No Wire-Stripping Required Connectors 2 to 2 Low Voltage Universal Compact Wire T Tap Connectors

No Wire-Stripping Required Connectors 2 to 2 Low Voltage Universal Compact Wire T Tap Connectors

There is no need to strip the quick wire branch connector, the main wire does not need to be stripped when using, and the handle is used for quick crimping when the branch is connected.

• The main line does not need to be stripped, and the branch line can be powered after being crimped;

• Small and compact size, more flexible to use;
• The branch wiring adopts the handle crimping type, and the wiring is fast;
• The branch line can be quickly disconnected when the branch line is no longer in use;
• The main line end can support 0.5mm²-4mm² wire size；
• The branch end can be connected to 0.5-2.5 (4) mm² wire size.


Input Wire Size:A/B/C
A:0.5mm2-1.5mm2		B:1.5mm2-2.5mm2		C:2.5mm2-4mm2

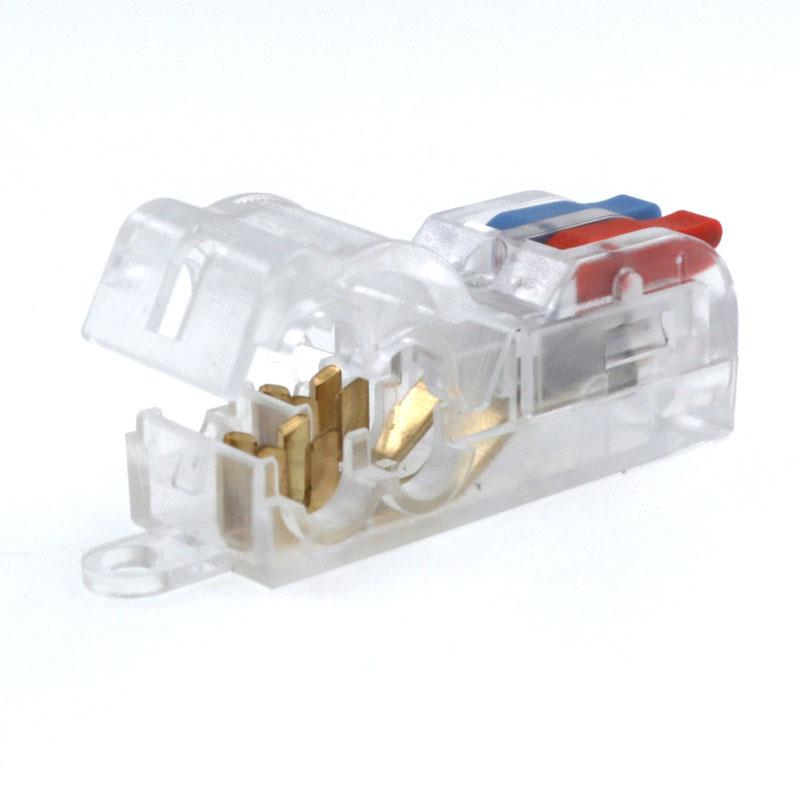

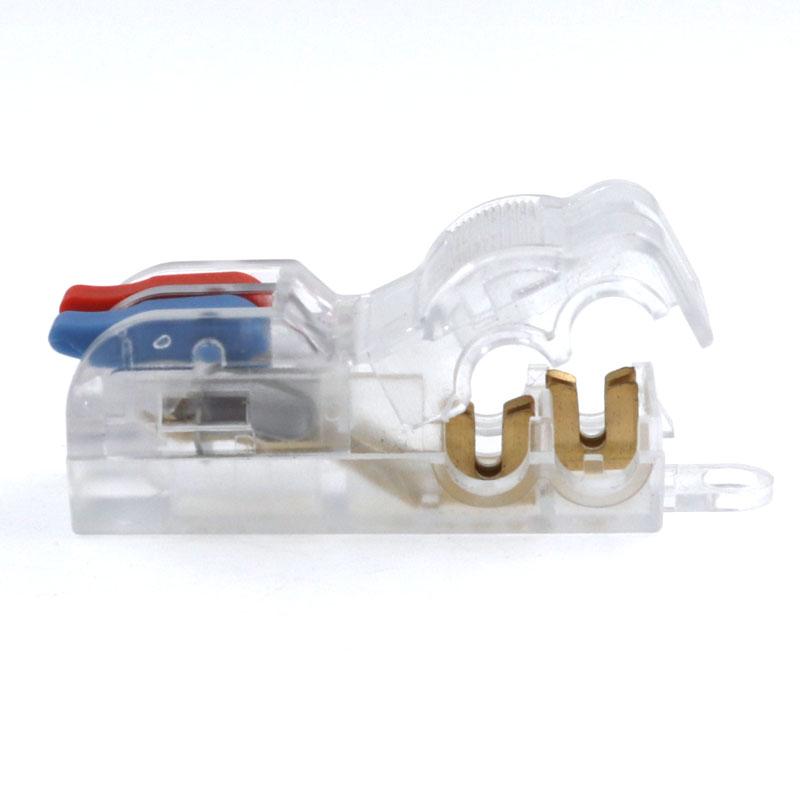

1) Open the protective cover	2) Align"N""L"with copper slot respectively
3) Close and squeeze the protective cover	4) Complete and ready to connect branch lines

*For more information, please contact us by email or through any contact information on the webpage.

FAQ

What are the different types of wire connectors?

There are many types of wire connectors. According to the connection method, they are divided into screw connection, crimp connection, and snap connection; according to the connection method, they can be divided into wire-to-wire connector type and wire-to-board connection type, with 1 to 1 and 1 to multiple out. Type etc.
