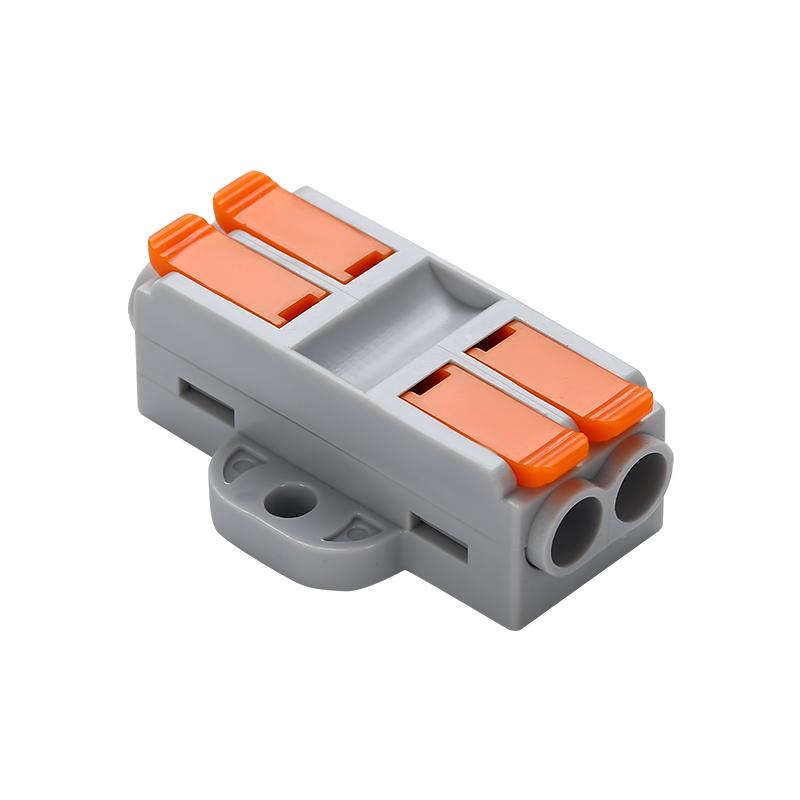

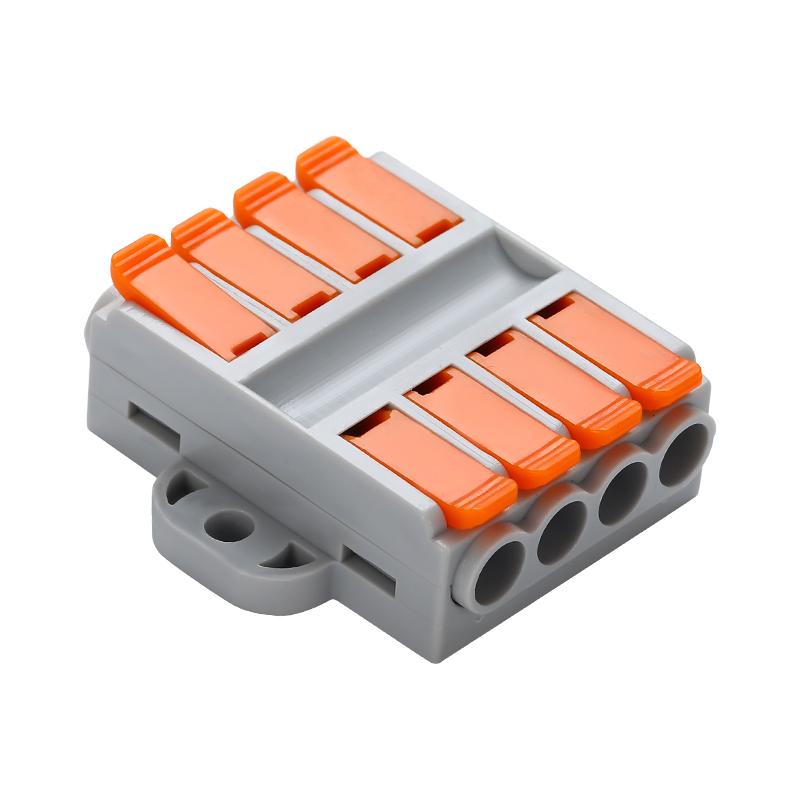

Quick Connection Wiring Terminal connector KV226A For High Current Use

KV226A series has many poles can be chosen. Lever color can be customized. It can used with 6mm² (10AWG) cable. With Fixing hole (M3 screw).

  • Brand:

    OLINK
  • Item no.:

    KV226A
  • Payment:

    Wire transfer, Paypal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Grey & Orange
  • Goods stock:

    30000
  • Shipping port:

    Xiamen
  • Lead Time:

    7

Quick Connection Wiring Terminal connector KV226A For High Current Use


  Features of Push in wire connector

  • Lever color can be customized

  • You can choose it with fixing hole or without fixing hole

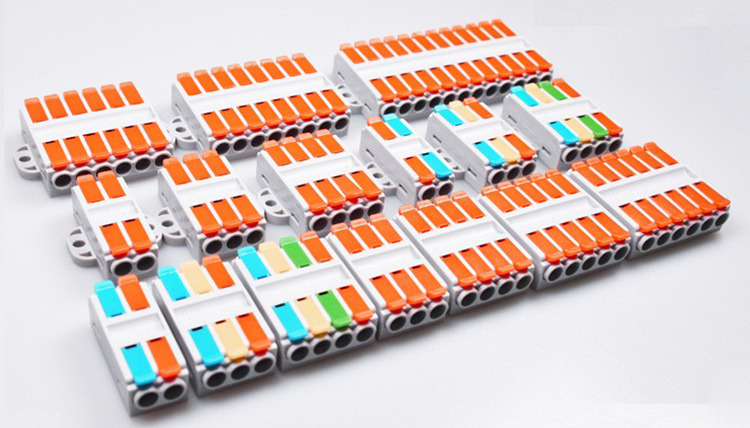

  • Multiple specification wiring digits, freely selectable

  • Insulated flame retardant shell

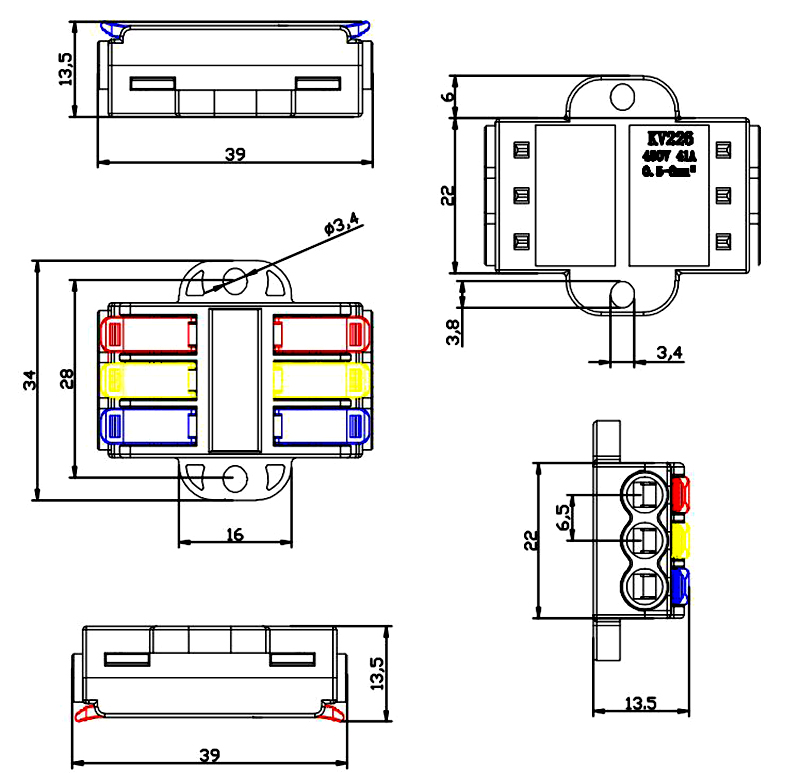

 Dimensions


 Specification of Quick connection terminal

Product Name:
 KV226B-*P

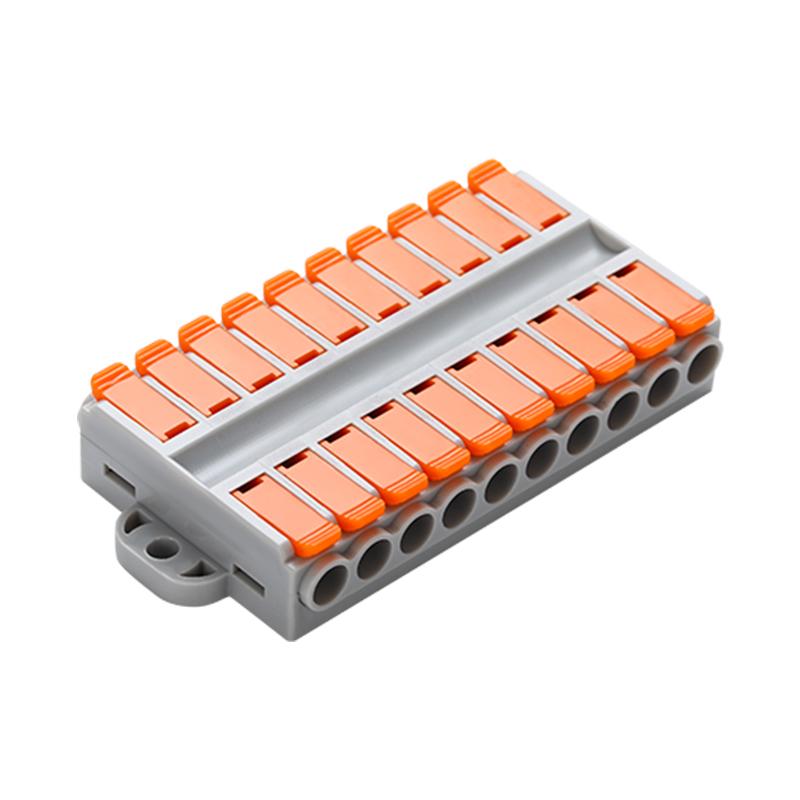

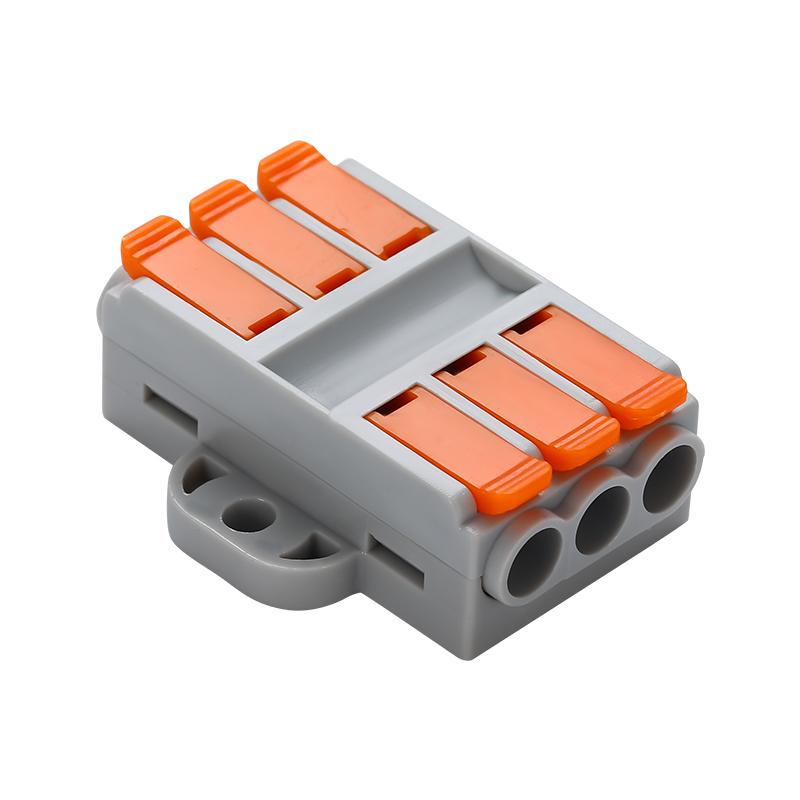

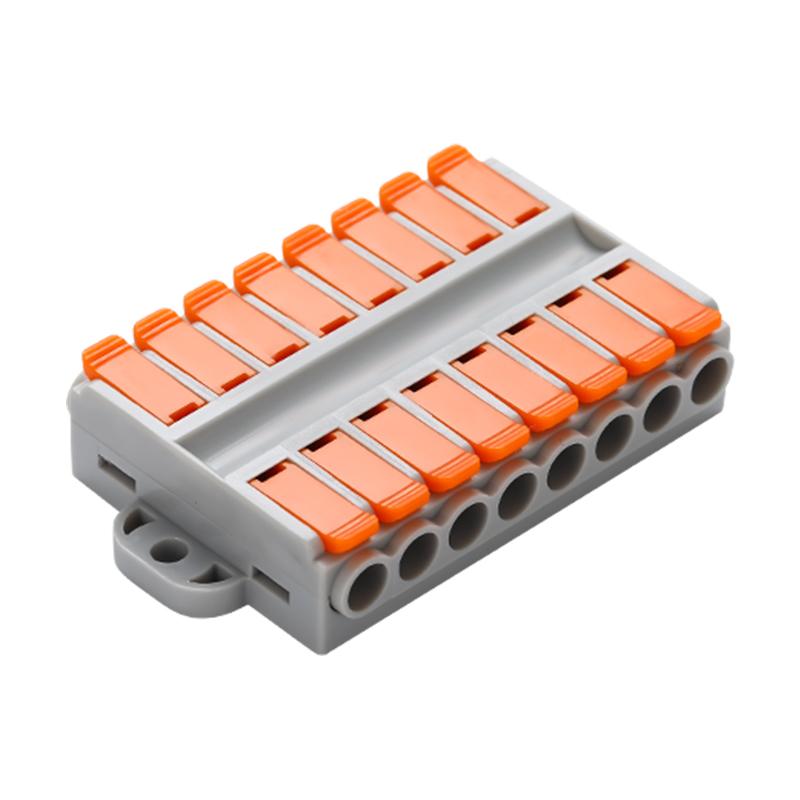

Pole:  2, 3, 4, 5, 6, 8, 10, 12
Strip Length:

 10mm

Wire Range:

 Solid wire: 0.5-6mm²

 Strand wire: 0.5-4mm²

Material:

 Housing: PC or nylon PA66

 Conductor: Brass tin plated

 Spring: Stainless steel 301

Rated Voltage:   450V/600V Rated Current:   41A
        Application:

 Power/Junction box


 Wiring style

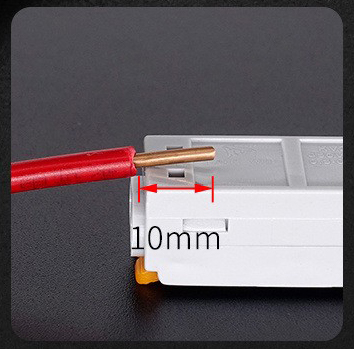

Stripping:

Strip the wire insulation jacket

About 10mm

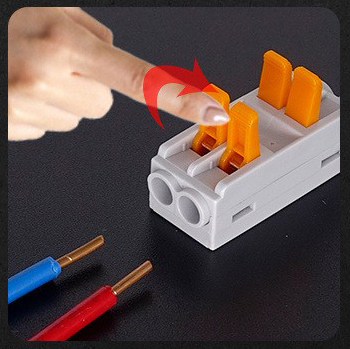

Open handle:

Pull the operating handle to open the cable entry hole

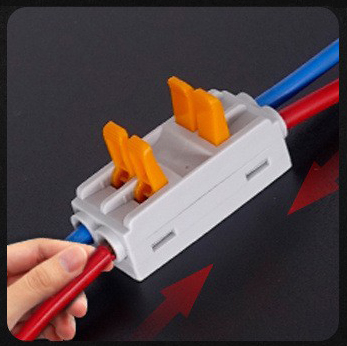

Wiring:


Insert the wire into the hole and close the handle



Complete:


Repeat the above operation to connect the wires




Hole:


Fixing screw hole

M3 screw

Fastening is not losse
