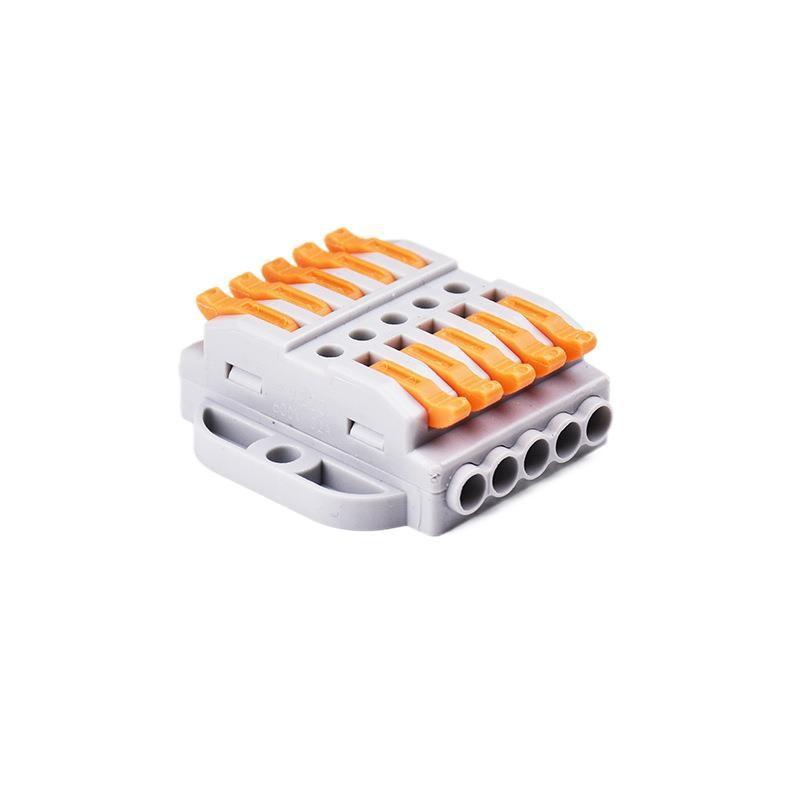

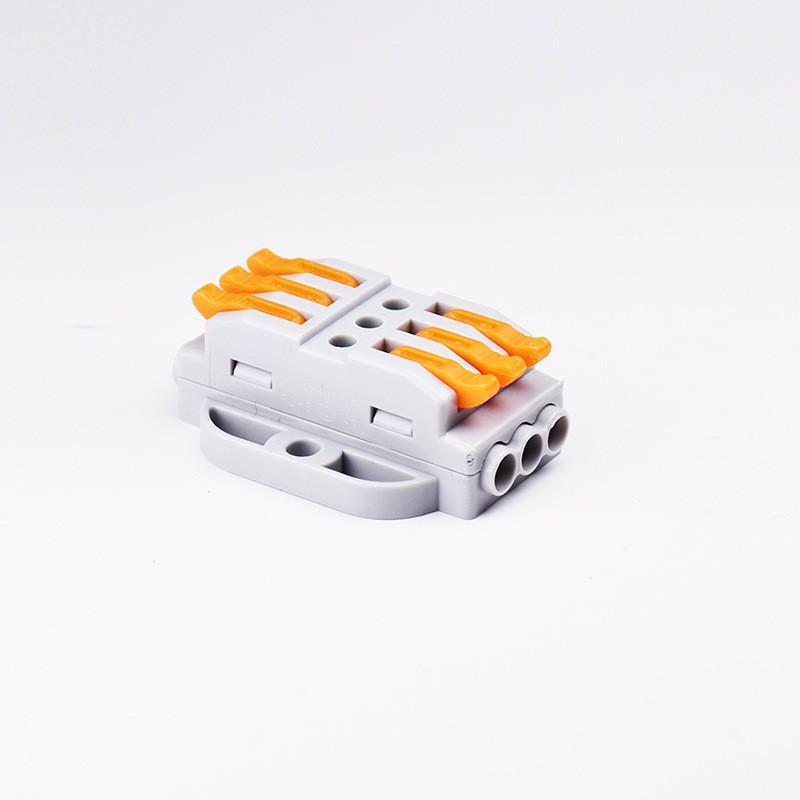

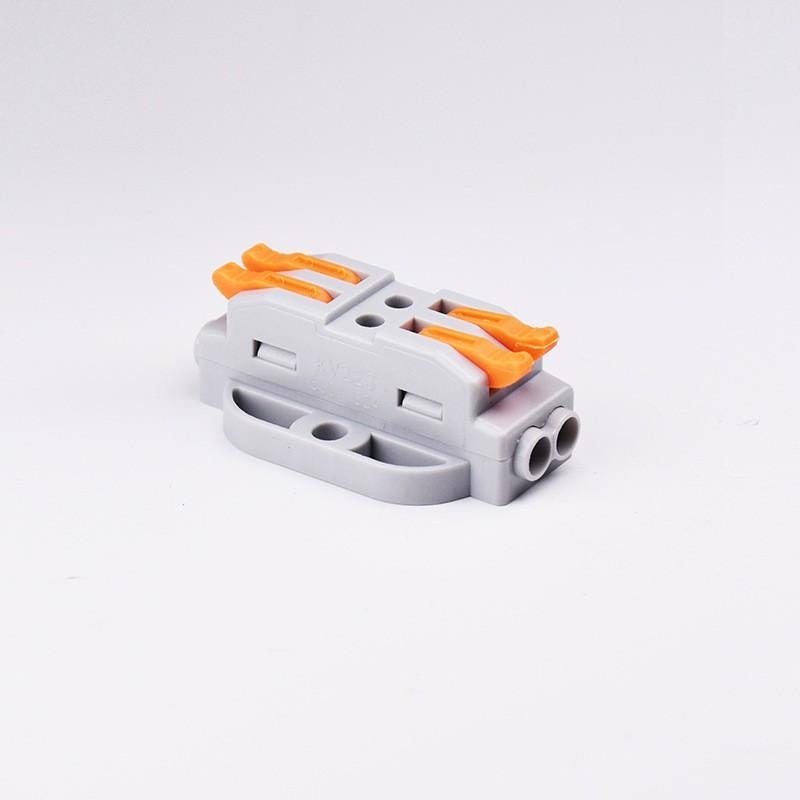

KV223 series has many poles can be chosen. Lever color can be customized. With Fixing hole (M3 screw).
Brand:
OLINKItem no.:
KV223Payment:
Wire transfer, Paypal, Western Union, AlipayProduct origin:
ChinaColor:
Grey & OrangeGoods stock:
30000Shipping port:
XiamenLead Time:
7

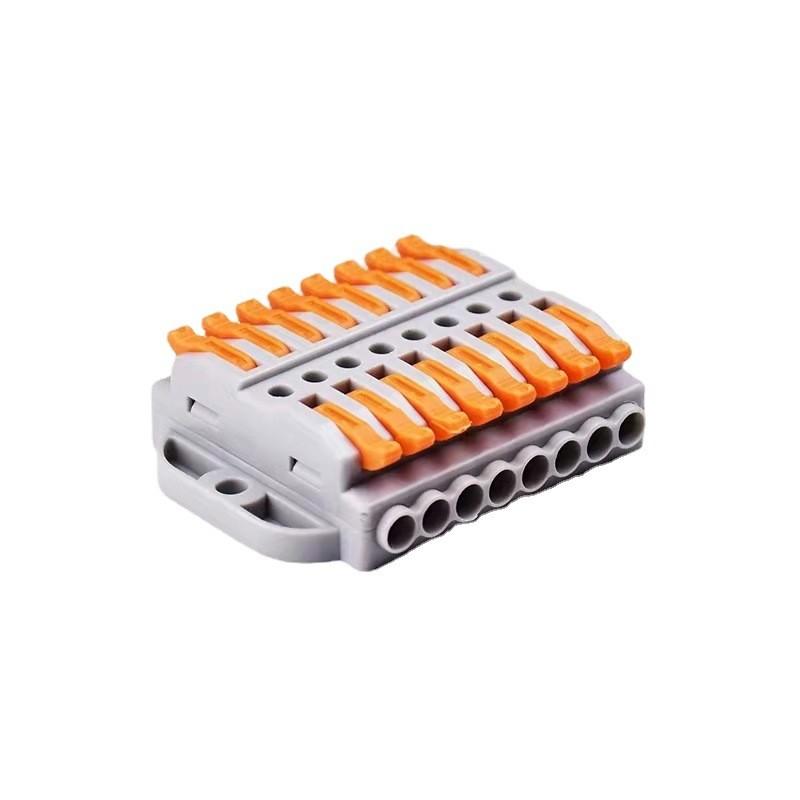

KV223 Quick Wiring Terminal Connector LED Lighting Power Push In Wire Connector
Features of Push in wire connector |
Lever color can be customized
With fixing hole

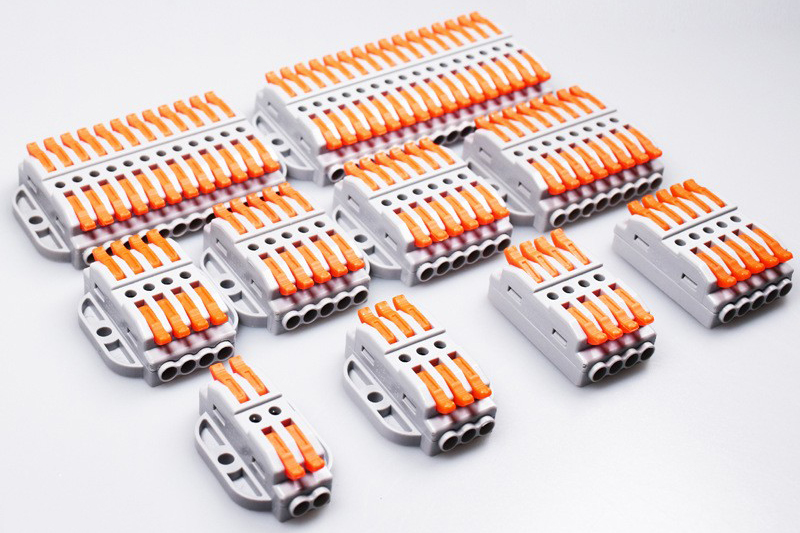

Multiple specification wiring digits, freely selectable
Insulated flame retardant shell

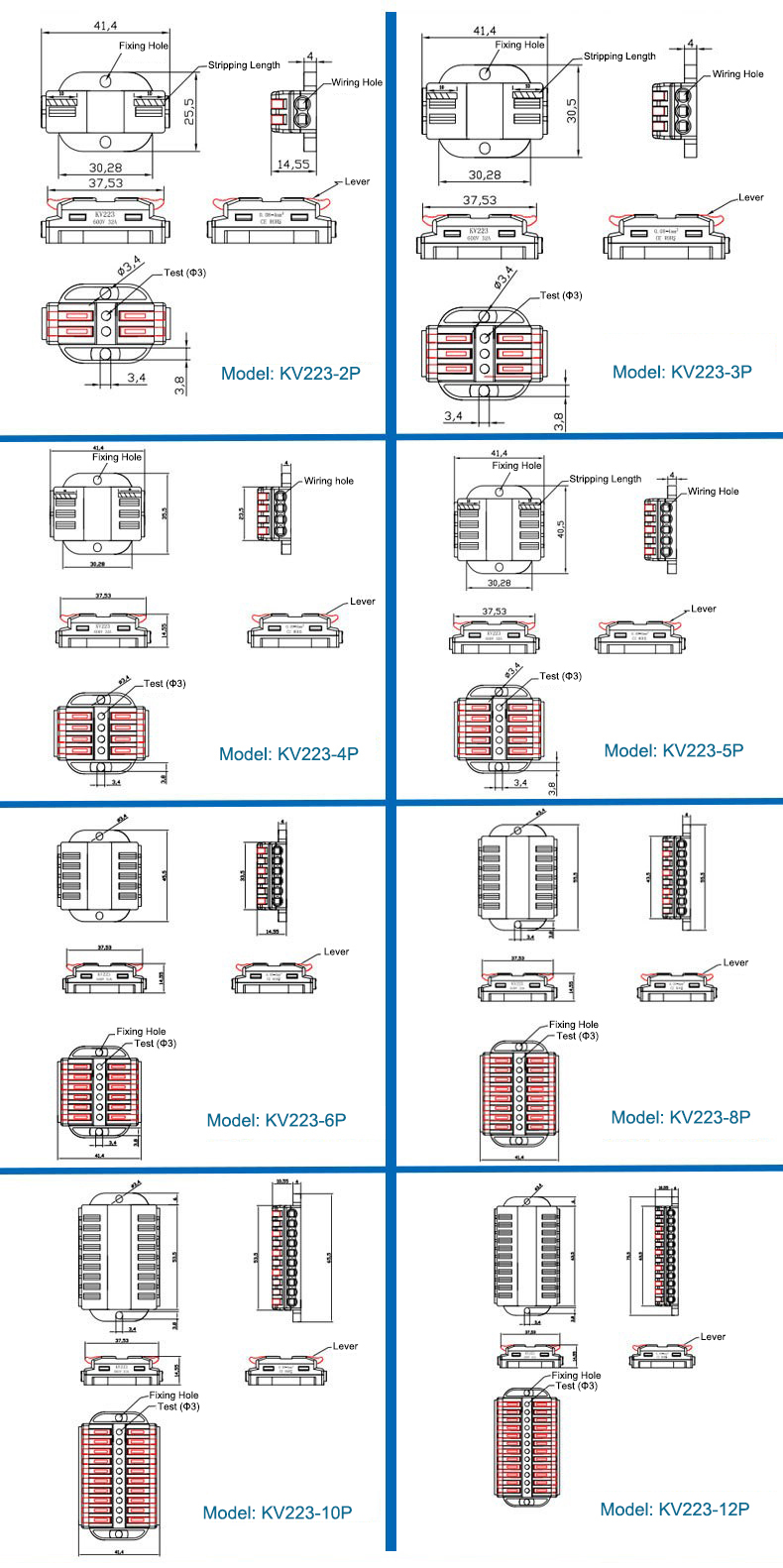

Dimensions |
Specification of Quick connection terminal |
Product Name: |
KV223-*P | ||
Pole: |
2, 3, 4, 5, 6, 8, 10, 12 |
Strip Length: |
10mm |
Wire Range: |
Solid wire: 0.08-4mm² Strand wire: 0.08-2.5mm² |
Material: |
Housing: PC or nylon PA66 Conductor: Brass tin plated Spring: Stainless steel 301 |
Rated Voltage: | 250V/600V | Rated Current: | 32A |
Application: |
Power/Junction box |
Wiring style |
![]() |
Stripping: Strip the wire insulation jacket About 10mm
|

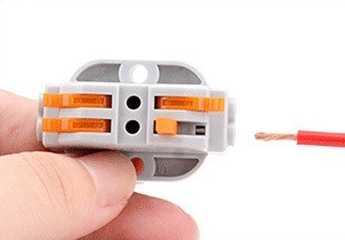

Open handle: Pull the operating handle to open the cable entry hole |
![]() |
![]() |

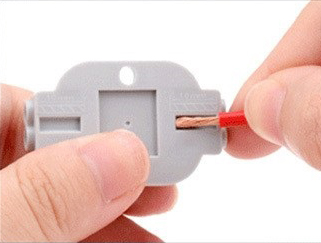

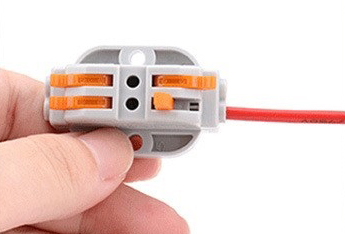

Wiring: Insert the wire into the hole and close the handle
|

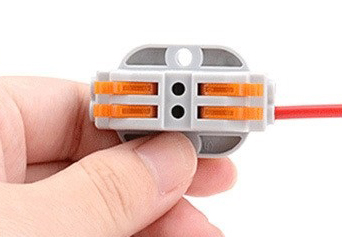

Complete: Repeat the above operation to connect the wires
|
![]() |
![]() |

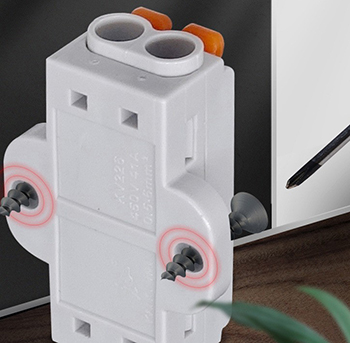

Hole: Fixing screw hole M3 screw Fastening is not losse
|
