High Current Connector

 /Nickel Plated Electric Bike Scooter Vehicle Power Socket

Energy Storage Connector
Energy Storage Connector Energy Storage Connector Energy Storage Connector

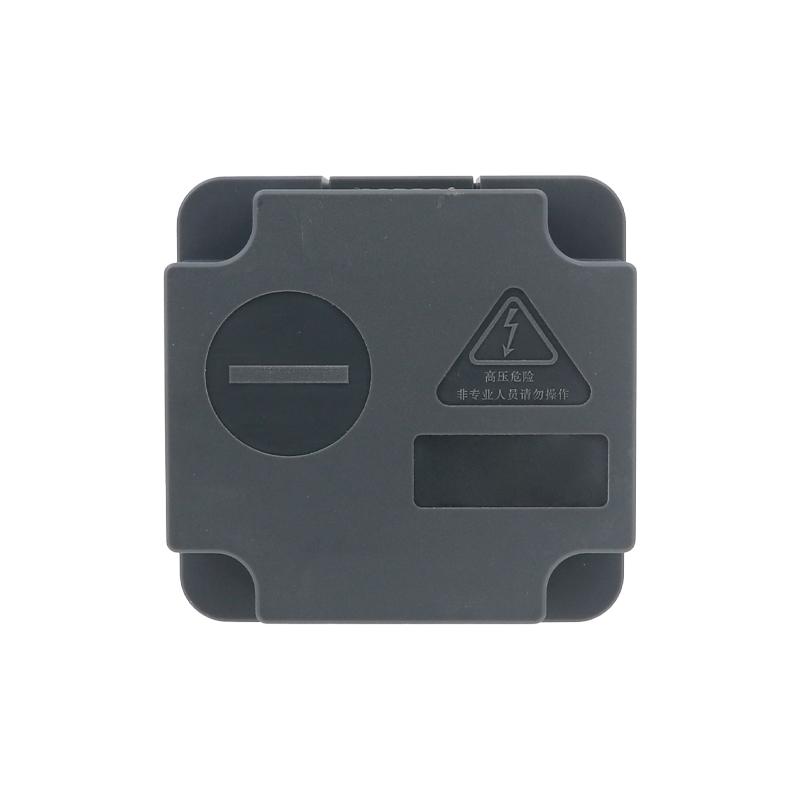

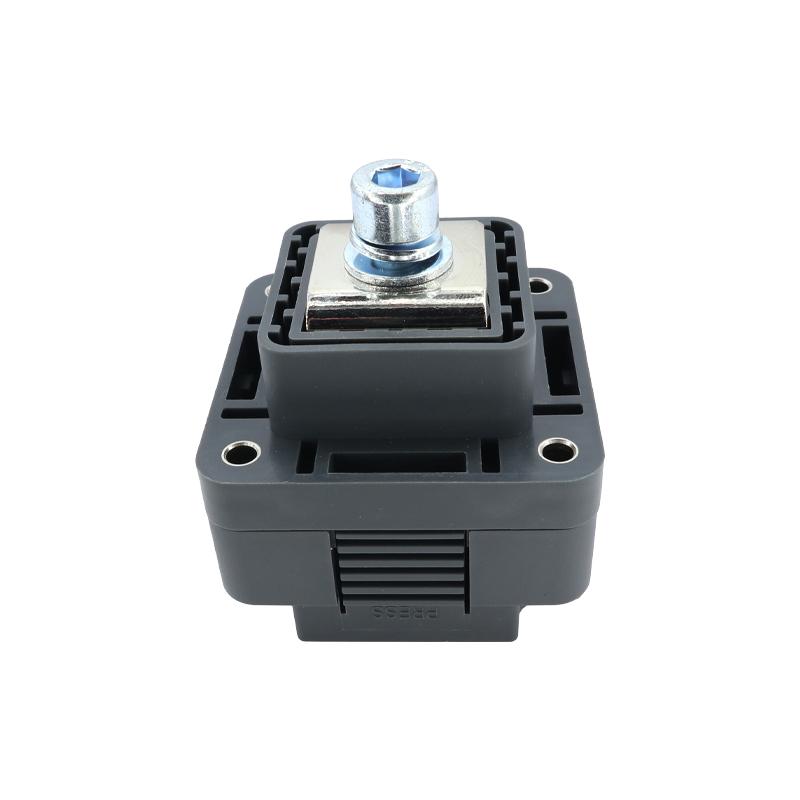

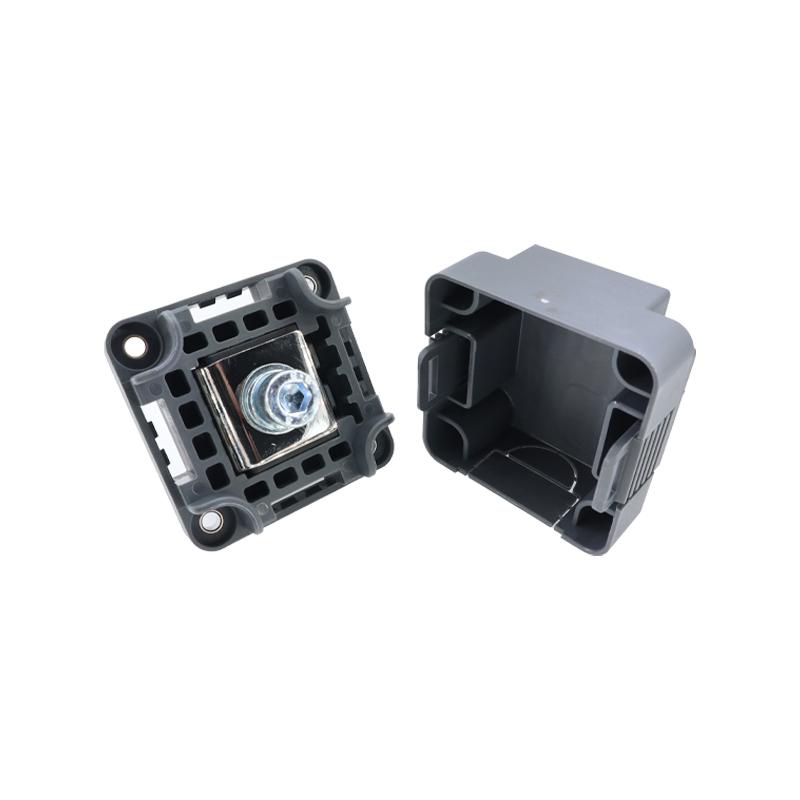

Nickel Plated Electric Bike Scooter Vehicle Power Socket

The energy storage connector compression lug is a field installable, high reliable alternative to common compression lugs. Using industry standard crimp, screw, and busbar termination options, thus eliminating the need to purchase special torque tools

  • Brand:

    OLINK

  • Item no.:

    CNKJ-200A-A(B)

  • Payment:

    Wire transer, West Union, Paypal

  • Product origin:

    China

  • Color:

    Black, Red, Gray

  • Goods stock:

    1000

  • Min order:

    10

  • Shipping port:

    Xiamen

  • Lead Time:

    7 days
Inquiry now

 120A 150A 200A 300A 400A 1 pin energy battery storage ev connector male female hv high voltage connector

 Olink Plastic Shell IP54 Energy Storage Connector Hv Connector Has features:

1. Connector mating is convenient and fast, and blind mating can be realized.

2. Positive and negative poles have key structure error prevention function and color vision function.
3. It has good corrosion resistance and high temperature resistance, and can maintain stable connection performance in long-term use.
4. The energy storage connector can withstand high current and high voltage to adapt to the high-power output and fast charge and discharge needs of energy storage devices.


Brand name Olink
Application Battery Storage Connector
Gender Male/Female
Orientation Straight
Number of Positions 1 pin
Rate current

120A, 150A, 200A, 300A, 400A

Termination Style Crimp
Wiring Method M6/M8 thread Bolt-Type
IP rating IP54
Color Red/Black/Gray
Material

Shell : PA66

Contact : Cooper, Silver plating


Electrical Performance


Rated Voltage : 600V/DC

Rated Current:  From 12A to 400A MAX

Insulation Resistance:  ≥1000MΩ


Environmental Performance


IP Degree: IP54

Operating Temperature  :-40℃~125℃

Flammability Rating:  UL94 V-0



*For more products, please visit our home page and contact customer service staff.
