Brand:
OLINKItem no.:
E80Payment:
Wire transer, West Union, PaypalProduct origin:
ChinaColor:
Black. Red OrangeGoods stock:
1000Min order:
10Shipping port:
XiamenLead Time:

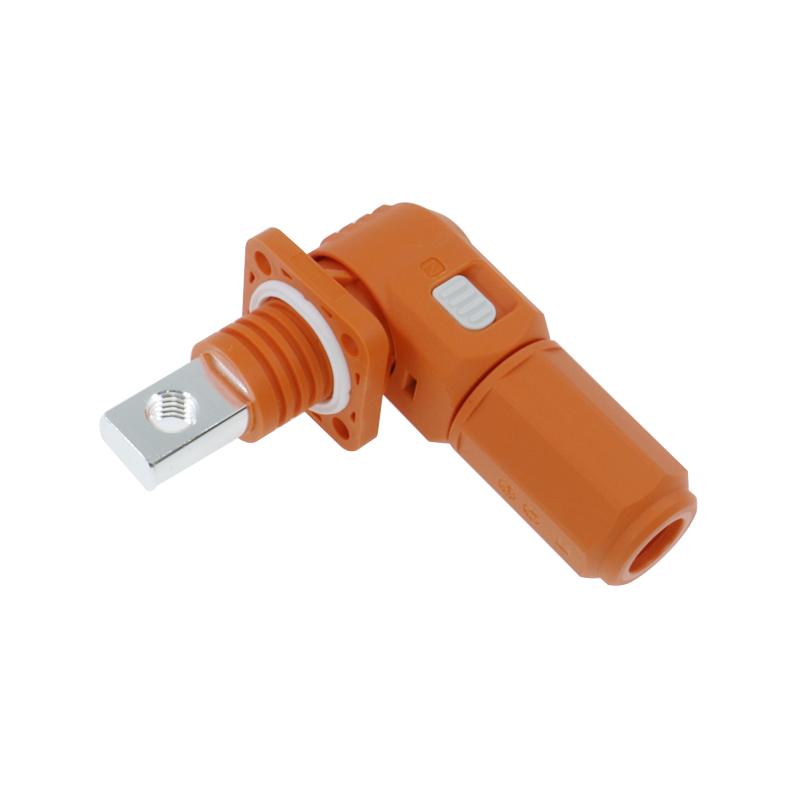

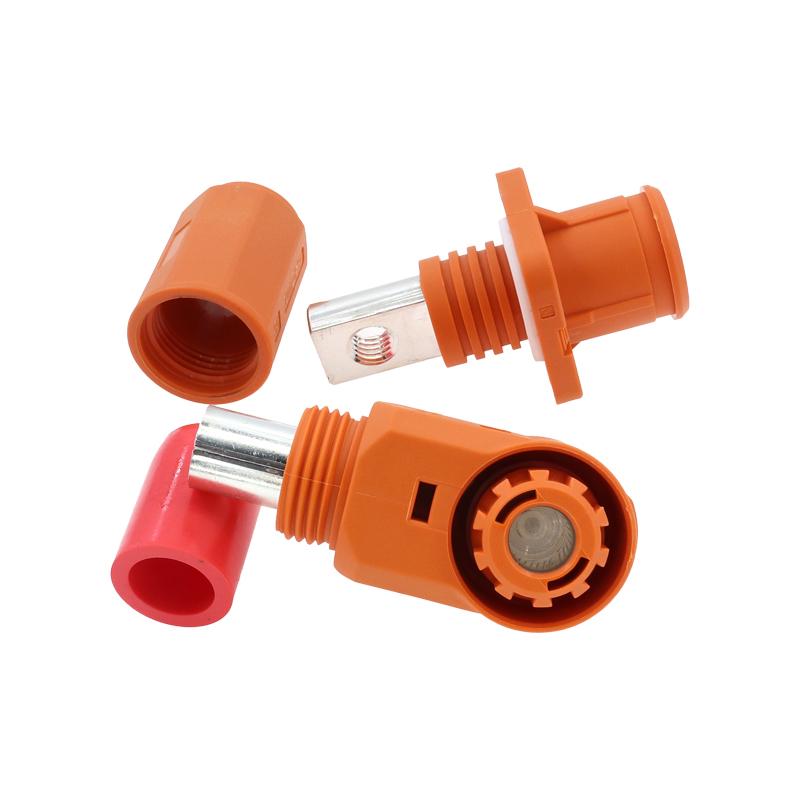

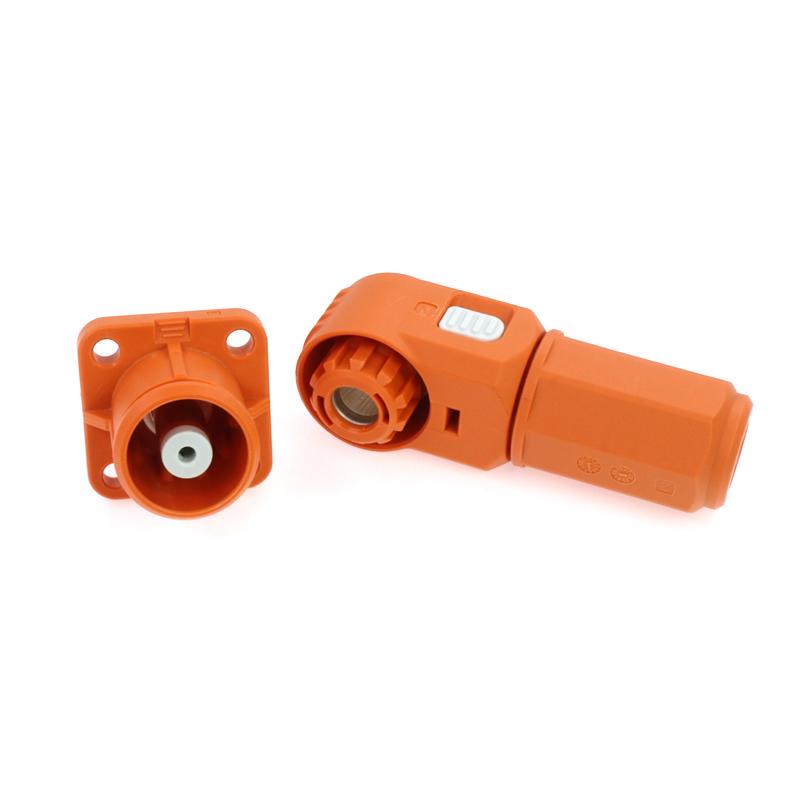

7 daysOlink Plastic Shell IP67 1500V 200A Energy Storage Connector Hv Connector:
The Energy Storage Connector is a Field Installable, High Reliable Alternative to Common Compression Lugs. Using Industry Standard Crimp, Screw, and Busbar Termination Options, Thus Eliminating the Need to Purchase Special Torque Tools. This Connector Available in Smaller Sizes, and Features a Quick Lock and Press-to-release Design.
Incorporating the Latest Flexcoil Finger Connecting Technology, Our Energy Storage Connector is a Compact, Quick Mating, and Robust Product Line.
Products Benefits Touch Proof 360°Rotating Plug Compactrobust Design Various Termination Options Three Color are available Quick Lock and Press-to- Release Design
Shell : PA66
Contact : Cooper, Silver plating
Electrical Performance
Rated Voltage : 1000V/DC
Rated Current: From 60A to 500A MAX
Withstand Voltage: 2500V AC
Insulation Resistance: ≥1000MΩ
Terminal: 6 / 8 / 12 / 14mm
Cable Range: 10mm2 ~150mm2
Connection Type: Crimp tool
Mating Cycles : >500 times
Shielding :360°
Environmental Performance
IP Degree: IP67
Operating Temperature :-40℃~125℃
Flammability Rating: UL94 V-0
Brand name
Olink
Application
Battery Storage Connector
Gender
Male/Female
Orientation
Straight/Right angle
Number of Positions
1 pin
Rate current
150A
Termination Style
Crimp
Wire grange
35mm2
IP rating
IP67( Pluged)
Color
Red/Black/Orange
Material
Mechanical Performance
