The rocker switch is an electrical on/off switch. The rocker swings from one side to the other when pressed, so that one side is raised and the other side is depressed. This rocking mechanism will connect or disconnect the circuit.
Brand:
OLINKItem no.:
KCD2Payment:
Wire transfer, PayPal, Western Union, AlipayProduct origin:
ChinaColor:
Black shell, button color can chooseGoods stock:
50000Shipping port:
Xiamen, NingboLead Time:

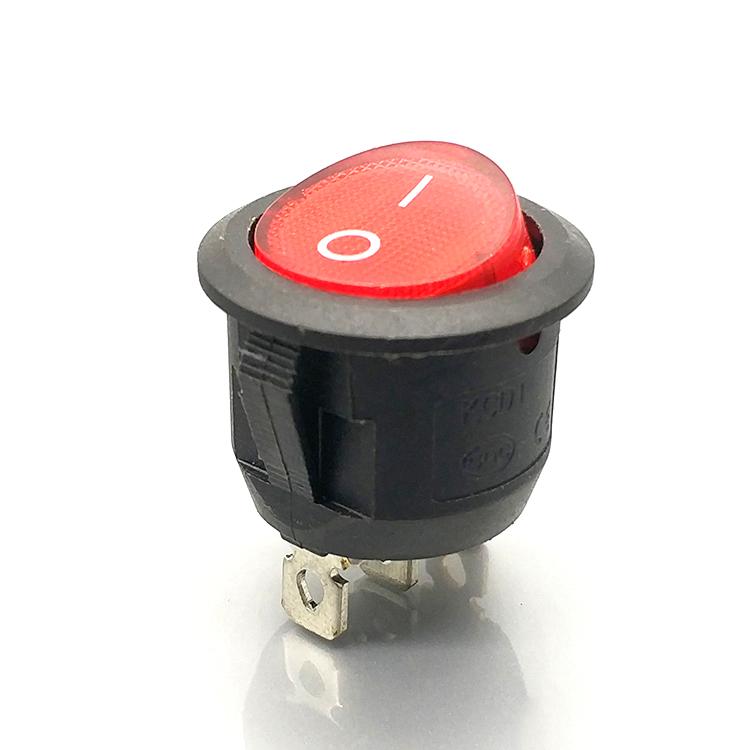

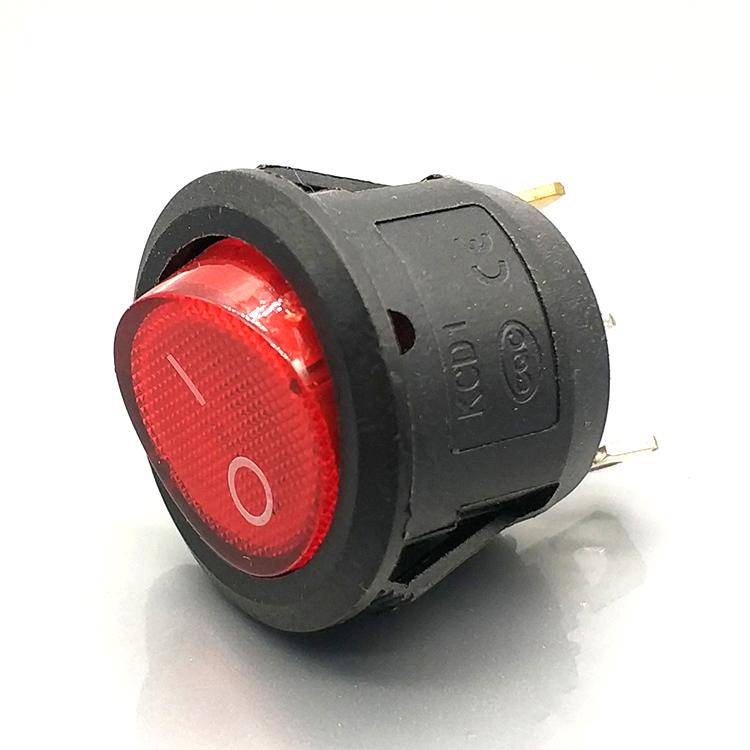

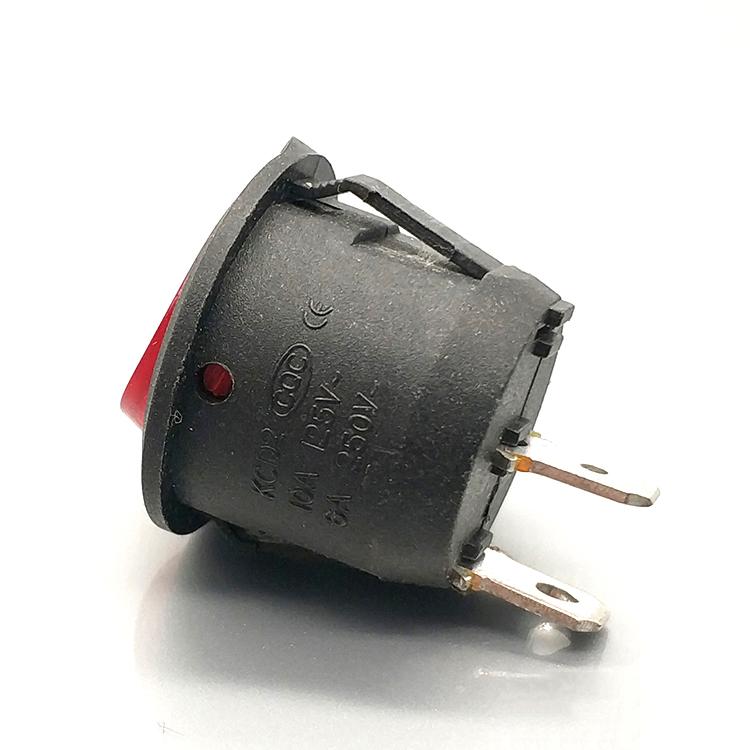

7On off on round rocker switch with 12v led
Description of Round rocker switch
Specification of Round rocker switch
Product name: | on off rocker switch | Model: | KCD2 series |
Panel mount diameter: | φ19, φ19.5, φ20 | Function: | on-off, on-off-on, on-on |
Rating: | 6A 250V AC/10A 125V AC | Rated load: | 2/8A 250V AC |
Solder terminal: | PTI 175 | Ambient temperature: | T85 |
Endurance: | 10000 cycles | Contact resistance: | ≤ 50mΩ |
Dielectric intensity: | ≥ 1500V AC/min | Withstand voltage: | 1500V AC/min |
Insulation resistance: | ≥ 100MΩ | Frequency: | 50HZ |
Feature of 12v rocker switch
There are more rocker switches to choose from
