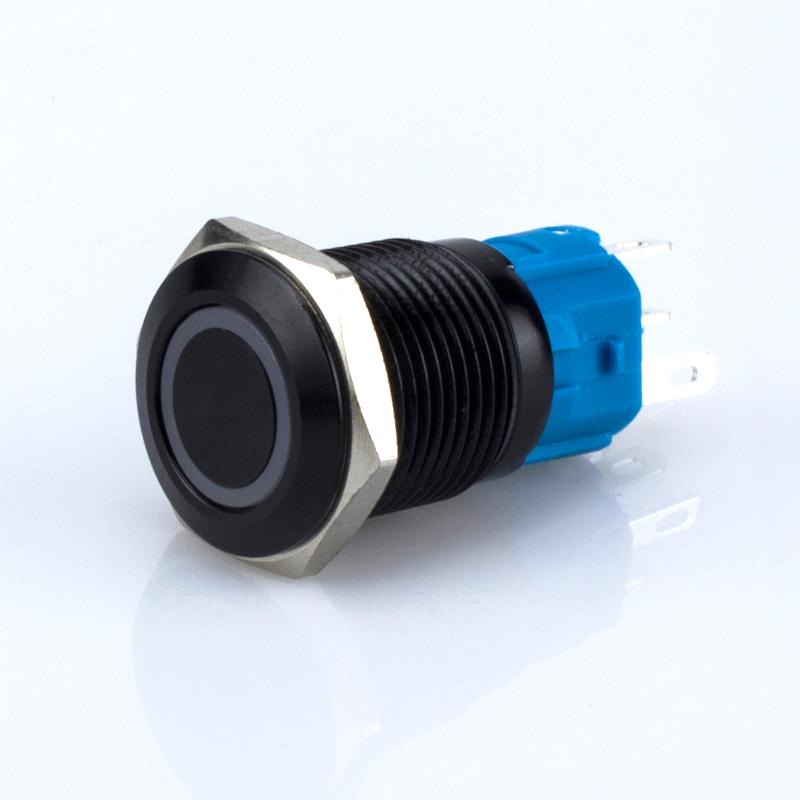

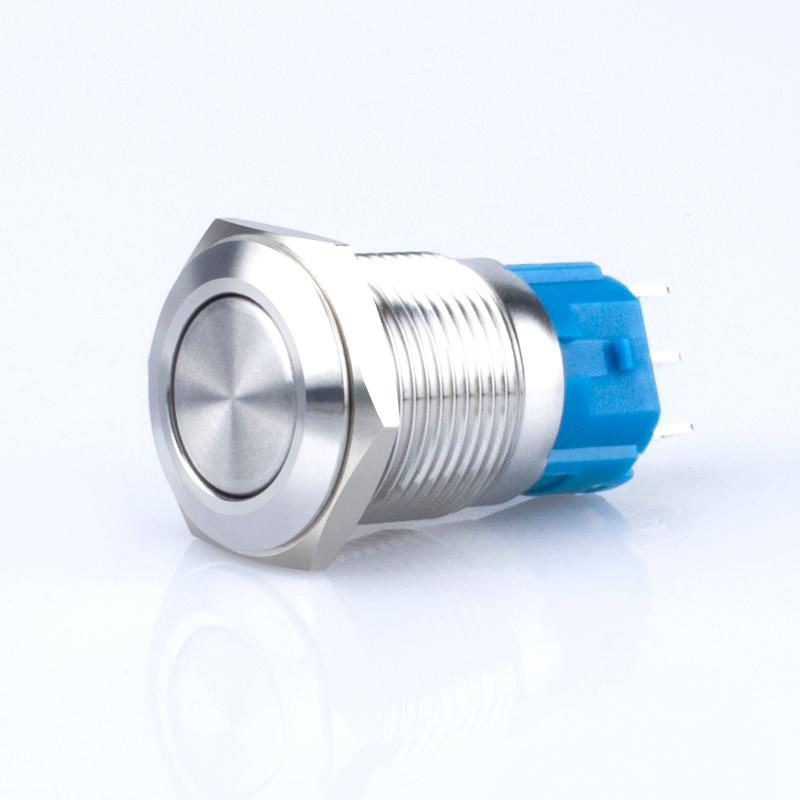

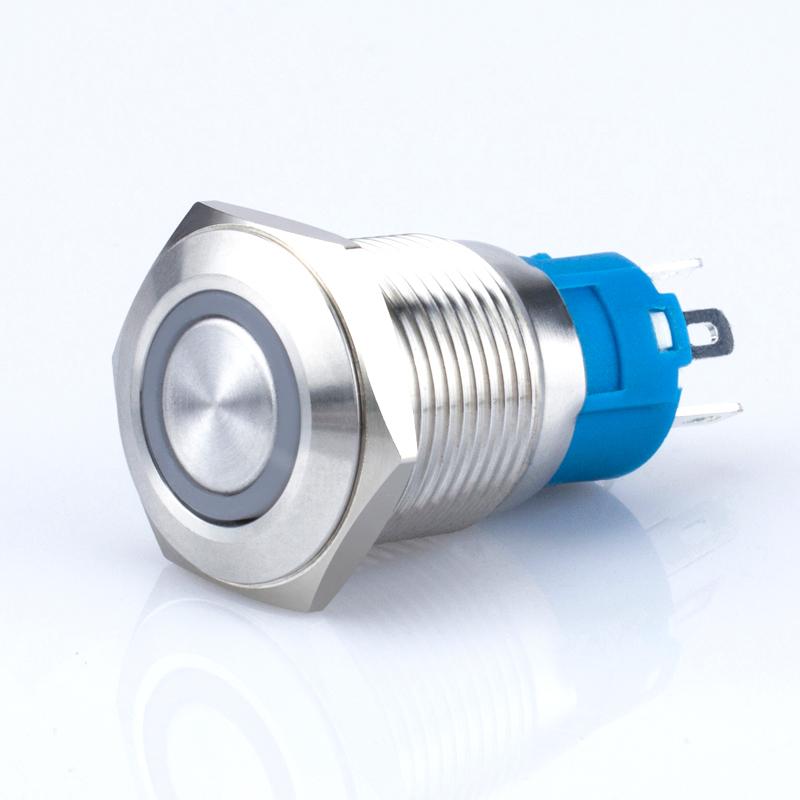

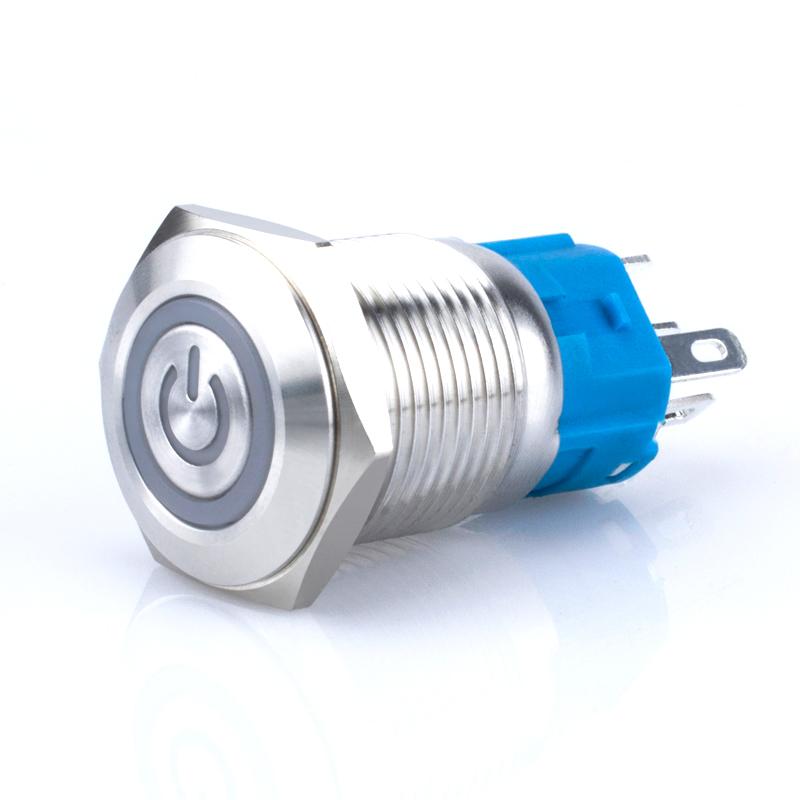

Mechanism Momentary 230V 4-Pin Screw Activated Switch

Strong terminal, 1NO1NC, Momentary or self-locking function, with led, can do

monochromatic light, dual-color led and tri-color led.

Brand:
OLINK
Item no.:
16QE
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Color:
Sliver, other colors(OEM)
Min order:
40
Shipping port:
Xiamen, Ningbo
Lead Time:
7

Inquiry now

product introduction

Weatherproof metal push button switch IP67 PCB mount

Description of 16mm PushButton Switch

A 16mm push button switch is a momentary or self-locking switch which causes a temporary change in the state of an electrical circuit only while the switch is physically actuated.

Features of Stainless Steel Push Button

Bold pin: 2.8*0.5 thick pin, more solid, not easy to damage when the plug is connected or soldered
All silver contacts: strong heat dissipation, good electrical conductivity, and long service life
Environmentally friendly flame-retardant: PC plastic is used, and no return material is rejected, V0-class flame-retardant
IP67 waterproof: built-in waterproof ring, made of medical silicone material, safe and reliable. IP67, IK10, dustproof, waterproof, anti-vandalism

Specifications of Push Button Switch

Product Name:	16mm push button switch with led	Product Model:	16QE
Switch Rating:	5A/250V AC	Terminal Type:	2.8x0.5 J pin terminal
Switch Function:	1NO1NC, Momentary/Self-locking	Environment Temperature:	-20℃~+55℃
Contact Resistance:	≤50mΩ	Insulation Resistance:	≥1000MΩ
Panel Thickness:	1~10mm	Protection Grade:	IP65/IP67, IK10
Contact Material:	Sliver Alloy	Button Material:	Stainless steel, Zn-Al alloy(any color)
Body Material:	Brass nickel plated, Stainless steel, Zn-Al alloy(any color)	Base Material:	PBT
Lamp Voltage:	2V, 3V, 5V, 6V, 12V, 24V, 36V, 48V, 110V, 220V	Lamp color:	Red, Orange, White, Blue, Green, Yellow (dual-color led, tri-color led)

Drawing of 120V Push Button Switch


16QE-F11Z		16QE-H11Z

16QE-F11Z/E		16QE-H11Z/V

16QE-F11Z/EV		16QE-H11Z/EV

16QE-F11Z/V		16QE-H11Z/V

Application of 16mm Push Button

16mm push button switch can be applied to car motorcycle modification, electric equipment, appliance, machine, home Lamps etc.

16mm push button switch

FAQ:

How to wire a push button switch?

Matched socket: safety, convenience, reliable, plug and play
Terminal sheath: economical and practical
Manual soldering: It is recommended to use a 25W electric soldering iron, and the soldering time should be within 3 seconds
Automatic welding machine: recommended 240℃ within 3 seconds
