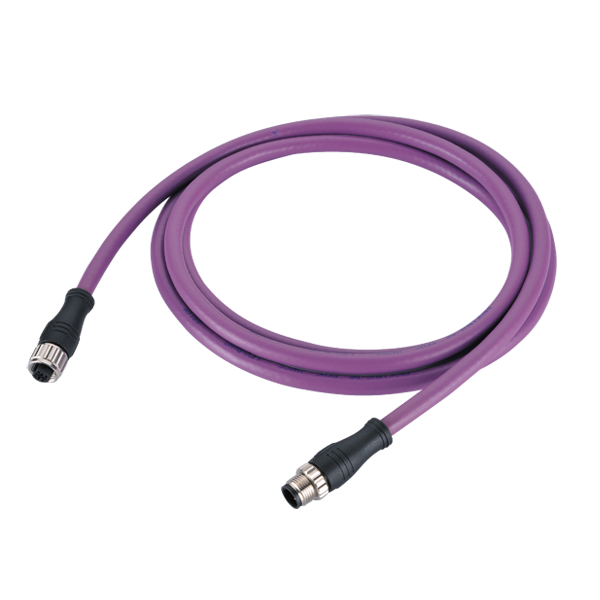

M12 with molded 4x22AWG PVC cable custom length

Olink M12 sensor cables are designed for industrial harsh and critical applications.

Brand:
OLINK
Item no.:
M12 with wire
Payment:
Wire transer, West Union
Product origin:
China
Color:
Black. White
Goods stock:
1000
Shipping port:
Xiamen
Lead Time:
7 days

Inquiry now

product introduction

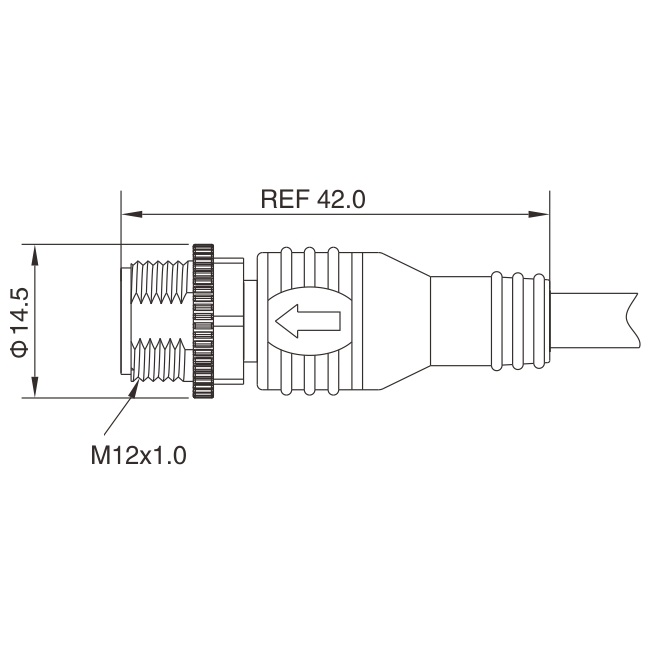

M12 A-Code male connector cables

Description:

Connector series: M12
Gender: Male
Coding: A,B,C,D
Locking type: Fix screw
Mounting type: Straight

General Information

Standard	IEC61076-2-101
Ambient temperature	-20℃ ~ +80℃
Connector insert	TPU
Connector Contacts	Brass with gold plated
Connector over-molding	TPU
Coupling nut/screw	Zinc alloy with nickel plated
Insulation resistance	≥100MΩ
Contact resistance	≤5mΩ
Shielding	Unavailable
IP rating	IP67/IP69K in locked ondition

Electrical data & Mechanical data:

Contacts	Rated Current	Volate		Wire Guage/Size		Cable Jacket	Wire Insulation
Contacts	Rated Current	A/C	D/C	AWG	MM2	Cable Jacket	Wire Insulation	Cable lenght
03 pins	4A	250V	250V	22	0.34	PUR/PVC	pvc	Customized version available
04 pins	4A	250V	250V	22	0.34	PUR/PVC	pvc
05 pins	4A	60V	60V	22	0.34	PUR/PVC	pvc
06 pins	2A	30V	30V	24	0.25	PUR/PVC	pvc
08 pins	2A	30V	30V	24	0.25	PUR/PVC	pvc
12 pins	1.5A	30V	30V	26	0.14	PUR/PVC	pvc
12 pins	1.5A	30V	30V	26	0.14	PUR/PVC	pvc

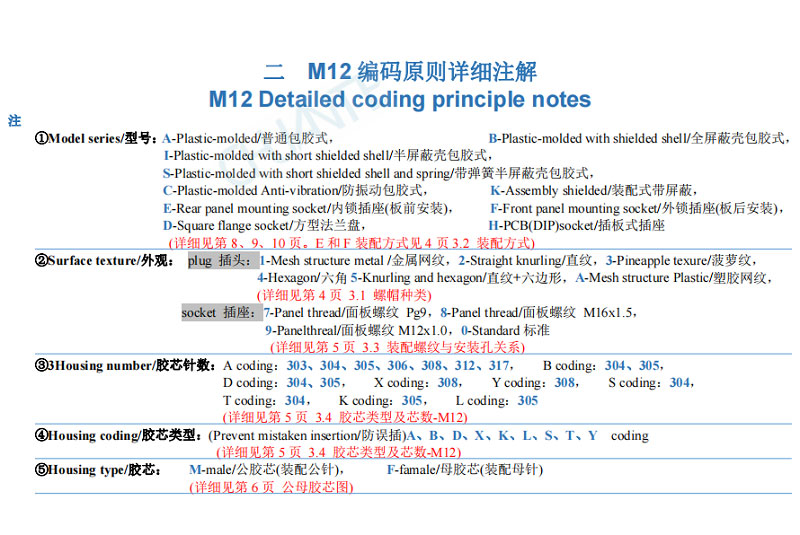

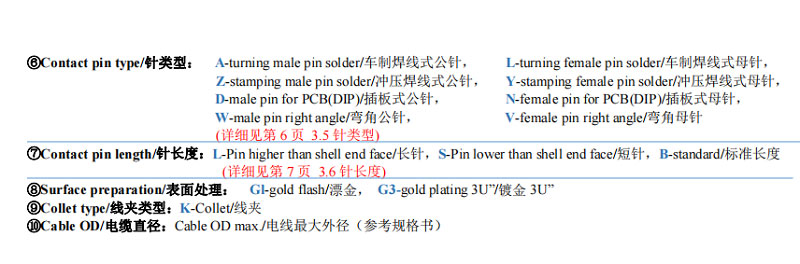

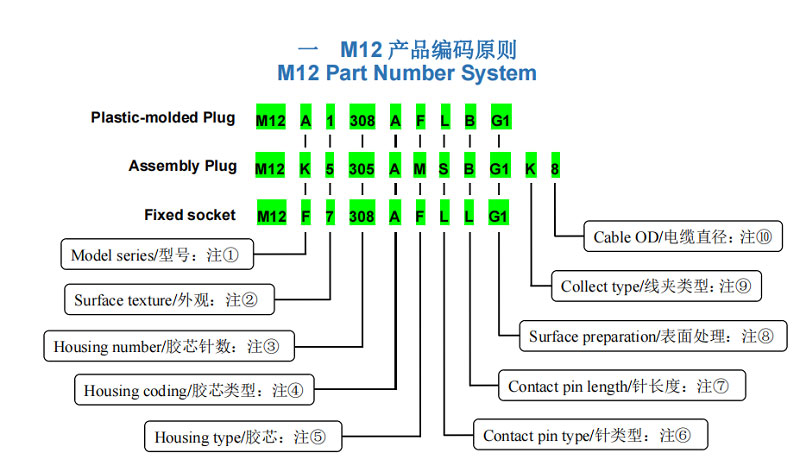

How to order:

Application:

Marine & ships engineering Package conveyor & logistic system

Medical system Aerospace & drone
