M12 A-Code 4Pin male to male double ended connector

M12 circular connectors came to market in the late 1980’s and remain a positive disruption in industries such as automotive, industrial automation, agriculture, and food processing

Brand:
OLINK
Item no.:
M12
Payment:
Wire transfer, Paypal, Western Union, Alipay
Product origin:
China
Color:
Black
Shipping port:
Xiamen
Lead Time:
7

Inquiry now

product introduction

2 4 6 8 pin M12 cable plug connector

Description:

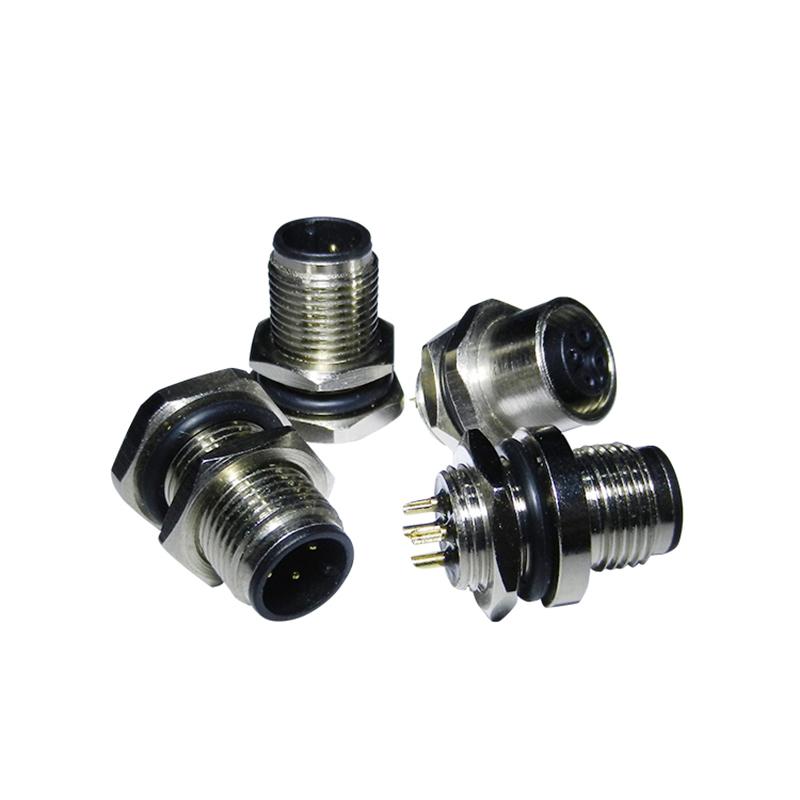

M12 bulkhead connector provide technology that allow ease of application, low set-up/tear-down time, improved reliability, and far less MRO expense. Three decades into their life cycle, they continue to evolve, replacing previous designs that required labor-intense hardwiring and connectors that did not meet/exceed the IP67/68 rating.

M12 Cable connector The Features of M12 Power connector

Metal or Plastic available
Male and Female
A, B, and D-Coded
Many configurations available
Waterproof rated to IP-65, IP67-68
RoHS Compliant

Drawing for m12 electrical connector

Shell Material	PA66+30%GFUL94V0	Connector Gender	Male/Female	Number of contact	2.3.4.5.6.7.8
Mold Material	Waterproof PVC	Assembly style	Field installation/Molding(Solder)	Mating Style	Screw
Sealing ring	Ethylene-propylene-diene Rubber	Prduct Type	Straigh/Right Angle	IP Rating	IP67/68
Compliance	ROHS CE	Size	M12	Current	5-7 A
Breakdown Voltage	≥2.5KV Norma 1.0KV water	Temperature	-45°C-105°C	Contact Resistance	＜5mΩ
Insulation Reisistance	≥500MΩ AC DC 500V	Duratility	3K plug/Unplug Cycles

FAQ

M12 connector refers to the electrical connector with M12 thread, which is mainly used in signal transmission and sensors of equipment. Commonly used in the market are A code, B code and D code.
