LED Lamp 1N1NC Combination 3A Max Current push button switch

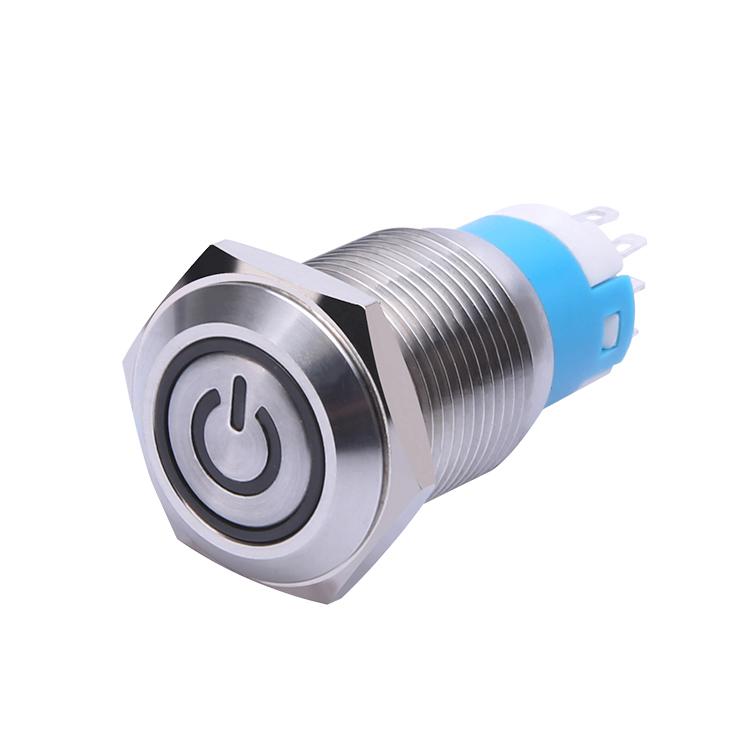

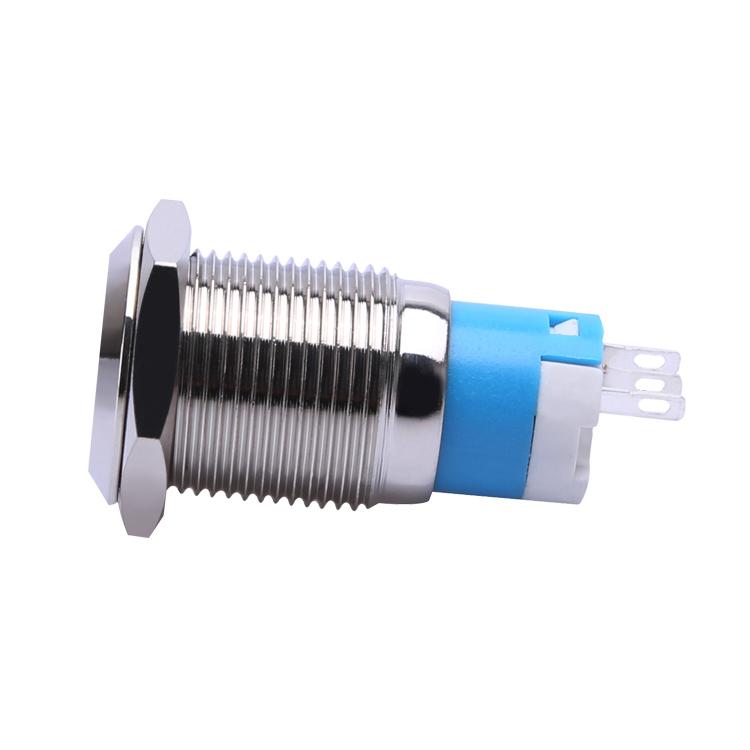

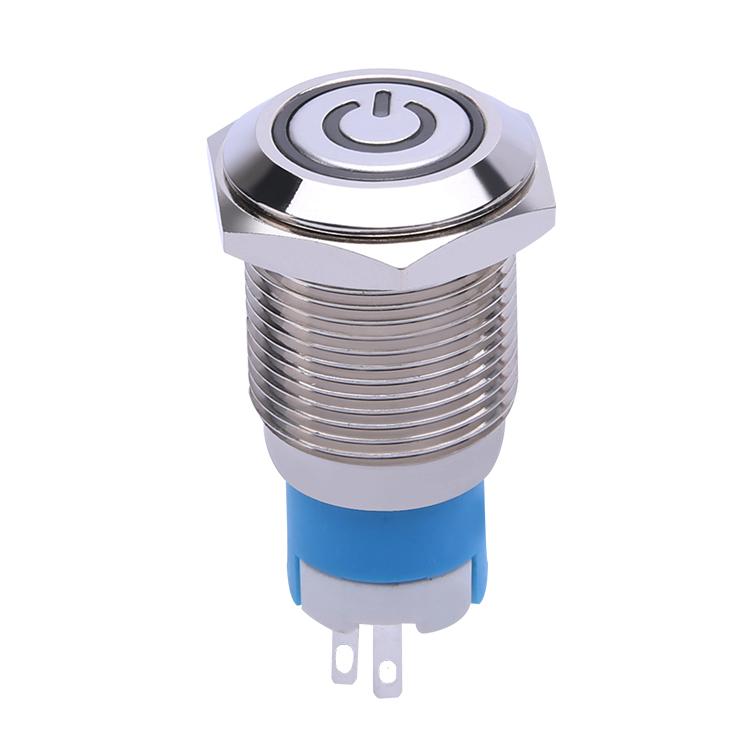

   16mm 120v waterproof momentary stainless steel push button switch

• Waterproof momentary push button switch: The water resistance of ip65/ip67 makes it suitable for more complex use environments.
• Stainless steel push button switch: Except stainless steel, there still have brass nickel plated and Zn-Al alloy of the shell material. You can make in in any color, like black, yellow.
• Protection level: IP65/IP67, IK10. Completely prevent dust from entering and prevent the impact of 15mm~1m deep soaking; Also prevent the switch to be adverse affected when the some parts of the shell by three times the energry of the appropriate level of the mechanical shock.
• Switch and the LED are separated, LED can be on all the time or only on when switch is on, it depends on how will you wire it.
• Wiring – We are able to provide wiring, and also connector sockets which match with our metal push button switch. If this is something you’re looking for, mention this with detail requirements when making an enquiry.

Drawing of 120V Push Button Switch

16QB-F11Z		16QB-H11Z
16QB-F11Z/V		16QB-H11Z/V
16QB-F11Z/E		16QB-H11Z/E
16QB-F11Z/EV		16QB-H11Z/EV
16QB-F11Z/D		16QB-H11Z/D

Application of 16mm Push Button

16mm push button switch can be applied to car motorcycle modificaction, electric equipment, appliance, machine, home Lamps etc.

• 16mm Push Button Switch The in-line quick socket can eliminate the cumbersome operations of welding and connecting terminals during the switch installation process, and it is more convenient to replace the damaged button switch in the future, saving time and effort.
• The default line length is 150mm, which can be customized according to the specific requirements of the order.

FAQ:

What are the types of push button switches?

A Push Button switches have two types: "Momentary" - where the action only occurs when the button is pressed; and "latching" - where the contacts are maintained until the button pressed again. Push Button switches are available in Single & multiple Poles but are limited to two throws. The terminal types have J pin terminal and screw terminal.
