kcd3 16a 250vac t125 55 leci rs606 rocker switch

Olink offers a variety of illuminated and non-illuminated, and also snap-in installation rocker switches. The rocker switch has 2 to 6 poles, and there are a variety of colors, functions.

Brand:
OLINK
Item no.:
KCD4
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Color:
Black shell, button color can choose
Goods stock:
50000
Shipping port:
Xiamen, Ningbo
Lead Time:
7

Inquiry now

product introduction

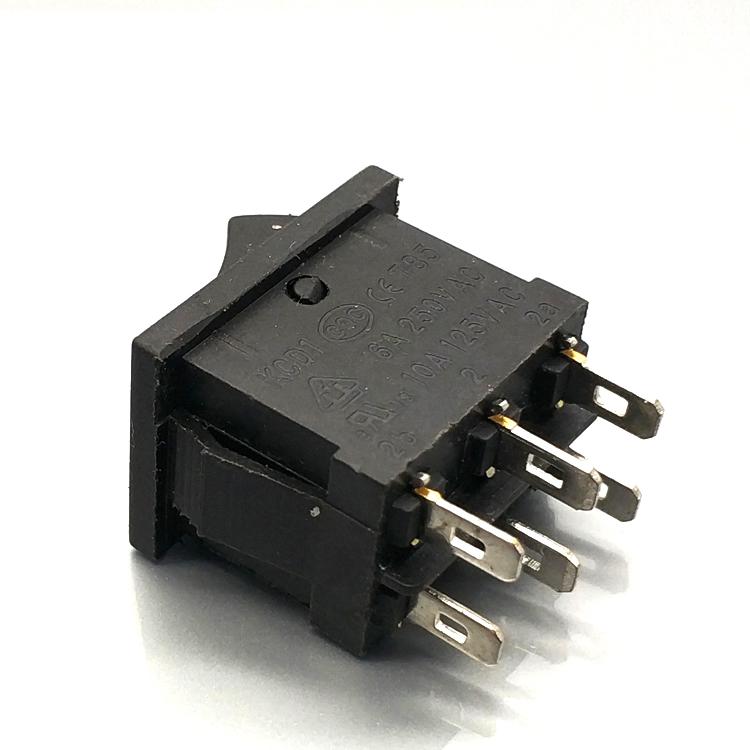

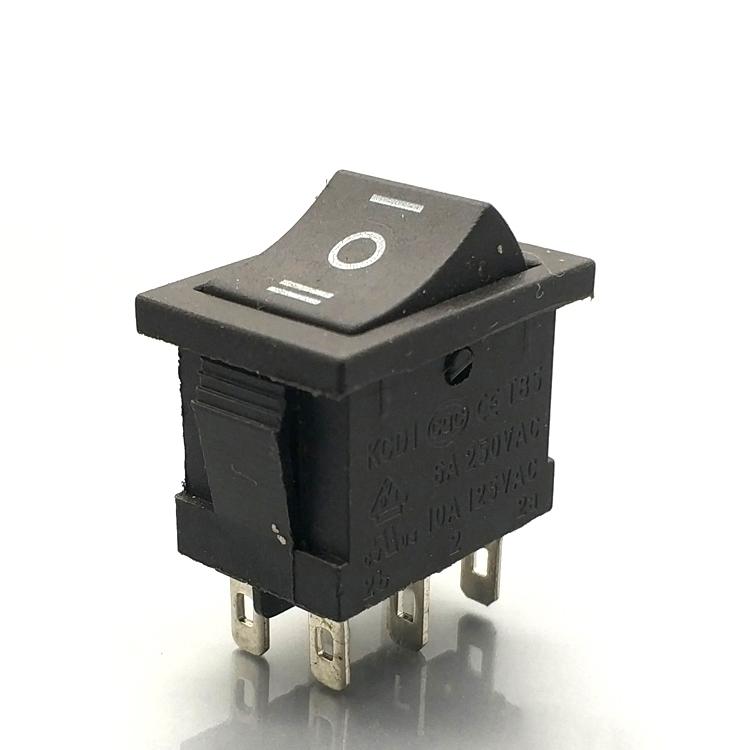

Momentary on off on rocker switch with arrow

Description of Rocker switch 16a 250vac

A rocker switch is an on/off switch that rocks when pressed, which means one side of the switch is raised while the other side is depressed much like a rocking horse rocks back and forth.
Rocker switches are widely used in surge protectors, display monitors, computer power supplies, and many other devices and applications.

Specification of Rocker switch 16a 250vac

Product name:	Momentary rocker switch	Model:	KCD4 series
Panel mount diameter:	27.8 x 21.7 mm	Function:	on-off, on-off-on, on-on
Rating:	16A 250V AC/20A 125V AC	Rated load:	2/8A 250V AC
Solder terminal:	PTI 175	Ambient temperature:	T85
Endurance:	10000 cycles	Contact resistance:	≤ 50mΩ
Dielectric intensity:	≥ 1500V AC/min	Withstand voltage:	1500V AC/min
Insulation resistance:	≥ 100MΩ	Frequency:	50HZ

Feature of Kcd4 rocker switch

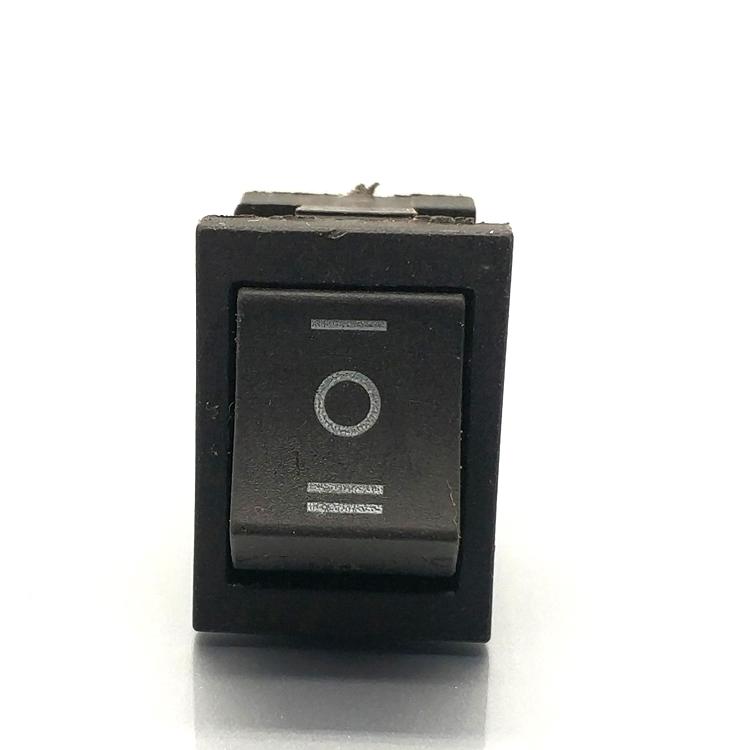

May print 'I' & 'O' on the surface (I for "on", O for "off"), so that the user can know if the device is on or off.

There are more rocker switches to choose from
