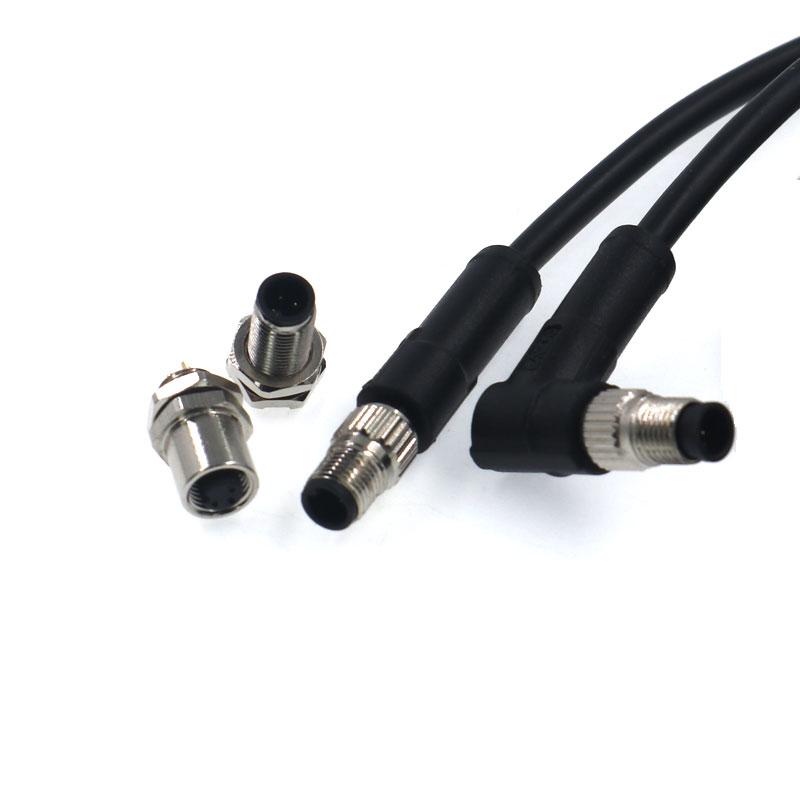

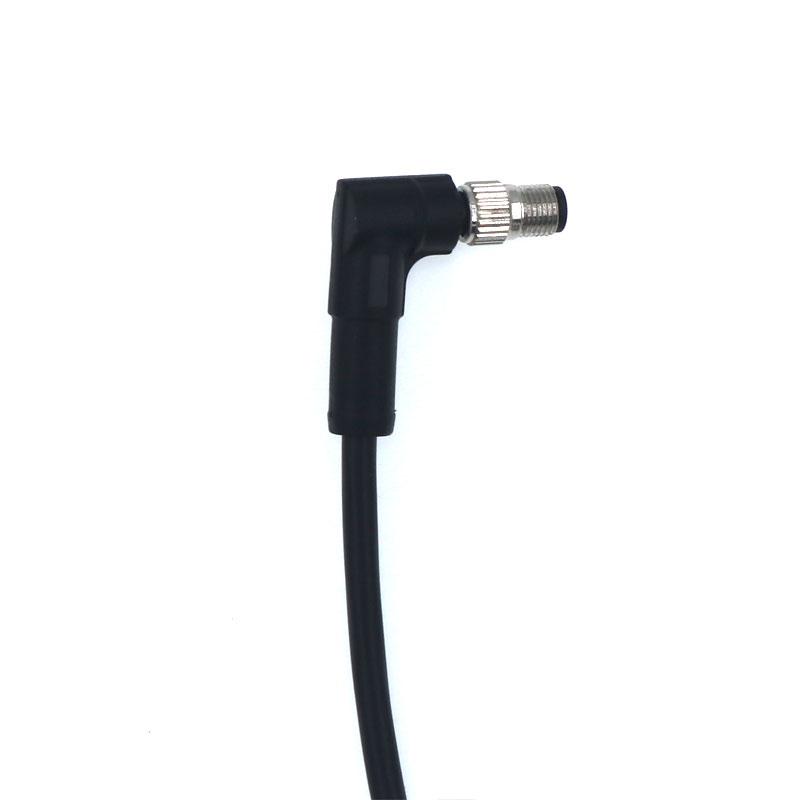

IP67 Waterproof Gold Plated Male M5 Circular Connector Straight Molding Signal Electrical Cable

M5 circular connector is specially developed for the miniature sensor market and any application that requires multiple sensors within a very small area

Brand:
OLINK
Item no.:
M5
Payment:
Wire transer, West Union
Product origin:
China
Color:
Black. White
Goods stock:
1000
Shipping port:
Xiamen
Lead Time:
3 days

Inquiry now

product introduction

M5 3pin male front panel mount connector M5 field wireable connector

M5 Front Mount Socket 3pin connectors are either factory PVC/PUR over-molded or panel receptacles supplied with single wires or PCB solder pins, which is very compact and convenient for the application in narrow installment places.

● Cable plugs and panel receptacles are available
● Cable length base on customer requesting
● TPU over molded, IP67 protection degree
● 3, 4 poles per connector are available
● Operating voltage 60V, current 1A

Technical Characteristics

Temperature	Solder,screw:-40℃/ +80℃ Screw damp,biatec:-25℃/+80℃ Moulded -25℃/+85℃
Mechnical operation	>100 mating cycles
Rated voltage Impulse voltage	Rated voltage Impulse voltage
Pollution degree	3
Rated current	1A
Contact plating	Au(Gold)
Material of housing	PBT/PA/CuZn(brass)
Cable material	PVC/PUR (cable length customized)
Wire gauge	Solder 0.25mm(AWG24) Screw 0.14mm-0.5mm(AWG26-20) Biatec 0.14mm-0.38mm(AWG26-22)
LED/Shielding	With or without

Tags :
