pushbutton switch

 /Flat actuator 250v push to on off switch wholesale pushbutton switch

Push button switch with indicator light
Push button switch with indicator light Push button switch with indicator light Push button switch with indicator light

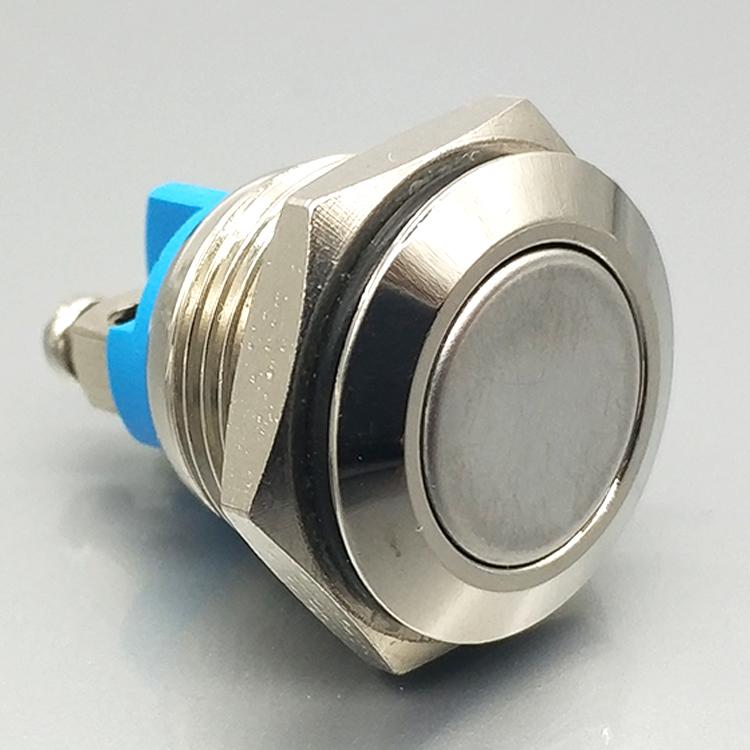

Flat actuator 250v push to on off switch wholesale pushbutton switch

Reset switch, used in coffee machine, electronic cigarette and other type electronic equipments.



  • Brand:

    OLINK

  • Item no.:

    16QA

  • Payment:

    Wire transfer, PayPal, Western Union, Alipay

  • Product origin:

    China

  • Color:

    Sliver, other colors(OEM)

  • Min order:

    40

  • Shipping port:

    Xiamen, Ningbo

  • Lead Time:

    7
Inquiry now

2 way 16mm electric push button switch with light

  Description of 16mm Push Button Switch

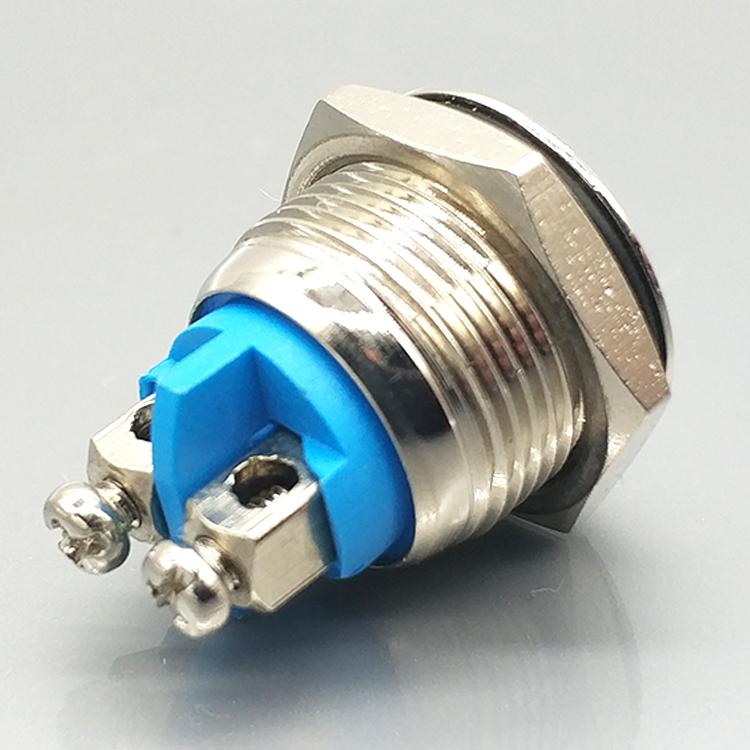

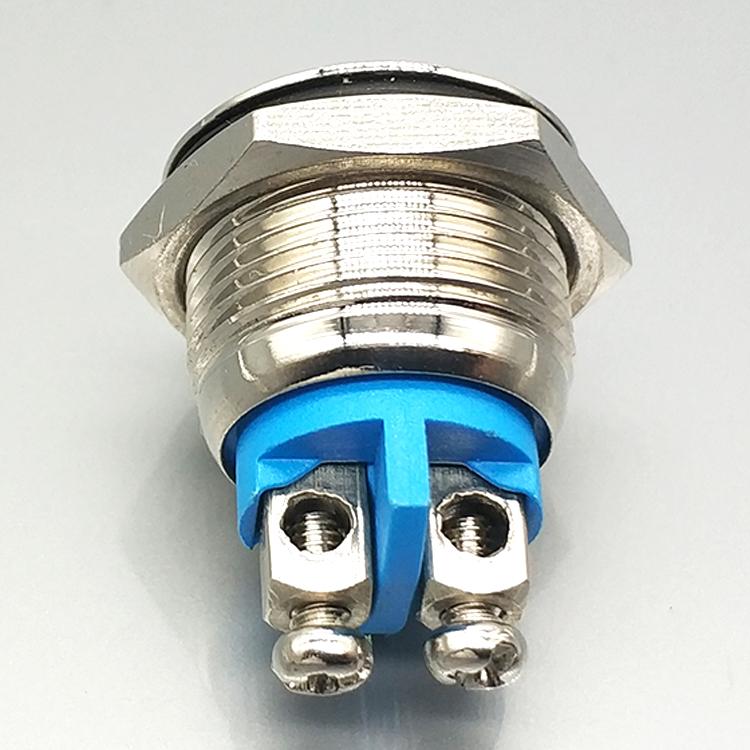

16mm push button switch has two kinds of wiring method, one is soldering and another is screw. And its switch function is momentary, if you release your hand, the button will return automatically and the circuit is off.


  Features of Electric push button switch

  • Different button head shape and lamp shape can choose: There are flat, high round, ball head shape, and lamp type have dot, ring, ring&symbol.
  • Different shell material: Except stainless steel, there still have brass nickel plated and Zn-Al alloy of the shell material. You can make in in any color, like black, yellow.
  • Protection level: IP65, IK08. Completely prevent dust from entering and prevent the impact of deep soaking.
  • Switch and the LED are separated, LED can be on all the time or only on when switch is on, it depends on how will you wire it.
  • Wiring – We are able to provide wiring. If this is what you’re looking for, mention this with detail requirements when making an inquiry.


  Specifications of 16mm Push Button Switch

Product Name:

16mm momentary push button switch

Product Model: 16QA
Switch Rating: 2A/36V DC, 2A/250V AC Terminal Type: 2.0 x 0.5  J pin terminal/Screw terminal
Switch Function: 1NO, Momentary Environment Temperature: -20℃~+55℃
Contact Resistance: ≤ 50 mΩ Insulation Resistance: ≥ 1000 MΩ
Panel Thickness: 1~8 mm Protection Grade: IP65, IK08
Contact Material: Sliver Alloy Button Material: Stainless steel, Zn-Al alloy(any color)
Body Material: Brass nickel plated, Stainless steel, Zn-Al alloy(any color) Base Material: PBT
Lamp Voltage:

2V (Red, Orange, Yellow)

3V (Green, Blue, White)

5V, 6V, 12V, 24V, 36V, 48V, 110V, 220V (Need an external resistance)

Lamp color: Red, White, Blue, Green, Yellow (Other colors can custom)

  Drawing of Push Button Switch




16QA-F10
16QA-F10L



16QA-H10
16QA-H10L



16QA-F10/E
16QA-H10/E



16QA-F10L/E
16QA-H10L/E



16QA-F10L/EV
16QA-B10L/E

  Application of Electric push button switch

16mm push button switch can be applied to car motorcycle modificaction, electric equipment, appliance, machine, home Lamps etc.
