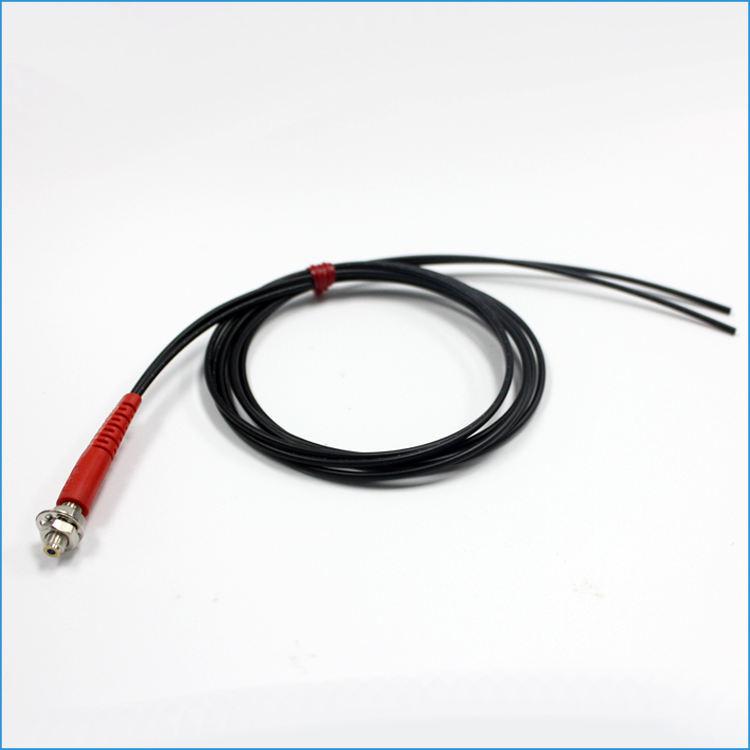

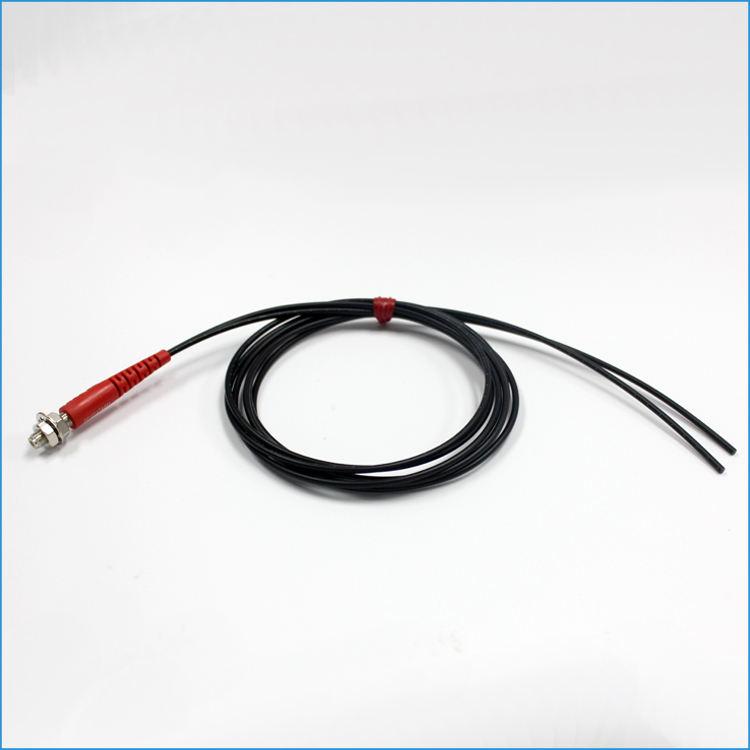

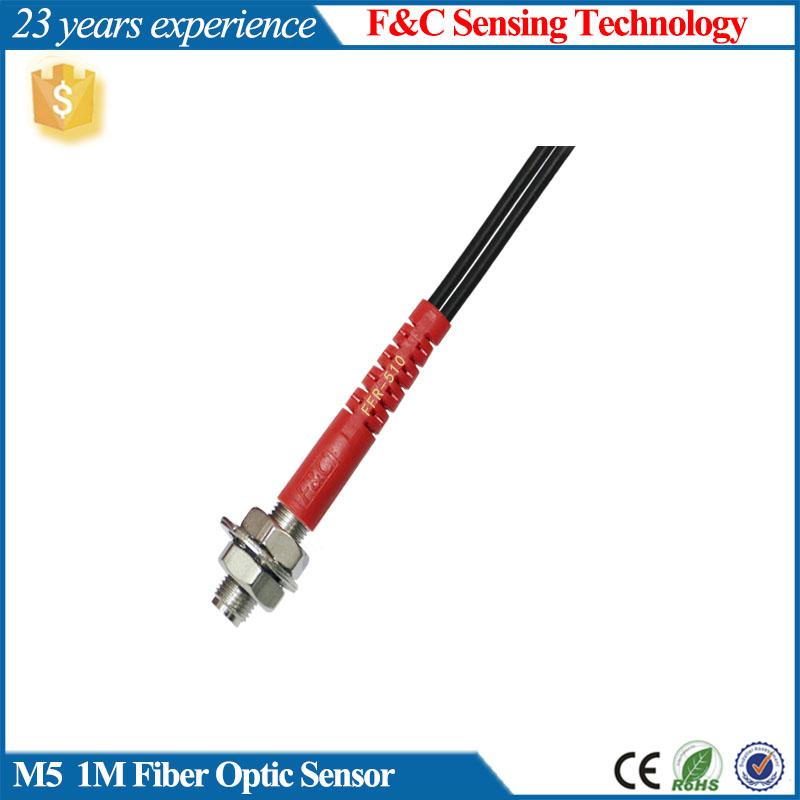

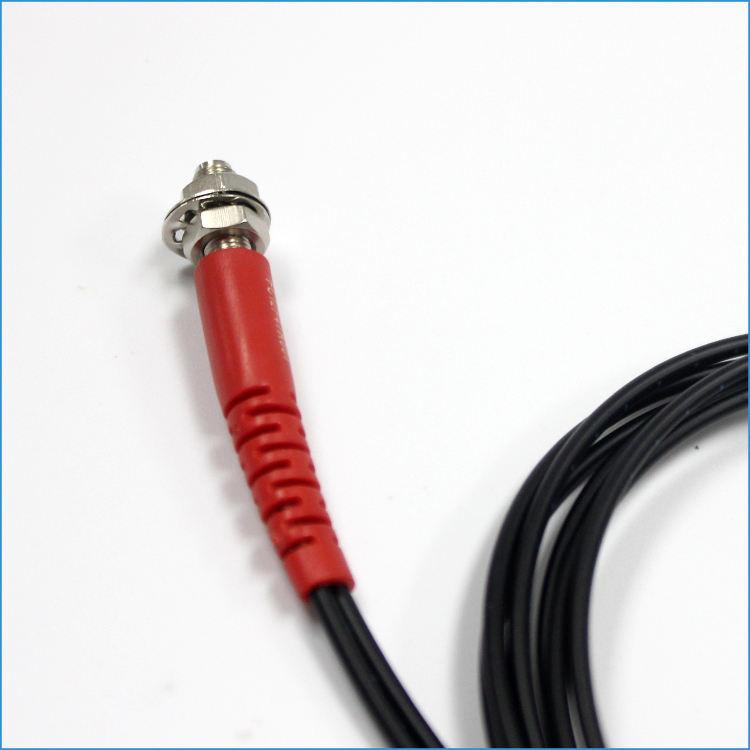

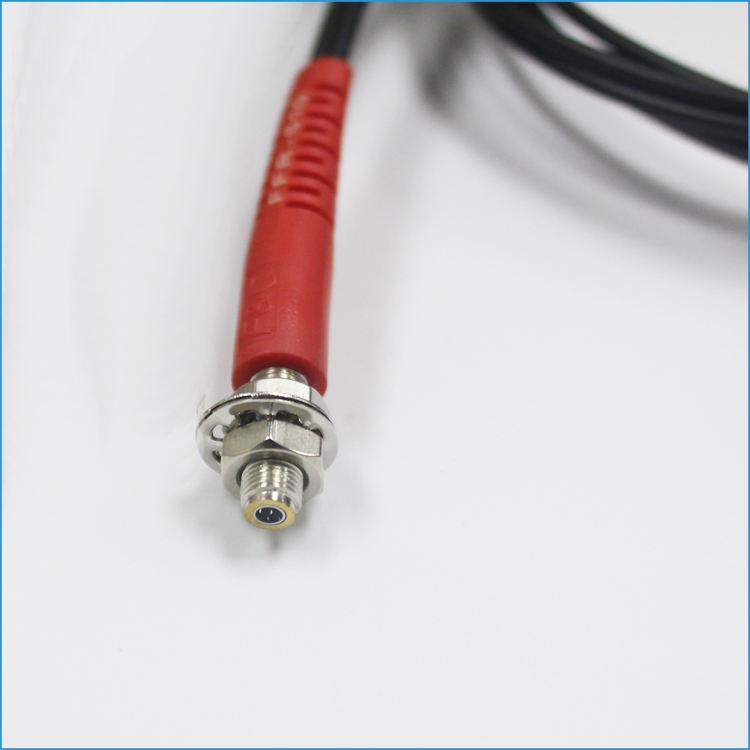

FFR-510 M5 diffuse reflection standard line of optical fiber sensor

FFR-510 M5 optical fiber sensor diffuse reflection 1M long

Brand:
F&C
Item no.:
FFR-510
Payment:
Wire transer, West Union, Paypal
Product origin:
China
Color:
black
Shipping port:
Xiamen
Lead Time:
7 days

Inquiry now

product introduction

M5 diffuse optical fiber sensor

Model Number:FFR-510; Type:FIBER OPTIC SENSOR

Place of Origin:Hunan, China; Brand Name:F&C

Usage:Lights change; Theory: Lights transporting Output:

Description: Fiber optical sensor

Optic Fiber:diameter2.2*1.0*2; Minimun Sensing object: dia0.1mm gold wire

Detection distance:90mm-120mm; Diameter:M5

Bending radius:R25;Cable Length: 1m cable length fiber (free cutting)

Ambient temperature:-25 to 60 degree; Material: SUS303 M4 thread head

Lead time:3 days

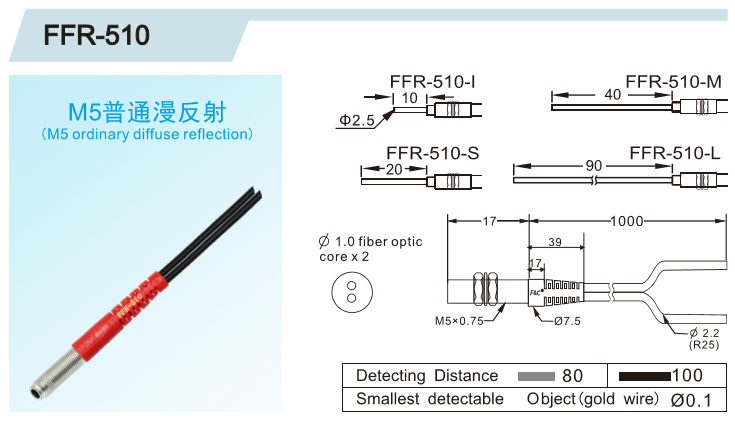

Drawing for M5 diffuse optical fiber sensor
