splicing multiple electrical push in wire connectors 32 amp

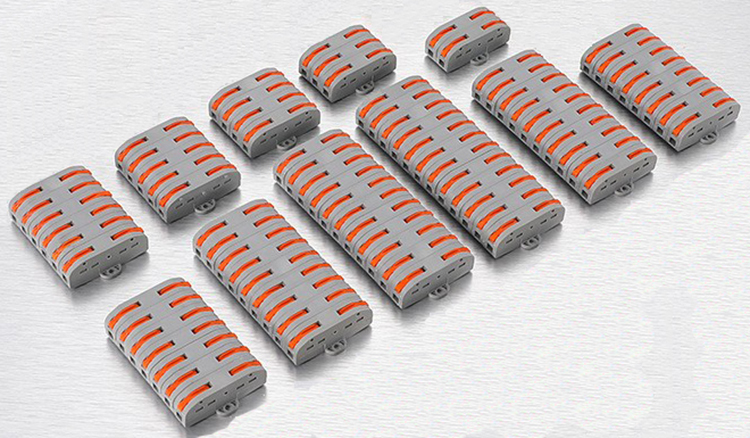

It's 1 to 1 Pin. Can be spliced into multipoles. The color of lever button can be customized.

Brand:
OLINK
Item no.:
PCT-221
Payment:
Wire transfer, Paypal, Western Union, Alipay
Product origin:
China
Color:
Blue, Orange lever
Goods stock:
30000
Shipping port:
Xiamen
Lead Time:
7

Inquiry now

product introduction

splicing multiple electrical push in wire connectors 32 amp

Features of lever nut connectors

Small size and reusable;
Use copper-plated nickel (tin-plated) conductive strips for better contact and conductivity;
The shell is made of nylon or PC, and the flame retardant grade is UL94 V-0;
The clip is made of nickel-chromium spring steel, which has strong durability and good wire fixing ability;
The color of the handle of this push in wire connector can be customized to distinguish incoming wires.

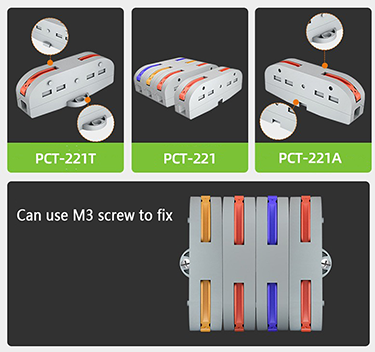

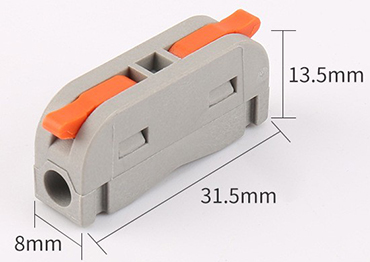

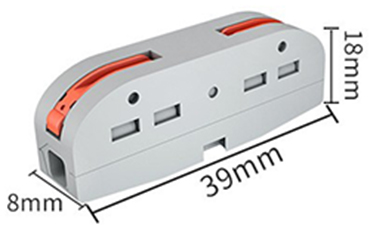

Dimensions & named


PCT-221A(Concave)	PCT-221(can be spliced)	PCT-221T(Convex)

Specification of Electrical Wire To Wire Connector

Product Name:	Lever wire nut connectors
Pole:	1 to 1	Strip Length:	9-10mm/0.39in
Wire Range:	Solid: A- 0.08 4mm² Stranded: 0.08-2.5mm²	Material:	Housing: Nylon / PC Conductor: Copper tin plated Spring: High-Performance spring steel
Rated Voltage:	250V	Rated Current:	32A

Compared


PCT-211	PCT-221

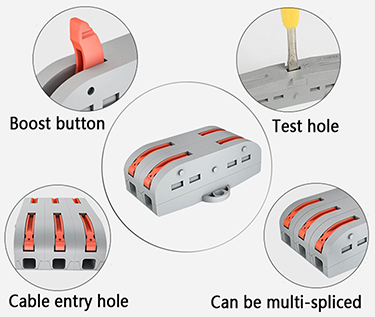

Details

Application Of Mini Wire To Wire Connectors

Mainly used in indoor LED light power wiring, wire connection of junction box, etc.

More Similar Wire Connectors

*For more information, please contact us by email or through any contact information on the webpage.
