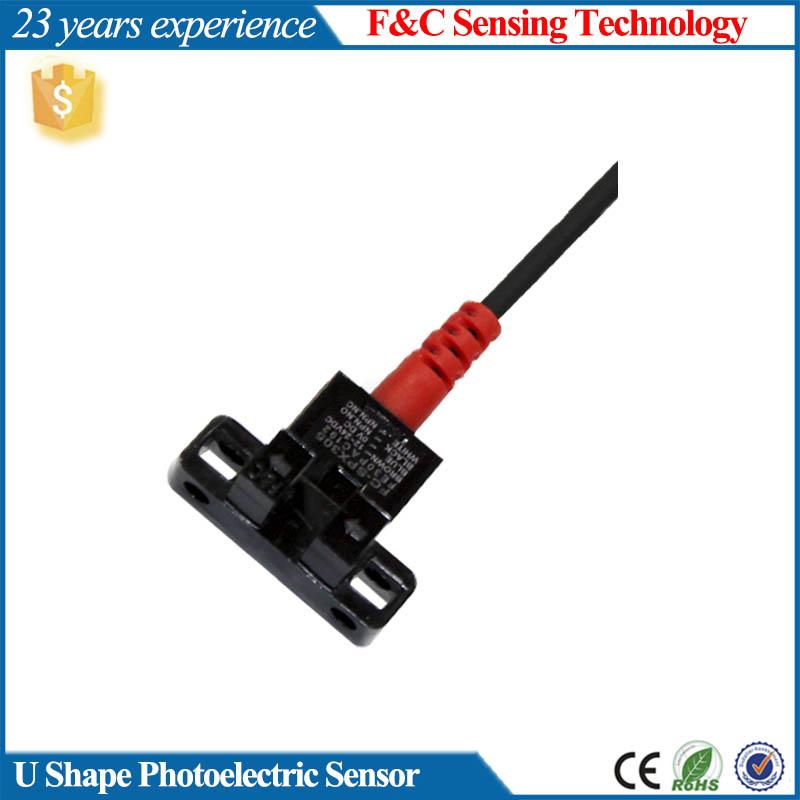

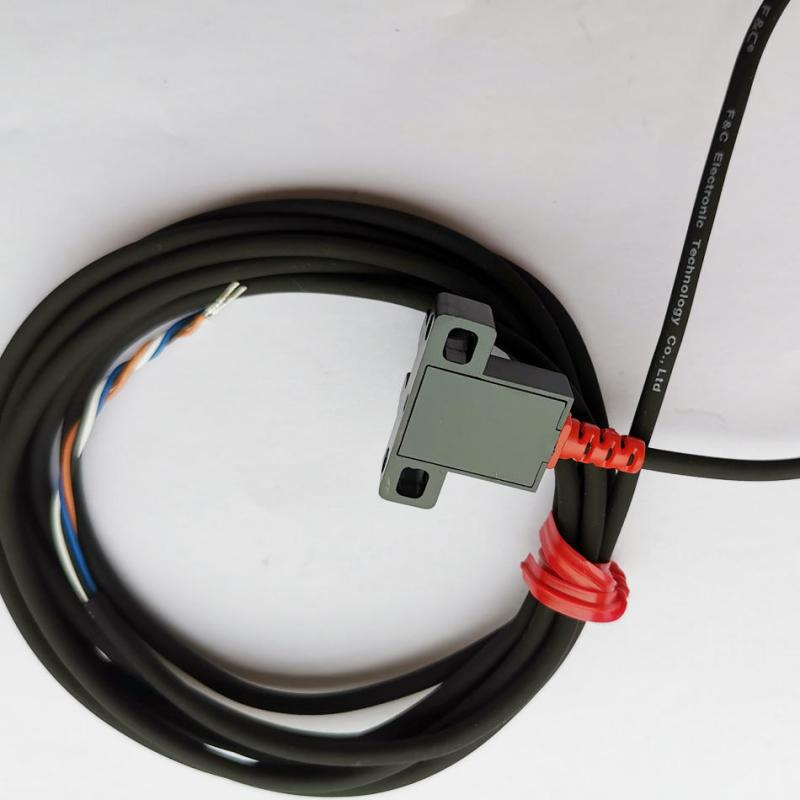

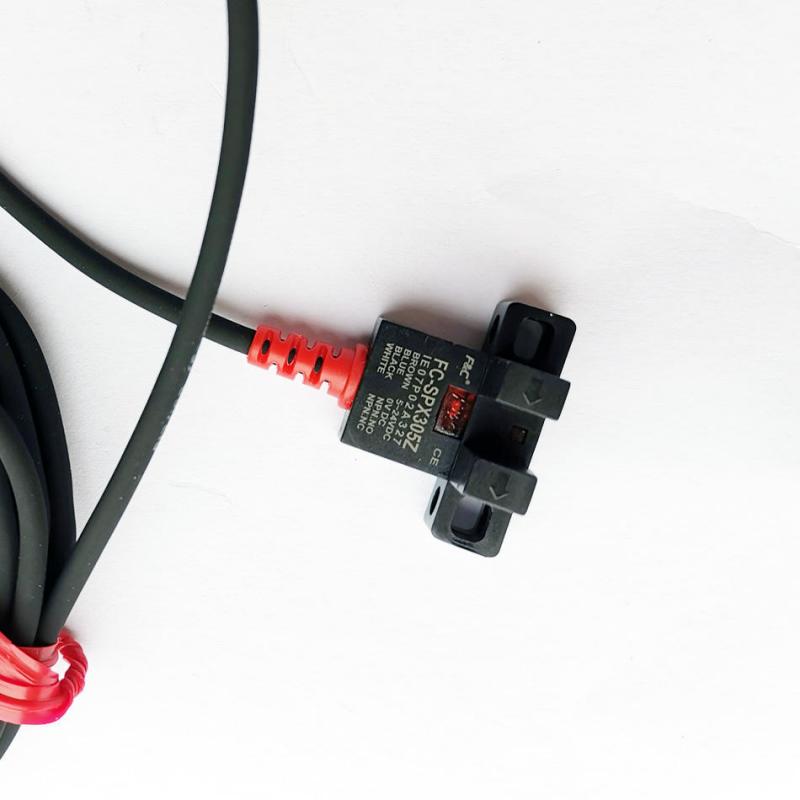

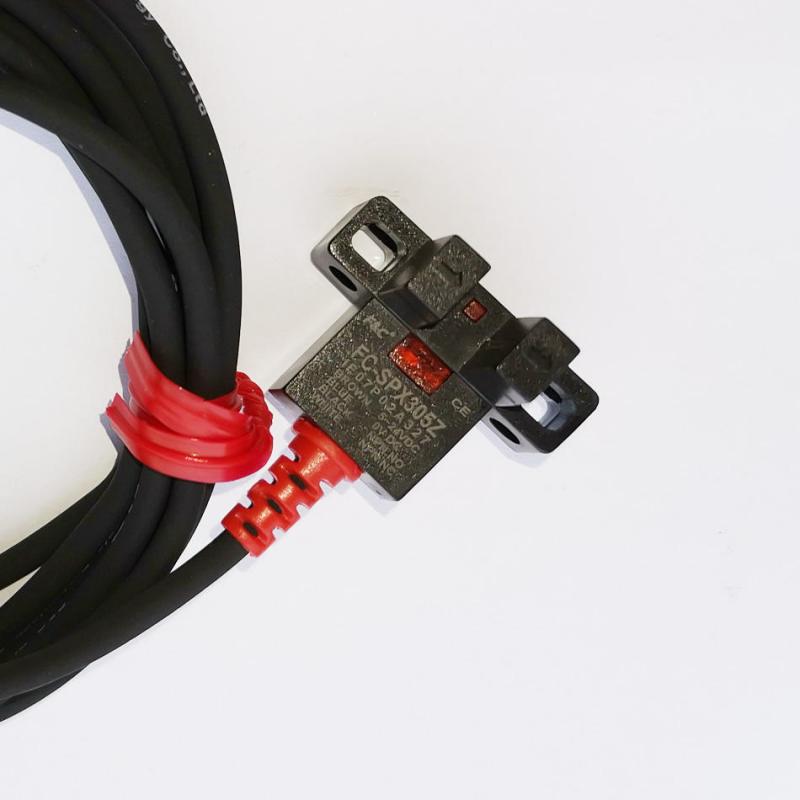

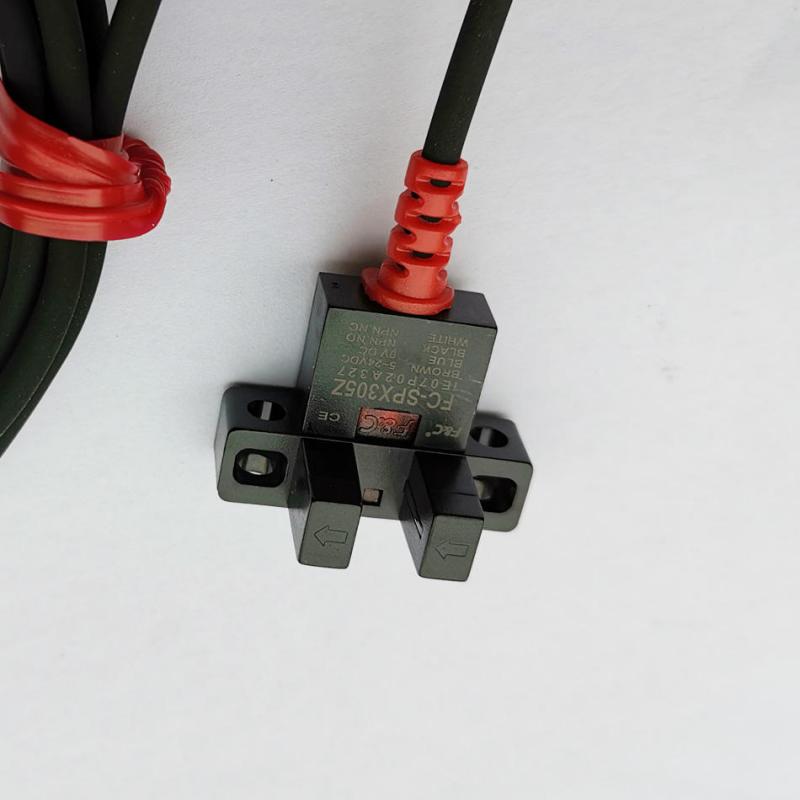

FC-SPX305Z 5mm Slot Infrared Switch, 4-wire, Fork Sensor, 5-24VDC Working Voltage
FC-SPX305Z transmissive limit infrared optical groove sensor, 5-24VDC with circuit protection transducer
Brand:
F&C
Item no.:
FC-SPX305Z/P/15D
Payment:
Wire transer, West Union, Paypal
Product origin:
China
Color:
Black
Goods stock:
2000
Shipping port:
Xiamen
Lead Time:
3days
Overview
Quick Details
-
Model Number:
-
FC-spx305Z-2d7c
-
Place of Origin:
-
Hunan, China
-
Brand Name:
-
F&C
-
Light Source:
-
630nm infrared modulated light
-
Ouput Method:
-
NPN NO.NC(PNP NO.NC)
-
Standard Detection Object:
-
Dia 1mm opaque object
-
Detection Distance:
-
5mm
-
Operating Voltage:
-
12-24 VDC+/-10%
-
Response Time:
-
0.3ms Max
-
Material:
-
ABS
-
Operating Temperature:
-
-10~50℃(No icing)
-
Usage:
-
Position Sensor
-
Theory:
-
Optical sensor
FC-SPX305Z transmissive limit infrared optical groove sensor, 5-24VDC with circuit protection transducer
Product details
Light Source
|
630nm infrared modulated light
|
Ouput Method
|
NPN NO.NC(PNP NO.NC)
|
Standard Detection Object
|
Dia 1mm opaque object
|
Detection Distance
|
5mm
|
Operating Voltage
|
12-24 VDC+/-10%
|
Response Time
|
0.3ms Max
|
Material
|
ABS
|
Operating Temperature
|
-10~50℃(No icing)
|
Protection Degree
|
IP65
|
Color
|
Black
|
Product Keywords
|
slot photoelectric proximity sensor
|
Models
|
Detection Mode
|
Detection Distance
|
Entry Cable
|
FC-SPX305ZP
|
PNP.NO.NC
|
5mm
|
3-wires, cable type
|
FC-SPX305ZN
|
NPN.NO.NC
|
FC-SPX305ZP/15D
|
PNP.NO.NC
|
M8 with 150mm cable, 3-pins, Connector type.
|
FC-SPX305ZN/15D
|
NPN.NO.NC
|
|
|
;
|
Emitting light
|
Red LED:630nm
|
Operating voltage
|
DC:10~30VDC±10%(Ripple P-P:10%Max)
|
Current consumption
|
15mA Max
|
Load current
|
100mA Max at DC 24V
|
Output type
|
N=NPN.NO P=PNP.NPN
|
Protection circuit
|
Reversed supply ciruit protection,short citcuit protection output
|
Response time
|
0.3 ms Max
|
Insulation resistance
|
20M Ωmin.(DC500V)
|
Voltage withstandatility
|
AC1000V 60Hz for 60 Sec
|
Operating temperature
|
-10°C~+45°C(No freezing allowed
|
Ambient hunidity
|
35%~95%RH
|
Storage temperarure
|
-10°C~+55°C(No freezing allowed )
|
Storage hunidity
|
35%~95%RH
|
Material
|
ABS
|
Wiring method
|
φ2.6×2M/4-wires/φ4.2×2M/3-wires/φ4.2×2M/4-wires
|
Protection degree
|
IP66
|
Weight
|
Approx.20g, not include cable
|
|
