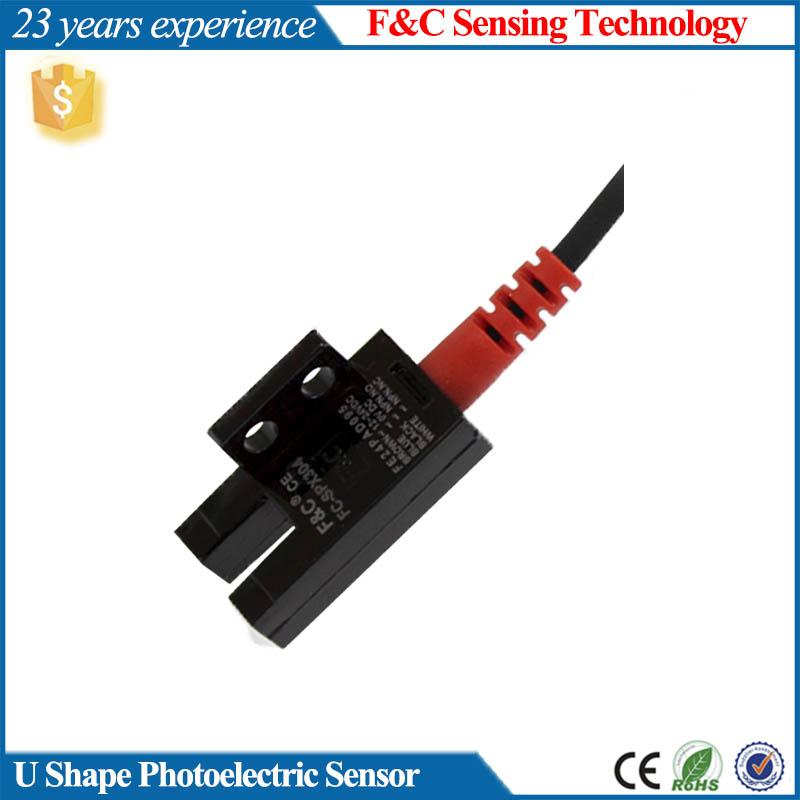

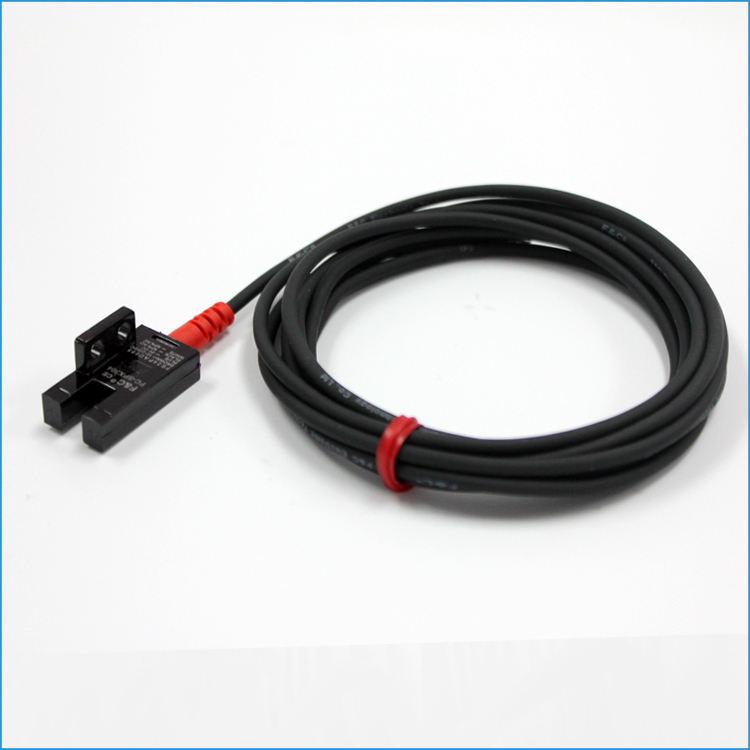

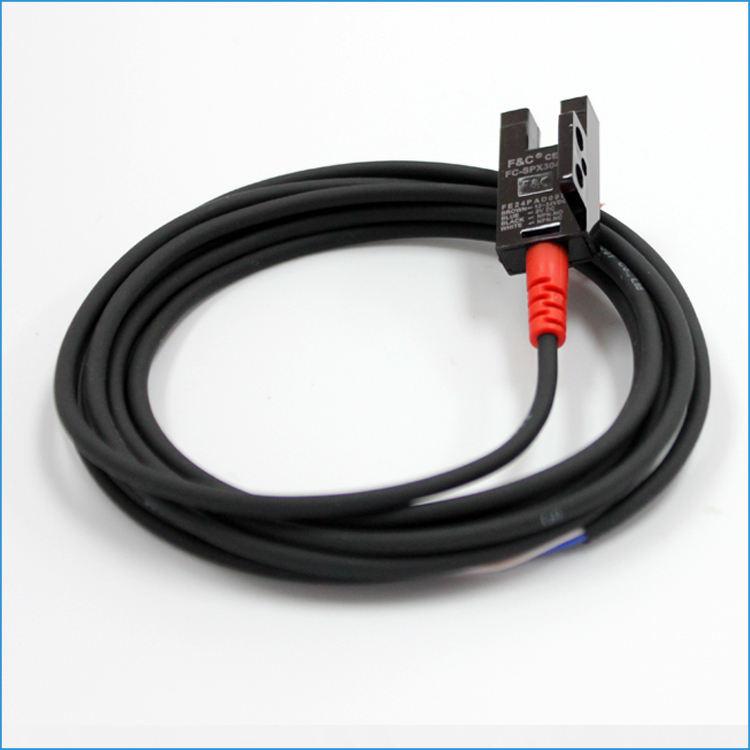

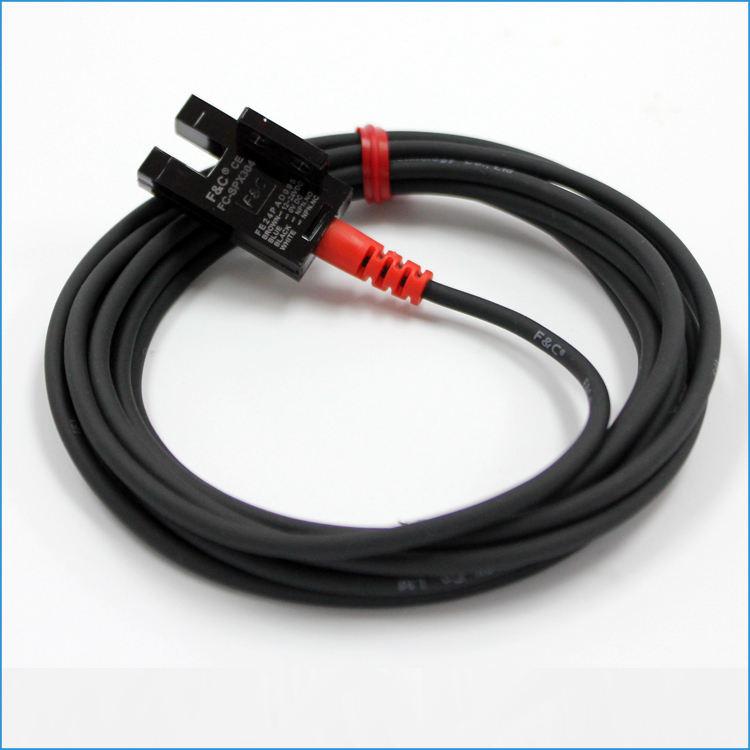

FC-SPX304 5mm Slot Infrared Switch, 4-wire, Fork Sensor, 5-24VDC Working Voltage

5mm Slot photoelectric Sensor, 4-wire, 2m Cable,12~24VDC , FC-spx304 Series, NPN/PNP Output.

Brand:
F&C
Item no.:
FC-SPX304/P/15D
Payment:
Wire transer, West Union, Paypal
Product origin:
China
Color:
Black
Goods stock:
2000
Shipping port:
Xiamen
Lead Time:
3days

Inquiry now

product introduction

Overview

Quick Details

Model Number:: FC-spx304

Place of Origin:: Hunan, China

Brand Name:: F&C

Usage:: Position Sensor

Theory:: Optical sensor

Output:: Switching Transducer

Light Source:: 940nm infrared modulated light

Ouput Method:: NPN NO.NC(PNP NO.NC)

Standard Detection Object:: Dia 1mm opaque object

Detection Distance:: 10mm

Operating Voltage:: 12-24 VDC+/-10%

Response Time:: 0.3ms Max

Material:: ABS

Operating Temperature:: -10~50℃(No icing)

Protection Degree:: IP64

Color:: Black

	FC-SPX304 FC-SPX304/15D	NPN.NO.NC
	FC-SPX304P FC-SPX304P/15D	PNP.NO.NC

Models	Detection Mode	Detection Distance	Entry Cable
FC-SPX304P	PNP.NO.NC	5mm	3-wires, cable type
FC-SPX304N	NPN.NO.NC		3-wires, cable type
FC-SPX304P/15D	PNP.NO.NC		M8 with 150mm cable, 3-pins, Connector type.
FC-SPX304N/15D	NPN.NO.NC

Product Description

;

Emitting light	Red LED:630nm
Operating voltage	DC:10~30VDC±10%(Ripple P-P:10%Max)
Current consumption	15mA Max
Load current	100mA Max at DC 24V
Output type	N=NPN.NO P=PNP.NPN
Protection circuit	Reversed supply ciruit protection,short citcuit protection output
Response time	0.3 ms Max
Insulation resistance	20M Ωmin.(DC500V)
Voltage withstandatility	AC1000V 60Hz for 60 Sec
Operating temperature	-10°C~+45°C(No freezing allowed
Ambient hunidity	35%~95%RH
Storage temperarure	-10°C~+55°C(No freezing allowed )
Storage hunidity	35%~95%RH
Material	ABS
Wiring method	φ2.6×2M/4-wires/φ4.2×2M/3-wires/φ4.2×2M/4-wires
Protection degree	IP66
Weight	Approx.20g, not include cable
