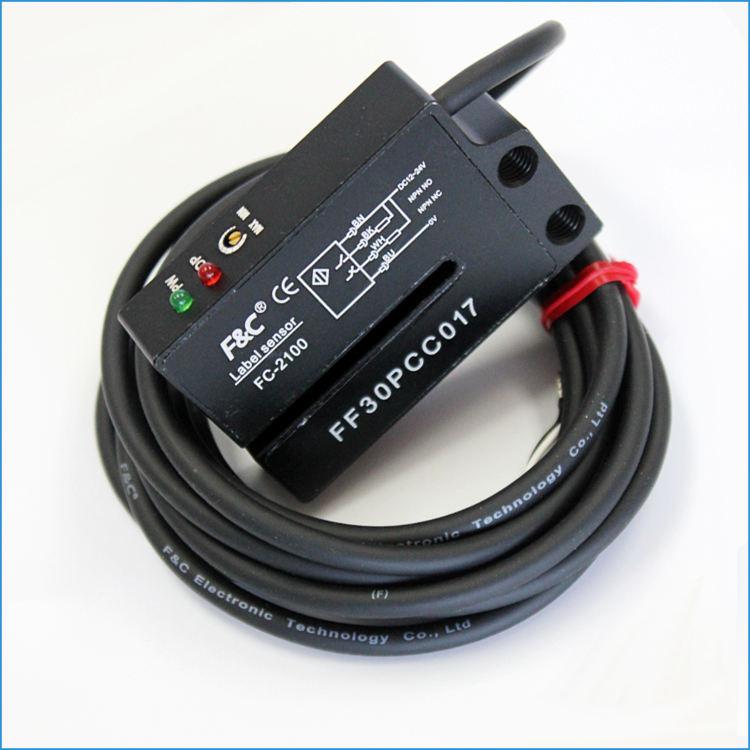

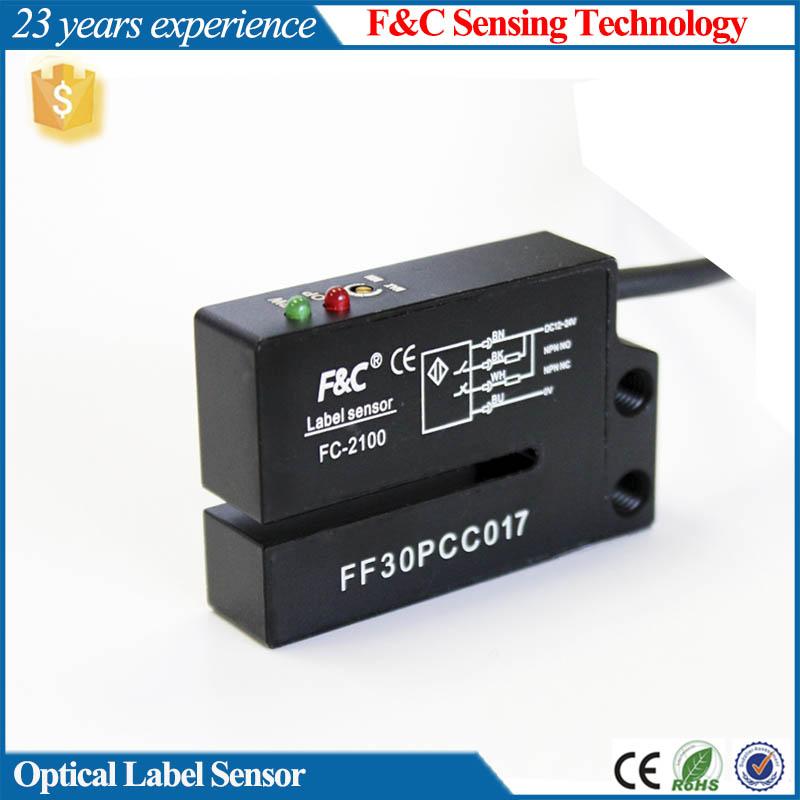

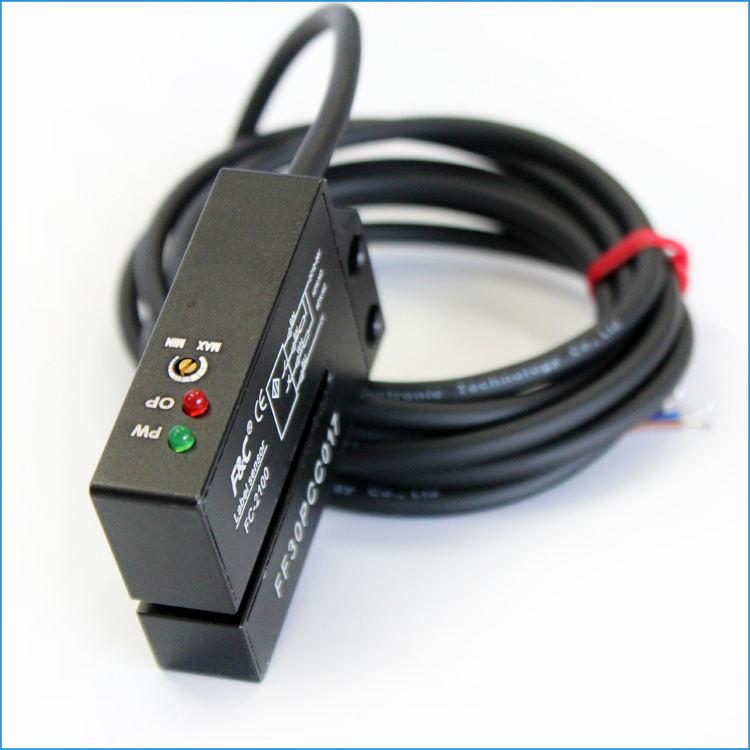

FC-2100 Automatic labeling machine Common Label Slot Label Sensor

FC-2100 NPN PNP Label Sensor For Packaging System Label Detecting IP66

  • Brand:

    F&C
  • Item no.:

    FC-2100N/P/D
  • Payment:

    Wire transer, West Union, Paypal
  • Product origin:

    China
  • Color:

    Black
  • Goods stock:

    2000
  • Shipping port:

    Xiamen
  • Lead Time:

    3days

Overview
Quick Details
Model Number:
FC-2100
Place of Origin:
Hunan, China
Brand Name:
F&C, F&C
Usage:
packing machine label sensor
Theory:
Optical sensor
Output:
Switching Transducer
Detection distance:
2mm
Light source:
940um modulated infrared light
Out put Type:
NPN/PNP
Voltage:
DC 12-24V 10%
Certificate:
CE RoHS
Entry cable:
dia4*2m/4 wires
Material:
Aluminum metal case
Label sensor:
Label sensor
Product name:
FC-2100 4 wires PNP/NPN electric label detector phot

FC-2100 4 wires PNP/NPN electric label detector photo sensor

  • Label sensor

  • label electric photo sensor

  • NPN/PNP label detector



Product Description

Specifications for Label sensor:

FC-2100 4 wires PNP/NPN electric label detector photo sensor

FC-2100 low cost capacitive label sensor
Model FC-2100
Output type NPN NO+NC
Detection distance 2mm
Light source 940nm infrared modulated light
Operating voltage DC12-24V±10%
Current consumption 15mA Max
Load current 100mA Max at DC ;24V
Protection circuit Reverse polarity protection and short circuit protection
Response time 500us Max
Leakage current <0.01mA no-load
Operating temperature -10℃-+50℃(without icing or condensation)
Storage temperarure -20℃~+60℃(No freezing )
Ambient humidity 35%-85% RH
Protection degree IP66
Meterial Aluminium metal sheet
Wiring method φ4mm×2M/4-wires/φ4mm×2M/M8 4-wires

;

FC-2100 4 wires PNP/NPN electric label detector photo sensor
