Proximity Switches

 /F3N-25 series F3N-25TN10-N Square proximity sensor Front induction

Proximity switch
Proximity switch Proximity switch Proximity switch Proximity switch Proximity switch

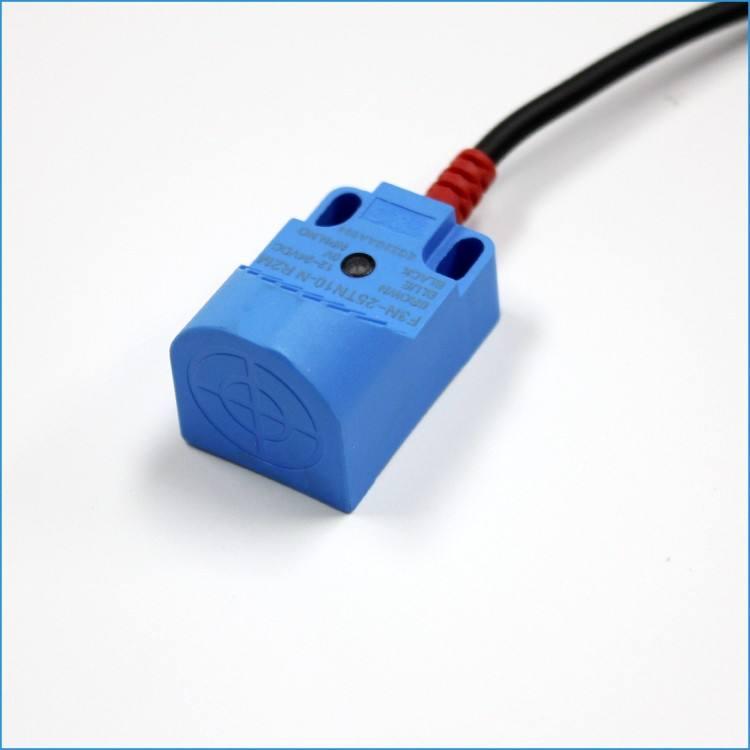

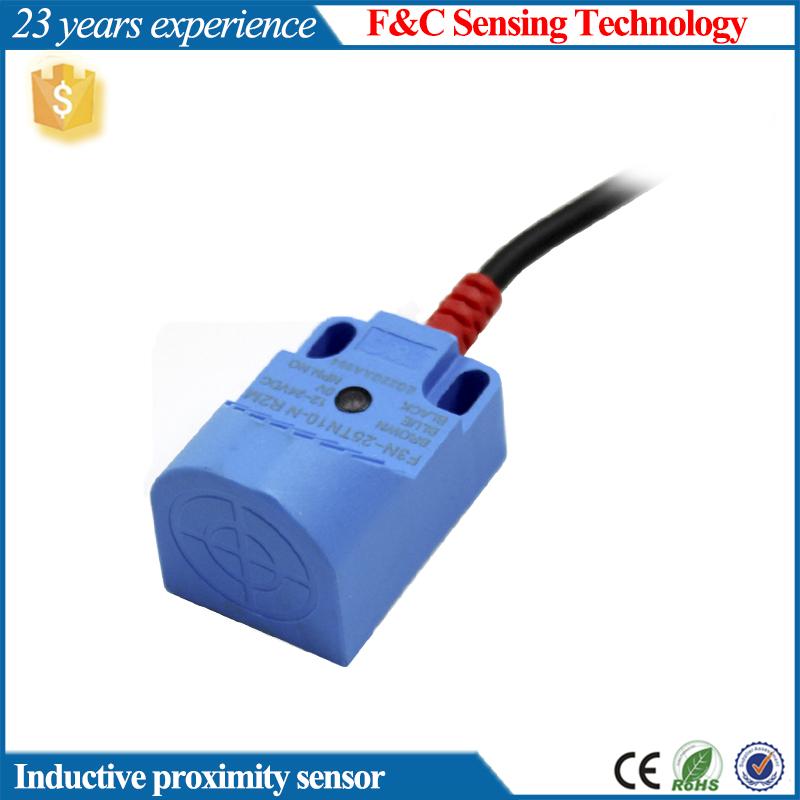

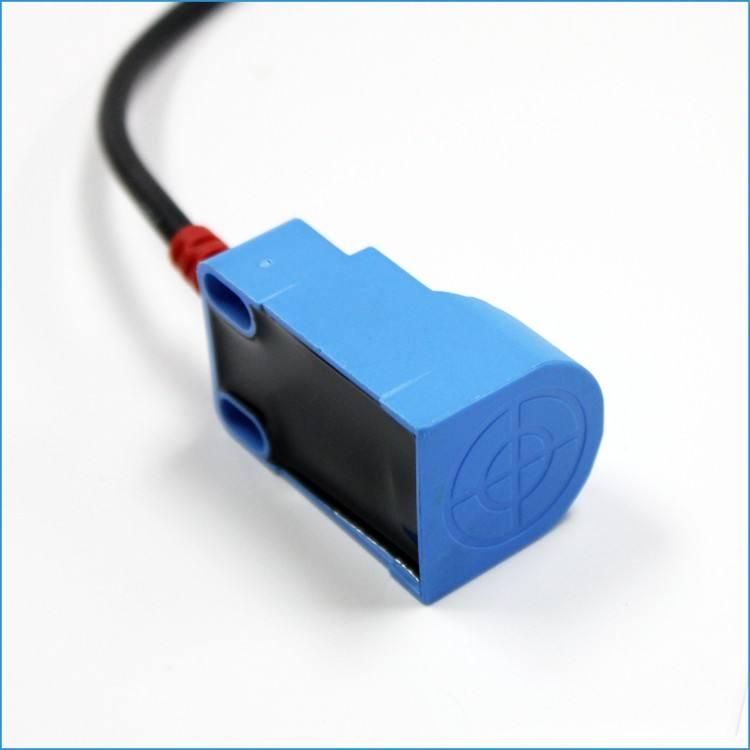

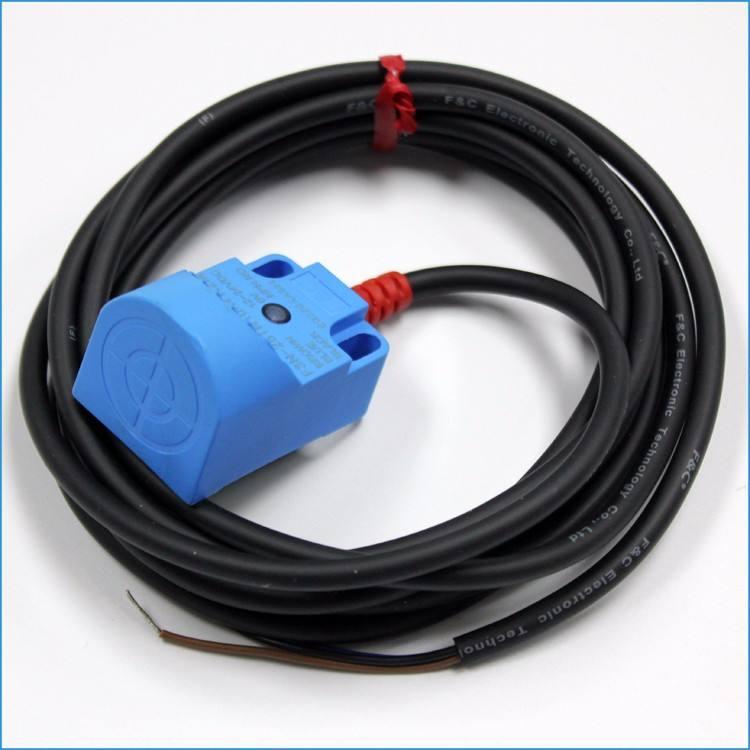

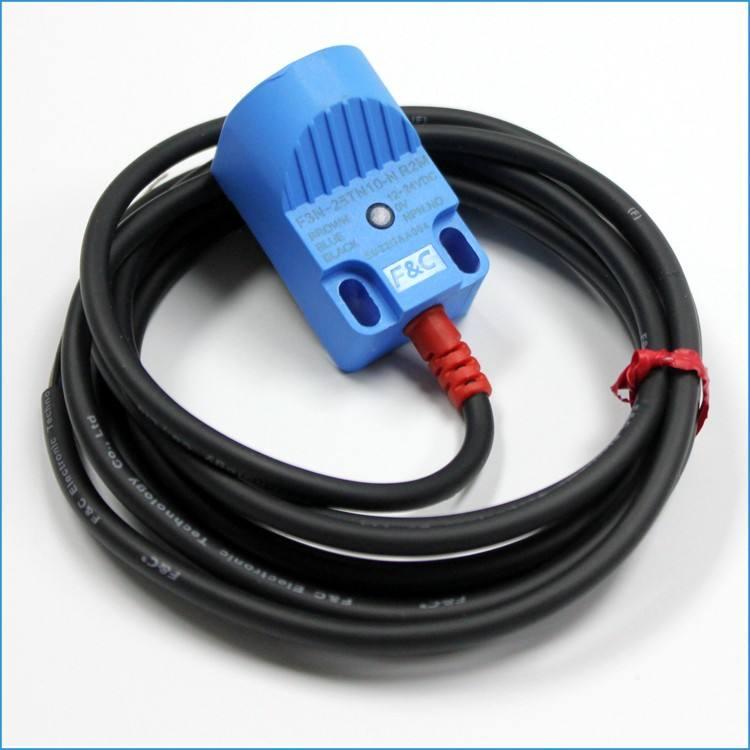

F3N-25 series F3N-25TN10-N Square proximity sensor Front induction

F3N-25TN10 10mm detection 3-wires NPN PNP ip67 Inductive proximity sensor OEM supported

  • Brand:

    F&C

  • Item no.:

    F3N-25TN10-N/P/N2/P2

  • Product origin:

    China
Inquiry now




Overview
Quick Details
Model Number:
F3N-25TN10 series
Type:
Inductive Proximity Sensor
Place of Origin:
Hunan, China
Brand Name:
F&C
Usage:
Metals detection, Position Sensor
Theory:
Inductive sensor, Inductance Sensor
Output:
NPN or PNP, Switching Transducer
Description:
Inductive proximity sensor

Category
 		Model
 		Detection mode
 		Detection distance
 		Detected objects
 		Entry Cable 3D
CAD
Big rectan Proximity sensor F3N-25TN10  F3N-25TN10-N R2M
F3N-25TN10-N/D R2M 		NPN.NO ▆▆ 10mm Max 30×30×1(iron) φ4.2×2M/3-wires or with 150mm cable connector type
F3N-25TN10-N2 R2M
F3N-25TN10-N2/D R2M 		NPN.NC
F3N-25TN10-P R2M
F3N-25TN10-P/D R2M 		PNP.NO
F3N-25TN10-P2 R2M
F3N-25TN10-P2/D R2M 		PNP.NC
F3N-25TN10_dimension


F3N-25TN10 10mm detection 3-wires NPN PNP ip67 Inductive proximity sensor OEM supported





Part number:

1) F3N-25TN10-N     NPN.NO

2) F3N-25TN10-N2   NPN.NC

3) F3N-25TN10-P     PNP.NO

4) F3N-25TN10-P2   PNP.NC



Response friquency
DC:600Hz   250/second
Hysteresis
1O%≤sensing distance
Operating voltage
DC:10~30VDC±10%
Current consumption
DC:≤8mA No—Load
Load current
DC:30V 200mA Max
Leakage current
DC:≤1.1mA no-Load
Residual votage
DC:≤1.0VDC No-load
Operating temperature
-20°C~+70°C(anti-temperature type: 120°C)
Material
ABS/PE
Wiring method
φ3×2M/3-wires, M8 3cores
Protection degree
IP67
