Overview

Quick Details

Model Number:

F3L-12KS04- N R2M

Place of Origin:

Hunan, China

Brand Name:

F&C

Usage:

Position sensor, Position Sensor

Theory:

Inductive sensor, Inductance Sensor

Output:

NPN or PNP, Switching Transducer

Brand:

Inductive proximity sensor

Amplifier Type:

Built-in

Voltage - Supply:

12-24VDC

Output Type:

-

Current - Supply:

-

Operating Temperature:

-, -25~70℃

Mounting Type:

Nuts

Resolution (Bits):

-

Features:

-

Current - Supply (Max):

-

Package / Case:

Metallic housing

Product name:

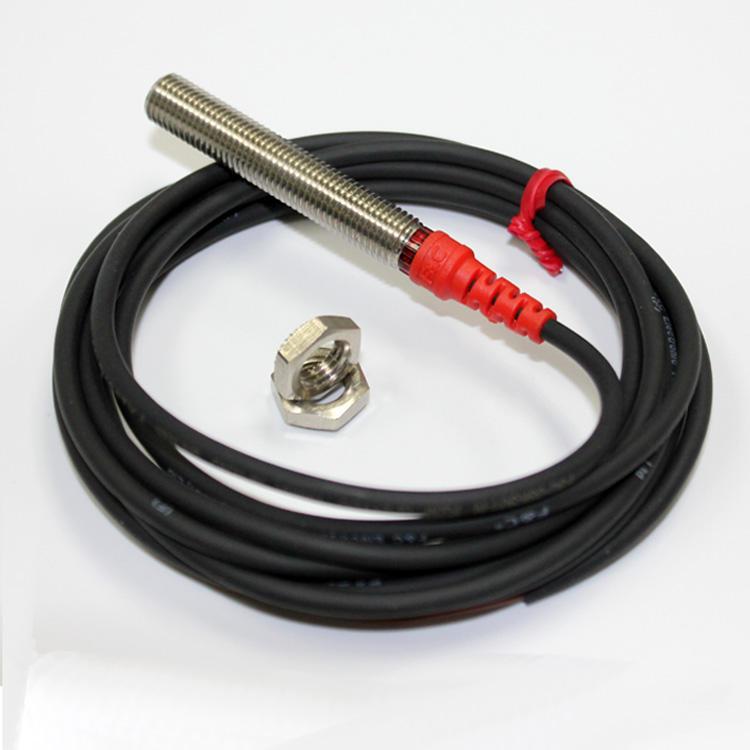

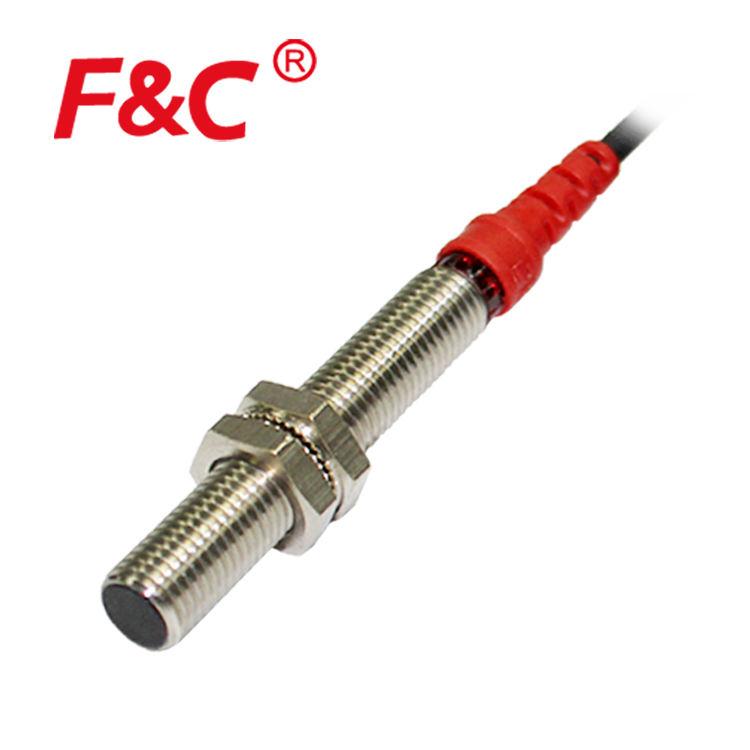

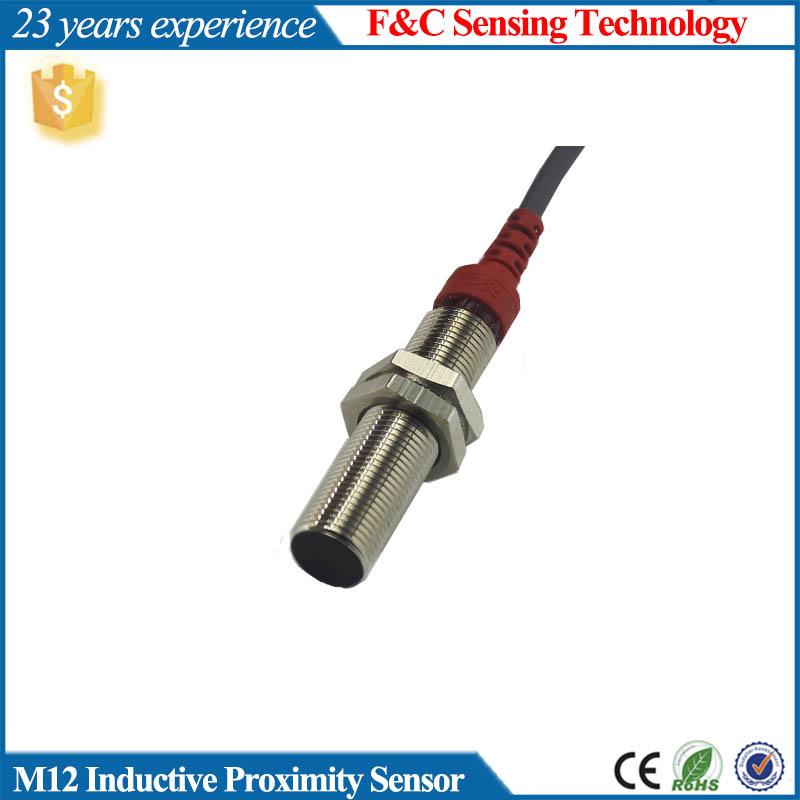

Flush M12 Inductive Sensor, 4mm Sensing NPN 12V Dc Proximity Sensor

Detection Distance:

2mm

Standard Detection Object:

12*12*1(Iron)

Operating Voltage:

12-24V VDC

Response Frequency:

800HZ

Material:

ABS and SUS304



Feature for;Long Distance Flush M12 Inductive Sensor 4mm Sensing NPN 12V Dc Proximity Sensor

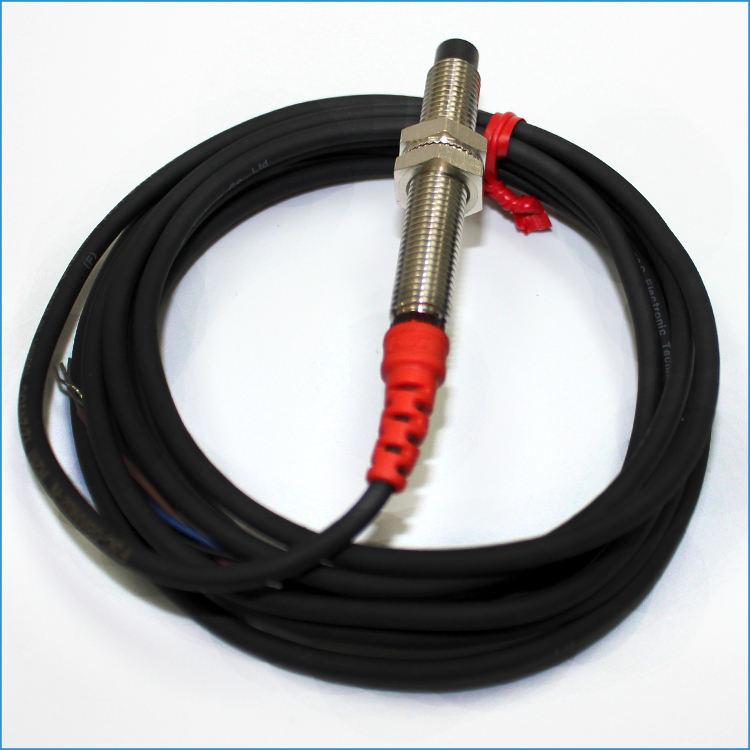

1.Flexible cable,

2.360 degree view LED indicator,

3.Red protective sleeve,

4.imported world first class electronic components ;

5. Sensing Distance can be 2mm or 4mm

All these make F&C inductive proximity sensor have stable quality ,durable and friendly to use.

F&C Also provide 18 month warranty.

Specification

Long Distance Flush M12 Inductive Sensor, 4mm Sensing 12V Dc Proximity Sensor
Model#	F3L-12KS04-N R2M
Output Method	NPN NO
Mounting Method	Flush
Detection Distance	4mm
Hysteresis	Less than 10% of sensing distance
Standard Sensing Object	12*12(Iron)
Operating Voltage	12-24 VDC
Current Consumption	Less than 8mA (No Load)
Load current	100mA Max at 24 VDC
Residual Voltage	Less than 1.5VDC (No Load)
Leakage Current	Less than 0.01mA
Protection Degree	IP67
Operating Temperature	-25℃-70℃ (No Icing)
Reverse Polarity Protection	Yes
Short Circuit Protection	Yes
Material	PBT and SUS 304
Wire Method	Dia 4mm*2M/-3wires
