 /F3C-05WSM01-N/P Micro Proximity Sensor

Proximity switch
Proximity switch Proximity switch Proximity switch Proximity switch

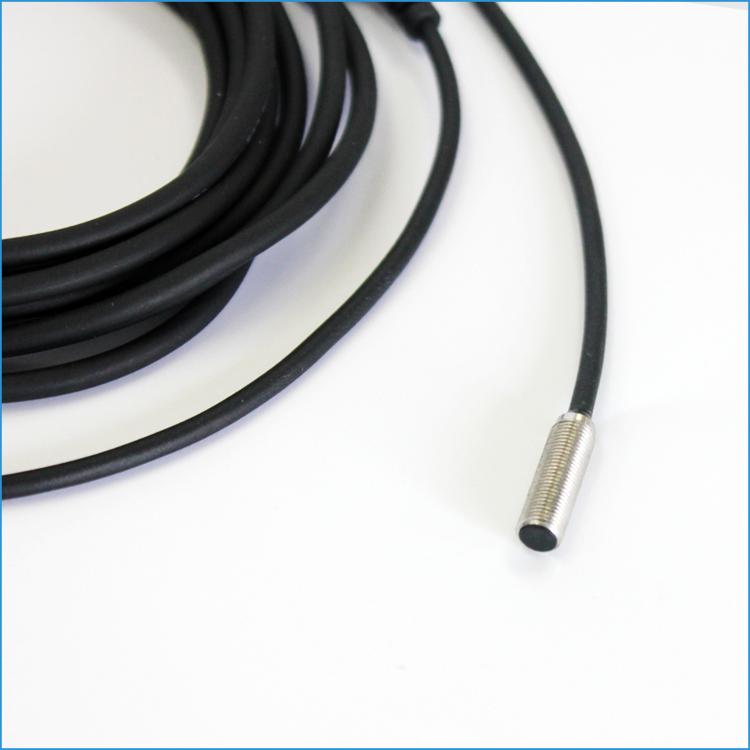

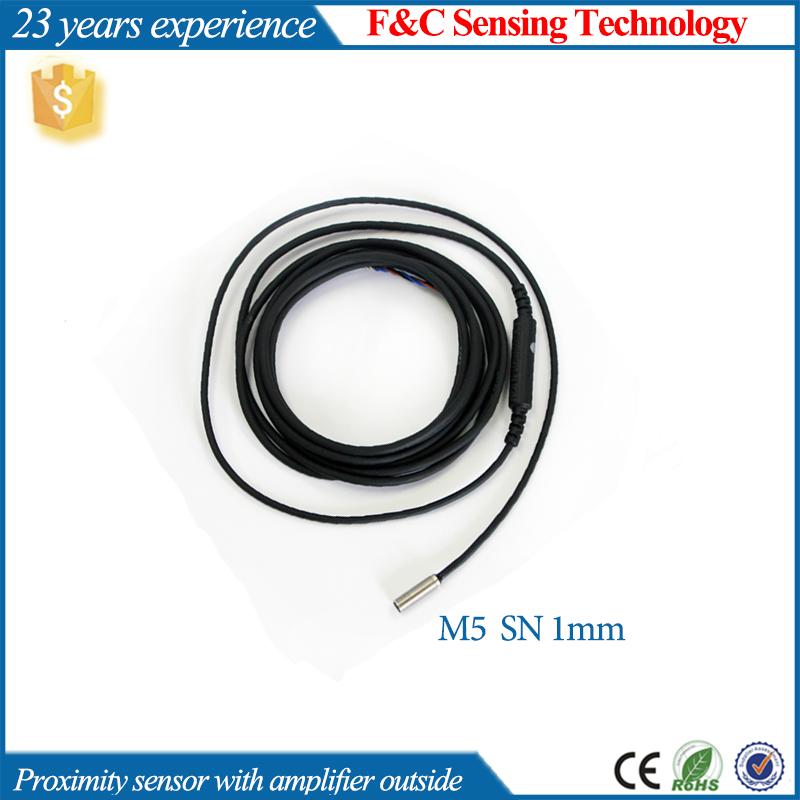

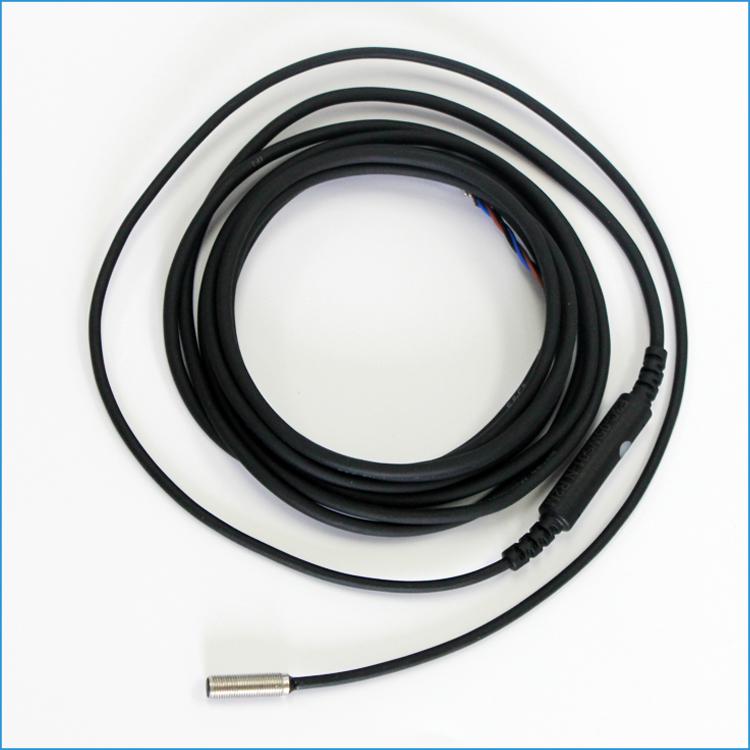

F3C-05WSM01-N/P Micro Proximity Sensor

1mm Sensing Miniature Proximity inductive Sensor M5 12VDC Switch

  • Brand:

    F&C

  • Item no.:

    F3C-05WSM01-N/P

  • Product origin:

    China

  • Color:

    black

  • Shipping port:

    Xiamen
Inquiry now

Overview
Quick Details
Model Number:
F3C-05WSM01-N/P R2M
Place of Origin:
Hunan, China
Brand Name:
F&C
Usage:
Position Sensor
Theory:
Inductance Sensor
Output:
Switching Transducer
Head Size:
M5*16mm Miniature sensor
Detection mode:
PNP NO Inductive sensor
Voltage:
12-24VDC 10%
Detection distance:
1mm Inductive sensor
Frequency:
800Hz Proximity sensor
Certificate:
CE,RoHS
Entry cable:
dia3*2m/3 wired proximity switches
Material:
PBT & SUS304 Proximity sensor
Operating temperature:
-25 to 75 degree
Product name:
1mm Sensing Miniature Proximity inductive Sensor M



Specifications for amplifier in cable inductive sensor:

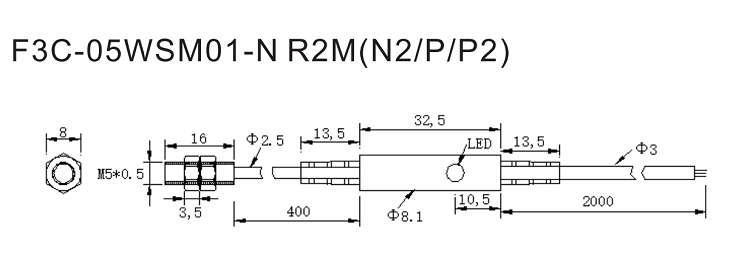

Model  F3C-05WSM01-N/P R2M
Output Method  PNP NO ; PNP NC
Maximum detection 1mm
Repeat accuracy 0.005mm
Body Size 5*16mm
Response Frenquency standard 800Hz
Opearting voltage 12-24VDC, 5V customizable
Loard current 24V 100mA max
operating temperature -25 to +70 degree
Material PBT and SUS304
Protection degree IP67


1mm Sensing Miniature Proximity inductive Sensor M5 12VDC Switch

1mm Sensing Miniature Proximity inductive Sensor M5 12VDC Switch

 inductive proximity sensors with amplifier outside
F3C-03WSQ0.8 3*15mm  Smooth head NPN/PNP   SN 0.8mm
F3C-3.8WSQ0.8 3.8*15mm  Smooth head NPN/PNP   SN 0.8mm
F3C-04WSM0.8 4*15mm  Screw thread head NPN/PNP  SN 0.8mm
F3C-05WSM01 5*16mm  Screw thread head NPN/PNP  SN 1mm
F3C-5.4WSQ1.2 5.5*16mm  Smooth head NPN/PNP  SN 1.2mm
F3C-08WSM02 8*18mm  Screw thread head NPN/PNP  SN 2mm
F3C-08WSQ02 8*18mm  Smooth head NPN/PNP  SN 2mm
F3C-10WSM02 10*18mm  Screw thread head NPN/PNP  SN 2mm
F3C-14WSM04 14*18mm  Screw thread head NPN/PNP  SN 4mm




Ultra short body 3.8mm Miniature Inductive Sensor PNP NO Wired Proximity Switches



 inductive proximity sensors with amplifier outside
F3C-03WSQ0.8 3*15mm  Smooth head NPN/PNP   SN 0.8mm
F3C-3.8WSQ0.8 3.8*15mm  Smooth head NPN/PNP   SN 0.8mm
F3C-04WSM0.8 4*15mm  Screw thread head NPN/PNP  SN 0.8mm
F3C-05WSM01 5*16mm  Screw thread head NPN/PNP  SN 1mm
F3C-5.4WSQ1.2 5.5*16mm  Smooth head NPN/PNP  SN 1.2mm
F3C-08WSM02 8*18mm  Screw thread head NPN/PNP  SN 2mm
F3C-08WSQ02 8*18mm  Smooth head NPN/PNP  SN 2mm
F3C-10WSM02 10*18mm  Screw thread head NPN/PNP  SN 2mm
F3C-14WSM04 14*18mm  Screw thread head NPN/PNP  SN 4mm






Position Usage 0.8mm Iron Detection 3mm Diameter Micro Inductive Proximity Sensor 12V DCPosition Usage 0.8mm Iron Detection 3mm Diameter Micro Inductive Proximity Sensor 12V DC
