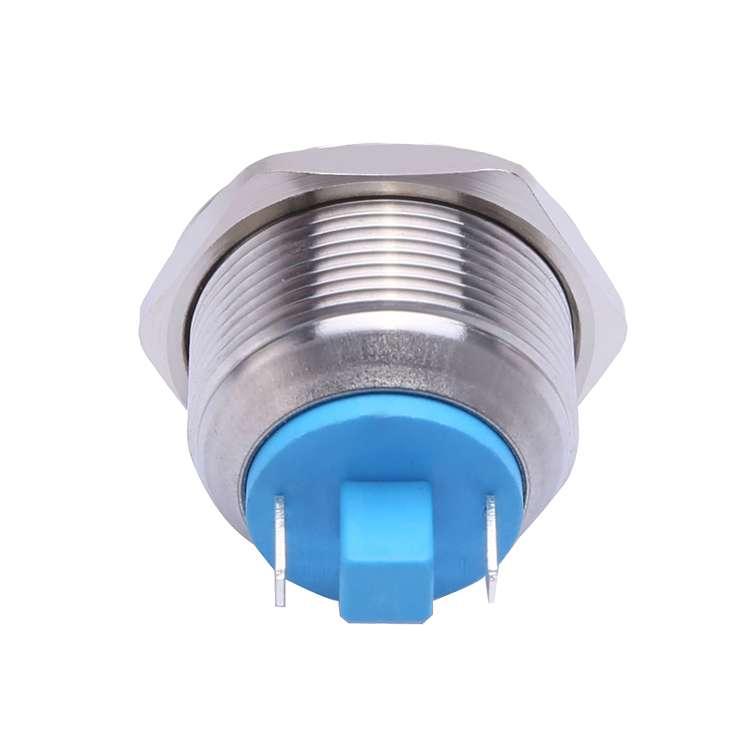

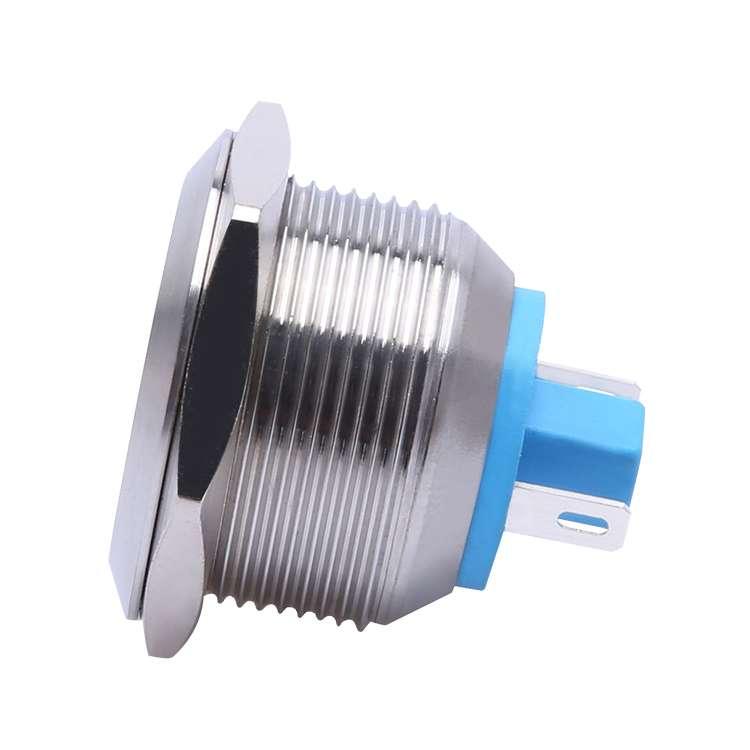

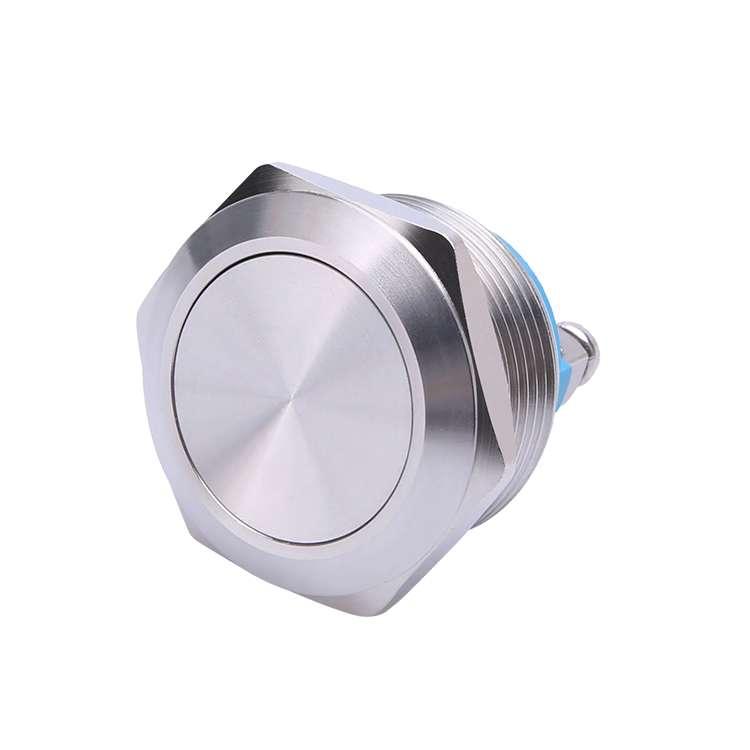

22mm IP65 Waterproof Electronics Momentary Push Button Switch

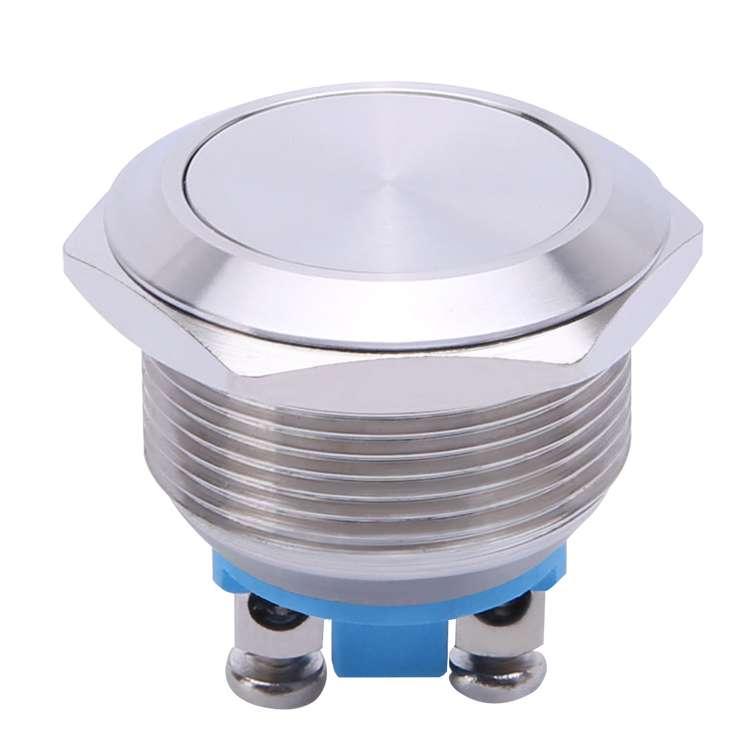

Reset button switch with long life. Wiring method: solder or screw

  • Brand:

    OLINK
  • Item no.:

    22QA
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Sliver, other colors(OEM)
  • Min order:

    40
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    7

22mm IP65 waterproof electronics momentary push button switch


  Description of 22mm Pushbutton

This metal push button switch is easy setup. All you need is a 0.86"/22mm hole and the switch will sit in nicely. The switch functions is 1NO, Momentary. It has two wiring methods: solder and screw.


  Features of IP65 push button switch

  • IP65, IK10 dustproof and waterproof

  • Metal surface, exquisite and durable

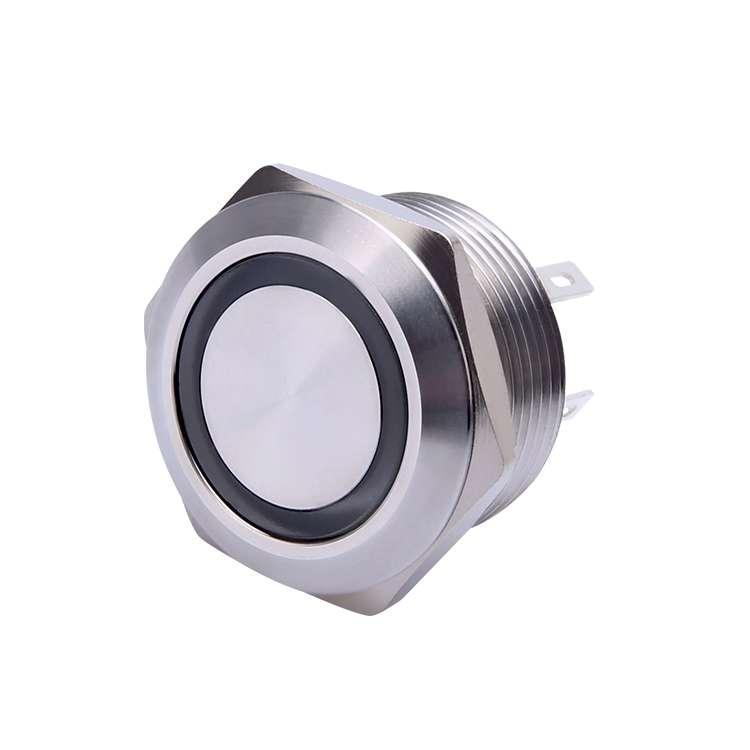

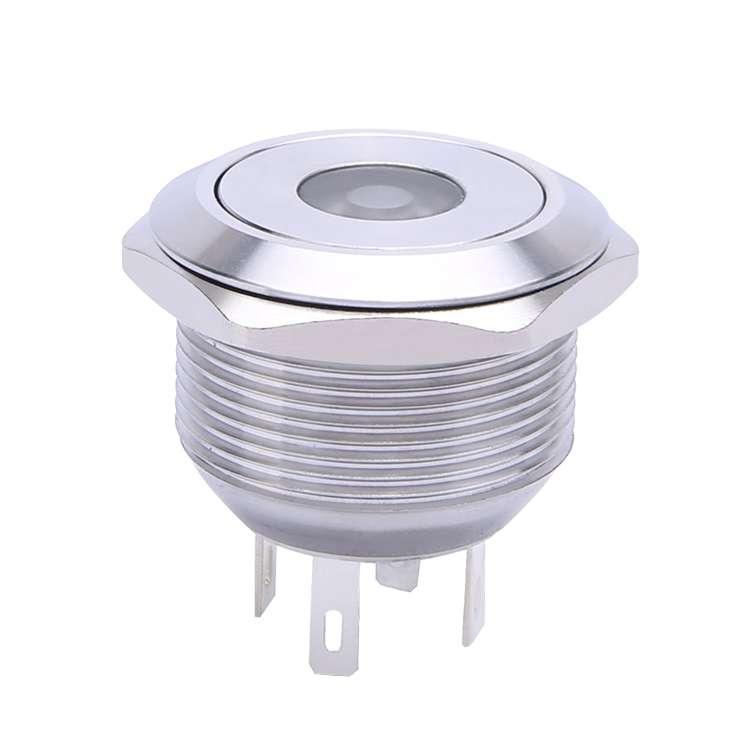

  • Built-in LED lamp beads, uniform and bright light transmission, long service life

  • Long service life: 1,000,000 rimes mechanical life and 200,000 times electrical life


  Specifications of Metal Push Button Switch

Product Name:

22mm ip65 push button switch

Product Model: 22QA
Switch Rating: 5A/250VAC Terminal Type: 2.8 x 0.5   J pin terminal / Screw terminal
Switch Function: 1NO, Momentary Environment Temperature: -20℃~+55℃
Contact Resistance: ≤50 mΩ Insulation Resistance: ≥1000 MΩ
Panel Thickness: 1~8 mm Protection Grade: IP65, IK10
Contact Material: Sliver Alloy Button Material: Stainless steel, Zn-Al alloy(any color)
Body Material: Brass nickel plated, Stainless steel, Zn-Al alloy(any color) Base Material: PBT
Lamp Voltage: 2V, 3V, 5V, 6V, 12V, 24V, 36V, 48V, 110V, 220V Lamp color: Red, Orange, White, Blue, Green, Yellow

  Drawing of waterproof push button switch




22QA-F10

22QA-F10L



22QA-B10
22QA-B10L



22QA-G10

22QA-G10L



22QA-F10/E

22QA-H10/E



22QA-F10/D
22QA-F10L/E

  Application of metal Push Button switch

16mm push button switch

Applications: Car modification, battery car modification, computer modification, access control switch, home appliance button, industrial control instrument.

*If you need more information, you can find customer service through the contact information on the right side of this page.
