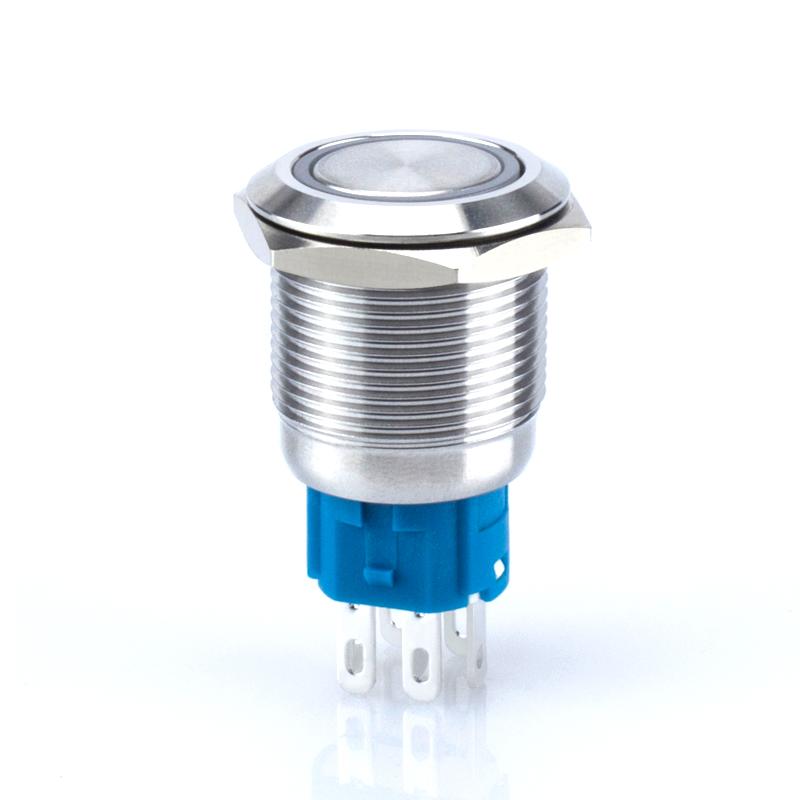

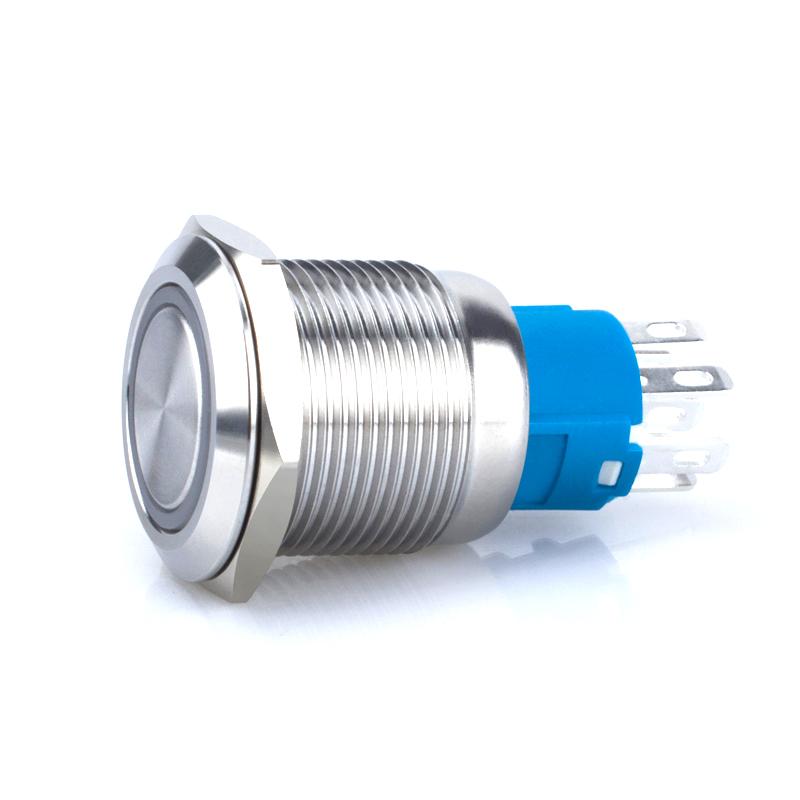

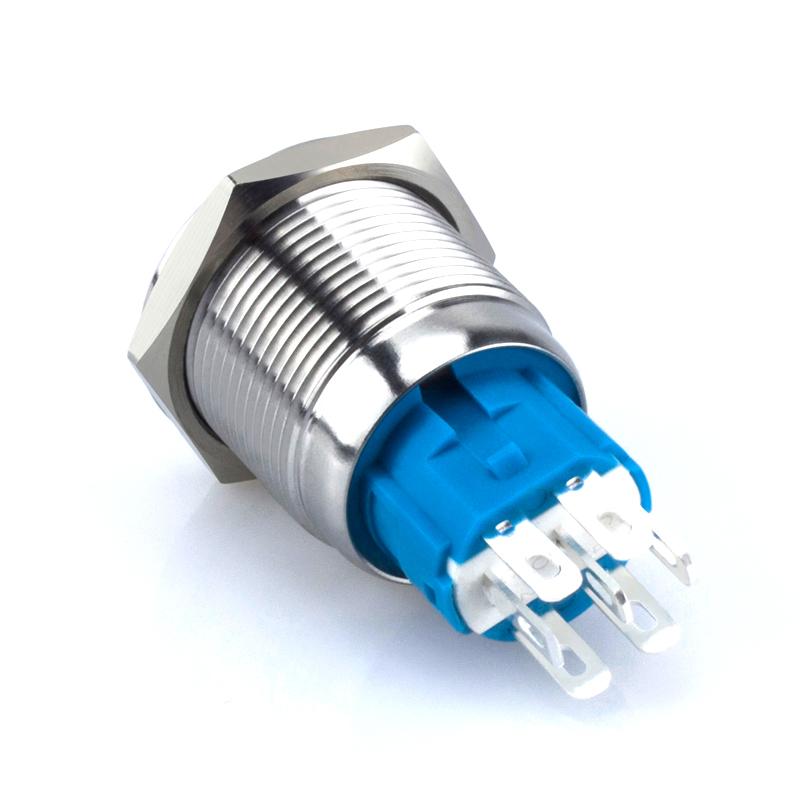

19mm metal anti vandal 3v LED push button switch

Long life, with beautiful appearance and excellent handle. Big current, can reach 16A.

Brand:
OLINK
Item no.:
19QE
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Color:
Sliver, other colors(OEM)
Min order:
40
Product weight:
20
Shipping port:
Xiamen, Ningbo
Lead Time:
7

Inquiry now

product introduction

19mm 1NO1NC illuminated push button switch 15 amp

Description of 19mm Pushbutton

This metal push button switch is easy setup. All you need is a 0.74"/19mm hole and the switch will sit in nicely. It has two switch functions: 1NO1NC/2NO2NC, Momentary/Self-locking.

Features of IP67 push button switch

IP67 dustproof and waterproof
Metal surface, exquisite and durable
Built-in LED lamp beads, uniform and bright light transmission, long service life
High load, the maximum can withstand 20A current in actual use
Long service life, 50,000 power-on life guarantee
Optional with cable connection tail plug, more convenient to use

Specifications of Metal Push Button Switch

Product Name:	19mm high current push button switch	Product Model:	19QE
Switch Rating:	16A/250VAC	Terminal Type:	2.8 x 0.5 J pin terminal
Switch Function:	1NO1NC/2NO2NC, Momentary/Self-locking	Environment Temperature:	-20℃~+55℃
Contact Resistance:	≤50 mΩ	Insulation Resistance:	≥1000 MΩ
Panel Thickness:	1~10 mm	Protection Grade:	IP65/IP67, IK10
Contact Material:	Sliver Alloy	Button Material:	Stainless steel, Zn-Al alloy(any color)
Body Material:	Brass nickel plated, Stainless steel, Zn-Al alloy(any color)	Base Material:	PBT
Lamp Voltage:	2V, 3V, 5V, 6V, 12V, 24V, 36V, 48V, 110V, 220V	Lamp color:	Red, Orange, White, Blue, Green, Yellow

Drawing of waterproof push button switch


19QE-F11Z		19QE-H11Z

19QE-F11Z/E		19QE-H11Z/E

19QE-F11Z/EV		19QE-H11Z/EV

19QE-F11Z/V		19QE-H11Z/V

Application of Illuminated Push Button

Most often push button switches are widely used in electrical automation equipment, large machinery, home appliances

19QE Push button Optional Accessories

19mm PushButton The in-line quick socket can eliminate the cumbersome operations of welding and connecting terminals during the switch installation process, and it is more convenient to replace the damaged button switch in the future, saving time and effort.
The default wire length is 150mm, and the wire length can be customized according to the specific requirements of the order.
