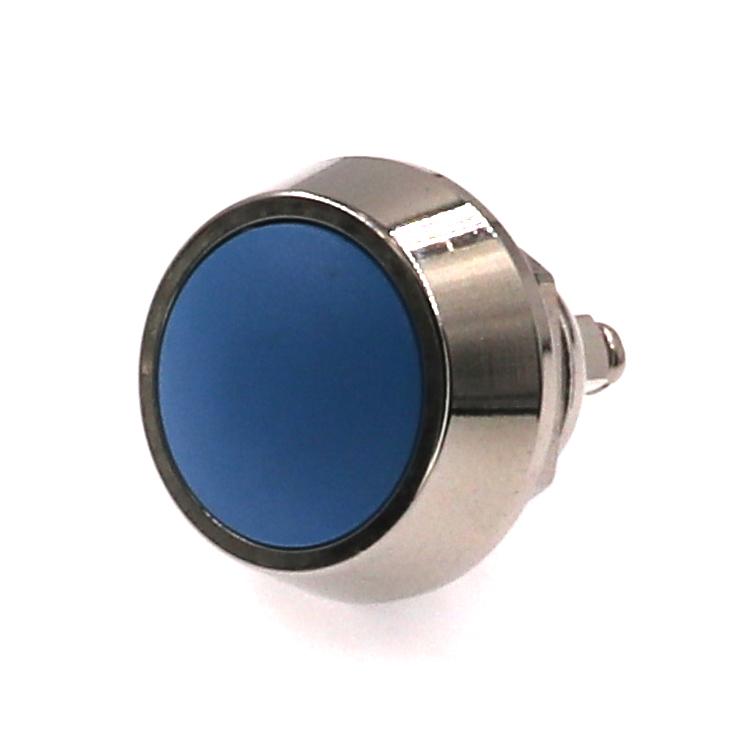

12mm 5V led metal spst momentary push button switch

There are 2 kinds of contact terminal: solder terminal (J pin terminal) and screw terminal. And many different button colors can choose.

Brand:
OLINK
Item no.:
12QA
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Color:
Sliver, other colors(OEM)
Min order:
40
Shipping port:
Xiamen, Ningbo
Lead Time:
7

Inquiry now

product introduction

12mm push button momentary switch 1NO

Features of 12mm Push Button Switch

Momentary switch function: As long as we keep pressing on to button, it will work. As soon as we stop touching the button, it will stop.
Metal shell: Except stainless steel, there still have brass nickel plated and Zn-Al alloy of the shell material. You can make in in any color, like black.
Protection level: IP65, IK08. Completely prevent water and dust from entering.
Wiring: We are able to provide wiring. If this is something you’re looking for, mention this with detail requirements when making an inquiry.

Specifications of 1NO Push Button Switch

Product Name:	12mm momentary push button switch	Product Model:	12QA
Switch Rating:	2A/250V AC 2A/36V DC	Terminal Type:	2.0x0.5 J pin terminal / Screw terminal
Switch Function:	1NO, Momentary	Environment Temperature:	-20℃~+55℃
Contact Resistance:	≤50mΩ	Insulation Resistance:	≥1000MΩ
Panel Thickness:	1~5mm	Protection Grade:	IP65, IK08
Contact Material:	Sliver Alloy	Button Material:	Stainless steel, PBT
Body Material:	Brass nickel plated, Stainless steel, Zn-Al alloy(any color)	Base Material:	PBT

Drawing of 12mm Button Switch

12QA-B10 J Pin Terminal

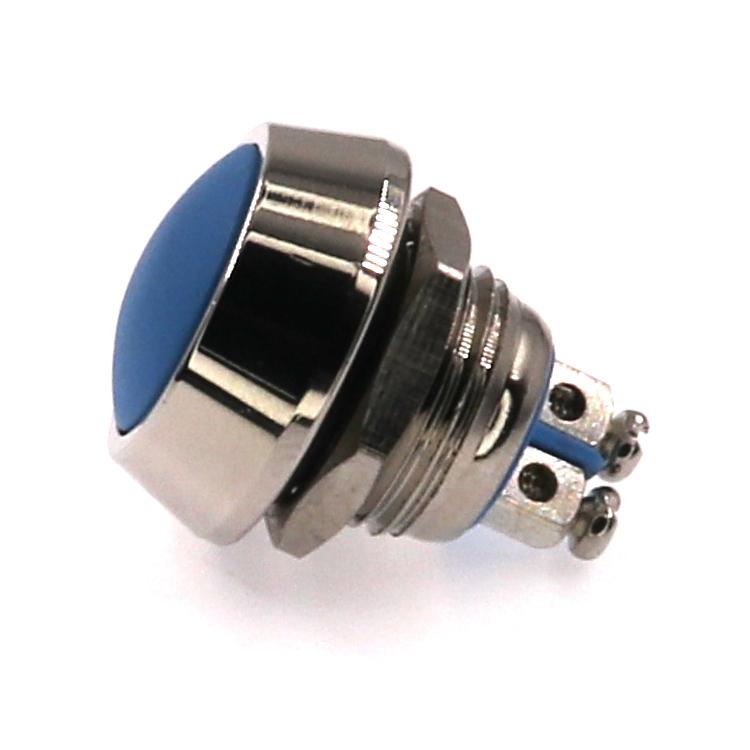

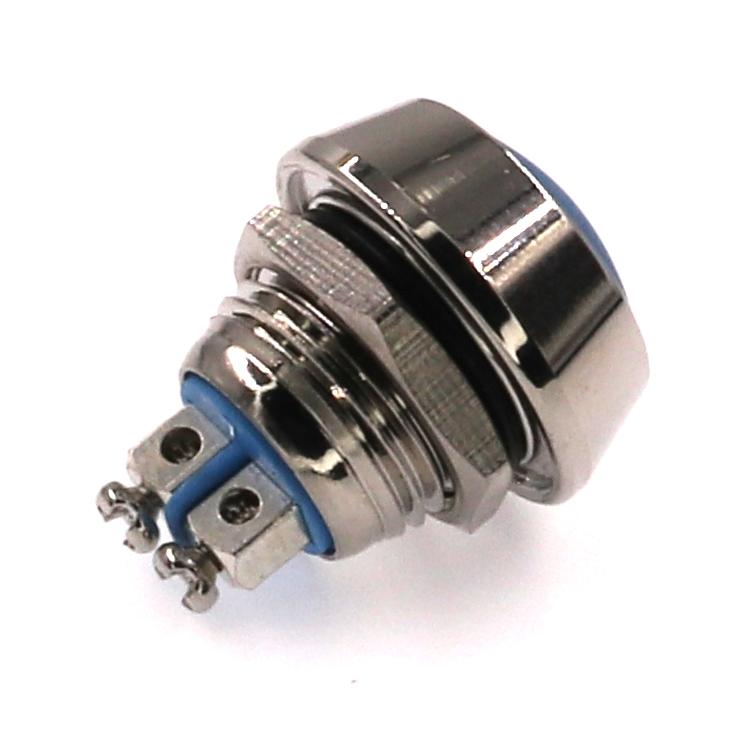

12QA-B10L Screw Terminal

Application of Red Push Button Switch

12mm push button switch can be applied to car motorcycle modificaction, electric equipment, appliance, machine, home Lamps etc.

16mm push button switch

*For more information, please contact us.
