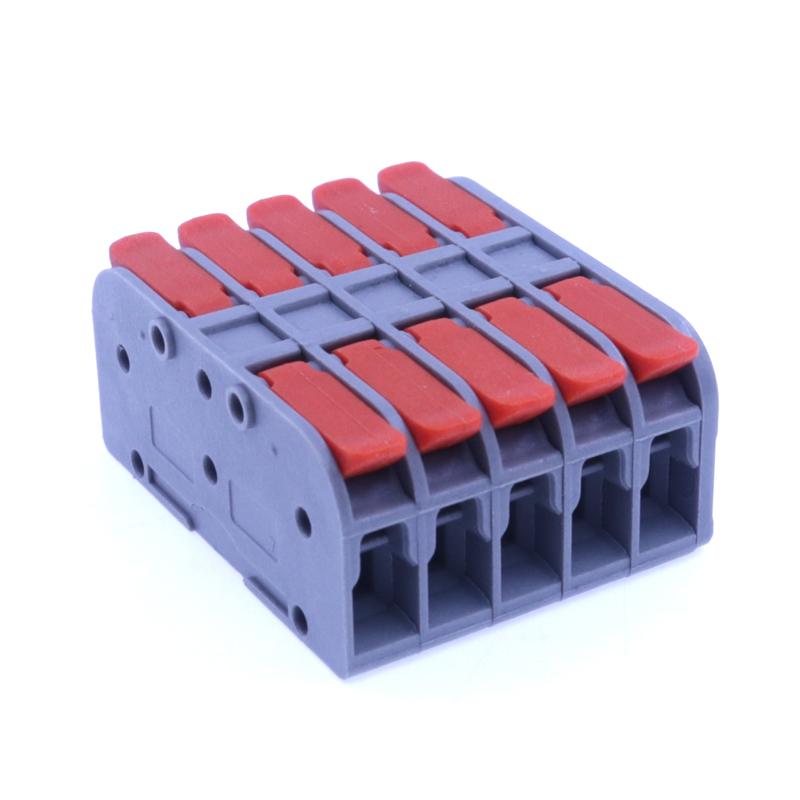

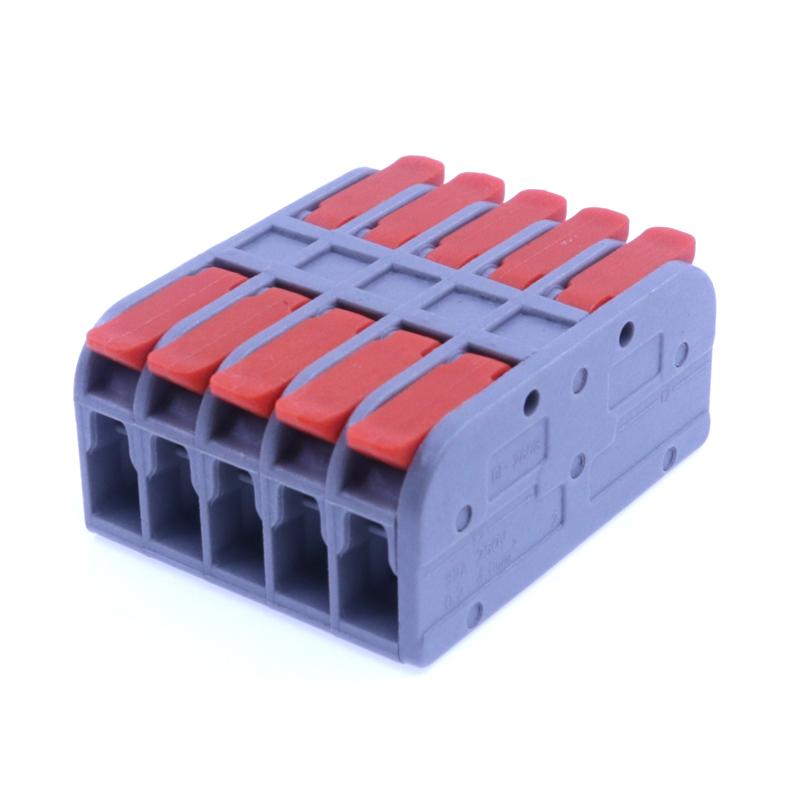

The Newly Designed Lever Crimp Connector Of The Internal Structure Can Be Spliced In Multiple Positions. A Single Product Can Have 1-In, 1-Out And 1-In And Multiple-Out Structures At The Same Time, And Can Be Used With Rail Brackets.
Brand:
OLINKItem no.:
222-2603-5Payment:
Wire transfer, Paypal, Western Union, AlipayProduct origin:
ChinaColor:
Blue OrangeGoods stock:
30000Shipping port:
XiamenLead Time:
5
Specification of Inline Splice Connectors |
|
Product name: | Lever wiring Connectors |
Wire range: |
Solid wire: 0.08-4.0mm2 Stranded wire:0.08-2.5mm |
Material: |
Housing:PA66 UL94V-0 Conductor: Brass with tin-plated Spring: Stainless stell |
Voltage: | 400V |
Current: | 32A |
Structural Features Of Spring Lever Terminal Block |
||
|
|
|
The Holes Can Be Spliced Indefinitely |
|
New Mechanical Structure, No Resistance For Lever Opening And Closing |
|
|
|
Thickened Conductive
Strips Have Better Conductivity |
|

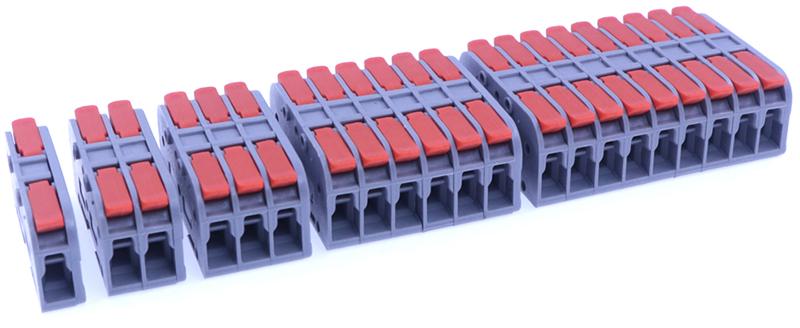

Adding Parallel Strips Can Make One Input Multiple Outputs |
|
|
|
A Single Product Can Be Made Into 1-In 1-Out Or 1-In And Multiple-Out, And Differentiated By Lever Color |
|
The Tested Pulling Force Value Is About 200N, The Clamping Force Is Better Than The Old Product |
