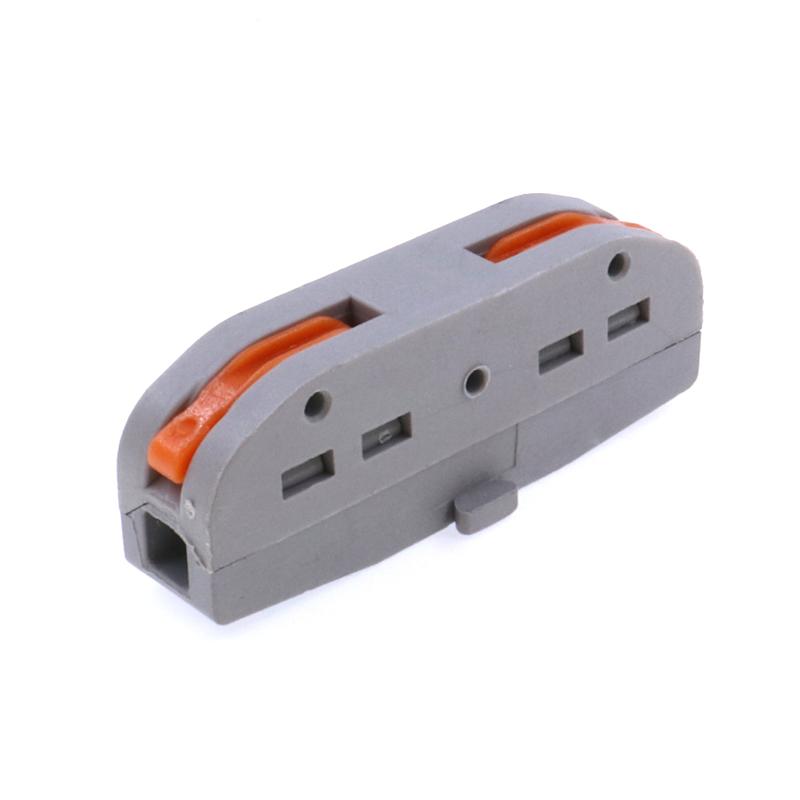

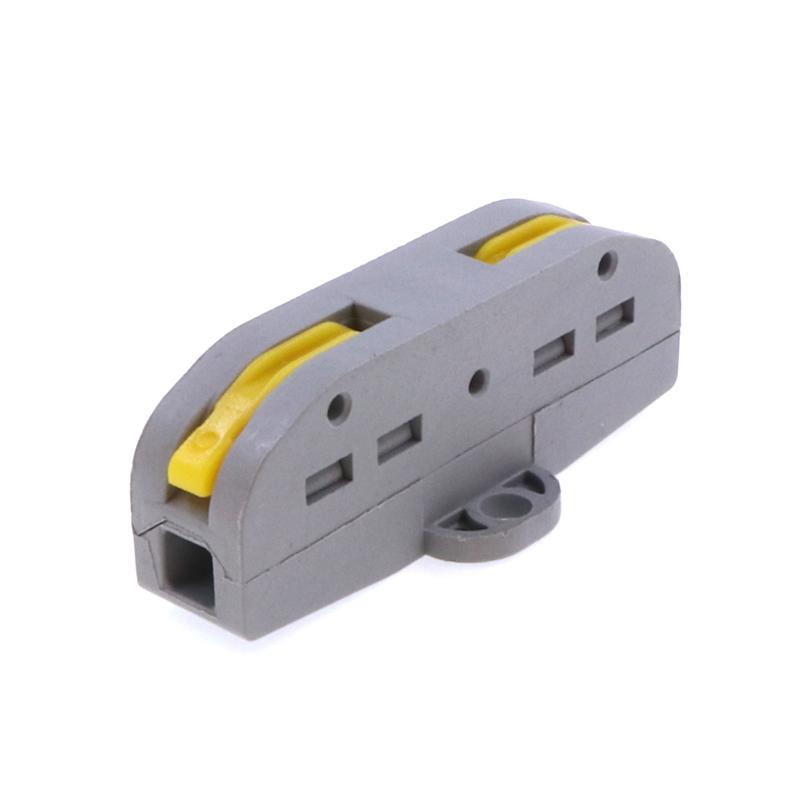

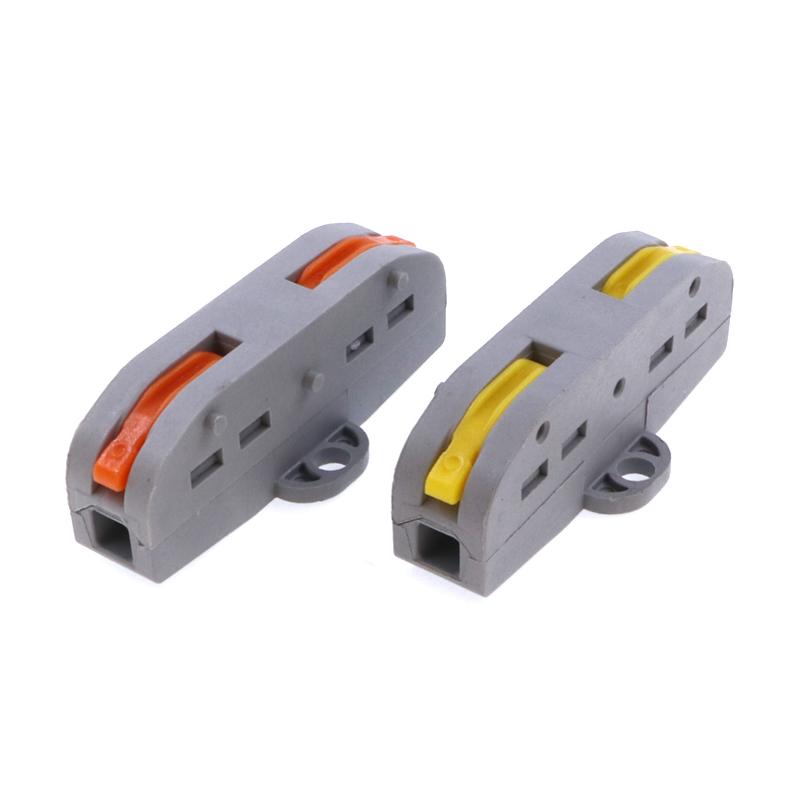

Universal Push-In Connector Designed for Easy Wiring and Secure Connections in Building, Industrial and Automotive Applications

It's 1 to 1 Pin. Can be spliced into multipoles. The color of lever button can be customized.

  • Brand:

    OLINK
  • Item no.:

    PCT-221
  • Payment:

    Wire transfer, Paypal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Blue, Orange lever
  • Goods stock:

    30000
  • Shipping port:

    Xiamen
  • Lead Time:

    7

splicing multiple electrical push in wire connectors 32 amp


  Features of lever nut connectors

  • Small size and reusable;
  • Use copper-plated nickel (tin-plated) conductive strips for better contact and conductivity;
  • The shell is made of nylon or PC, and the flame retardant grade is UL94 V-0;
  • The clip is made of nickel-chromium spring steel, which has strong durability and good wire fixing ability;
  • The color of the handle of this push in wire connector can be customized to distinguish incoming wires.


 Dimensions & named




PCT-221A(Concave) PCT-221(can be spliced) PCT-221T(Convex)

  Specification of Electrical Wire To Wire Connector

Product Name:
 Lever wire nut connectors
Pole:  1 to 1
Strip Length:

 9-10mm/0.39in

Wire Range:

 Solid: A- 0.08 4mm²

 Stranded: 0.08-2.5mm²

Material:

 Housing: Nylon / PC

 Conductor: Copper tin plated

 Spring: High-Performance spring steel

Rated Voltage:   250V Rated Current:   32A

 Compared



PCT-211 PCT-221

 Details



  Application Of Mini Wire To Wire Connectors

Mainly used in indoor LED light power wiring, wire connection of junction box, etc.


 More Similar Wire Connectors


*For more information, please contact us by email or through any contact information on the webpage.
