Push In Wire Connector

 /Transparent Quick Splitter Push-In Terminal Block for Easy Branching and Secure Connections in Complex Electrical Networks

221 wire connectors
221 wire connectors 221 wire connectors 221 wire connectors

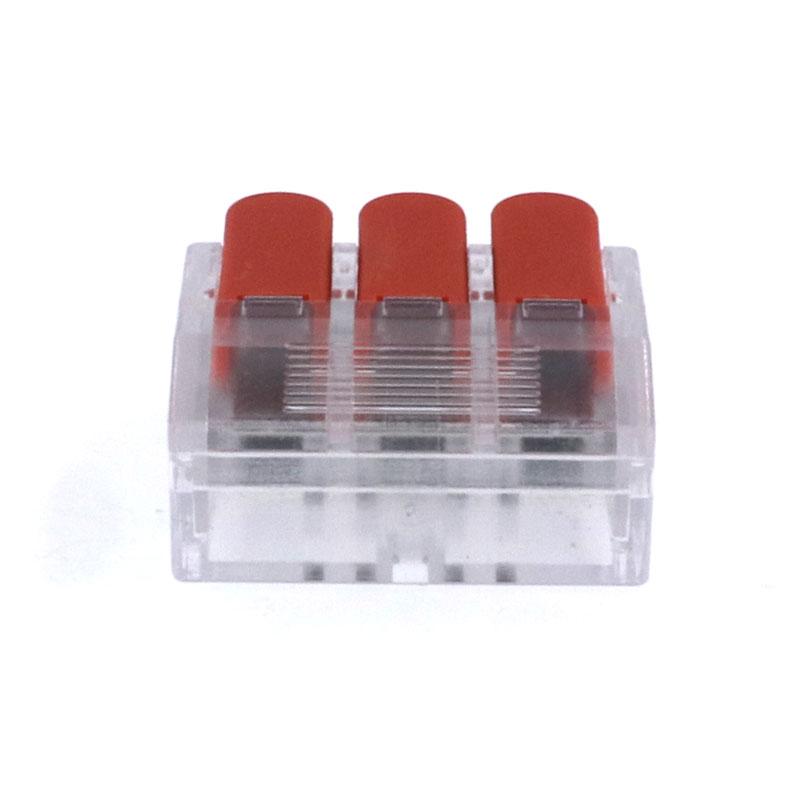

Transparent Quick Splitter Push-In Terminal Block for Easy Branching and Secure Connections in Complex Electrical Networks

6mm2 221 series connector, easy to use, handle color can be customized.solid wire accepts 10AWG or 6mm2 wire, ideal for branching off building power wires.

  • Brand:

    OLINK

  • Item no.:

    221-613

  • Payment:

    Wire transfer, PayPal, Western Union, Alipay

  • Product origin:

    China

  • Color:

    Gray/Orange (handle color can be customized)

  • Goods stock:

    500000

  • Min order:

    100

  • Product weight:

    3

  • Shipping port:

    Xiamen, Ningbo,shenzhen,shanghai

  • Lead Time:

    7
Inquiry now

221 3way lever nut electrical connectors 6mm 450V40A

  Features of Push in Connectors

  • Use copper-plated nickel (tin-plated) conductive strips for better contact and conductivity;
  • The shell is made of PC, and the flame retardant grade is UL94 V-0;
  • The clip is made of nickel-chromium spring steel, which has strong durability and good wire fixing ability;
  • The color of the handle of this wire-to-wire connector can be customized to distinguish incoming wires.


  Specifications of 221 Lever wire connectors

Model     221-613 Rated Voltage
   450V
Rated Current
   40A Strip Length
   13-15mm/0.59in
Wiring Size
   Solid Wire: 0.5-6mm2     Stand Wire: 0.4-4.0mm2
Wiring Method
   Lever Crimp Shell
   PC
Contact     Copper Sping
   High-Perfomance Spring Steel
Temperature
   -25℃~85℃ Applications
   Building Wire Branch and Connection

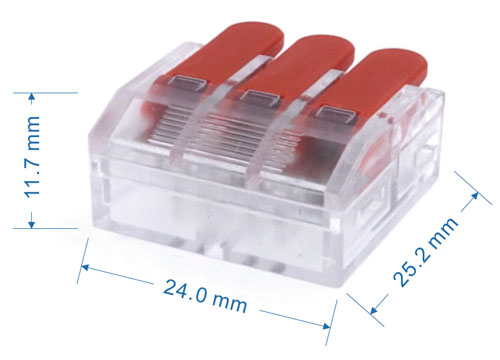

Size and Description


The lever crimp wire connectors can be reused and the wiring is reliable. The shell is made of flame-retardant material to prevent fire, and there is a copper nickel-plated conductive sheet inside, which has good conductivity。

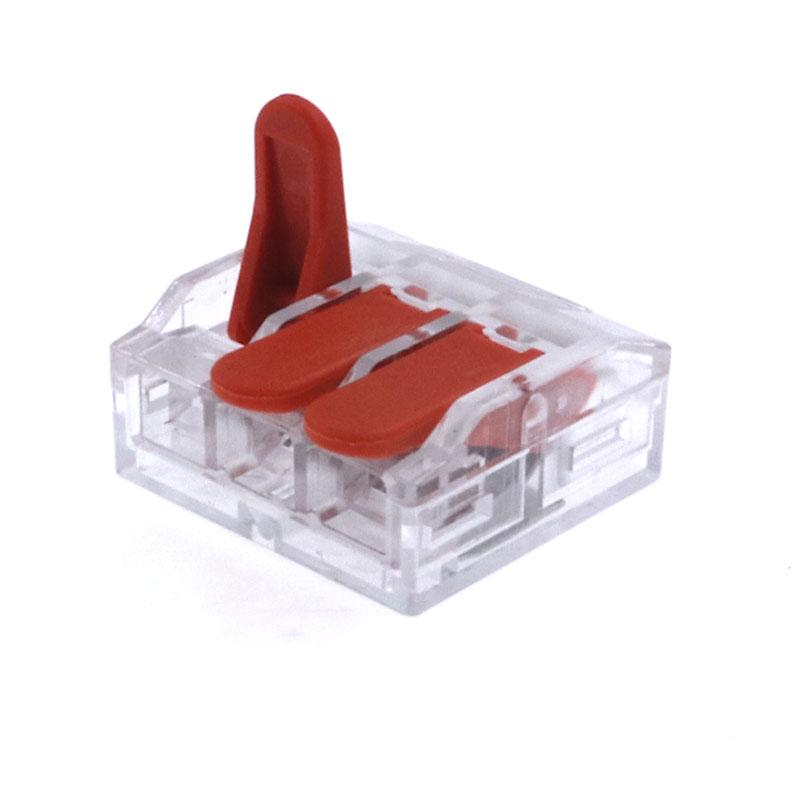

  How To Use Of 6mm2 Push In wire connectors
Easy Operation,Easy To Insert,Convenient, Fast,Safe And Reliable



1)Stip The Wire Length 13-15mm/0.59in
2)Open The Connectors Handle



3)Insert The Wire Hole and Close The Handle
4)Installation Is Complete

Other needle count products





221-612
2121-614
221-615

  More Push In Wire Connector

*For more information, please contact us by email or through any contact information on the webpage.
