socket sealed automotive cable and flange connector

YP circular mil spec connector is widely used in circuit connection between various electronic and electrical equipment

Brand:
OLINK
Item no.:
YP21
Payment:
Wire transfer, Paypal, Western Union, Alipay
Product origin:
China
Color:
Green
Shipping port:
Xiamen
Lead Time:
7

Inquiry now

product introduction

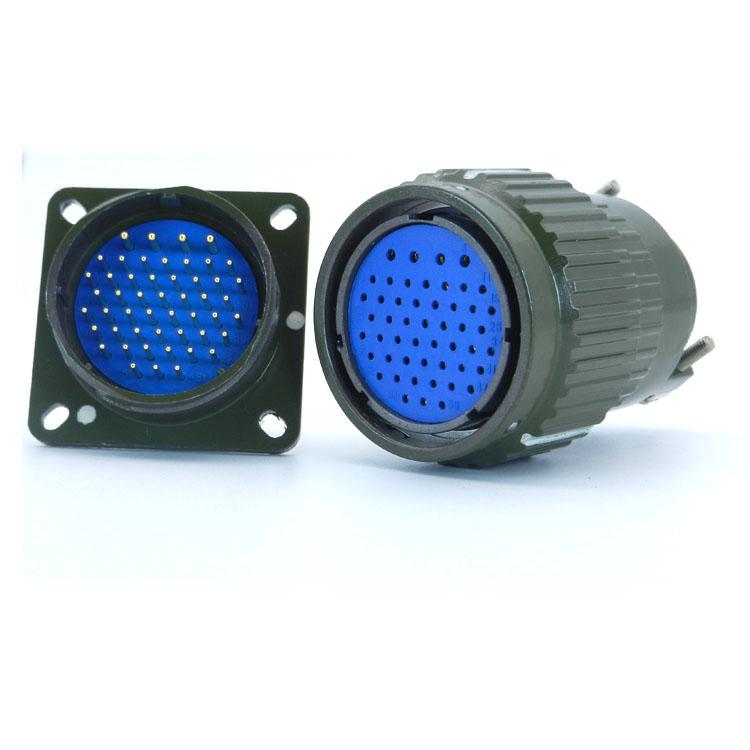

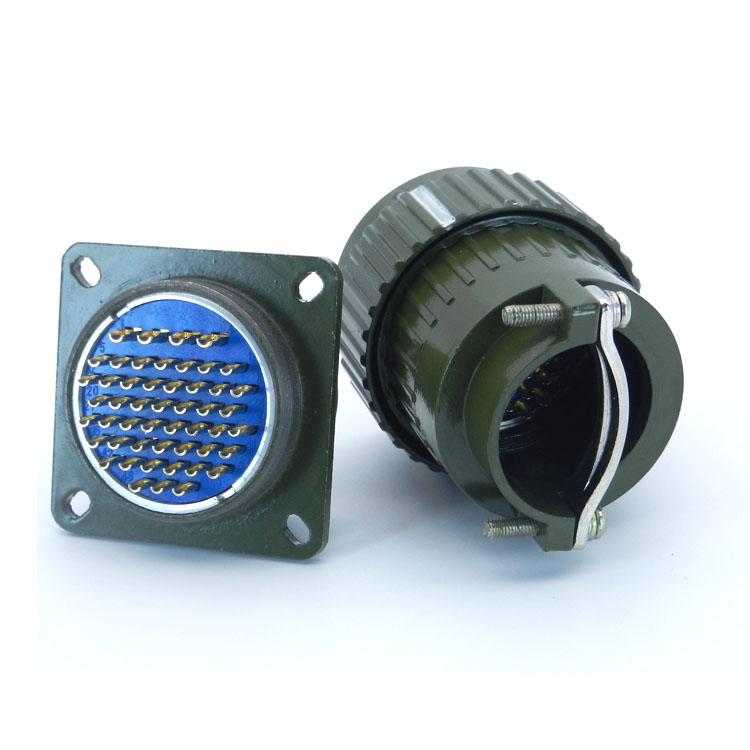

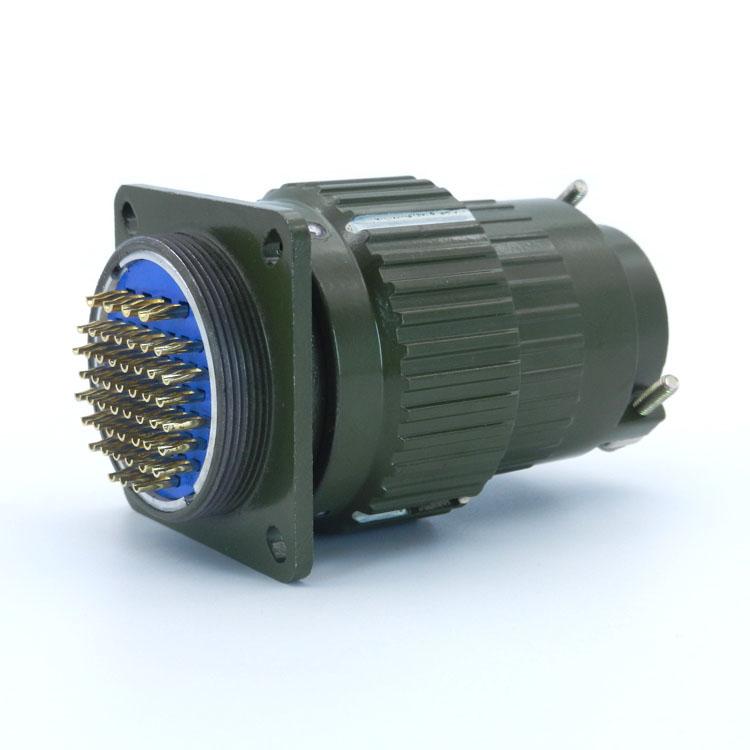

YP series Military round bayonet connector

metal connector

temperature range	-40~+85℃	shock	Acceleration 735m/s2
humidity	40±2℃ 95±3%	inpact	Acceleration 196m/s2
pressure	99.99kpa	constant acceleration	Acceleration 245m/s2
vibration	10~2000Hz Acceleration147m/s2	the number of pins	2-120P

pin diameter	1mm	1.5mm	2.5mm	3.5mm	5mm
current	5A	10A	25A	50A	100A
resistance(mΩ)	6	4	1	0.5	0.3

YP connector

HOW TO CHOOSE:
1、CUTOUT SIZE FOR PANEL: YP21 YP28 YP36 YP50
2、THE NUMBER OF PINS:
YP21: 2-16P
YP36: 3-65P
YP28: 2-37P
YP50: 20-120P
3、CONNECTION METHOD:
1. Wire to wire connection
2. Wire to board connection
