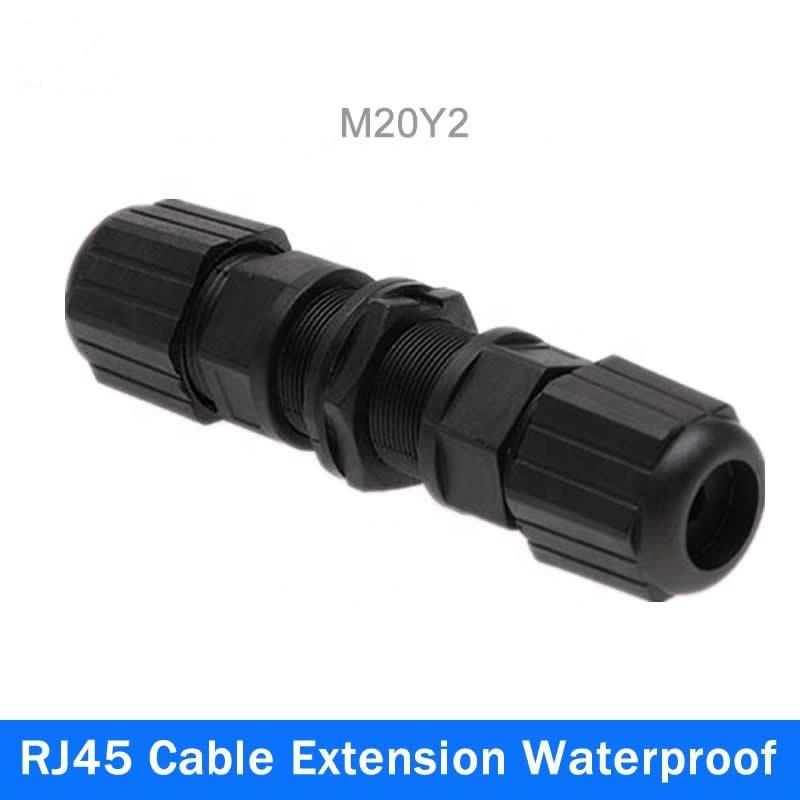

RJ45 Waterproof connector cat5e IP67 network cable

rj45 inline coupler: 1/4 bayonet connect, quick connect, with dust cap can reach IP65 protection level.
  • Brand:

    OLINK
  • Item no.:

    RJ45-M20Y2
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Black
  • Goods stock:

    10000
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    7

RJ45 Waterproof connector cat5e IP67 network cable

Feature of waterproof rj45 coupler

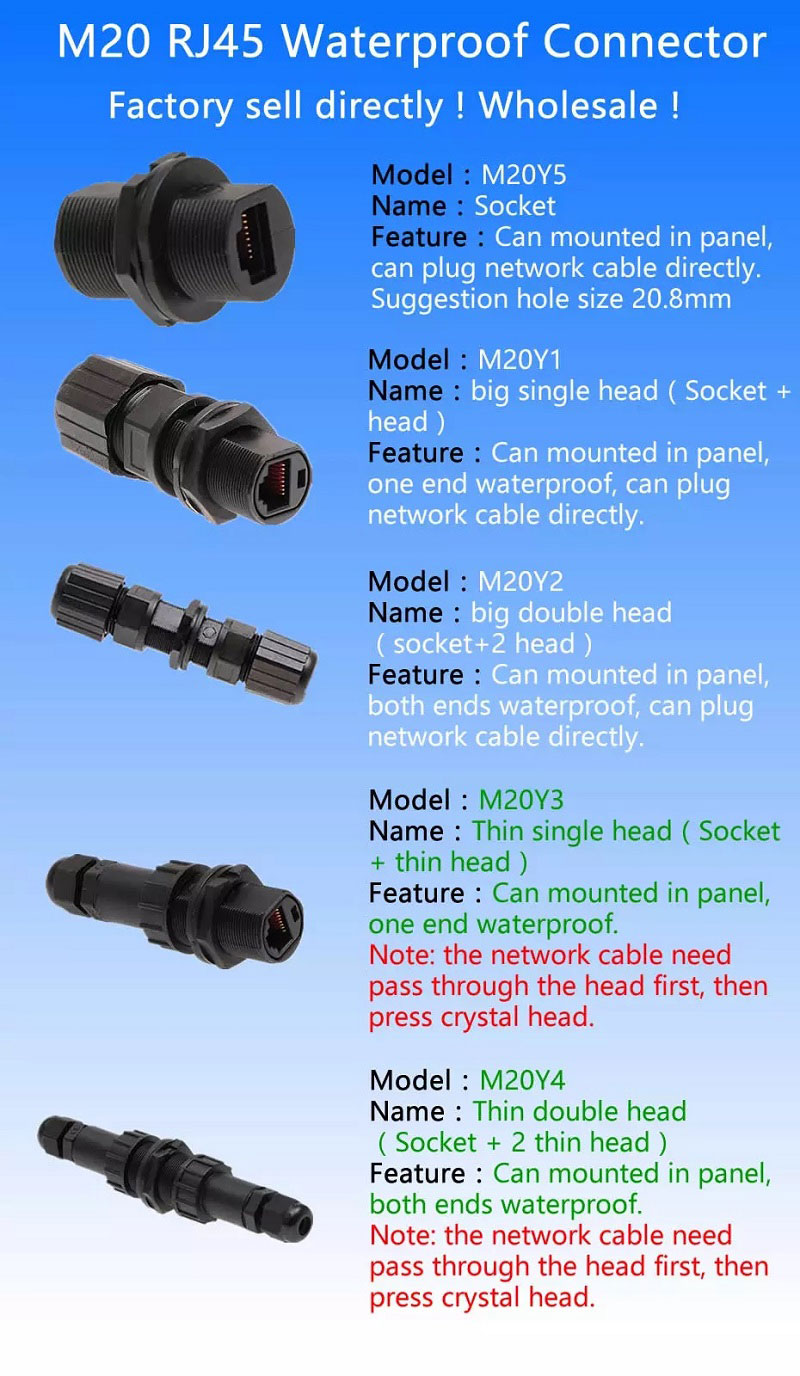

  • Waterproof rj45 has two applications, one is RJ45 interface,  wire
  •  the appearance is the same, the interface is different
  • The plug does not include a crystal head as standard
  • The socket is installed on the front panel with a dust cover as standard
  • Bayonet design, fast plug and unplug, easy to use

Specification of Rj45 female socket



Product name:

 RJ45 waterproof connectors

Product model:
 RJ45-M20Y2
Wire range:   0.15mm²~2mm²/26-24 AWG Cable OD.:   5.5-7 mm
Contact number:   8 pin Rated current:   1.5A
Contact resistance:   <30mΩ Withstand voltage:   1000V
Waterproof O-ring:   Silica gel Protection level:   IP67
Shell material:   PA66 UL94-V0 Working temperature:   -40℃ to 80℃
Contact material:   Brass with gold plating Insulation resistance:
 >500mΩ
Connection method:   1/4 Bayonet connect Durability:   >500 times

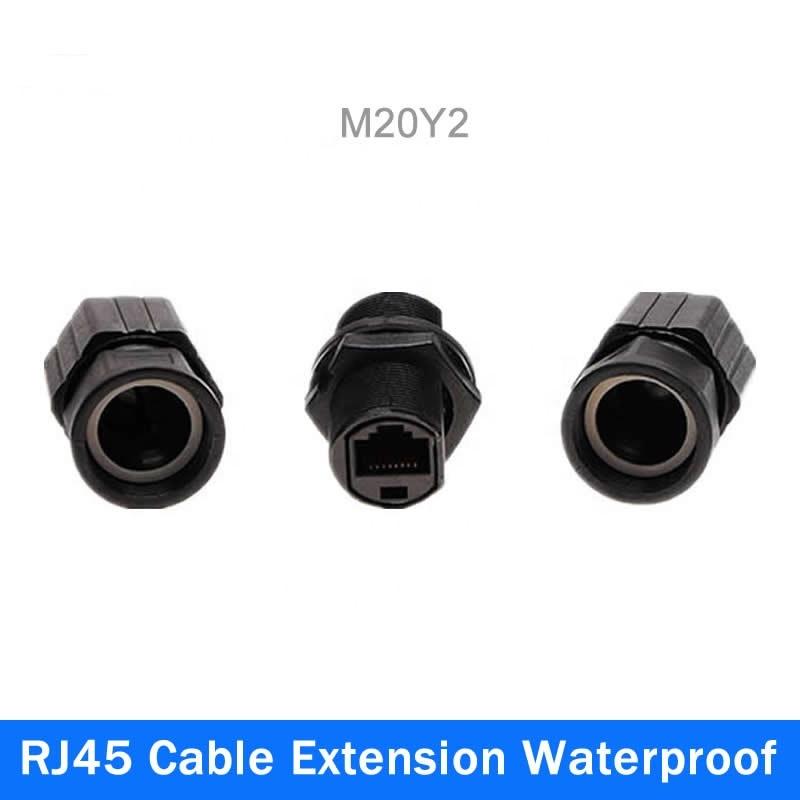

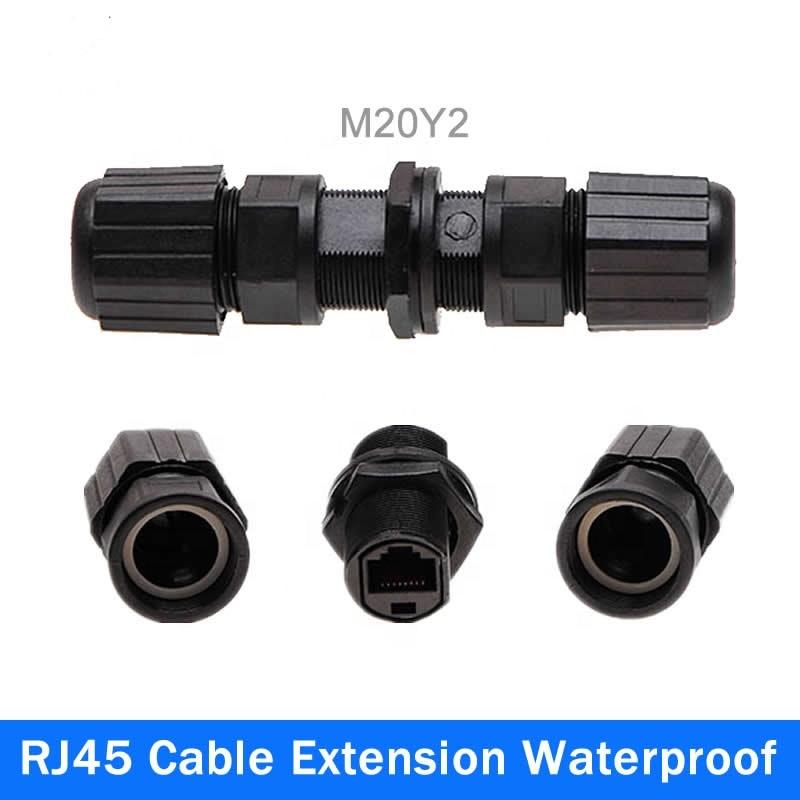

Products real shot of outdoor rj45 connector



Application of RJ45 panel mount waterproof connector


RJ45 panel mount waterproof connector Because of its convenient connection and convenient use, it is widely used in data transmission of computers, external devices and other devices

*For more information, please contact us by email or through any contact information on the webpage.



Why choose us?

  • Exquisite and compact design, saving a lot of space
  • Compatible with USB2.0/USB3.0 connector
  • With plug cable, the waterproof grade reaches IP67
  • Unique structure design, convenient and quick operation
  • Made of nylon PA66, flame retardant and high temperature resistant
  • Cable length can be customized
