Brand:
OLINKItem no.:
222-2604-3Payment:
Wire transfer, PayPal, Western Union, AlipayProduct origin:
ChinaColor:
Gray/Orange (handle color can be customized)Goods stock:
500000Min order:
100Product weight:
3Shipping port:
Xiamen, Ningbo,shenzhen,shanghaiLead Time:
5Micro Resistance Painless Lever Crimp Wire Connectors With The Latest Design Inside The Product, Lever Has Minimal Opening And Closing Resistance, And Frequent Use Will Not Bring Pain To The Fingertips. After The Wire Is Connected, The Tension Is Large And It Is Not Easy To Loosen. The Number Of Connector Holes Can Be Spliced Infinitely According To Requirements.
Features
This Lever Connectors Single Pole Can Be Spliced With Infinite Hole Positions;
Specifications |
Roduct Name: |
Painless Lever Wire Connectors |
Application: |
Junction box/electric power |
Wiring method: |
Insert Lever Crimp |
Wire type: |
Solid/Flexible wire |
Number of electrodes: |
1 |
Number of holes: |
1~ |
Strip length: |
10-12mm/0.47in |
Cross section: |
0.2 - 2.5(4.0) mm2 / 24-12AWG |
Voltage: |
250V |
Rated Current: |
32A |
Shell material: |
Nylon |
Conductive material: | Tinned phosphor bronze |

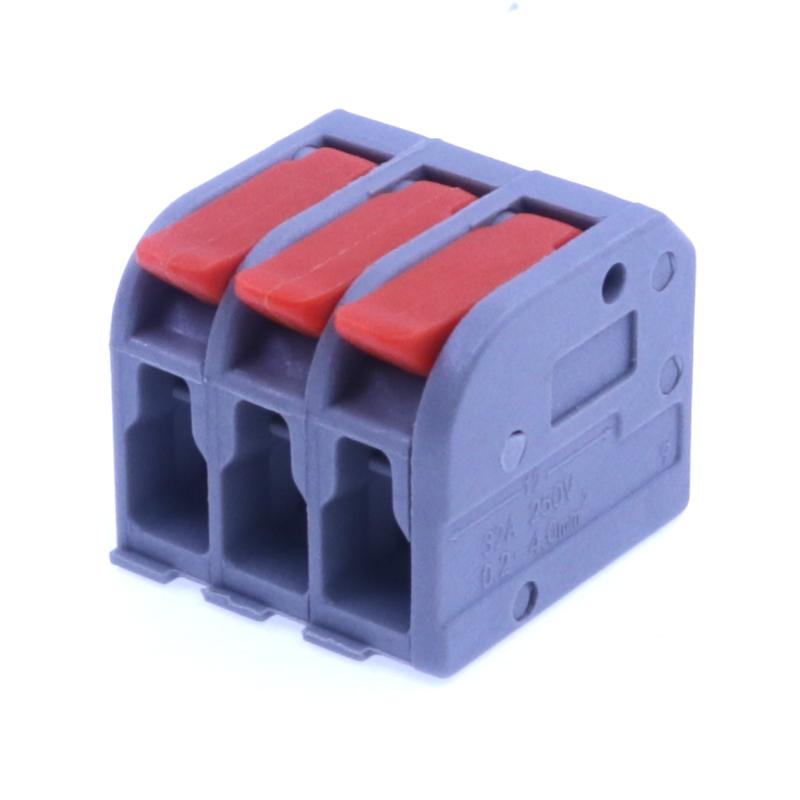

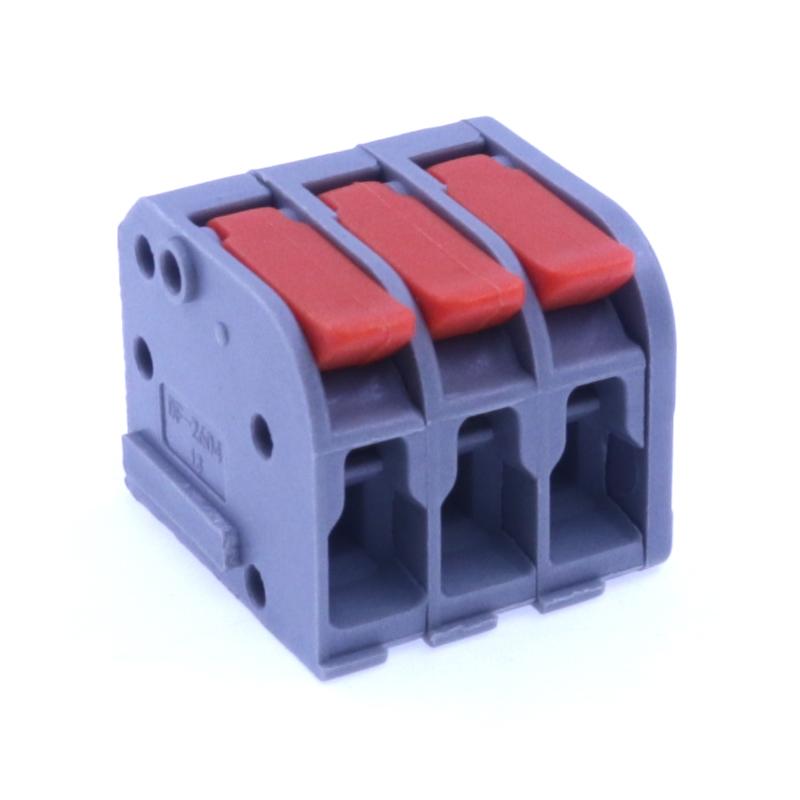

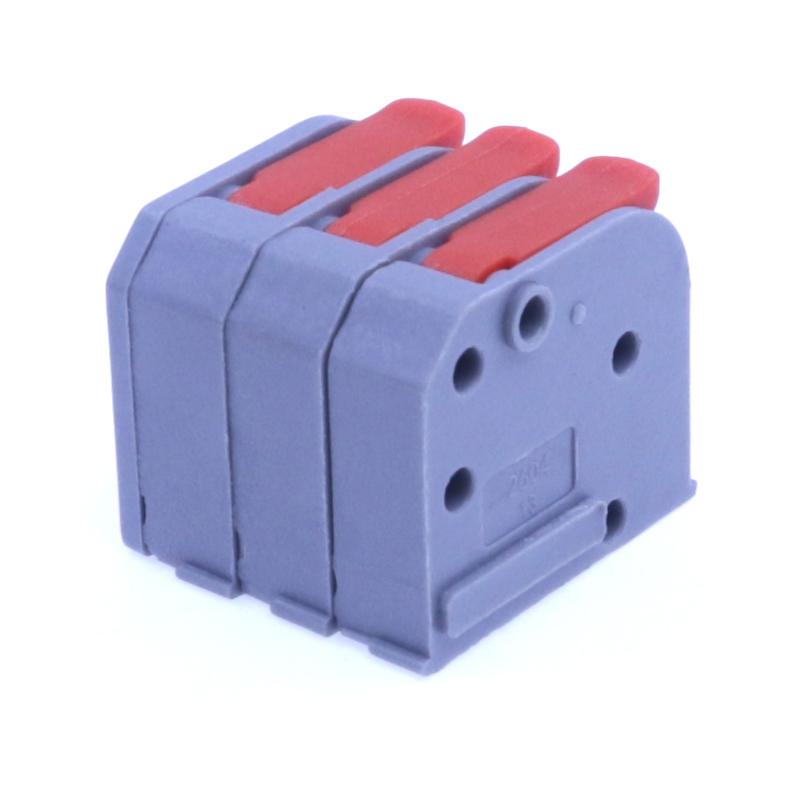

Details Of Push In Connector |
Carefully Crafted,Focused On Detail |
|||
|
|
|
|

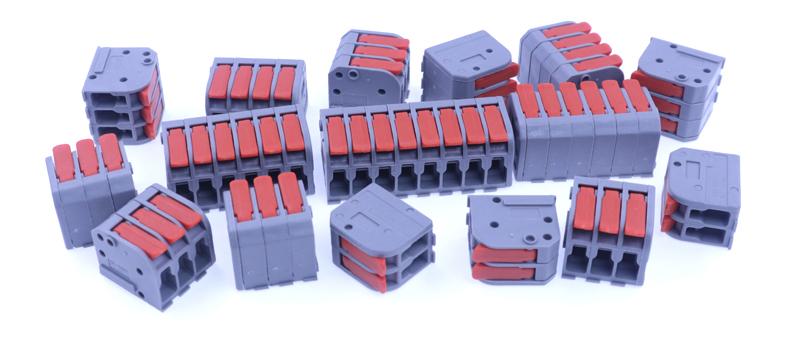

The Number Of Holes Can Be Spliced From 1P To Unlimited Positions
|
0.8mm Thickness Of Conductive Strip, Better Conductivity |
New Internal Structure Design, No Resistance To Opening And Closing |
Can Withstand Greater Tensile Test, About 200n Without Loosening |
More Lever Wire Connector |
*For More Information, Please Contact Us By Email Or Through Any Contact Information On The Webpage.
