Model	HR-100N
Detection Type	reflection sensing
Standard Detection Object Size	10cm*10cm white paper
Detection Distance	100cm
Output Type	NPN.NO.NC/ PNP.NO.NC
Light Source	850nm infared modulated light
Operating Voltage	10-30VDC
Response Time	0.5ms Max.
Current Consumption	15mA Max.
Load current	100mA Max at 24 VDC
Insulation Resistance	20M Ohm Min. at 500 VDC
Dielectric strength	60 seconds at 1000VAC 60HZ
Protection Degree	IP66
Operating Temperature	-20 to-60(No Icing)
Reverse Polarity Protection	Yes
Short Circuit Protection	Yes
Material	ABS
Wire Method	dia4*2M/-3wires/ 2 wires/4 wires



(diffuse photoelectric sensor)advantages :



1. Ideal for general-purpose logistics photoelectric switch device.



2. Around 100cm detecting distances.



3. Water-proof IP66.



4. Global(EN Specifications and NPN,PNP applicable.



5. OEM order accepted, 18 months warranty.



product drawing

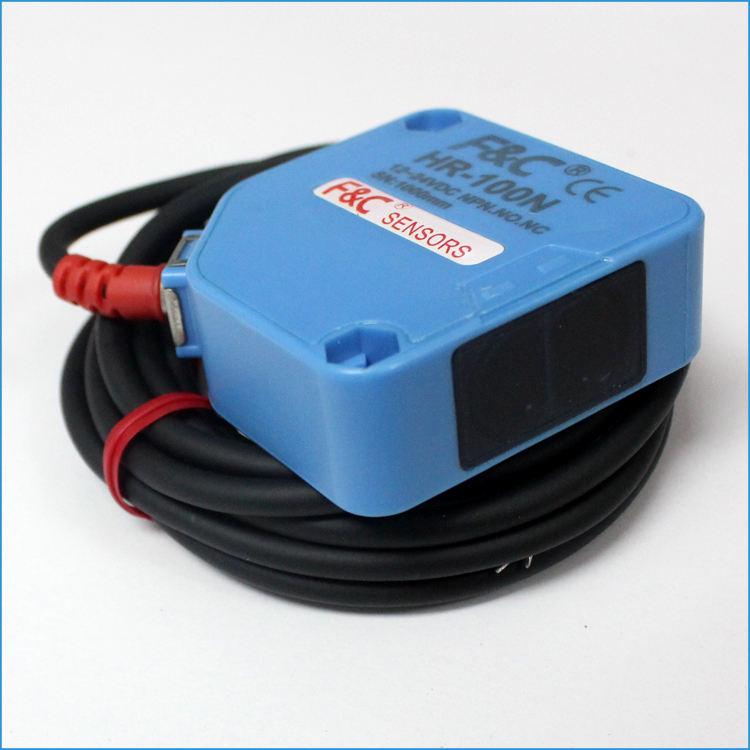

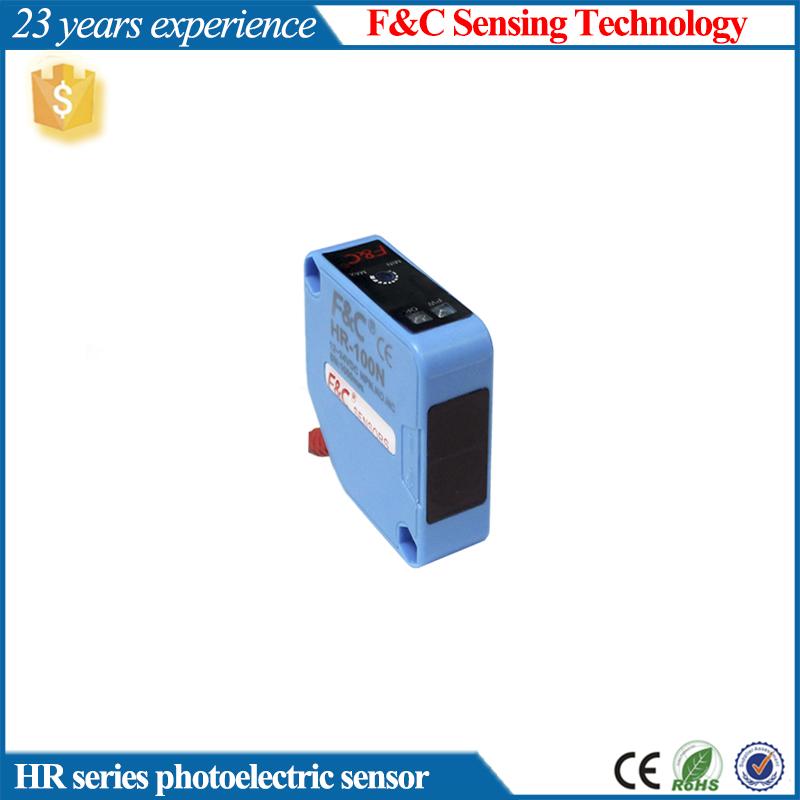

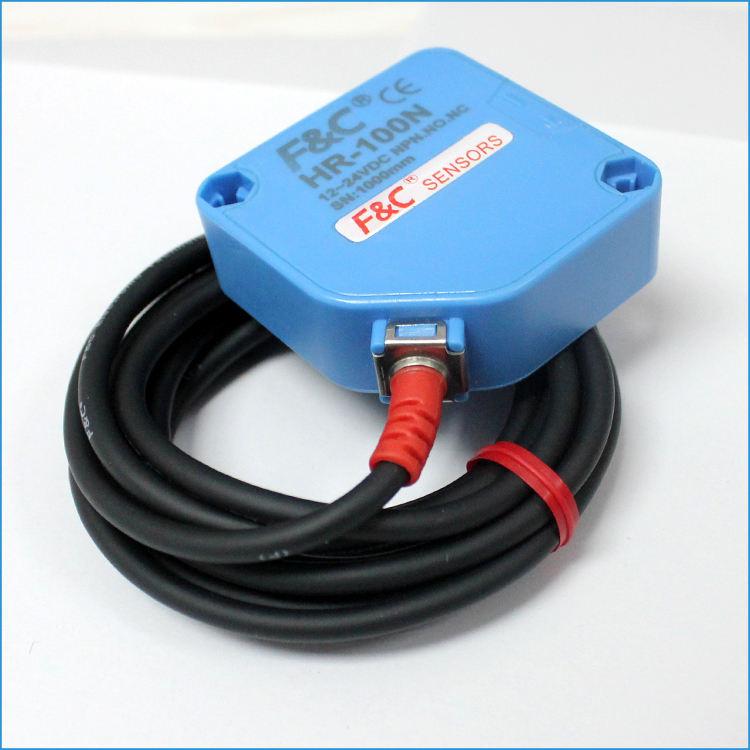

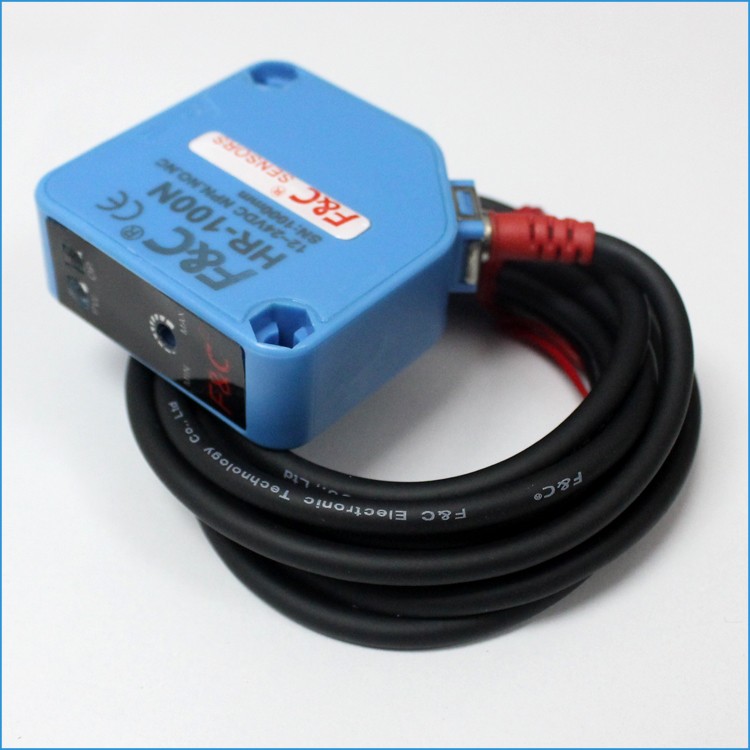

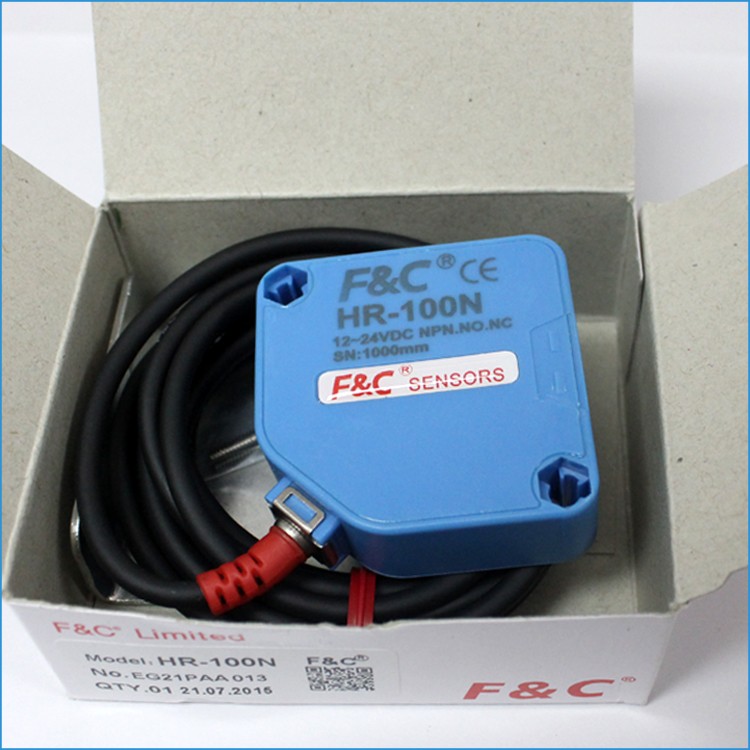

Photos (optical photoelectric sensor)

Dimensions(long range gold detector):
