Hospital Grounding Terminal Panel Mounting Receptacle Connector

Ground ring terminal are used for grounding and eliminating potential difference of various medical equipments and precision instruments.

Brand:
OLINK
Item no.:
OLD06-01
Payment:
Wire transer, West Union
Product origin:
China

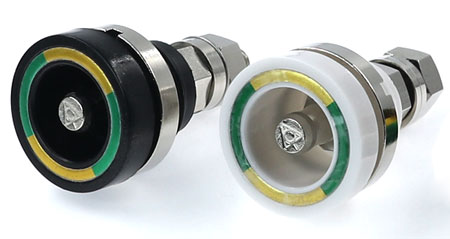

Color:
Black. White
Shipping port:
Xiamen
Lead Time:
7 days

Inquiry now

product introduction

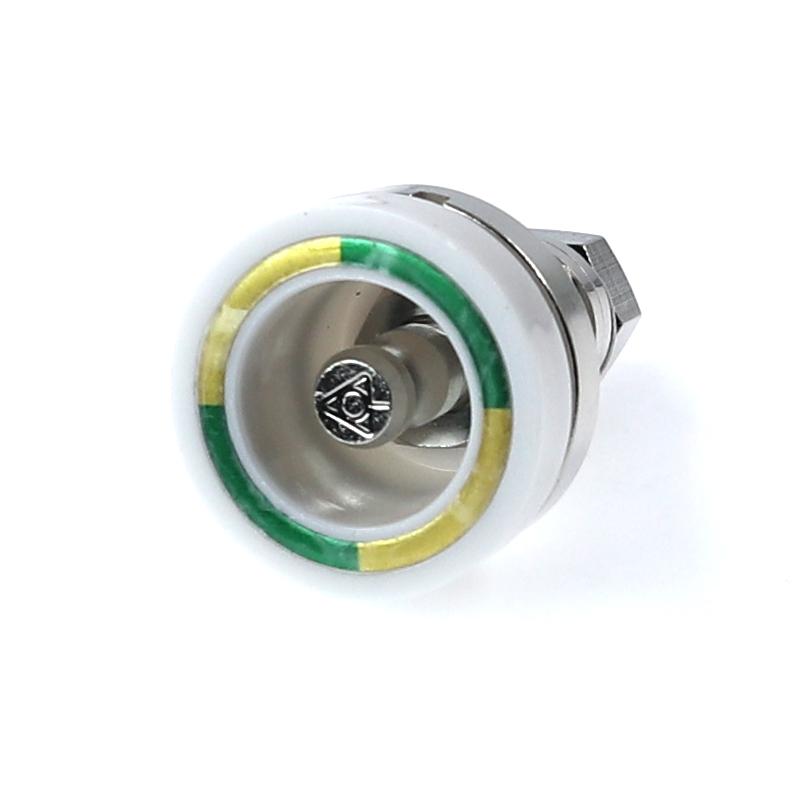

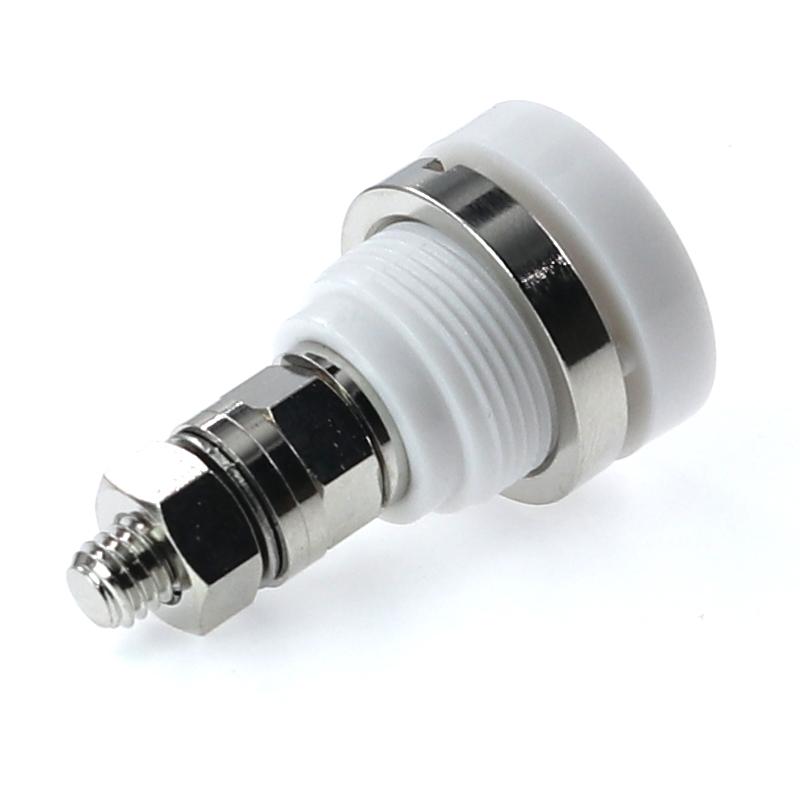

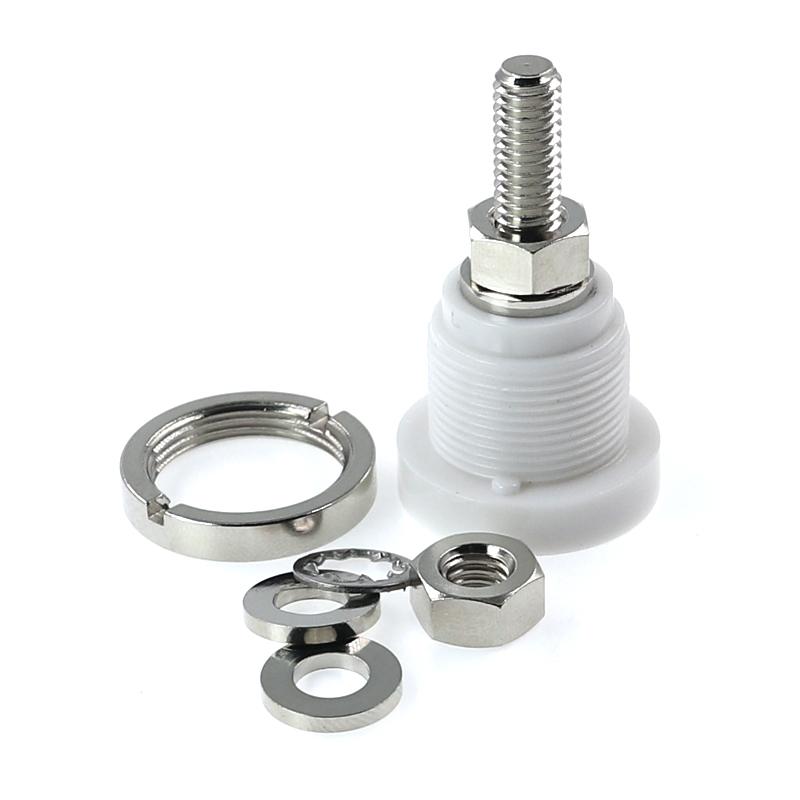

White Medical Grade Potential Socket Ground Terminal Connector

Equipotential connectors are used in medical equipment/common connectors used in medical equipment/grounding terminals used in medical equipment are mainly used for grounding in medical equipment, which can improve equipment detection accuracy, reduce electrostatic interference, and reduce measurement errors.


Equipotential terminal	Equipotential terminal size

Specification of Socket ground connector

Part Number	OLD06-01
Shell Style/Nodel	Fixed Socket	Fixed Type	Inner Fixed
Housing Material	PC Technical Plastic Material	Rings Unt Material	Nickel-Plated Brass
Washing Material	Nickel-Plated Brass	Color Ring Materiel	Aluminium Alloy Anodizing
Max. Matings	>5000	Contact Dia.	6mm
Vtest(Contact-shell)	2400V	Vtest(Contact-Contact)	2000V

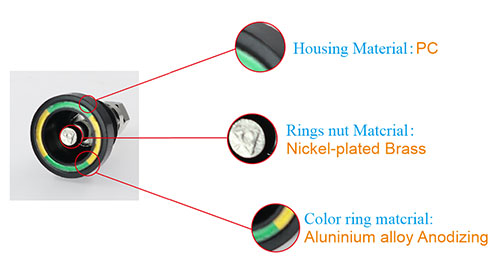

Material of ground terminal connector

	Material:
	Housing-PC
	Rings Nut-Nickel-Plated Brass
	Color Ring- Aluninium Alloy Anodizing

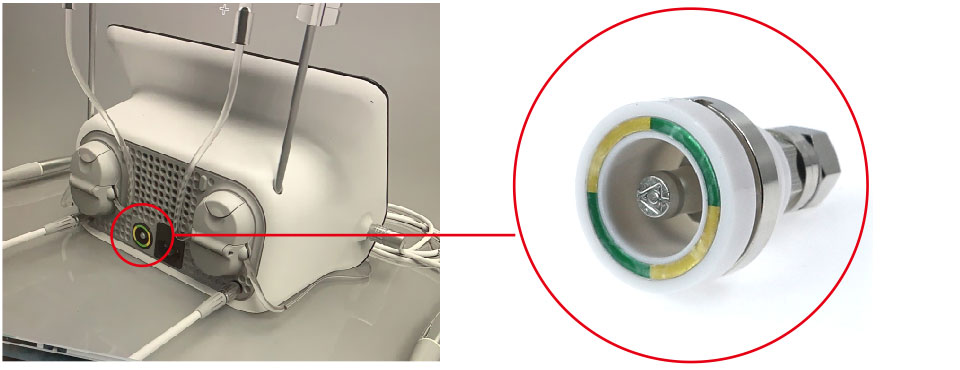

Application of grounding ring terminal

Equipotential connectors used in medical equipment/common connectors used in medical equipment/grounding terminals used in medical equipment are mainly used for grounding in medical equipment, which can improve equipment detection accuracy, reduce electrostatic interference, and reduce measurement errors.

Optional accessories

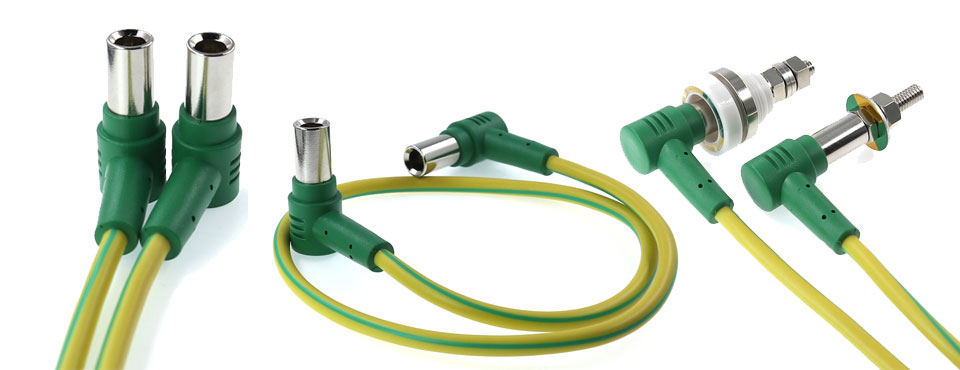

Optional connection harness for medical equipotential connector/grounding terminal, wire length can be customized.
