Overview

Quick Details

Model Number:

FC-SPX309

Place of Origin:

Hunan, China

Brand Name:

F&C

Usage:

Position Sensor

Theory:

Optical sensor

Output:

Switching Transducer

Light Source:

940nm infrared modulated light

Output Method:

NPN NO.NC

Detection Object:

Glass

Detection Distance:

10mm

Operating Voltage:

12-24 VDC

Response Time:

0.5ms Max

Operating Temperature:

-10~50℃(No icing)

Material:

ABS

Protection Degree:

IP64

Dielectric Strength:

1000VAC 60HZ for 60 seconds

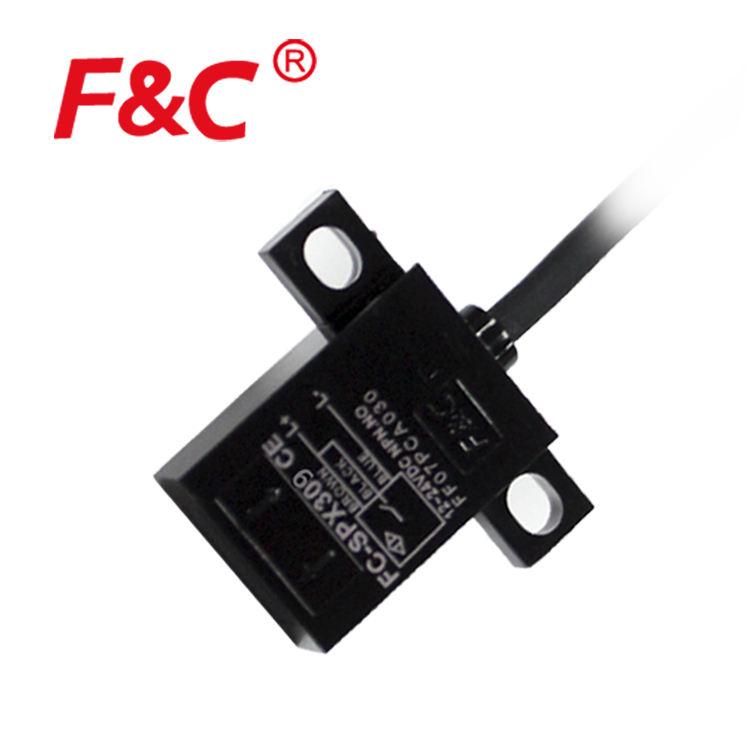

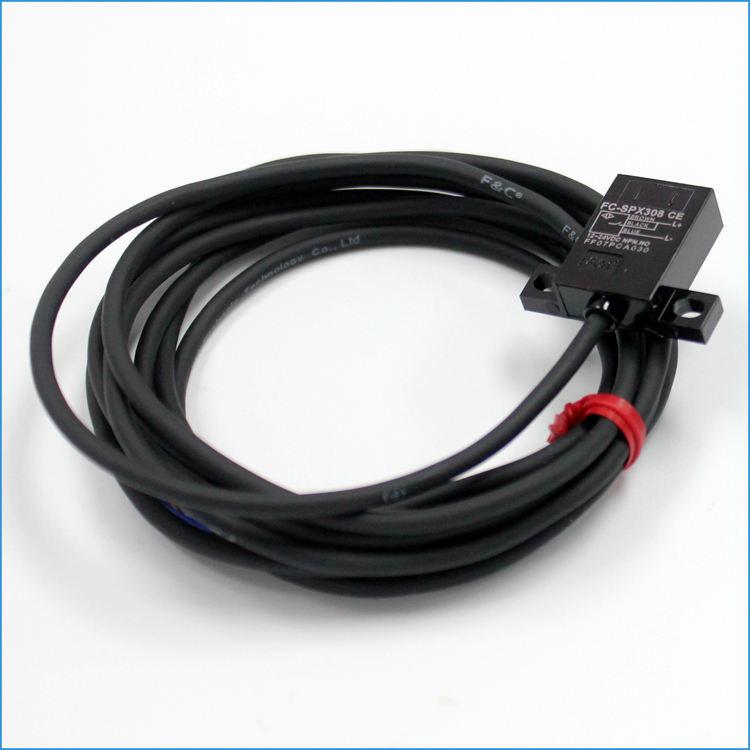

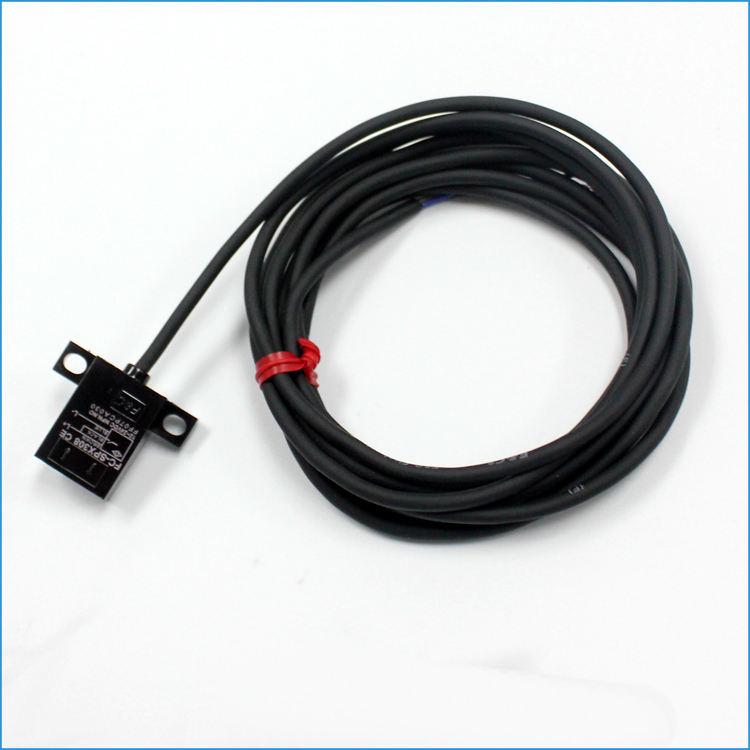

Top detection 4 wires 12-24VDC Glass Detector Photoelectric Sensor

Product Description





 F&C Main products:

Fiber Optic Sensor	Fiber optic cable	Proximity Sensor
Photoelectric Sensor	Light Curtain	Color Mark Sensor
Label sensor	Magnetic Sensor	Light Curtain







Model	FC-SPX309
Detection direction	Top
Output Method	NPN NO+NC
Standard Detection  Object Size	diameter 1mm opaque objects
Repeat accuracy	0.02mm
Detection Distance	10mm
Light Source	940 nm Infrared modulated light
Operating Voltage	12-24 VDC
Response Time	0.3ms Max.
Current Consumption	15mA Max.
Load current	100mA Max at 24 VDC
Insulation Resistance	20M Ohm Min. at 500 VDC
Dielectric strength	60 seconds at 1000VAC 60HZ
Protection Degree	IP64
Operating Temperature	-10℃-50℃ (No Icing)
Reverse Polarity Protection	Yes
Short Circuit Protection	Yes
Material	ABS
Wire Method	Prewired diameter 3mm*2M/- 4wires

	FC-SPX309 FC-SPX309/15D	NPN.NO.NC	top sensing ▆▆▆15mm
	FC-SPX309 FC-SPX309/15D	PNP.NO.NC
