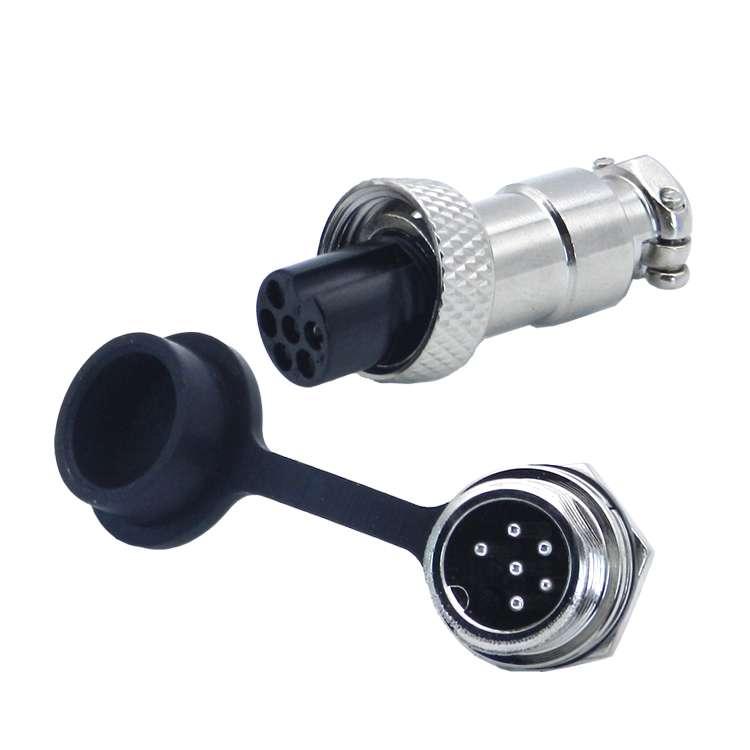

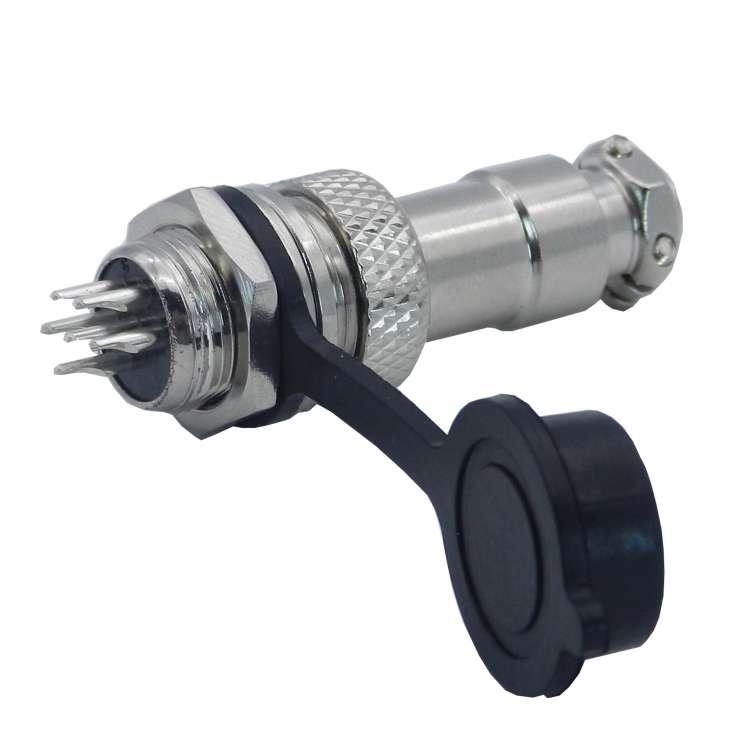

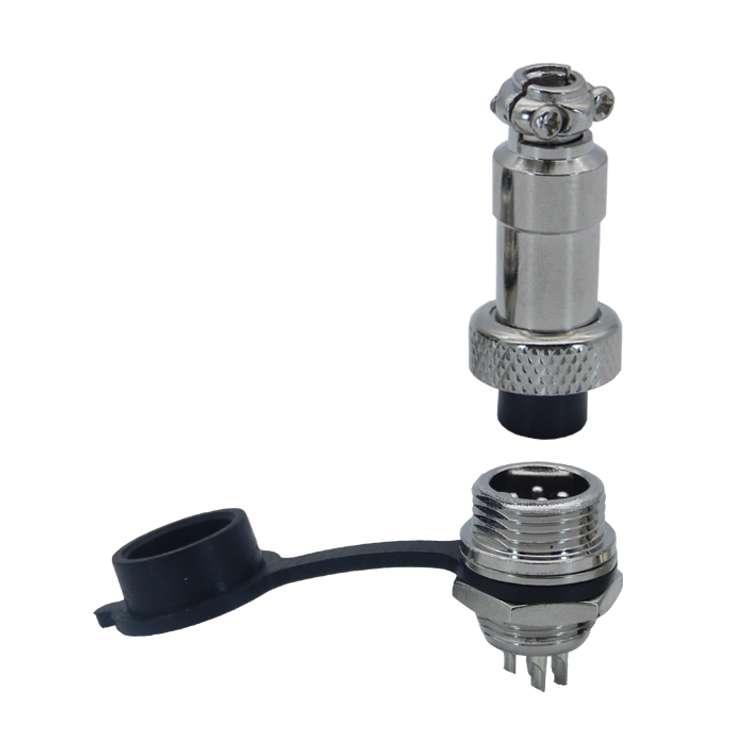

Aviation plug 12mm gx12 male and female socket

Panel mount GX12 plug connectors are sold as pairs. This is a robust metal connector which can be used for power or signal.

Brand:
OLINK
Item no.:
GX12
Payment:
Wire transfer, Paypal, Western Union, Alipay
Product origin:
China
Color:
Gray
Goods stock:
10000
Shipping port:
Xiamen
Lead Time:
7

Inquiry now

product introduction

Waterproof Cable Connector GX12 2 3 5pin Connector

GX type circular electrical connector is suitable for line connection between instruments, mechanical and electronic equipment. The plug and socket are connected by thread, which has the advantages of simple structure, convenient application and beautiful appearance.

Working condition of Circle electrical connector

Working Temperature:	-40~+85°C
Relative humidity:	92 ~ 98% at40±2°C,
Working pressure:	101.33kPa~6.67Pa
Shock:	Max acceleration 245 m/s²
Endurance:	≥ 500 cycles
Vibration:	Frequency 10 Hz~200Hz, 98m/s²
Constant acceleration:	245 m/s²
Housing:	Zinc alloy nickel plating
Contact:	Brass Silver plated
Hole:	Phosphor bronze tin plating

Type of Circle electrical connector


Plug of cable IP55 GX-A	Rear nut socket IP55 GX-B	90 degree Plug of Cable IP55 GX-D	Round flange socket IP55 GX-E

Front nut socket IP55 GX-F	Flange assembless a socket IP55 GX-H	Connector of cable IP55 GX-K	Binocuius flange socket IP55 GX-X

GX16 series Aviation plug connector hole place arranges

GX series circular connector According to the diameter matched with the panel: GX12, GX16, GX18, GX20, GX25, GX30, GX35, GX40

For more information, please contact us by email or through any contact information on the webpage.
