Amphenol Military MS3108A10SL-4S Right Angle Plug 4 pin Connector

Military Connector Ip67 U229 Ms3108 is developed and produced according to American mil-c-5015g standard, Specially designed for military use

Brand:
OLINK
Item no.:
MS3108A10SL-4S
Payment:
Wire transer, West Union
Color:
Green
Goods stock:
8000
Min order:
10
Shipping port:
Xiamen
Lead Time:
3days

Inquiry now

product introduction

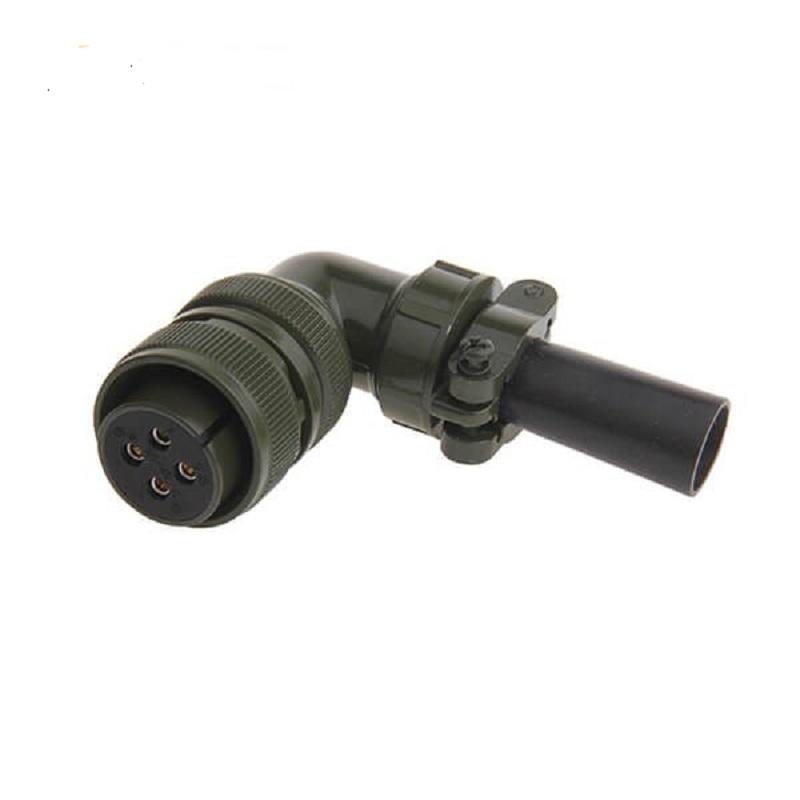

Amphenol Military MS3108A10SL-4S Right Angle Plug 4 pin Connector

These circular connectors are especially suitable for military purposes. Nowadays, they are also widely used in the industrial industry. A large number of specifications make the products meet the choices of different customers. MS series connector is the best solution in various application fields。

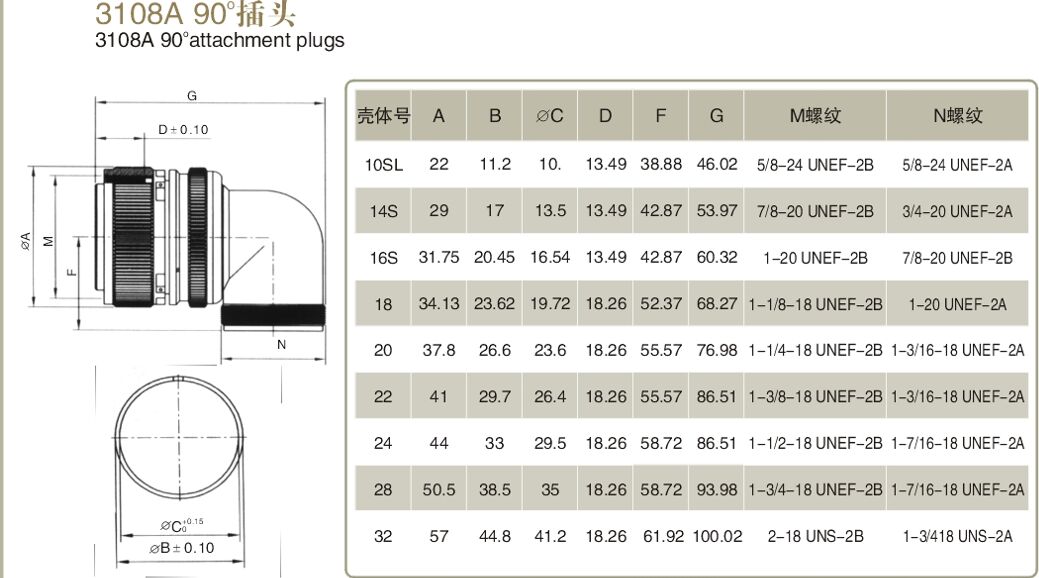

Main Technical Specification for Military MS3108A10SL-4S :

Series	MS5015-MS3108
Shell size	10SL/ 14S/16S/16/18/20/22/24/28
Pin NO	2-37pin	Contact size	#0, #4,#8,#12,#16
Shell	Aluminum alloy, Olive drab chromate	Contact	Brass with gold plated
Insulator	Synthetic Rubber	surface treatment	Military green electroplating
Temperature range	-55°C ~ +125°C	Insulation resistance	5,000 Mega ohms minimum(at 25°C)
Frequency Range	10-2000HZ/147m /S2	Voltage Rating	500VAC 700VDC
Mating type	Threaded coupling	Termination	Solder
