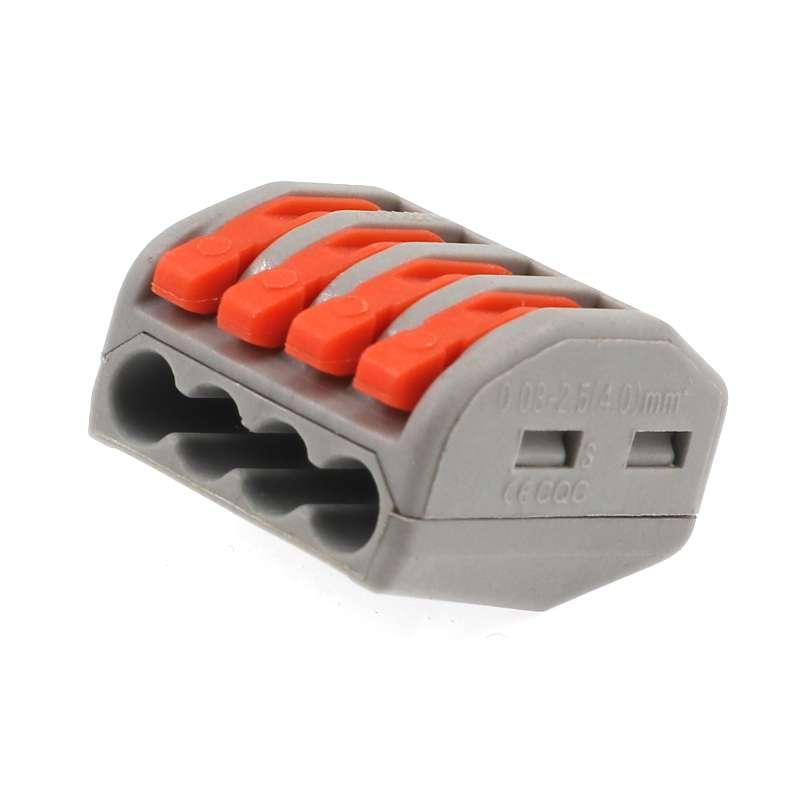

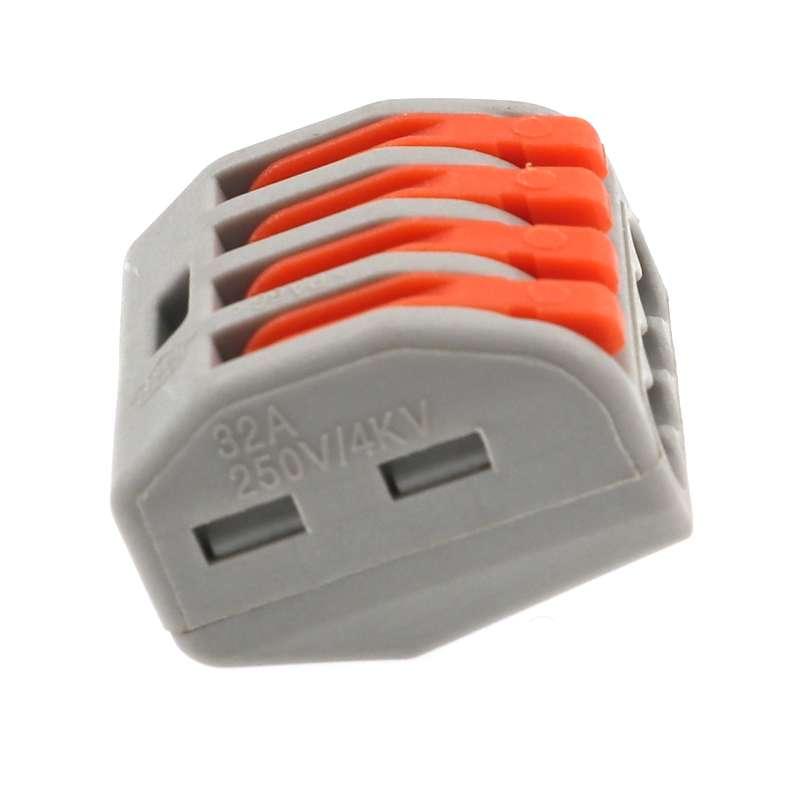

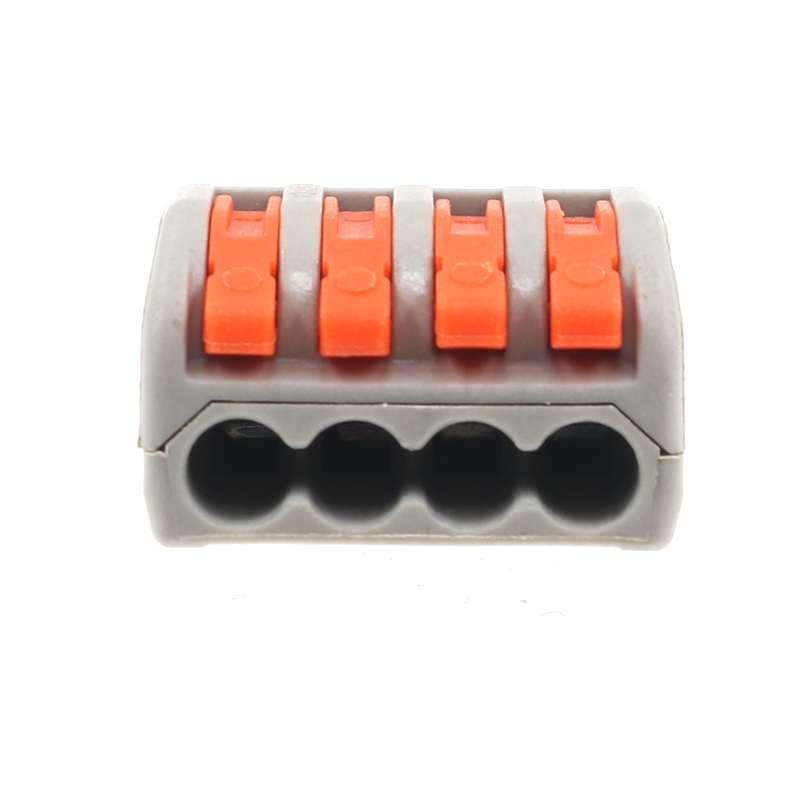

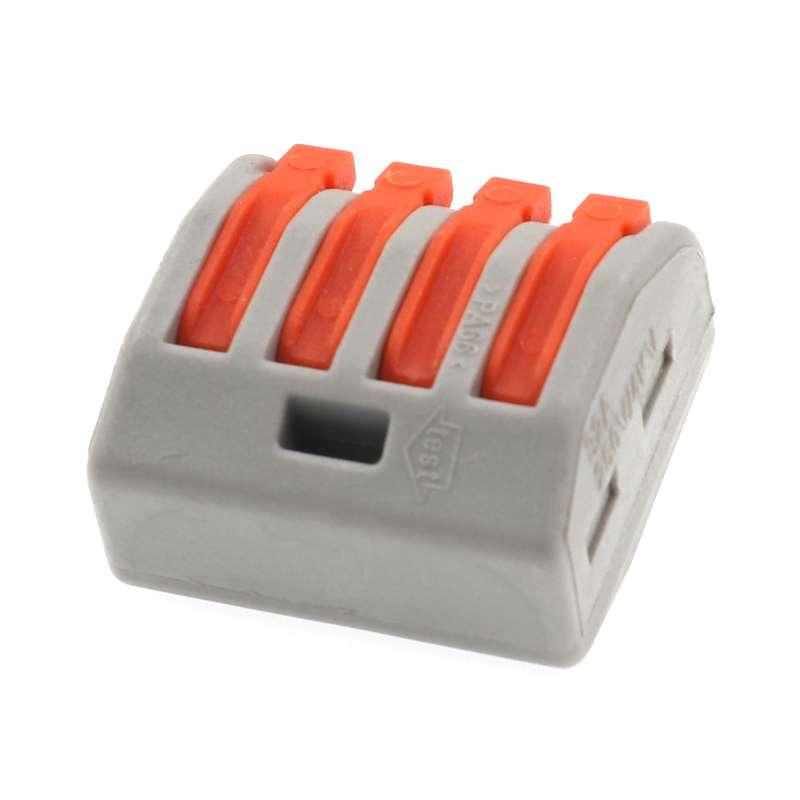

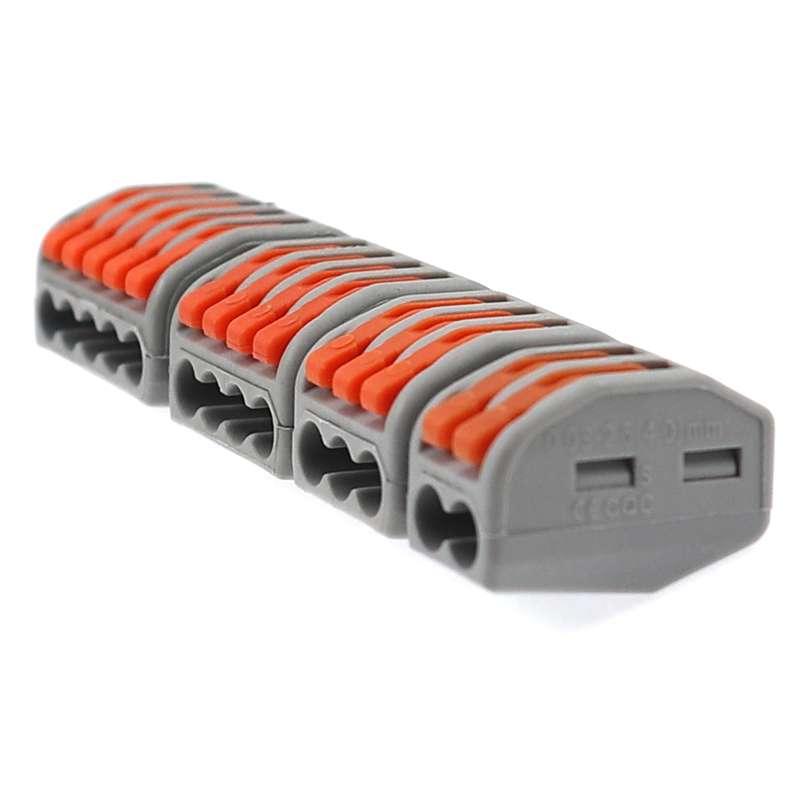

4 way lever nut wire connector PCT-214

Equivalent to 222 series connector, there are 2p, 3p, 4p, 5p and 8p. Easy to install, handle color can be customized.

Brand:
OLINK
Item no.:
PCT-214
Payment:
Wire transfer, PayPal, Western Union, Alipay
Product origin:
China
Color:
Gray/Orange (handle color can be customized)
Goods stock:
500000
Min order:
100
Product weight:
3
Shipping port:
Xiamen, Ningbo,shenzhen,shanghai
Lead Time:
7

Inquiry now

product introduction

4 way lever nut wire connector PCT-214

Description of Lever Nut Connectors

The lever nut connectors can be reused and the wiring is reliable. The shell is made of flame-retardant material to prevent fire, and there is a copper nickel-plated conductive sheet inside, which has good conductivity.

Features of Lever Wire Connectors

Small size and reusable;
Use copper-plated nickel (tin-plated) conductive strips for better contact and conductivity;
The shell is made of nylon or PC, and the flame retardant grade is UL94 V-0;
The clip is made of nickel-chromium spring steel, which has strong durability and good wire fixing ability;
The color of the handle of this lever nut connector can be customized to distinguish incoming wires.

Specifications of Lever Wire Connectors

Product Name:	lever nut connectors	Application:	Junction box/electric power
Wiring method:	Insert Crimp	Wire type:	Hard/Flexible wire
Strip length:	9-11 mm/0.39 in	Cross section:	0.75 - 2.5(4.0) mm²
Voltage(max.):	400 V	Rated Current:	20 A
Shell material:	Nylon/PC	Conductive material:	Tinned phosphor bronze

More Wire Connectors

*For more information, please contact us by email or through any contact information on the webpage.
