3p 4pin 5pin 7 8pin 9 10 12 15pin aviation jointing

WS series circular aviation connector accords with SJ/T1049694, specially designed to ensure maximum user safety and electric shock protection.

Brand:
OLINK
Item no.:
WS
Payment:
Wire transer, West Union, Paypal
Product origin:
China
Color:
Silver
Shipping port:
Xiamen
Lead Time:
7 days

Inquiry now

product introduction

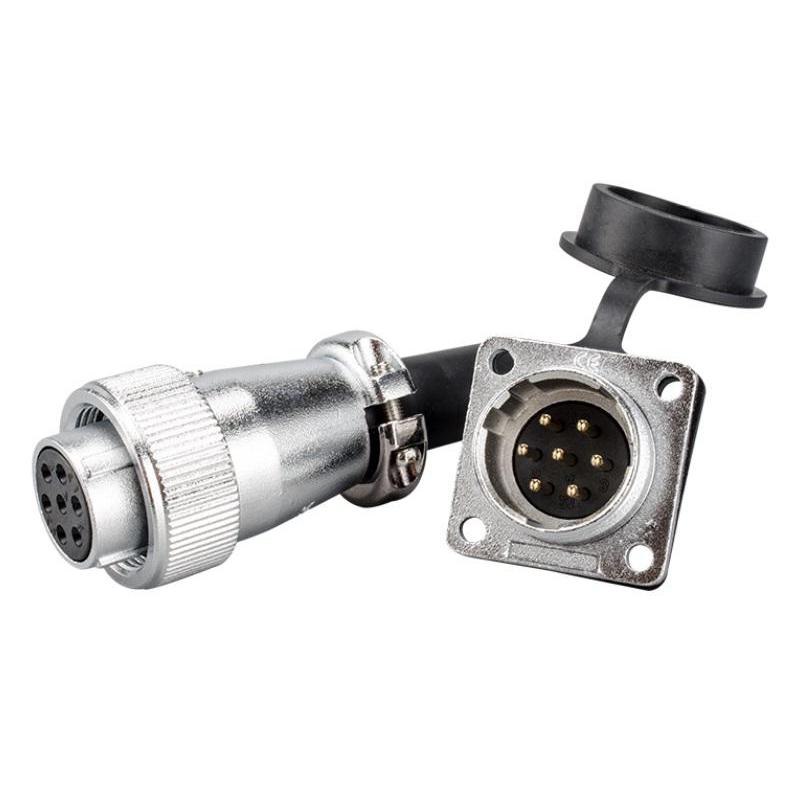

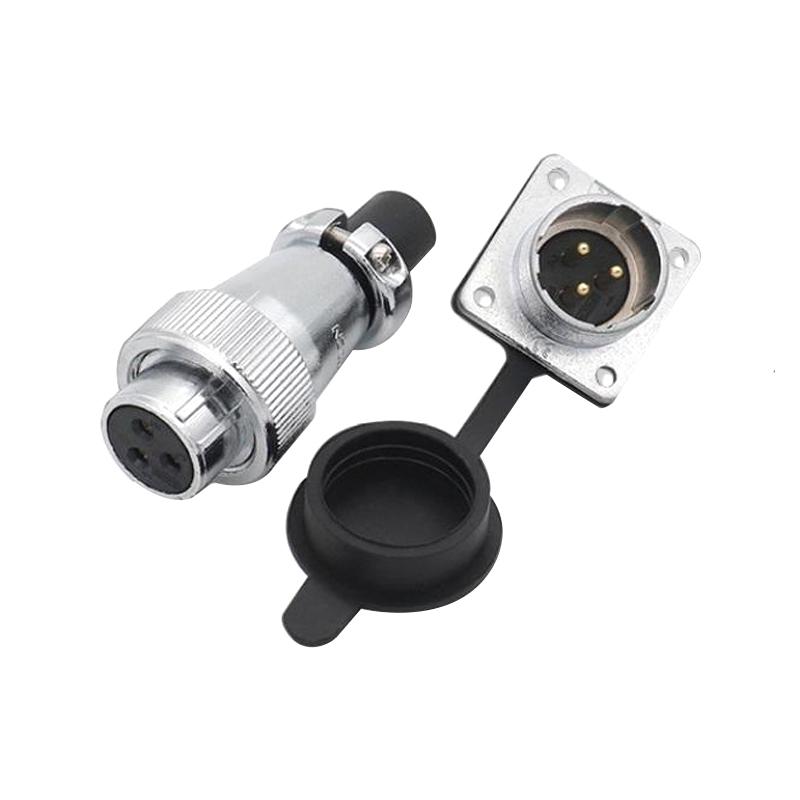

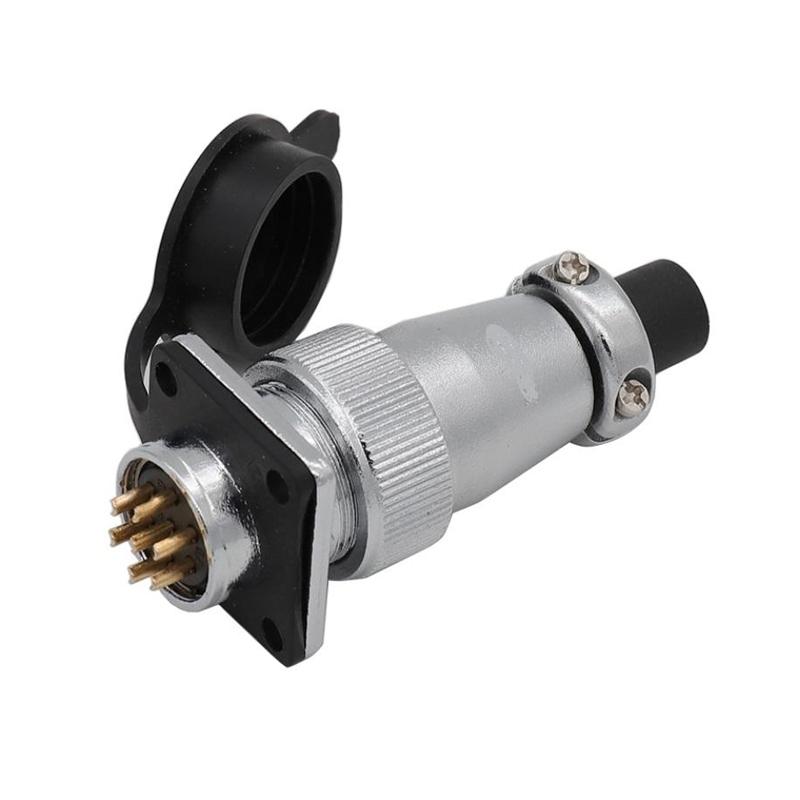

Waterproof ws series aviation connector

Ordering Information:

Material and specification:

Coupling Threaded

Shell material Zinc alloy with chrome plating

Insert material PPS, max temperature 260 ℃

Contact material Brass with gold plating

Termination Solder: Ø1, Ø1.5, Ø2.5, Ø3.5, Ø5,5mm;
Screw: Ø2.5, Ø3, Ø3.5mm;
Crimp: Ø1, Ø1.5, Ø2.5, Ø3.5, Ø5.5, Ø10mm

Mating cycle 500

Temperature range -40℃ ~ + 85℃

WS Series Mating diagram
