Emergency stop button

 /19mm 22mm Red Mushroom Emergency Stop Button ASwitch Metal

22mm emergency stop button
22mm emergency stop button 22mm emergency stop button 22mm emergency stop button 22mm emergency stop button 22mm emergency stop button 22mm emergency stop button

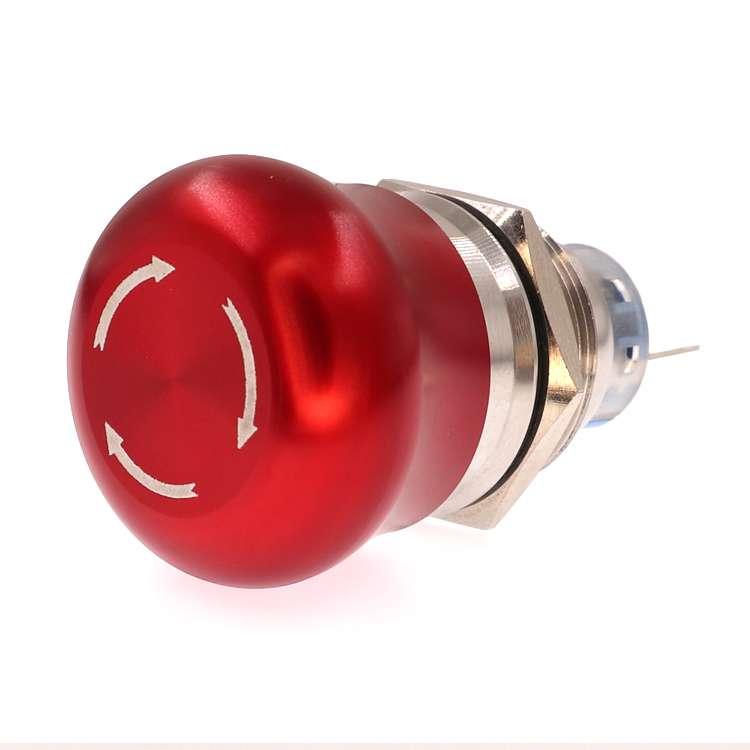

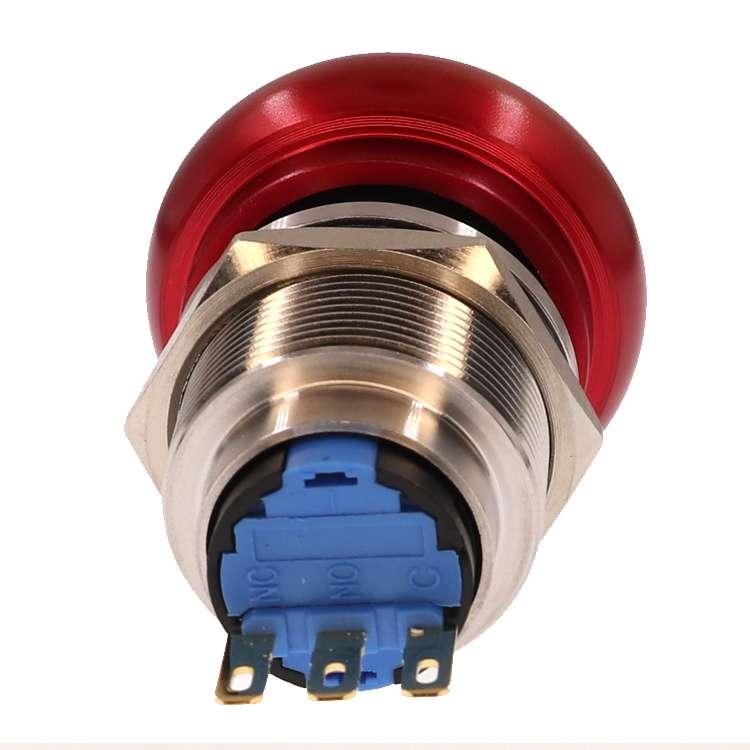

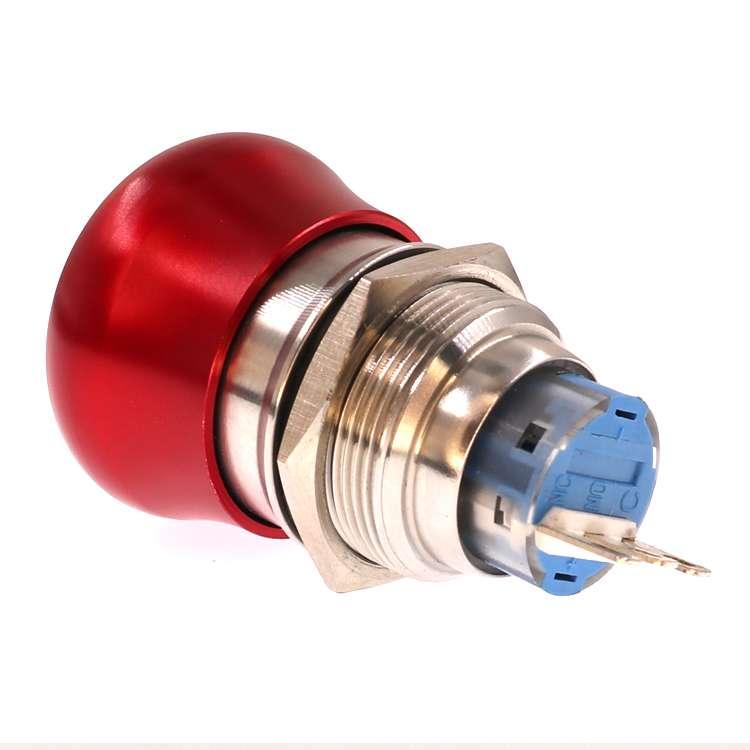

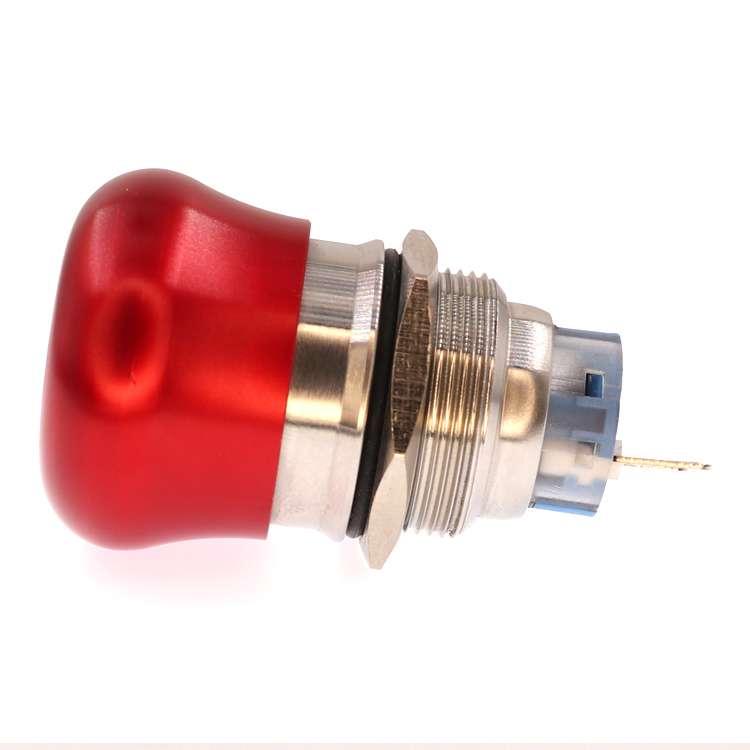

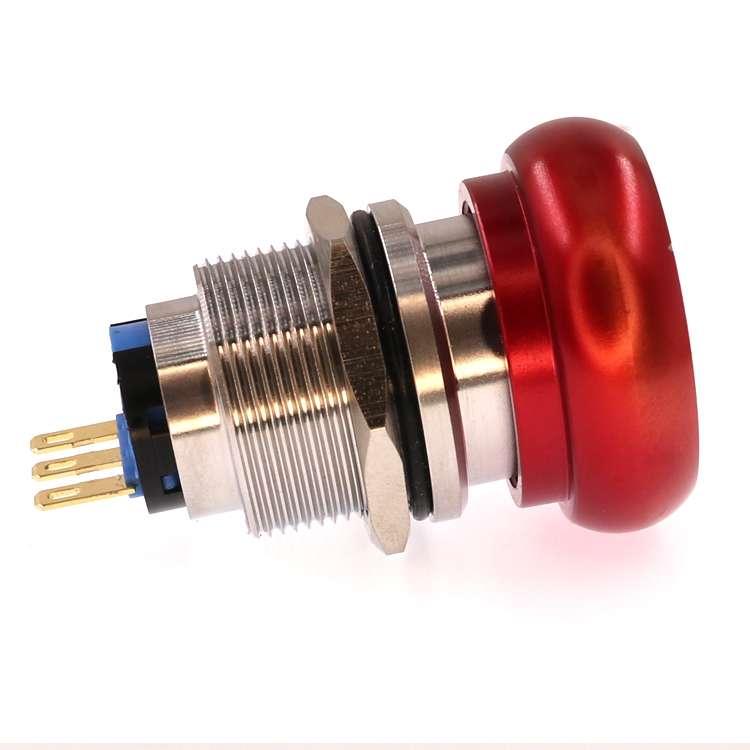

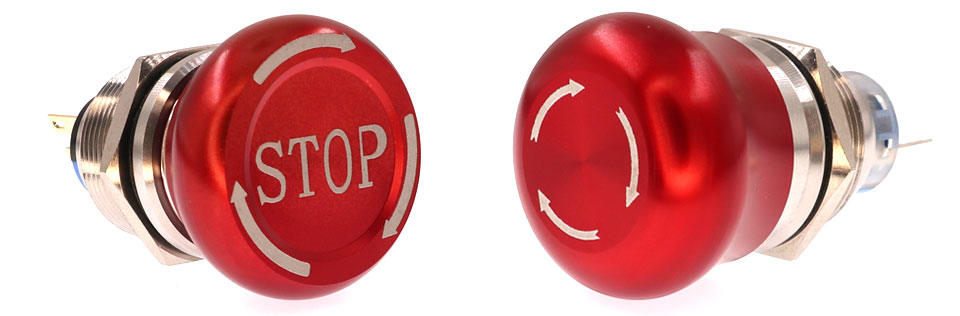

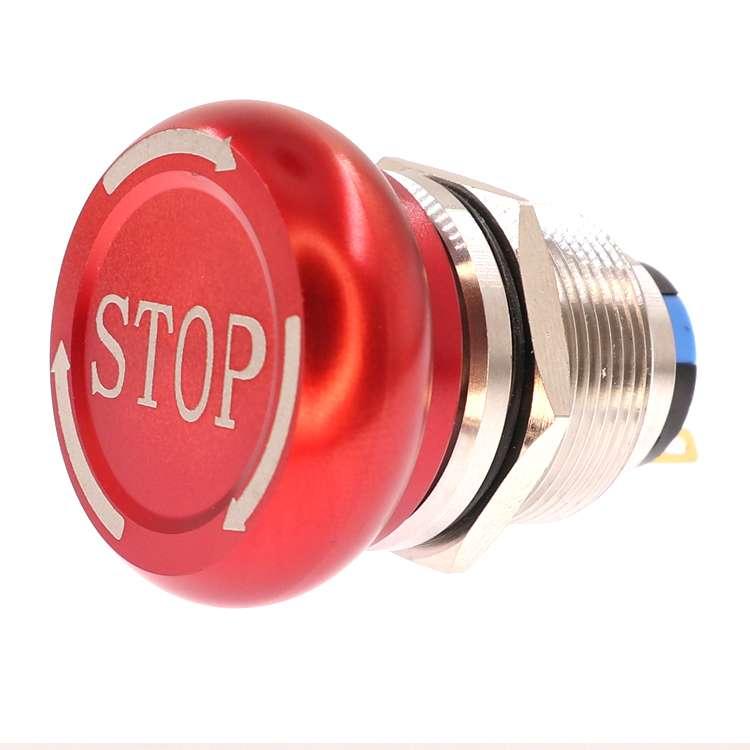

19mm 22mm Red Mushroom Emergency Stop Button ASwitch Metal

1NO1NC or 2NO2NC, mushroom head emergency stop switch, metal shell, with good quality.


  • Brand:

    OLINK

  • Item no.:

    22QC

  • Payment:

    Wire transfer, PayPal, Western Union, Alipay

  • Product origin:

    China

  • Color:

    Yellow & black & red

  • Min order:

    40

  • Shipping port:

    Xiamen, Ningbo

  • Lead Time:

    7
Inquiry now

22mm red mushroom emergency stop button switch metal

 Features Of Lockable Emergency Stop Button

  • Stable structure: 1 million times long mechanical life

  • Installation accessories: matching nut, waterproof ring, IP65 professional waterproof, more firm installation

  • IP65 Dust-proof and water-proof: Water-proof silicone is installed inside the product, which is safe and environmentally friendly, waterproof and dustproof

  • Superior energization performance: adopts all-cause contacts, safe and reliable, and excellent energization performance

 Specifications Of Lockable Emergency Stop Button

Product name:   Metal Emergency Stop Button
 Model:   22QC-M11Z/A(R)
Degree of protection:   IP65/IP67, IK10

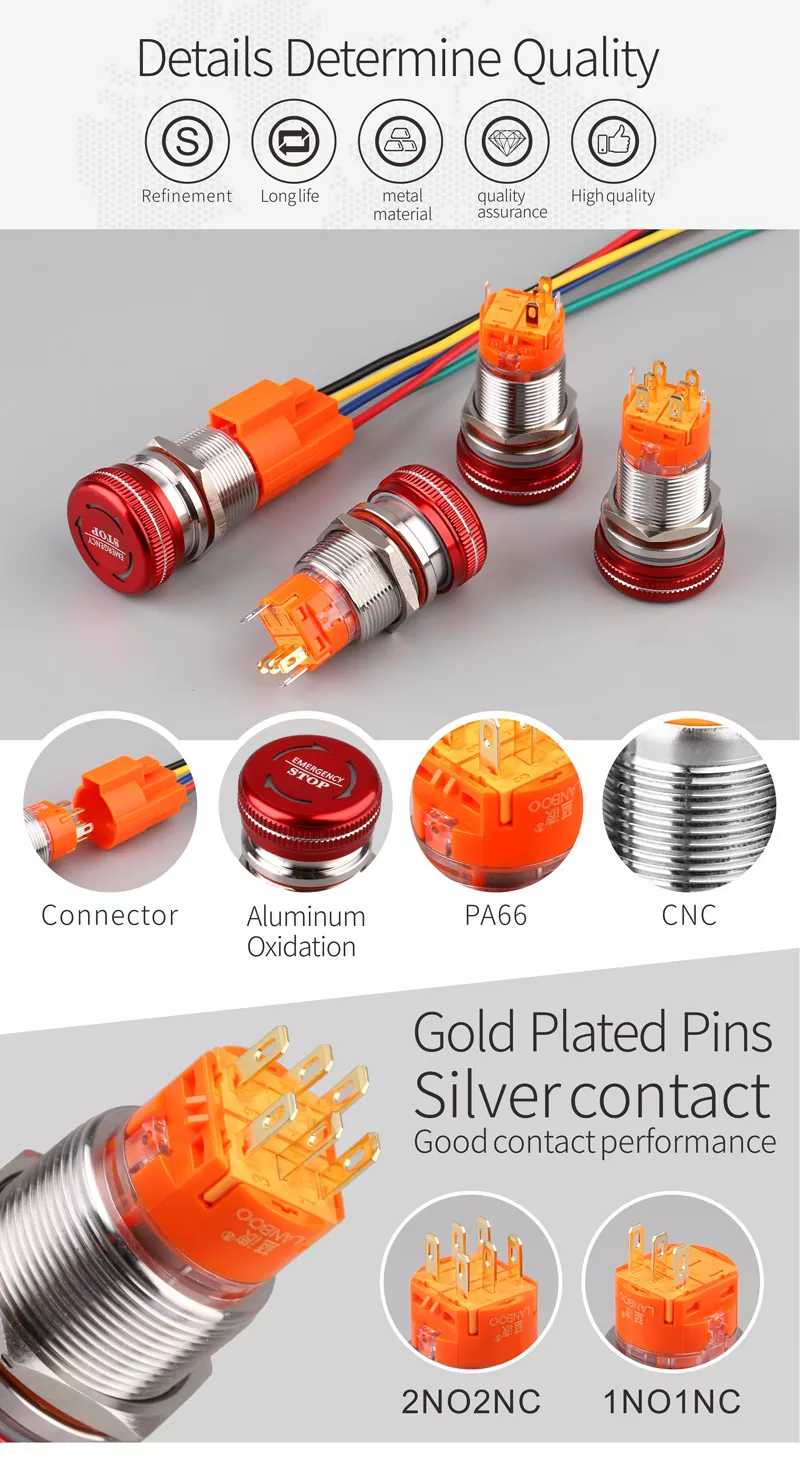

 Switch function:

 1NO1NC/2NO2NC

 Momentary/Self-locking

Switch rating:   5A/ 250V AC Terminal type:   2.8x0.5 J pin terminal
Panel thickness:
  1~10 mm Contact material:   Silver alloy
Shell material:
  Stainless steel Operating temperature:   -25℃ to +55℃
Life:

 ＞500,000 times (Mechanical)

 ＞50,000 times (Electrical)

Contact resistance:   ≤50MΩ


FAQ:

How to wire a push button switch?

  • Matched socket: safety, convenience, reliable, plug and play
  • Terminal sheath: economical and practical
  • Manual soldering: It is recommended to use a 25W electric soldering iron, and the soldering time should be within 3 seconds
  • Automatic welding machine: recommended 240℃ within 3 seconds

*If you need more information, you can find customer service through the contact information on the right side of this page.
