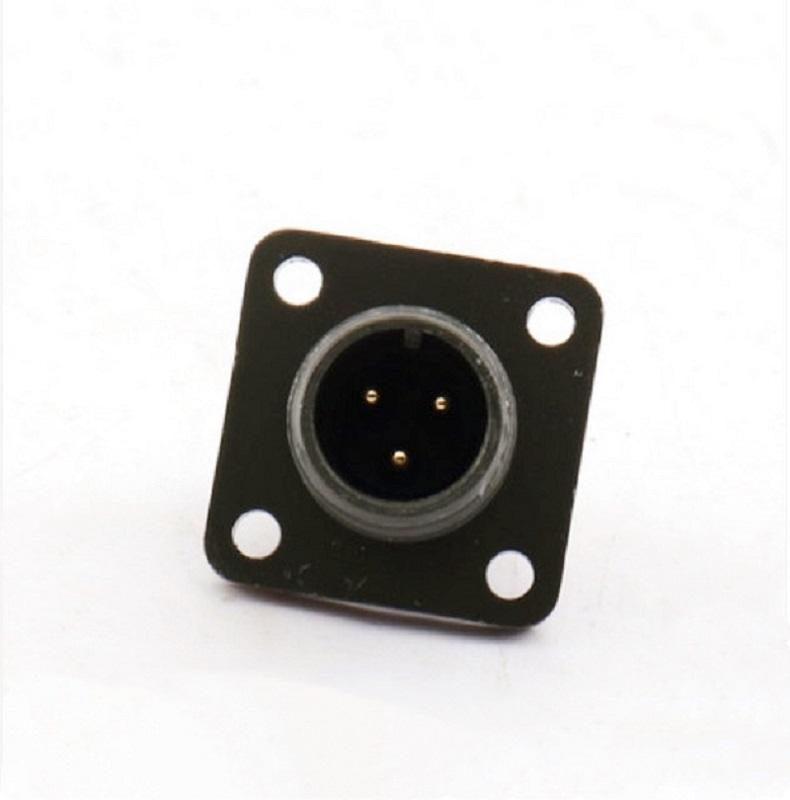

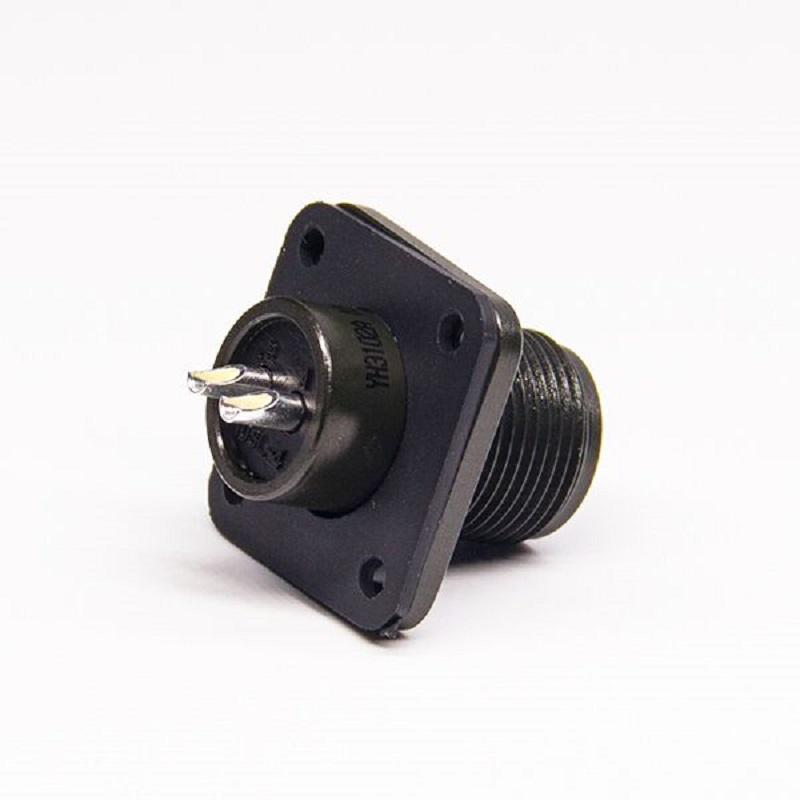

Military Connector 3Pin MS3102A Male Pins

The 3 pin military connector is developed and produced according to American mil-c-5015g standard, Specially designed for military use

  • Brand:

    OLINK
  • Item no.:

    MS3102A
  • Payment:

    Wire transer, West Union
  • Color:

    Green
  • Goods stock:

    8000
  • Min order:

    10
  • Shipping port:

    Xiamen
  • Lead Time:

    3days

            Military Connector 3Pin MS3102A Male Pins


These circular connectors are especially suitable for military purposes. Nowadays, they are also widely used in the industrial industry. A large number of specifications make the products meet the choices of different customers. MS series connector is the best solution in various application fields。

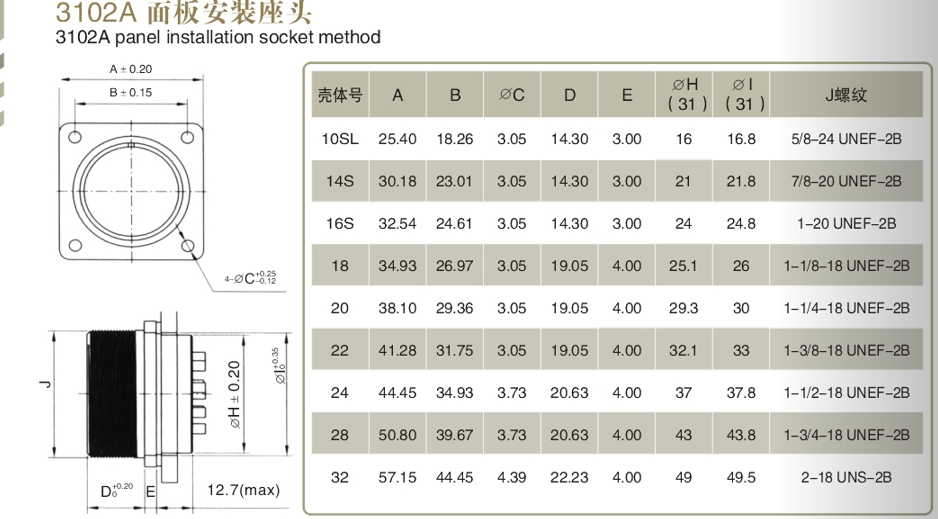

Main Technical Specification for Military  MS3102A:

Series MS5015-MS3102A
Shell size 10SL/ 14S/16S/16/18/20/22/24/28
Pin NO 2-37pin Contact size #0, #4,#8,#12,#16
Shell Aluminum alloy, Olive drab chromate Contact  Brass with gold plated
Insulator Synthetic Rubber surface treatment
Military green electroplating
Temperature range -55°C ~ +125°C
Insulation resistance 5,000 Mega ohms minimum(at 25°C)

Frequency Range 10-2000HZ/147m /S2 Voltage Rating 500VAC 700VDC
Mating type Threaded coupling Termination Solder
