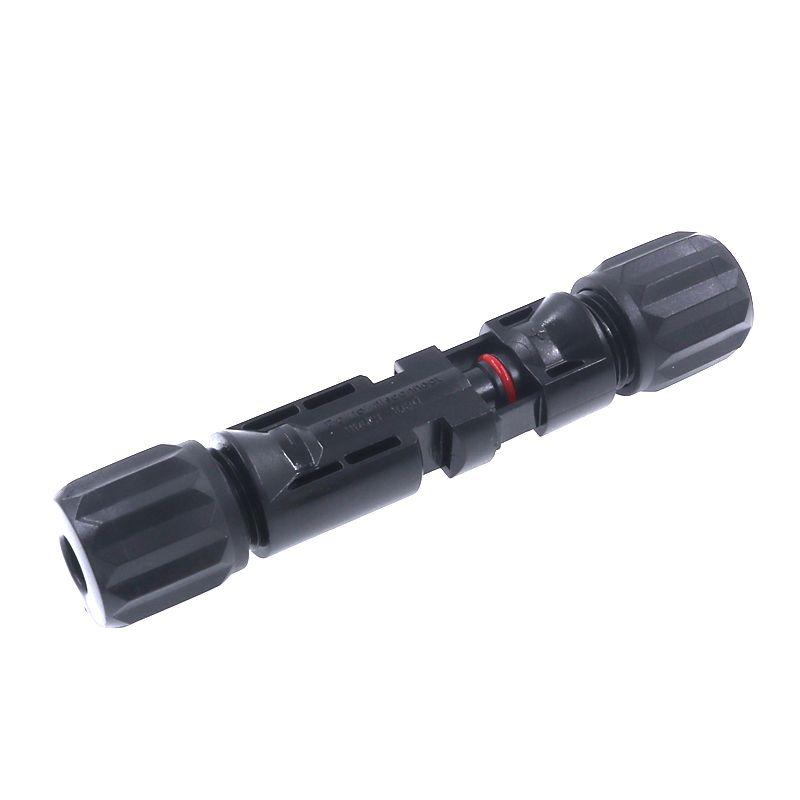

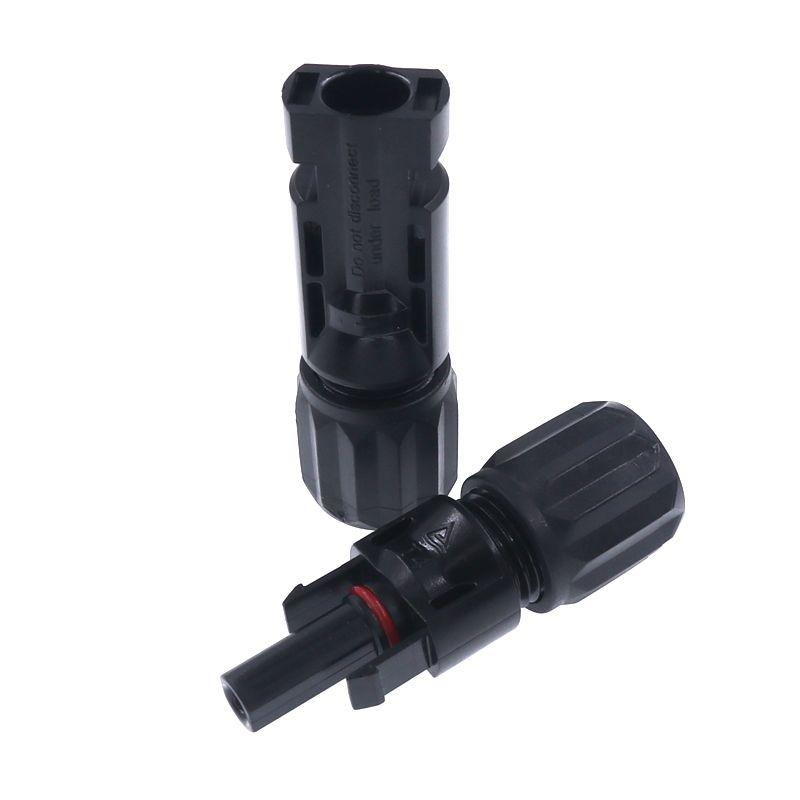

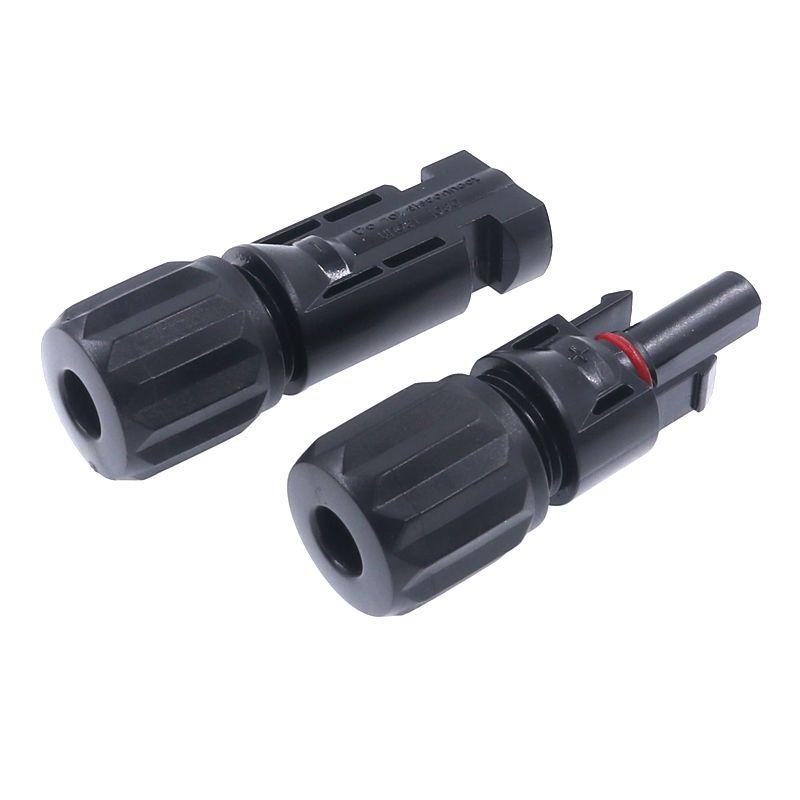

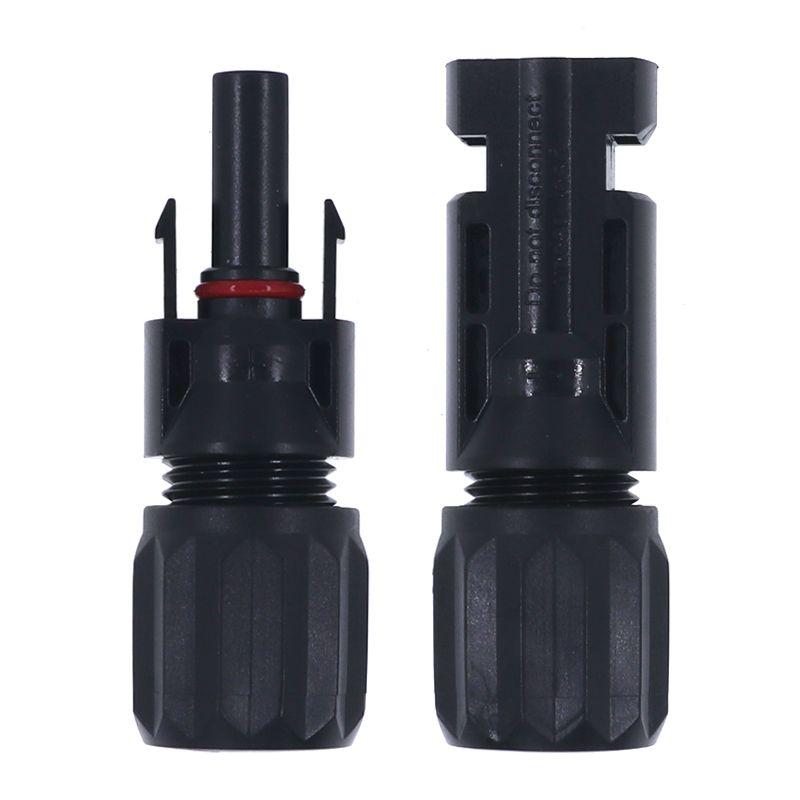

IP67 waterproof solar PV system connector H4

Replacement Amphenol H4 solar connectors, it is the special connector when solar photovoltaic panels are connected in parallel to form an array module. Easier to assemble and install.


  • Brand:

    OLINK
  • Item no.:

    PV-LTM4-2
  • Payment:

    Wire transfer, PayPal, Western Union, Alipay
  • Product origin:

    China
  • Color:

    Black
  • Goods stock:

    50000
  • Shipping port:

    Xiamen, Ningbo
  • Lead Time:

    7

 It Has The Characteristics Of Fast And Reliable Connection, Waterproof And Dustproof, And Convenient To Use. The Shell Has Strong Anti-Aging And Ultraviolet Resistance. The Cable Connection Adopts Compression And Tightening Methods. Connection, Male And Female Heads Are Fixed With A Stable Self-Locking Mechanism, Which Can Be Opened And Closed Freely.

  Drawings Of Solar Power Connector

  Technical Data For MC4 Solar Connector

Connector System:
 φ4mm Temperature range:
 -40℃...+90℃
Rated Voltage:   1000 V DC, 1500 V DC Rated current:   30 / 50 A (1.5 mm²~6 mm²)
Degree of protection, mated:   IP67 Unmated:   IP2X
Contact resistance of plug Connectors:   0.5 mΩ Contact material:   Messing, verzinnt  Copper Alloy, tin plated
Insulation material:   PC/PPO
Locking system:   Snap-in
Flame class:   UL-94-V0 Salt mist spary test, degree of severity 5:   IEC 60068-2-52


  Feature Of PV Solar Connector

  • Waterproof Grade IP67: Adopts High-Quality Waterproof Ring, With Waterproof And Dustproof Effect
  • Thicker Copper Core, Brass Tinned Inner Core: More Anti-Corrosion, Anti-Oxidation, And Increase Service Life
  • The Shell Is Made Of PPO High-Strength Material: High Heat Resistance, Low Flammable Point, Wear-Resistant And Durable
  • Insulation Parts: The Hole Contacting Head Of The Product Is Equipped With A Guiding Insulator, Which Plays A Role Of Guiding And Preventing Electric Shock
  • Standard Size: The Connection Is Connected By Pressing, And The Male And Female Heads Are Equipped With Self-Locking Mechanism, Which Can Be Opened And Closed Freely.


*For More Information, Please Contact Us By Email Or Through Any Contact Information On The Webpage.
