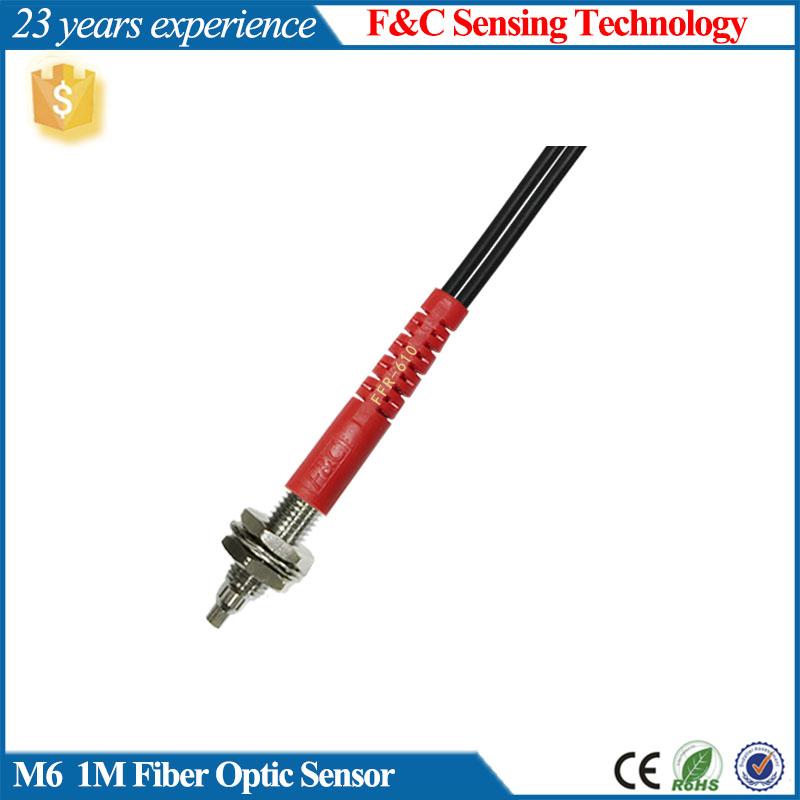

FFR-610 M6 diffuse reflection optical fiber tube optical sensor detects objects

FFR-610 1M line of M6 ,M6 Fiber Optic Sensor

Brand:
F&C
Item no.:
FFR-610
Color:
black

Inquiry now

product introduction

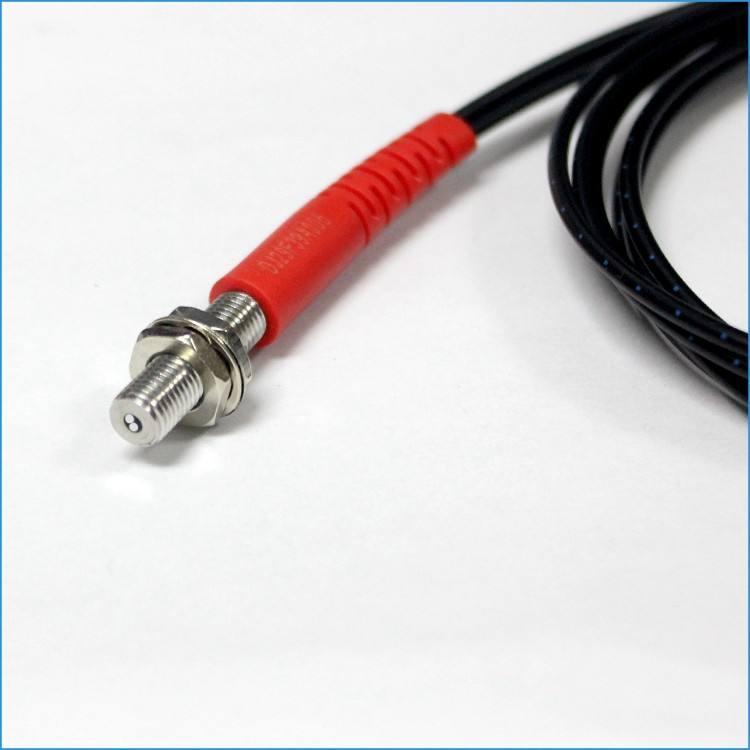

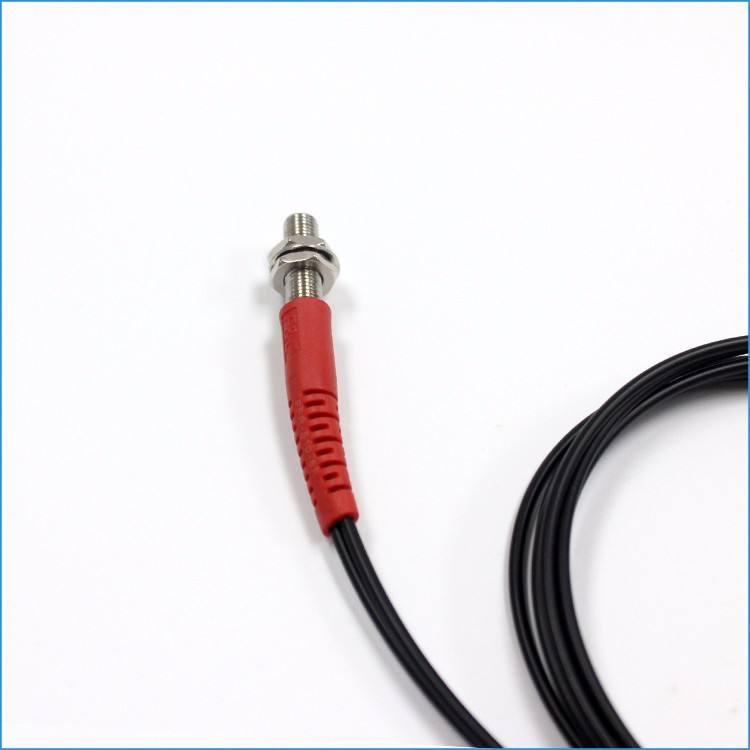

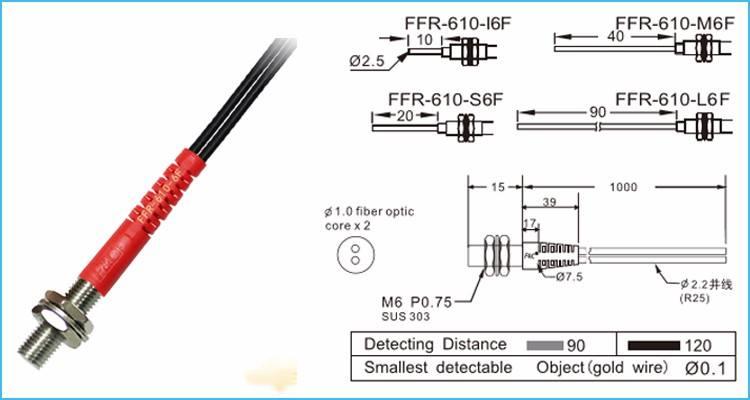

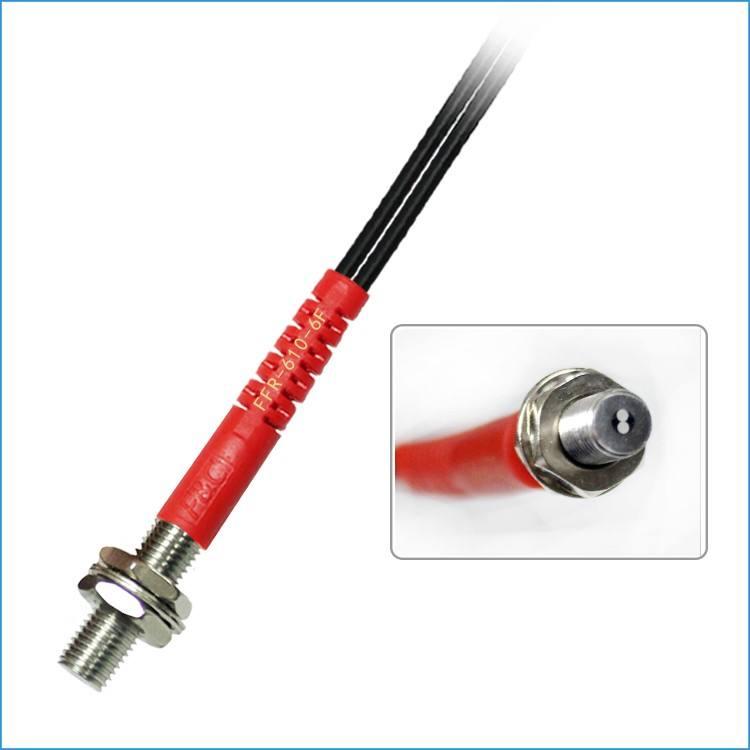

FFR-610 M6 diffuse reflection optical fiber tube optical sensor

Model Number:: FFR

Place of Origin:: Hunan, China

Brand Name:: F&C

Usage:: Position Sensor, Automation Control Position Sensor

Theory:: Optical sensor

Output:: Switching Transducer

Optic Fiber::: diameter2.2*1.0*2

Detection distance:: 90-120mm

Bending radius::: 25

Temperature:: -25 to 60 degree

Diameter:: M6 M5 M4 M3

Cable:: 1m cable length fiber (free cutting)

Material:: SUS303 M4 thread head

Supply Ability: 50000 Piece/Pieces per Month

Tags :

Leave A Message

If you are interested in our products and want to know more details,please leave a message here,we will reply you as soon as we can.
